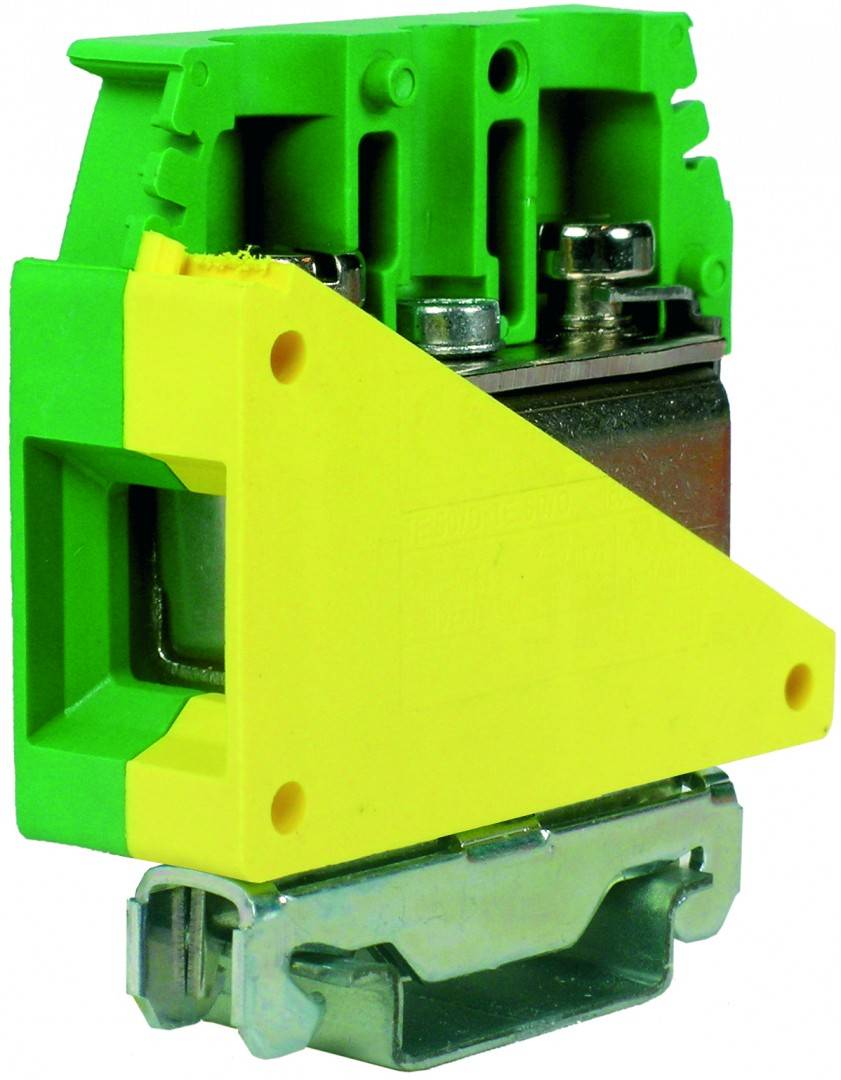

Earth conductor terminal TEC.50, green/yellow, 50 mm²
Cod produs: IK122050--
Marca: SCHRACK TECHNIK
Pret cu TVA: 50.78 Lei / buc.
|
|
|
|
Comanda instant - Earth conductor terminal TEC.50, green/yellow, 50 mm²
|
Earth conductor terminal TEC.50, green/yellow, 50 mm²
|
|
Specificatii Tehnice Sistem cleme cu surub Sectiune maxima, conductor flexibil 50 mm² PREG 1660 PU 15 COD COMANDA IK122050 Sectiune minima, conductor flexibil 1,50 mm² LxBxH mm 62x18x57 Descriere electrica CAD 50mm² Unitate de ambalare 1 m. Sectiune minima, conductor solid 1 mm² Descriere de baza Clema Sectiune 50 mm² Masa neta 0,09 kg/m Sectiune maxima, conductor solid 70 mm² Conductor multifilar pana la 50mm² mm² Conductor masiv pana la 70mm² mm² Simbol CAD X Culoare Verde/galben Versiune cleme de impamantare | Lungime | 62 mm | | Latime | 18 mm | | Inaltime | 57 mm | | Greutate | 0.09 kg |
|
|
|
|
|
