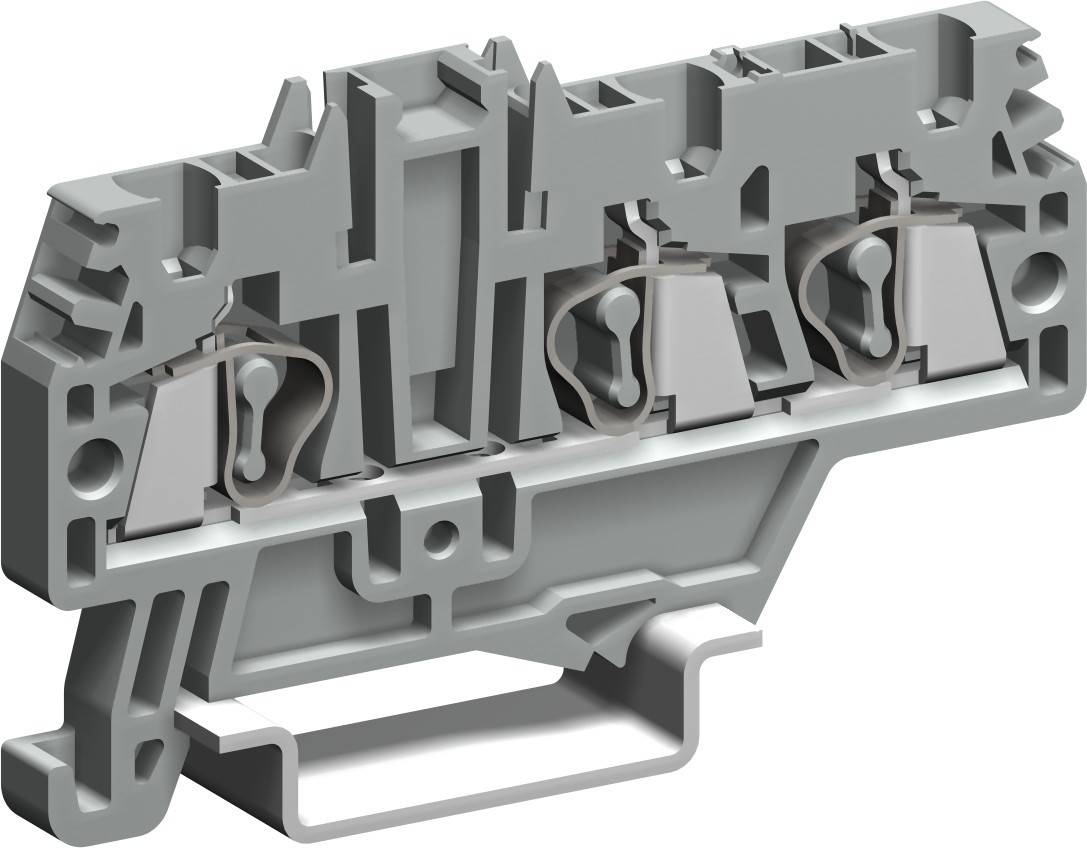

Double Spring Clamp Terminal HMM.2/1+2 grey, 2.5 mm²
Cod produs: IK800032--
Marca: SCHRACK TECHNIK
Pret cu TVA: 5.84 Lei / buc.
|
|
|
|
Comanda instant - Double Spring Clamp Terminal HMM.2/1+2 grey, 2.5 mm²
|
Double Spring Clamp Terminal HMM.2/1+2 grey, 2.5 mm²
|
|
Specificatii Tehnice COD COMANDA IK800032 Sectiune maxima, conductor solid 4 mm² PREG 1660 Sectiune minima, conductor solid 0,2 mm² Sistem cleme sir elastice Culoare Gri Conductor multifilar sertizat cu bucsa pana la 2,5mm² mm² Conductor masiv pana la 4mm² mm² Sectiune maxima, conductor flexibil 4 mm² Unitate de ambalare 1 m. Descriere de baza Clema Masa neta 0,01 kg/m Sectiune minima, conductor flexibil 0,2 mm² Versiune clema trecere Conductor multifilar pana la 4mm² mm² Sectiune 2.5 mm² PU 80 Max. cross section, flexible wire with ferrule 2,50 mm² Descriere electrica CAD 2,5mm² LxBxH mm 41x5x66 Simbol CAD X | Lungime | 41 mm | | Latime | 5.2 mm | | Inaltime | 66 mm | | Greutate | 0.01 kg |
|
|
|
|
|
