Specificatii Tehnice
EB-ZB

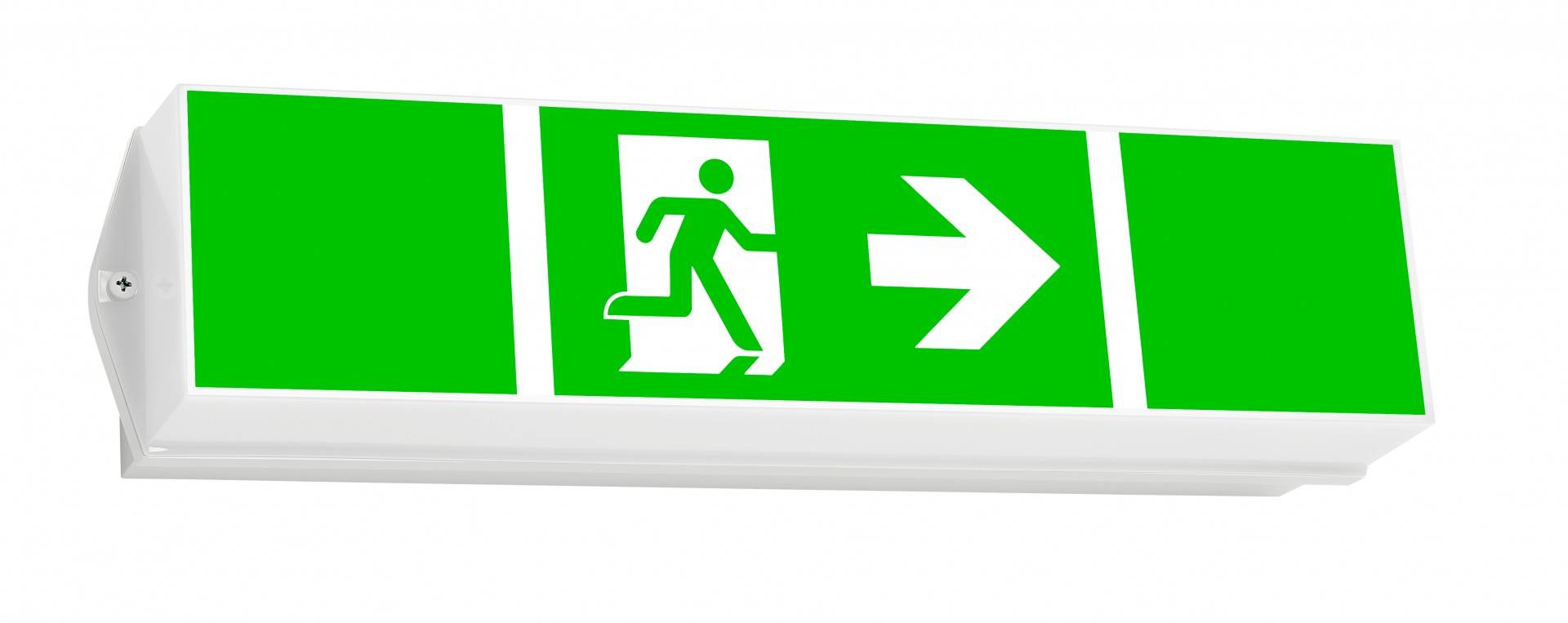

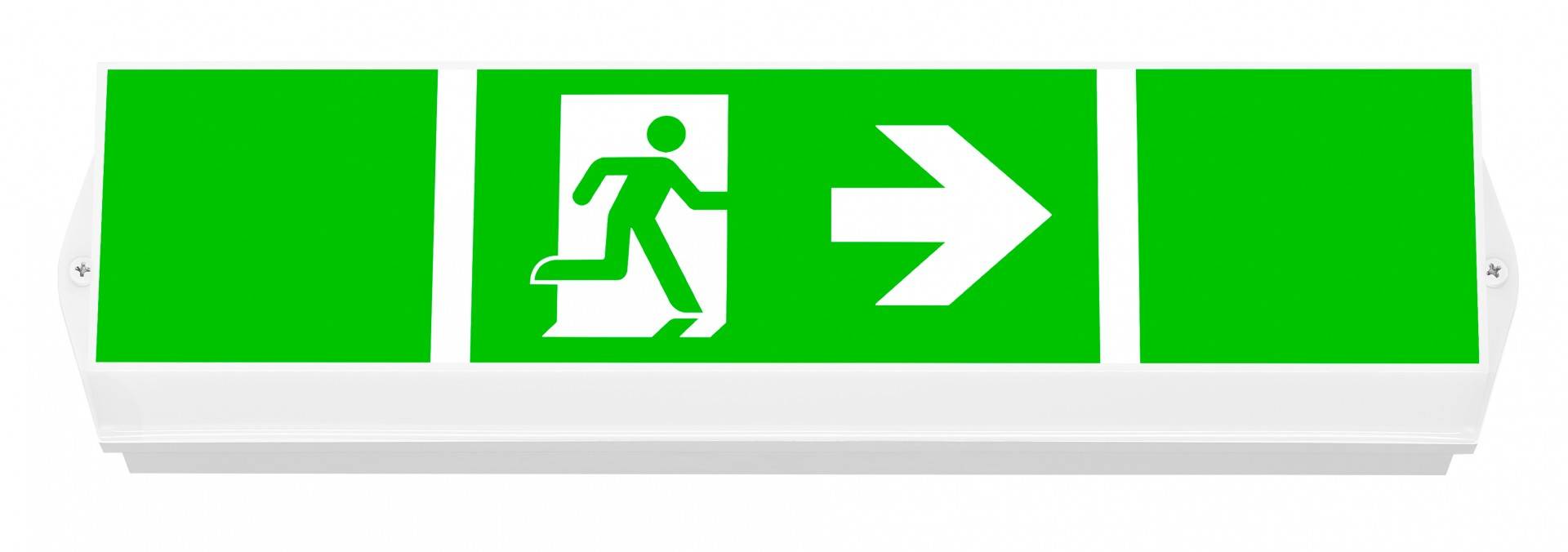

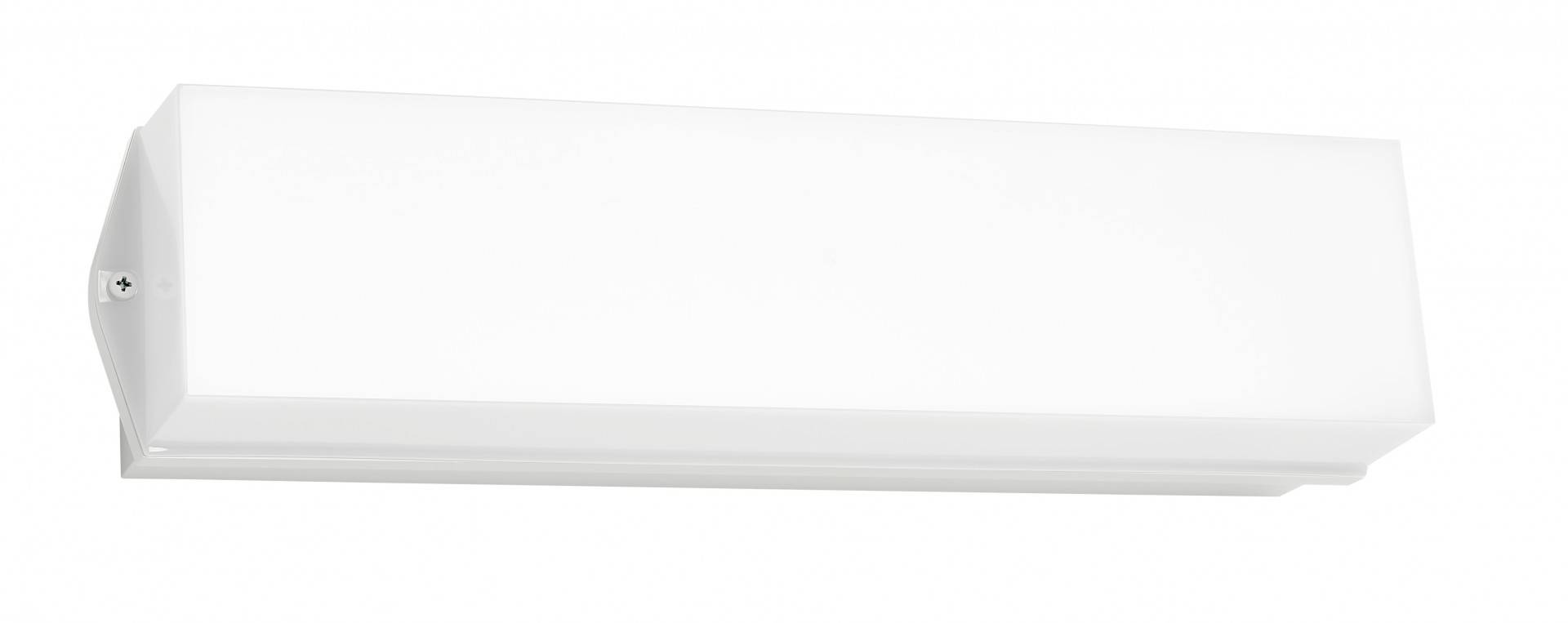

Central power supply luminaire
AA Clasa E 8101
AA3;AA4;AA5
Functie
Cu monitorizare - comutatie centralizata
Power max.
5,20 W
Clasa de protectie
II
Domeniu recunoastere
16 m.
Accesorii optionale
NLBKW-----;NLKWIPIKTO;NL2PW-----;NLAWX001--
Lumen
520
PREG
4000
Versiune
corp iluminat din plastic
Power maintained mode
5,20 W
Sursa de lumina

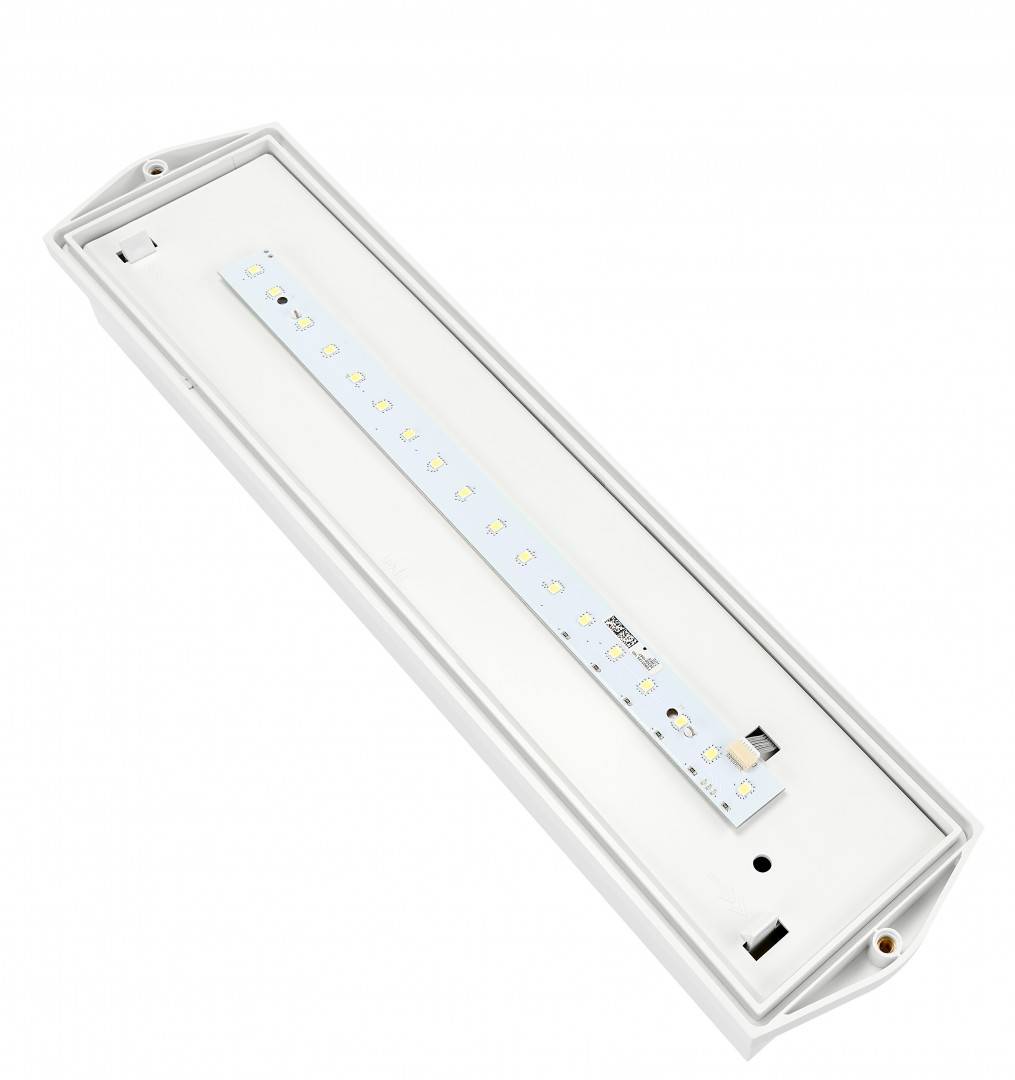

ERT-LED (4W)
COD COMANDA
NLKWIW039E
Tip
KWI
Temperatura maxima a mediului ambiant
40 °C
Unitate de ambalare
1 m.
Fara halogen
Housing made of halogen-free plastic
Sursa iluminare
ERT-LED
Temperatura minima a mediului ambiant
-20 °C
Fabricant
Schrack
disipare
1,00 W
LxBxH mm
390x93x99
Montaj

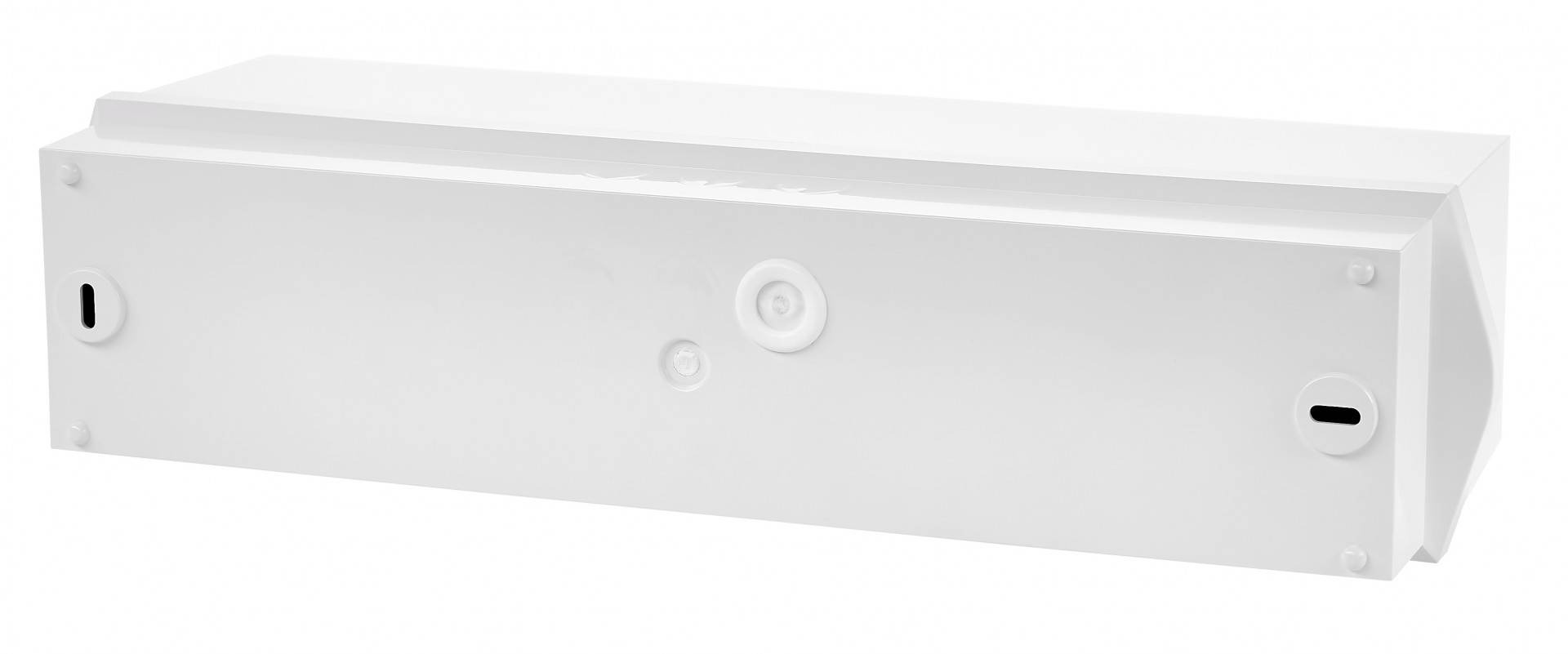

Montaj incastrat in plafon;Montaj de perete
Tensiunea de alimentare
230V AC 50Hz ±20%; 230V DC ±20% V
Masa neta
0,70 kg/m
Rezistenta la impact
IK06
Power non-maintained mode
1,10 W
Culoare
RAL 9003 (alb)
grad de protectie
IP65
Pictogram

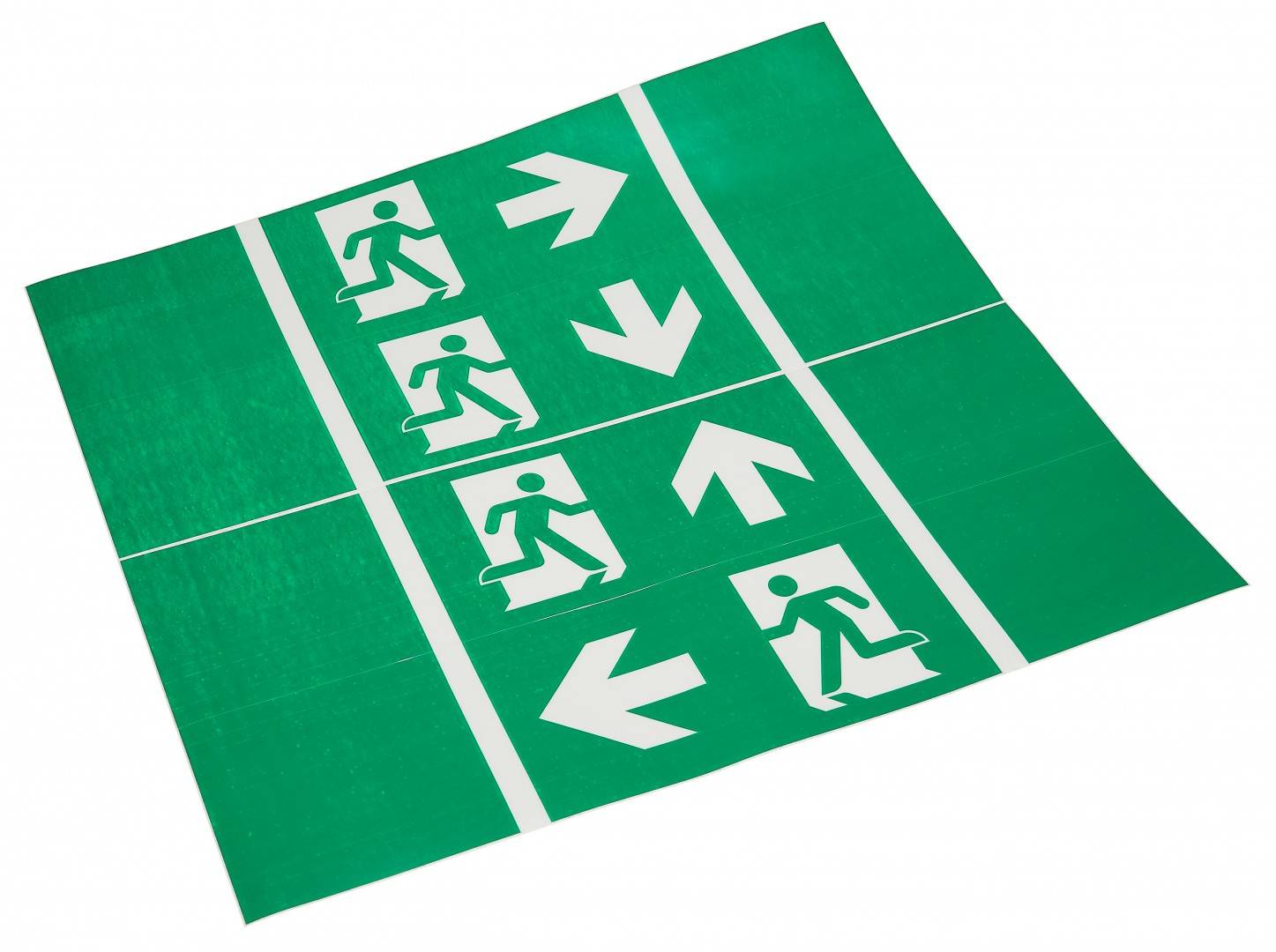

Adhesive pictogram set (arrow left, right, bottom, top) included in accordance with ISO 7010
Tip iluminare
semn (corp) iluminat siguranta;lampa de siguranta;Combined rescue path and rescue sign luminaire
| Lungime | 390 mm |
| Latime | 93 mm |
| Inaltime | 99 mm |
| Greutate | 0.7 kg |
