Specificatii Tehnice
EB-ZB

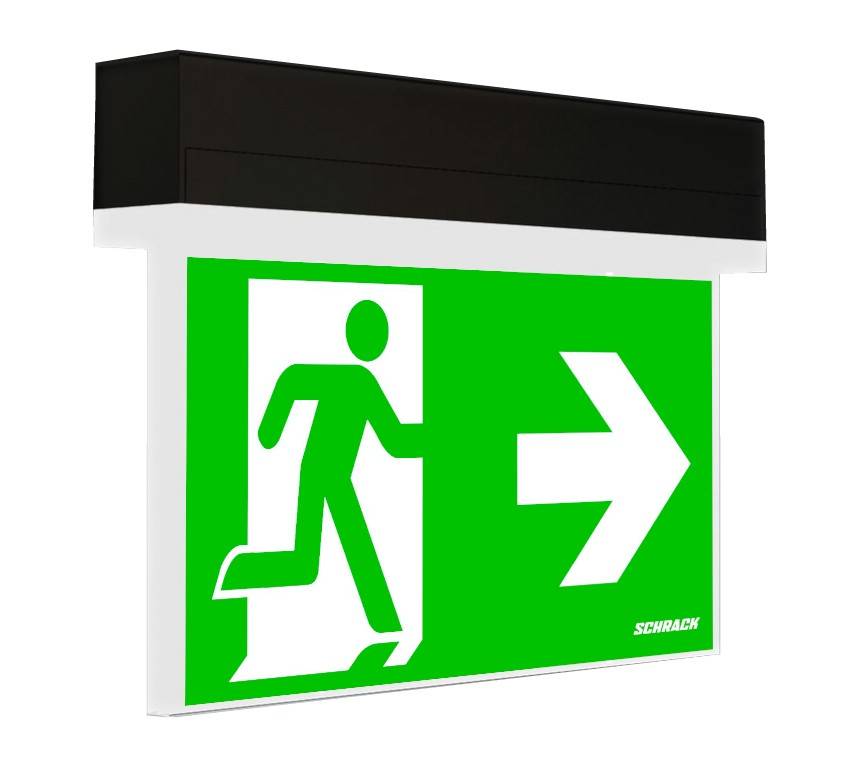

Central power supply luminaire
Functie
Cu monitorizare - comutatie centralizata
Rezistenta la impact
≥ IK03
Domeniu recunoastere
22 m.
Clasa de protectie
II
LxBxH mm
250x34x174
PREG
4000
Pictogram
Slide-in pictogram set (arrow left, right, bottom, top and white foil for single side use) included in accordance with ISO 7010
Lumen
220
grad de protectie
IP54
Accesorii optionale
NLKMES----;NLAMPIKTLO;NLAMPIKTLU;NLAMPIKTRO;NLAMPIKTRU;NLKS4FIRE-;NLKS4HELP-;NLAWKSU---;NL2DWKMKS-;NLBALL1---;NLDSA000--;NLCORD2---;NLCORD4---
Temperatura maxima a mediului ambiant
40 °C
Unitate de ambalare
1 m.
Power maintained mode
3,20 W
Sursa iluminare
LED
Fara halogen
Housing made of halogen-free plastic
Temperatura minima a mediului ambiant
-5 °C
COD COMANDA
NLKSCS009E
Power max.
3,20 W
Masa neta
0,62 kg/m
Fabricant
Schrack
disipare
1,00 W
AA Clasa E 8101
AA4
Tensiunea de alimentare
230V AC 50Hz ±20%; 230V DC ±20% V
Sursa de lumina
LED (2W)
Montaj
Montaj de perete;Montaj incastrat in plafon;recessed mounting ceiling optional;universal
Culoare
RAL 9005 (negru)
Tip
KS
Tip iluminare
semn (corp) iluminat siguranta;lampa de siguranta;Combined rescue path and rescue sign luminaire
Versiune
lampa iluminat marginala;corp iluminat din plastic
Power non-maintained mode
1 W
| Lungime | 250 mm |
| Latime | 34 mm |
| Inaltime | 174 mm |
| Greutate | 0.62 kg |
