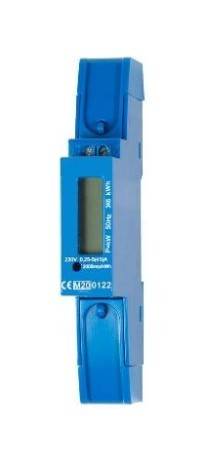

Contor digital monofazat, direct, 45A, MID
Cod produs: MGX10045--
Marca: SCHRACK TECHNIK
Pret cu TVA: 272.46 Lei / buc.
|
|
|
|
Comanda instant - Contor digital monofazat, direct, 45A, MID
|
Contor digital monofazat, direct, 45A, MID
|
|
Specificatii Tehnice Precizie Putere activa: Clasa B, EN 50470-3 LxIxA mm 18x91x59 COD COMANDA MGX10045 Reference current 5 A Port iesire in impuls disipare 0,40 W Pulse value 2000 Imp/kWh Consum de putere ≤ 0,4W - ≤ 8VA HxBxT mm 91x18x59 Poli 1 Temperatura maxima a mediului ambiant 55 °C Unitate de ambalare 1 m. Anti-backdrive device Yes DESCRIERE2 Contor digital monofazat, direct, 45A, MID Afisaj Ecran LCD cu iluminare de fundal Afisaj afisaj digital Number of digits 5.2 PU 120 Temperatura minima a mediului ambiant -25 °C Versiune contor masura directa Calibrare MID (EU) Sectiune maxima, conductor solid 12 mm² Temperatura de functionare -25°C to +55°C Rated frequency 50 Hz Numar de unitati de tarifare 1 Curent nominal 45 A Masa neta 0,10 kg/m Tensiune nominala 230V-AC grad de protectie IP51 PREG 2330 | Lungime | 58.5 mm | | Latime | 18 mm | | Inaltime | 91 mm | | Greutate | 0.1 kg |
|
|
|
|
|
