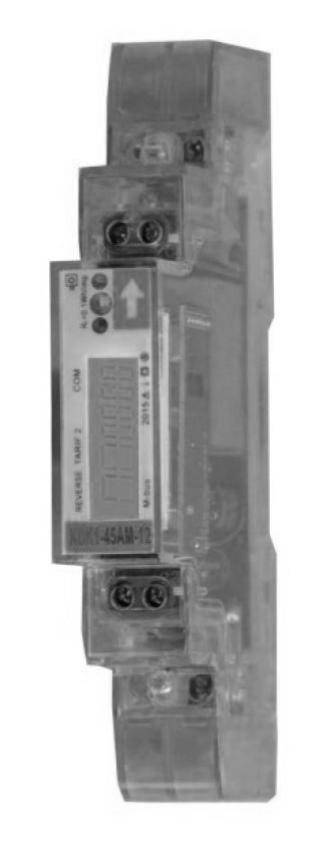

Contor digital kWh, mas. dir. 45A, monofazat, MID, M-Bus
Cod produs: MGKDK345--
Marca: SCHRACK TECHNIK
Pret cu TVA: 611.29 Lei / buc.
|
|
|
|
Comanda instant - Contor digital kWh, mas. dir. 45A, monofazat, MID, M-Bus
|
Contor digital kWh, mas. dir. 45A, monofazat, MID, M-Bus
|
|
Specificatii Tehnice Consum de putere <2W Precizie B Conexiune Conexiune directa Sectiune maxima, conductor solid 8 mm² Reference current 5 A Port M-Bus disipare 0,40 W Pulse value 2000 Imp/kWh Terminal type Screw terminal LxIxA mm 18x117x63 Poli 1 Masa neta 0,08 kg/m Numar de unitati de tarifare 2 Caracteristici tarif 2. Temperatura maxima a mediului ambiant 55 °C Unitate de ambalare 1 m. COD COMANDA MGKDK345 Anti-backdrive device Yes HxBxT mm 117x18x63 Tensiune nominala 230V Afisaj Ecran LCD cu iluminare de fundal Number of digits 5.2 Afisaj afisaj digital Temperatura minima a mediului ambiant -25 °C Versiune contor masura directa Calibrare MID (EU) Temperatura de functionare -25°C to +55°C Rated frequency 50 Hz Masurand Active and reactive energy in supply and reference direction Curent nominal 45 A grad de protectie IP51 PREG 2330 | Lungime | 63 mm | | Latime | 17.5 mm | | Inaltime | 117 mm | | Greutate | 0.08 kg |
|
|
|
|
|
