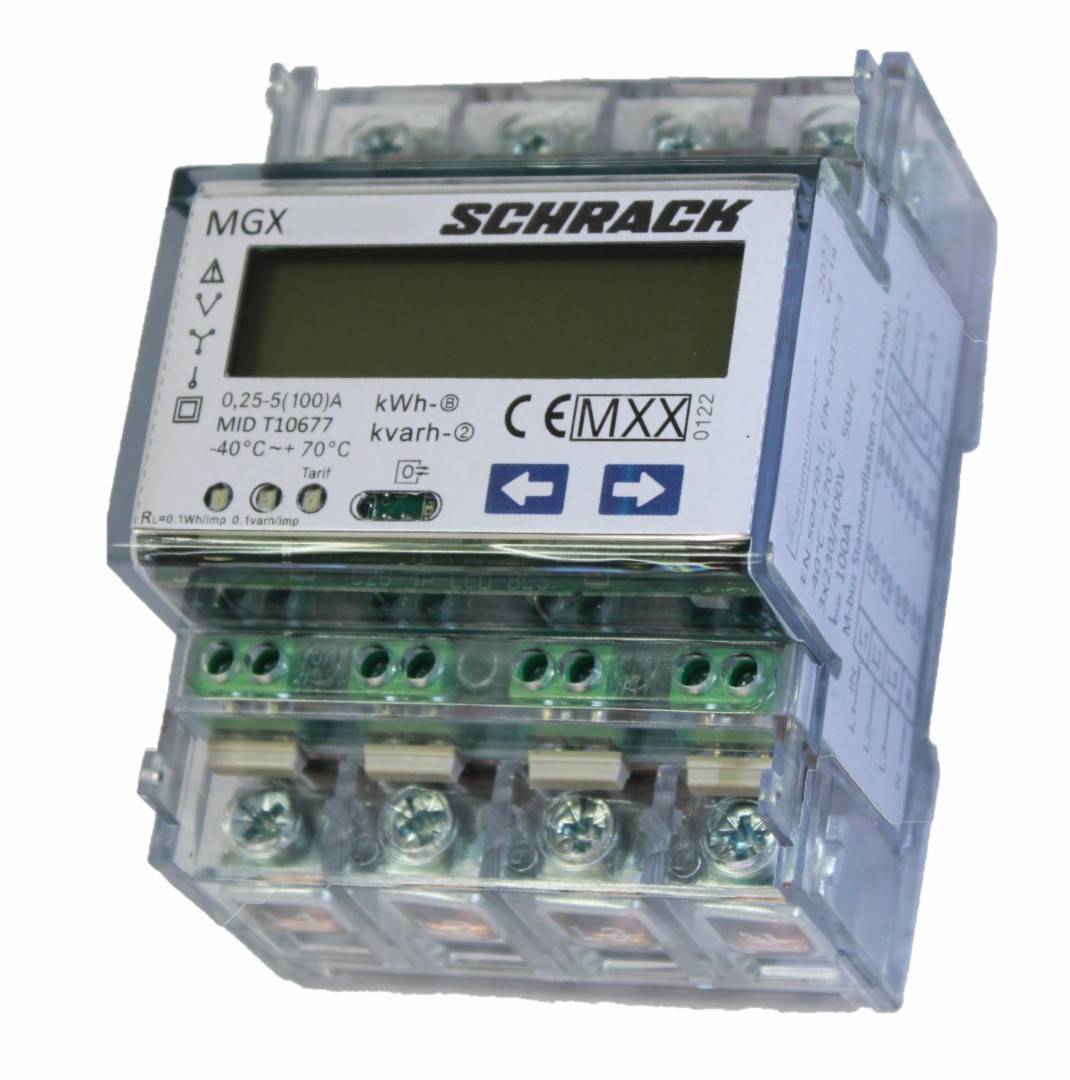

Contor digital kWh direct 100A, 3faze, 2 tarife, MID cerere
Cod produs: MGX20100--
Marca: SCHRACK TECHNIK
Pret cu TVA: 931.92 Lei / buc.
|
|
|
|
Comanda instant - Contor digital kWh direct 100A, 3faze, 2 tarife, MID cerere
|
Contor digital kWh direct 100A, 3faze, 2 tarife, MID cerere
|
|
Specificatii Tehnice Precizie Putere reactiva: Clasa 2, EN 62053-23;Putere activa: Clasa B, EN 50470-3 PREG 2330 COD COMANDA MGX20100 Auto consum (circuit de tensiune) < 10VA (per faza) Sectiune maxima, conductor solid 35 mm² Curent nominal 100 A Conexiune Conexiune directa Reference current 5 A Temperatura de functionare -40°C pana la +70°C Temperatura maxima a mediului ambiant 70 °C Port iesire in impuls Auto consum (circuit de curent) < 1VA (pe faza) HxBxT mm 95x70x63 Terminal type Screw terminal Numar de unitati de tarifare 2 Caracteristici tarif 2. Unitate de ambalare 1 m. Anti-backdrive device Yes Afisaj Ecran LCD cu iluminare de fundal Afisaj afisaj digital Poli 3 Fabricant Schrack disipare 7,50 W Pulse value 1000 imp/kWh Masa neta 0,34 kg/m Categorie produs Three-phase meter Versiune contor masura directa Sectiune maxima, conductor flexibil 25 mm² Calibrare MID (EU) Number of digits 6.2 Rated frequency 50 Hz Temperatura minima a mediului ambiant -40 °C LxIxA mm 70x95x63 PU 30 Masurand Active and reactive energy in supply and reference direction Tensiune nominala 3x230/400V grad de protectie IP51 | Lungime | 63 mm | | Latime | 70 mm | | Inaltime | 95 mm | | Greutate | 0.34 kg |
|
|
|
|
|
