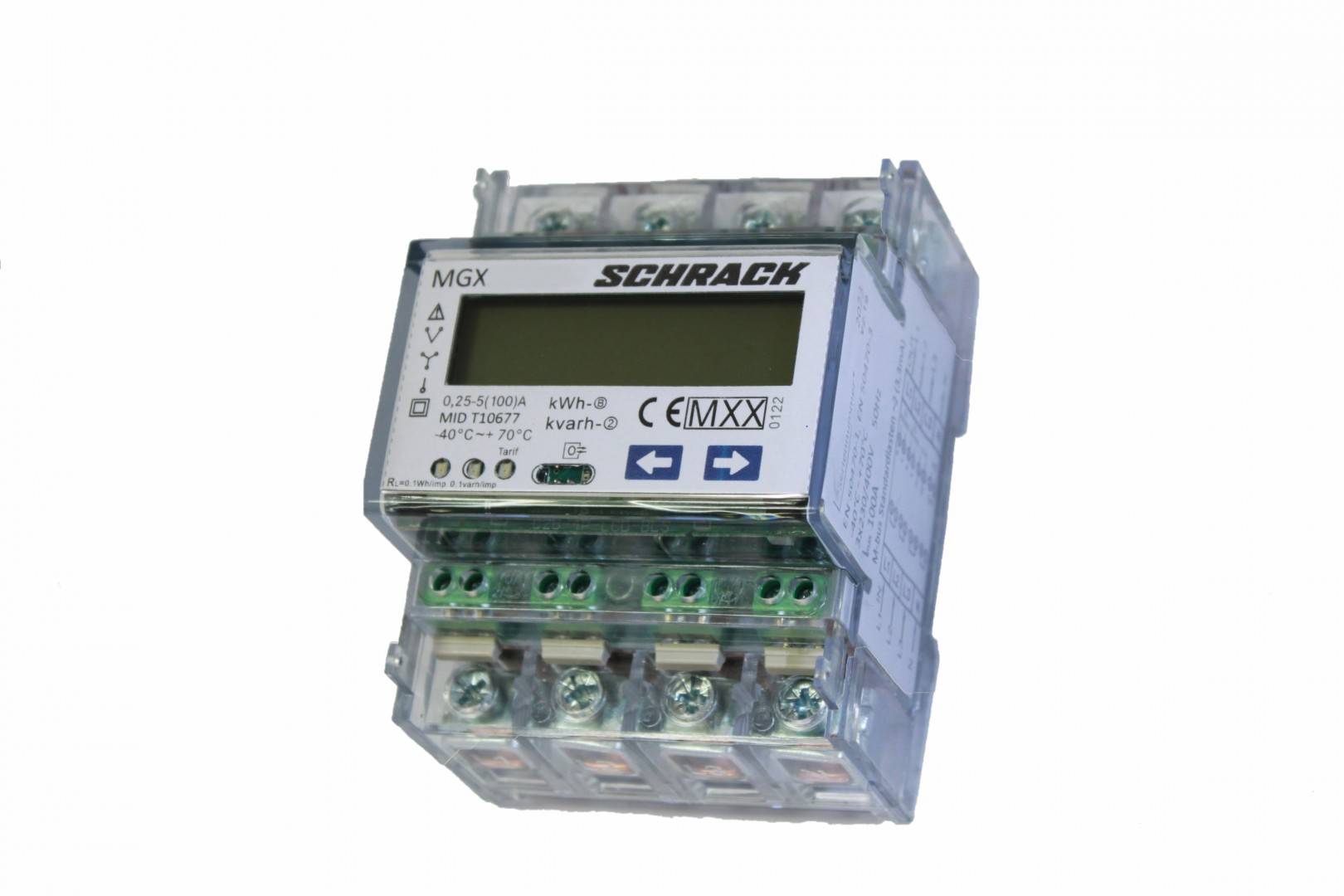

Contor digital kWh 1A/5A(6A),3f,2 tarife, MID cerere,M-BUS
Cod produs: MGX20306--
Marca: SCHRACK TECHNIK
Pret cu TVA: 1258.01 Lei / buc.
|
|
|
|
Comanda instant - Contor digital kWh 1A/5A(6A),3f,2 tarife, MID cerere,M-BUS
|
Contor digital kWh 1A/5A(6A),3f,2 tarife, MID cerere,M-BUS
|
|
Specificatii Tehnice Precizie Putere reactiva: Clasa 2, EN 62053-23;Putere activa: Clasa B, EN 50470-3 PREG 2330 Auto consum (circuit de tensiune) < 10VA (per faza) COD COMANDA MGX20306 Curent nominal 6 A Versiune contor indirect Temperatura de functionare -25°C bis +70°C Temperatura maxima a mediului ambiant 70 °C Port M-Bus Auto consum (circuit de curent) < 1VA (pe faza) Reference current 1/5 A HxBxT mm 95x70x63 Masa neta 0,28 kg/m Terminal type Screw terminal Sectiune maxima, conductor solid 10 mm² Numar de unitati de tarifare 2 Caracteristici tarif 2. Unitate de ambalare 1 m. Anti-backdrive device Yes Afisaj Ecran LCD cu iluminare de fundal Conexiune Conexiune traductor Afisaj afisaj digital Poli 3 Fabricant Schrack disipare 7,50 W Temperatura minima a mediului ambiant -25 °C Pulse value 1000 imp/kWh Categorie produs Three-phase meter Calibrare MID (EU) Number of digits 6.2 Rated frequency 50 Hz LxIxA mm 70x95x63 PU 30 Masurand Active and reactive energy in supply and reference direction Tensiune nominala 3x230/400V grad de protectie IP51 | Lungime | 63 mm | | Latime | 70 mm | | Inaltime | 95 mm | | Greutate | 0.28 kg |
|
|
|
|
|
