Specificatii Tehnice
Sectiune conexiune, multifilar
2,5-16 mm²
Frecventa
50/60 Hz
Culoare
rosu-galben
Impuls de curent de scurtcircuit admisibil Icw
1000

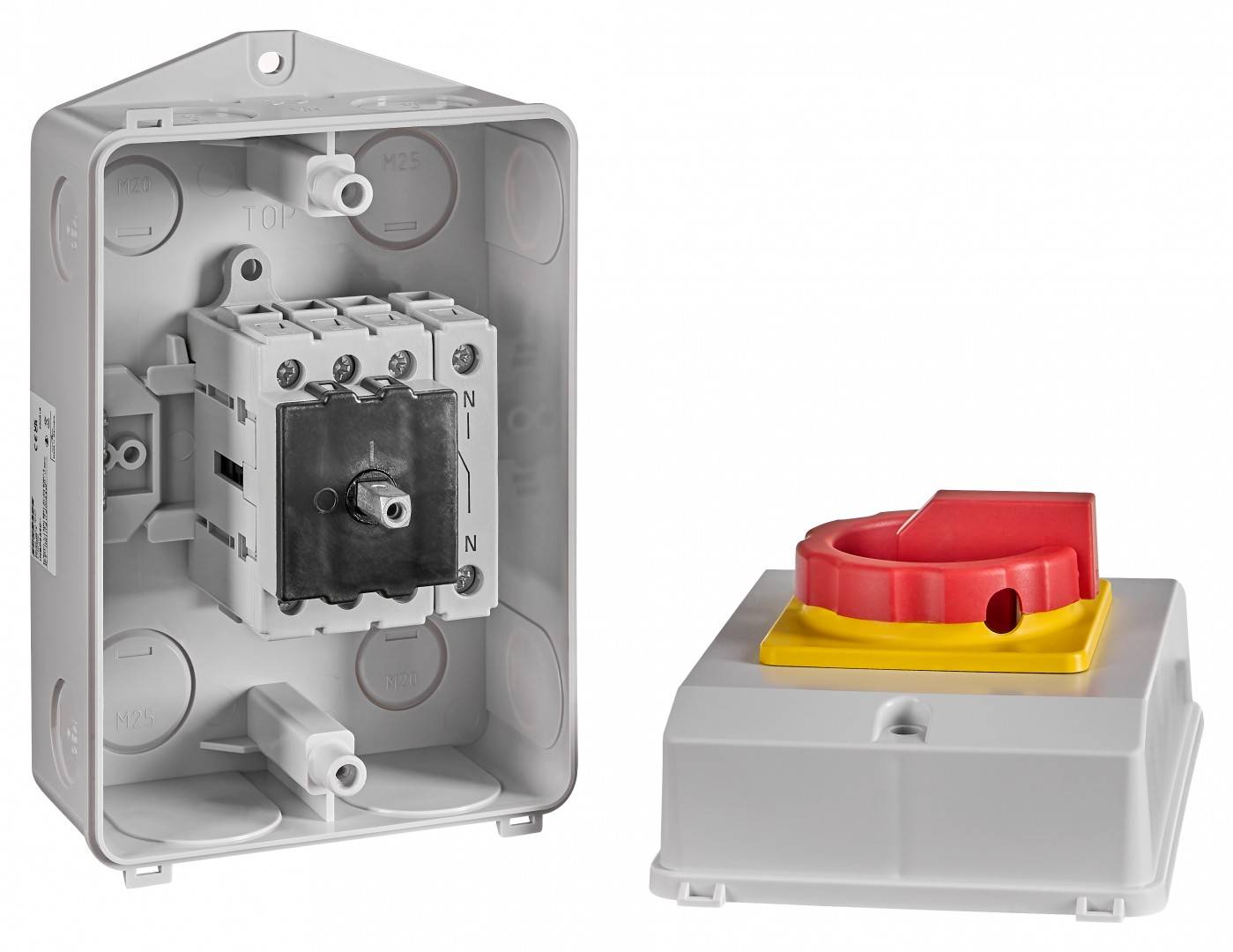

Neutral conductor contacts
ATTENTION! If this 3-pole switch is converted to a 4-pole switch using neutral conductor contact INSNK011--, no additional auxiliary contact can be snapped onto the N contact. On the other side, auxiliary contact INSHK001-- can be used as normal. For further details, see Auxiliary contact and N contact overview
Sectiune conexiune, monofilar
2,5-16 mm²
Fuzibil max. protectie la scurtcircuit
50
Curent operational
AC-21A - 690V - 40A;AC-22A - 690V - 40A;AC-23A - 230V - 27A;AC-23A - 400V - 29A;AC-23A - 690V - 17A;AC-3 - 230V - 27A;AC-3 - 400V - 22A;AC-3 - 690V - 13A
Accesorii optionale
INSHK001--; INSNK011--
Curent nominal de scurtcircuit conditionat
10kA @ 440V / 6kA @ 690V
Standard
IEC 60947, EN 60947, VDE 0660
Tinere la impuls de tensiune [Uimp]
6000 V
Thermal rated continuous current
40 A
Versiune

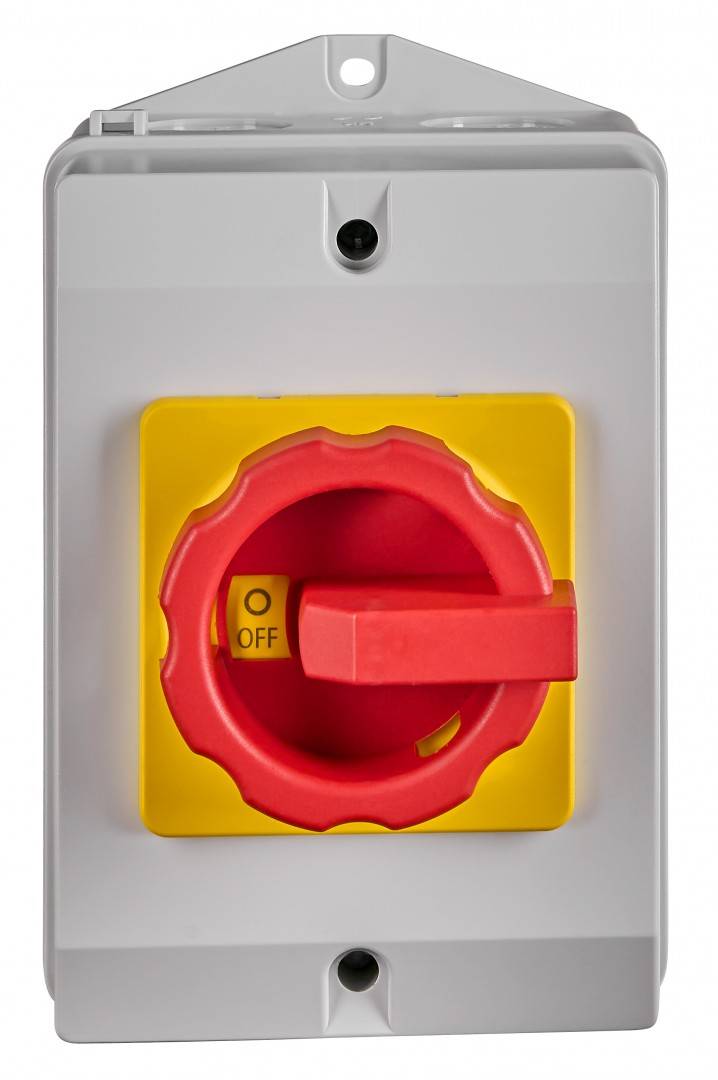

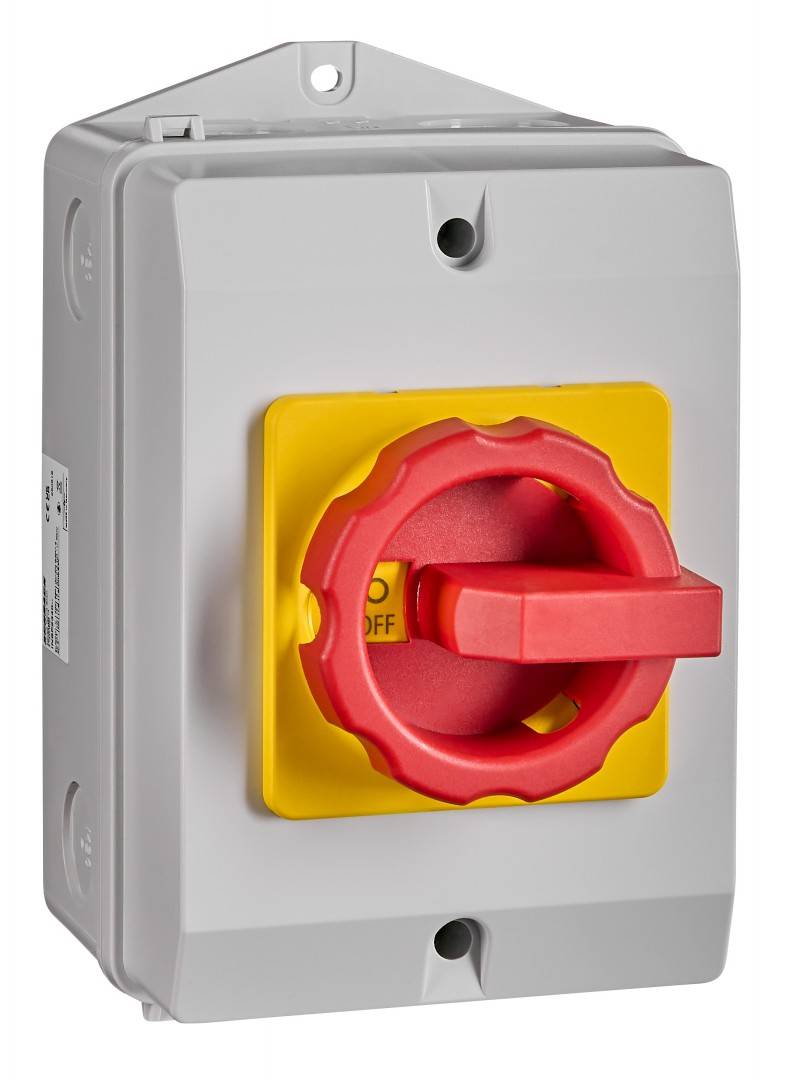

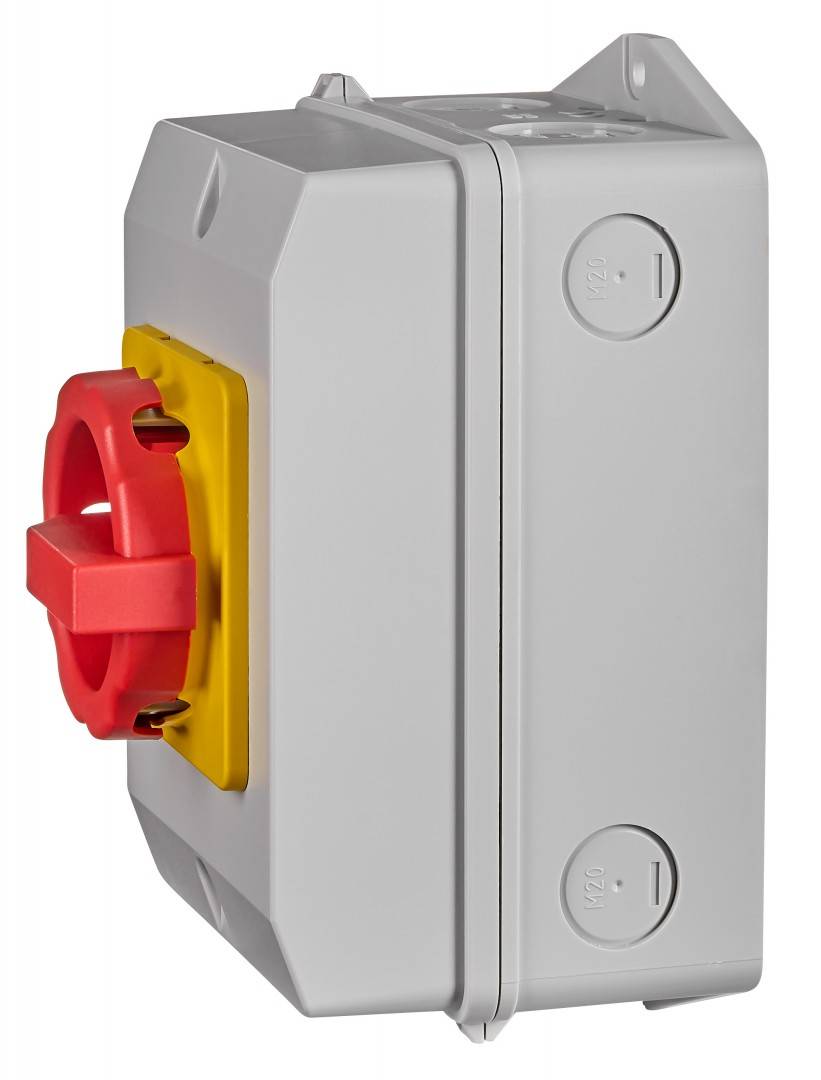

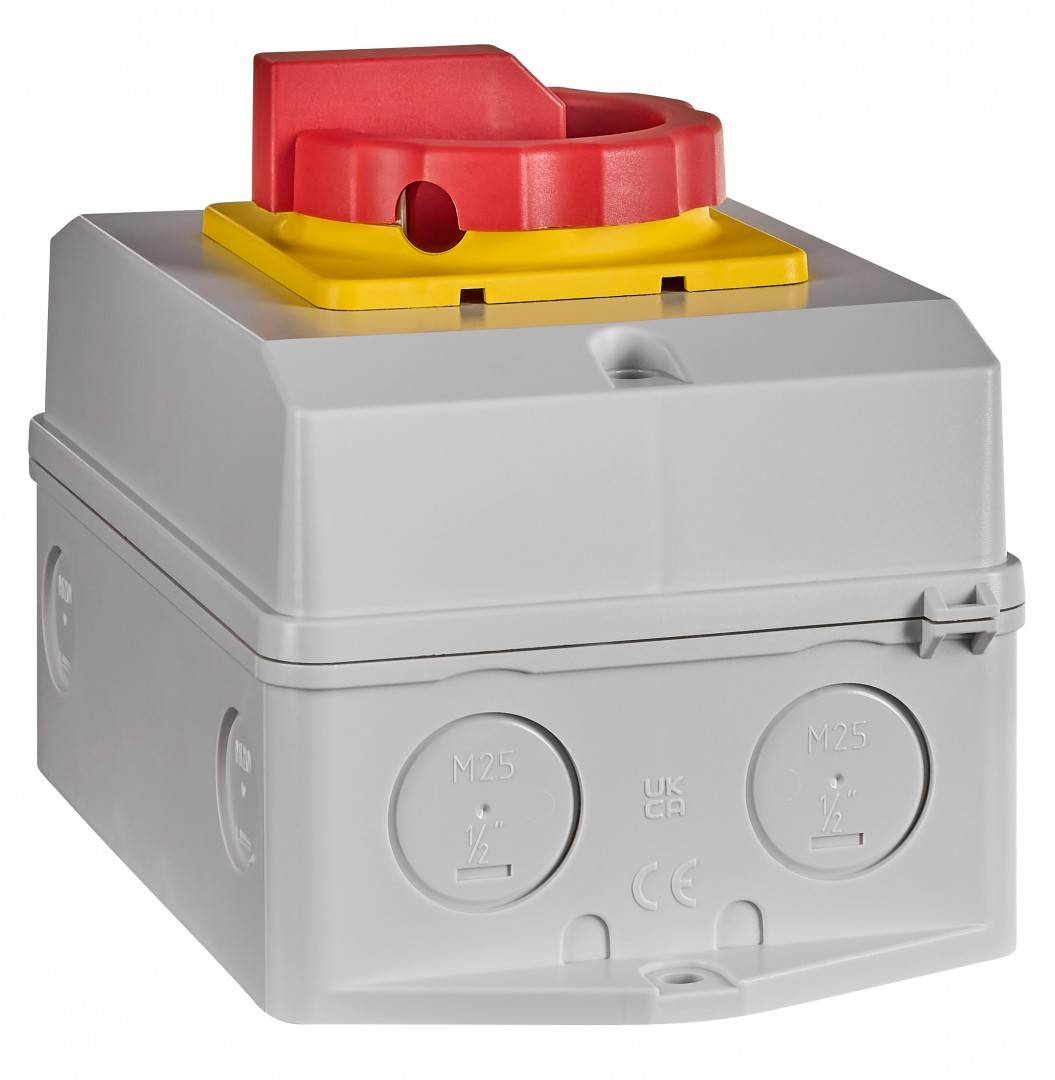

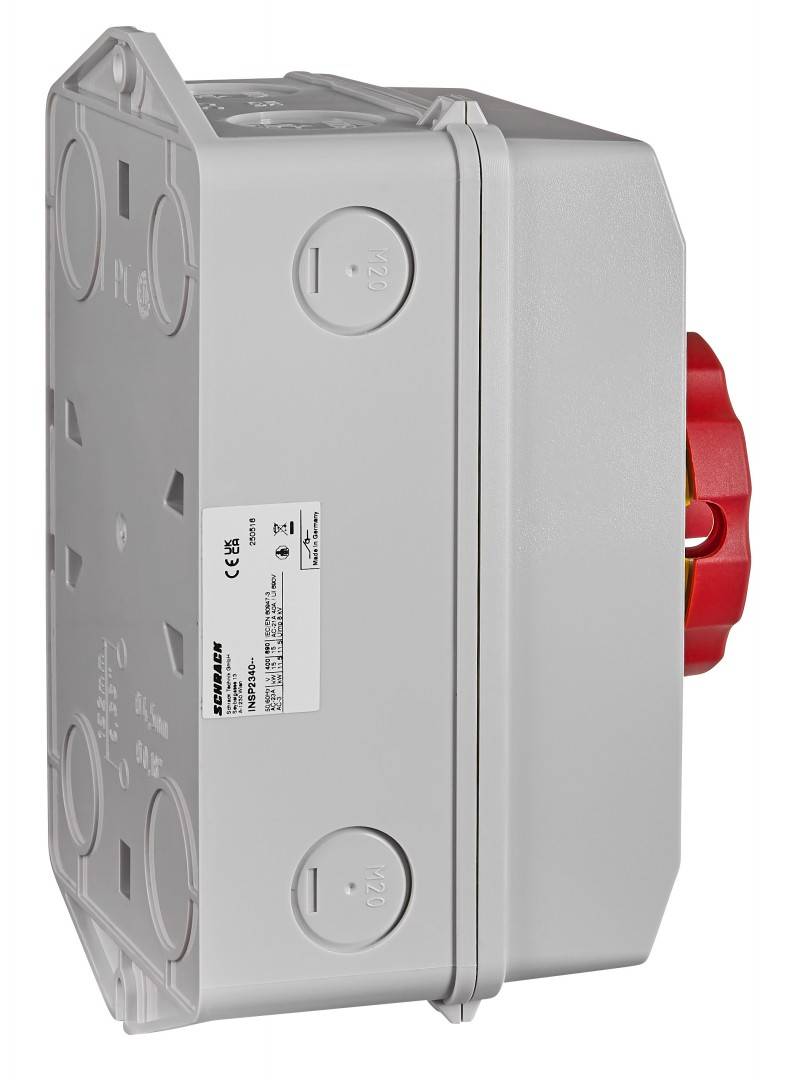

Repair Switch Emergency off
COD COMANDA
INSP2340
Tip conexiune
UL/CSA - AWG 14-6
Retrofit contacts
##
Tensiune nominala de izolatie (Ui)
690 V
Temperatura maxima a mediului ambiant
55 °C
Unitate de ambalare
1 m.
Anduranta mecanica
100000 switching cycles
Tensiune de alimentare AC
600 V
PU
10
Contacte auxiliare
Maximum 2x INSHK001-- permitted. 1x INSHK001-- can be snapped on to the left side of the main contact and 1x INSHK001-- to the right side of the main contact. Maximum configuration 2x NC contact / 2x NO contact. The switching behavior is the same regardless of whether the auxiliary contact is snapped on to the left or right side of the main contact.
Protectie impotriva contactului direct
Protectie degete si dosul palmei conform VDE 0106 partea 100
Poli
3
disipare
2,40 W
In conformitate cu UL 508 / CSA
##
Capacitate de comutare
AC-23A - 230V - 7.5kW;AC-23A - 400V - 15kW;AC-23A - 690V - 15kW;AC-3 - 230V - 7.5kW;AC-3 - 400V - 11.5kW;AC-3 - 690V - 11.5kW

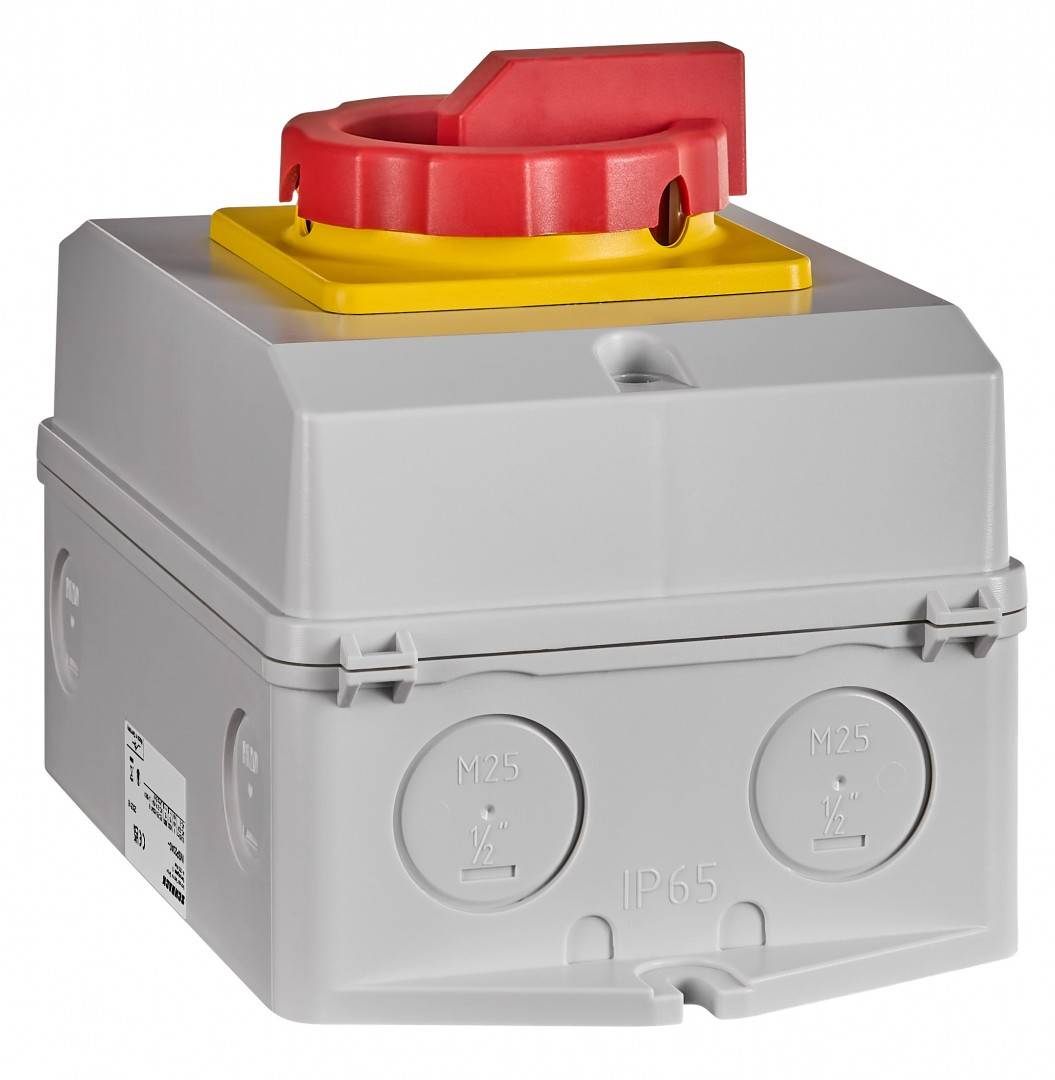

grad de protectie
IP65 (housing), IP20 (terminals)

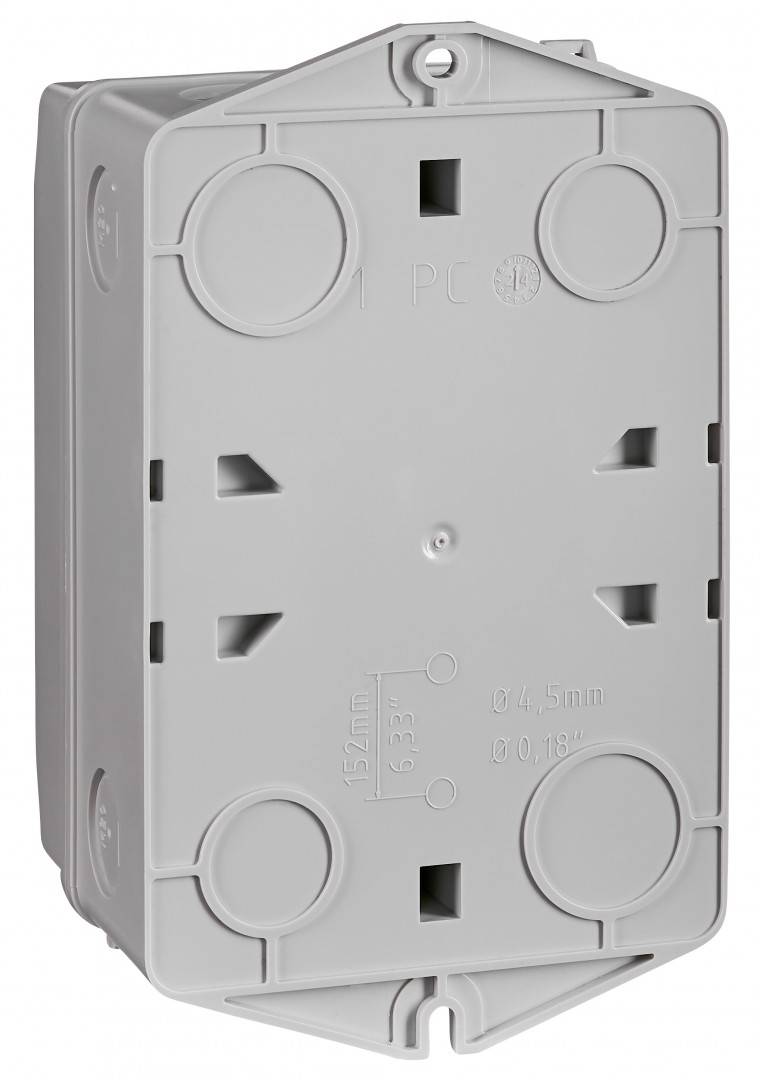

Montaj
Montaj aparent
Masa neta
0,40 kg/m
Blocabil
Cu 3 lacate, fiecare cu diametru carlig de 4-8mm
Power loss per pole
2,40 W
LxBxH mm
115x100x140
Temperatura minima a mediului ambiant
-25 °C
Curent nominal
40 A
Sectiune conexiune, fir flexibil cu pin
2,5-16 mm²
Cuplu de strangere
3 Nm
Temperatura de functionare
-25°C to +55°C
Active Power
3x120VAC - 5Hp;3x240VAC - 10Hp;3x480VAC - 20Hp;3x600VAC - 22Hp;1x120VAC - 2Hp;1x240VAC - 4Hp
PREG
2200
Conexiune
##
Curent termic conventional Ith
40 A
| Lungime | 115 mm |
| Latime | 100 mm |
| Inaltime | 140 mm |
| Greutate | 0.4 kg |
