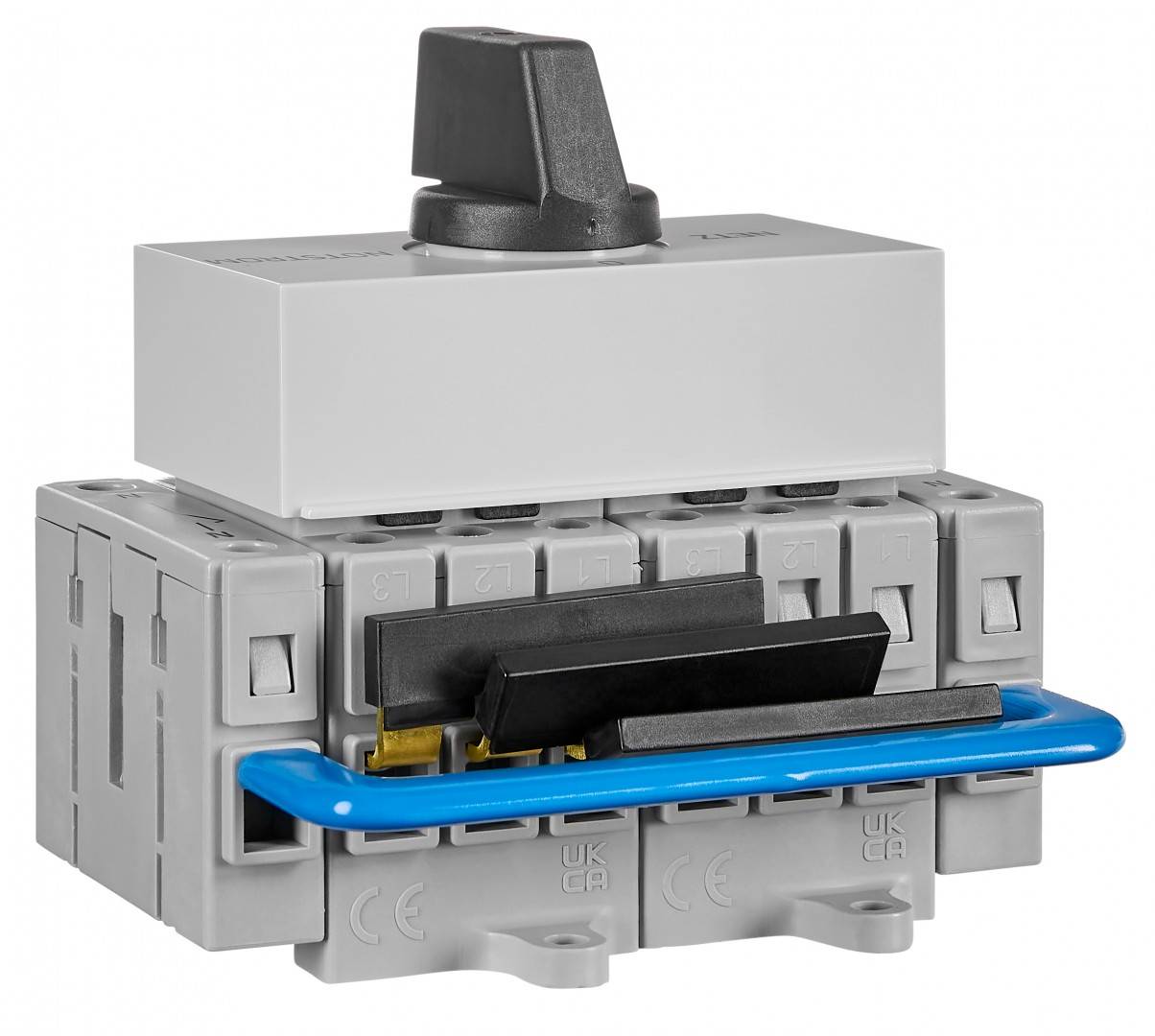

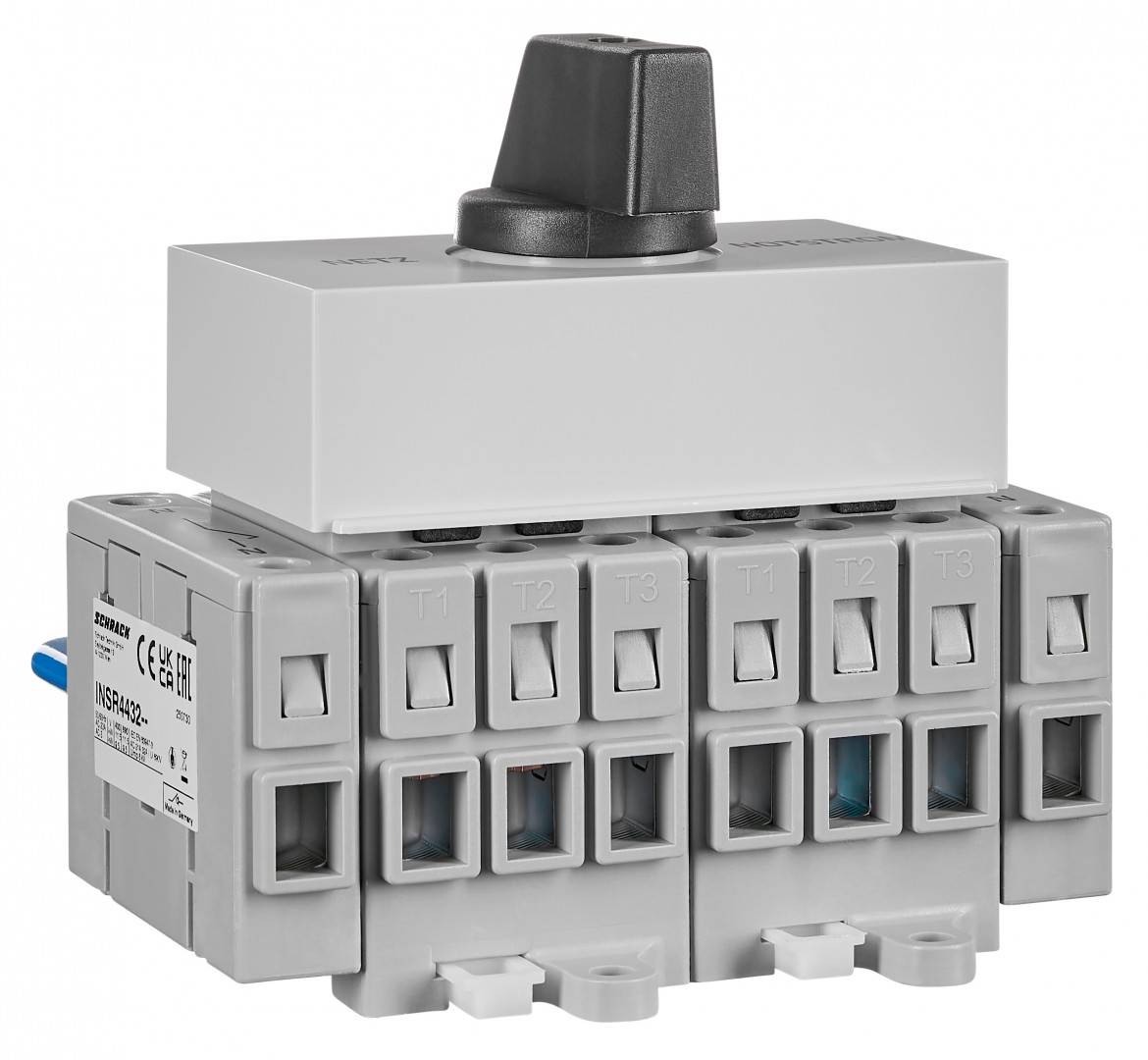

Specificatii Tehnice
Sectiune conexiune, multifilar
2,5-16 mm²
Frecventa
50/60 Hz
Versiune
comutator de sursa
Sectiune conexiune, monofilar
2,5-16 mm²
Poli
4
Fuzibil max. protectie la scurtcircuit
50

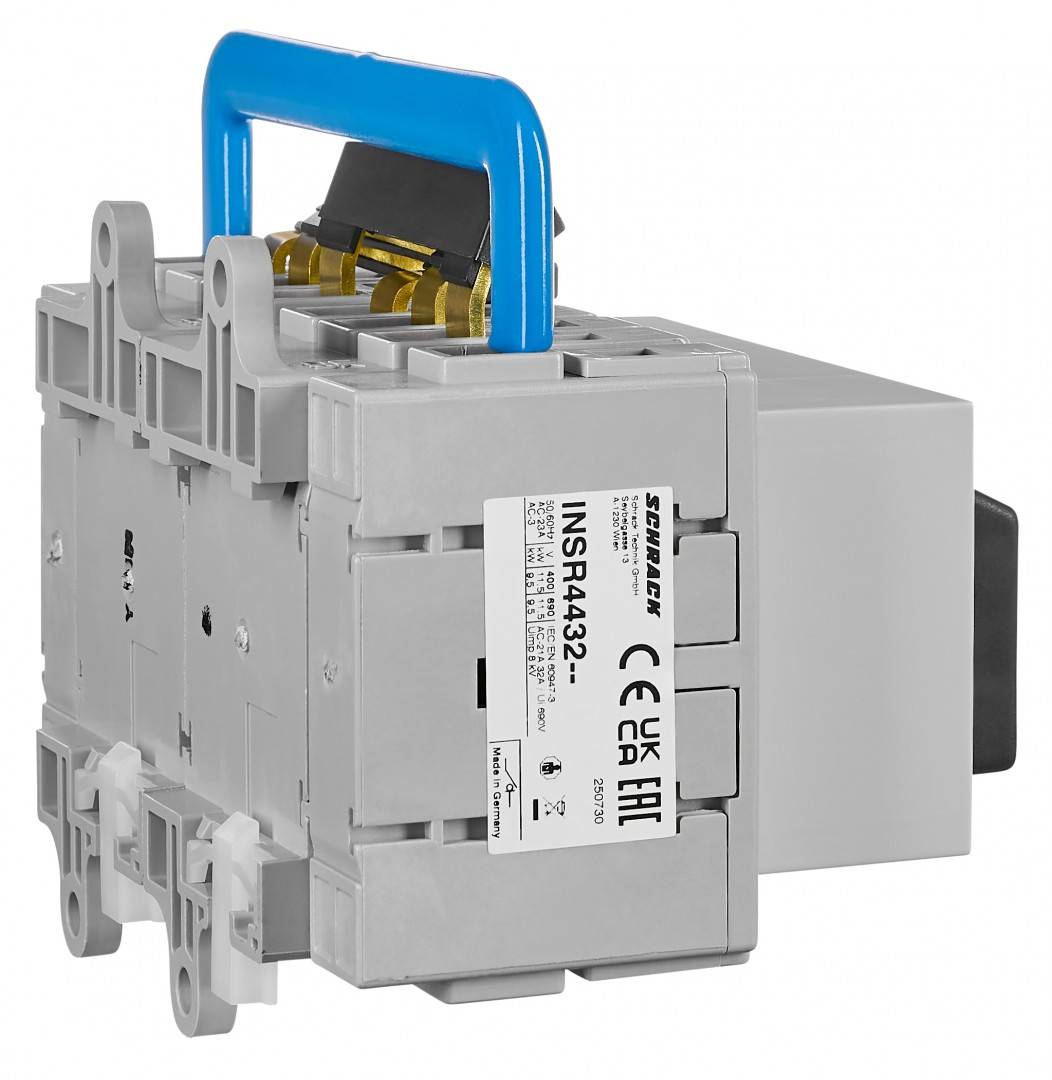

COD COMANDA
INSR4432
Impuls de curent de scurtcircuit admisibil Icw
500
Curent nominal de scurtcircuit conditionat
10kA @ 440V / 6kA @ 690V
Standard
IEC 60947, EN 60947, VDE 0660
LxBxH mm
89x78x45
Contacte auxiliare

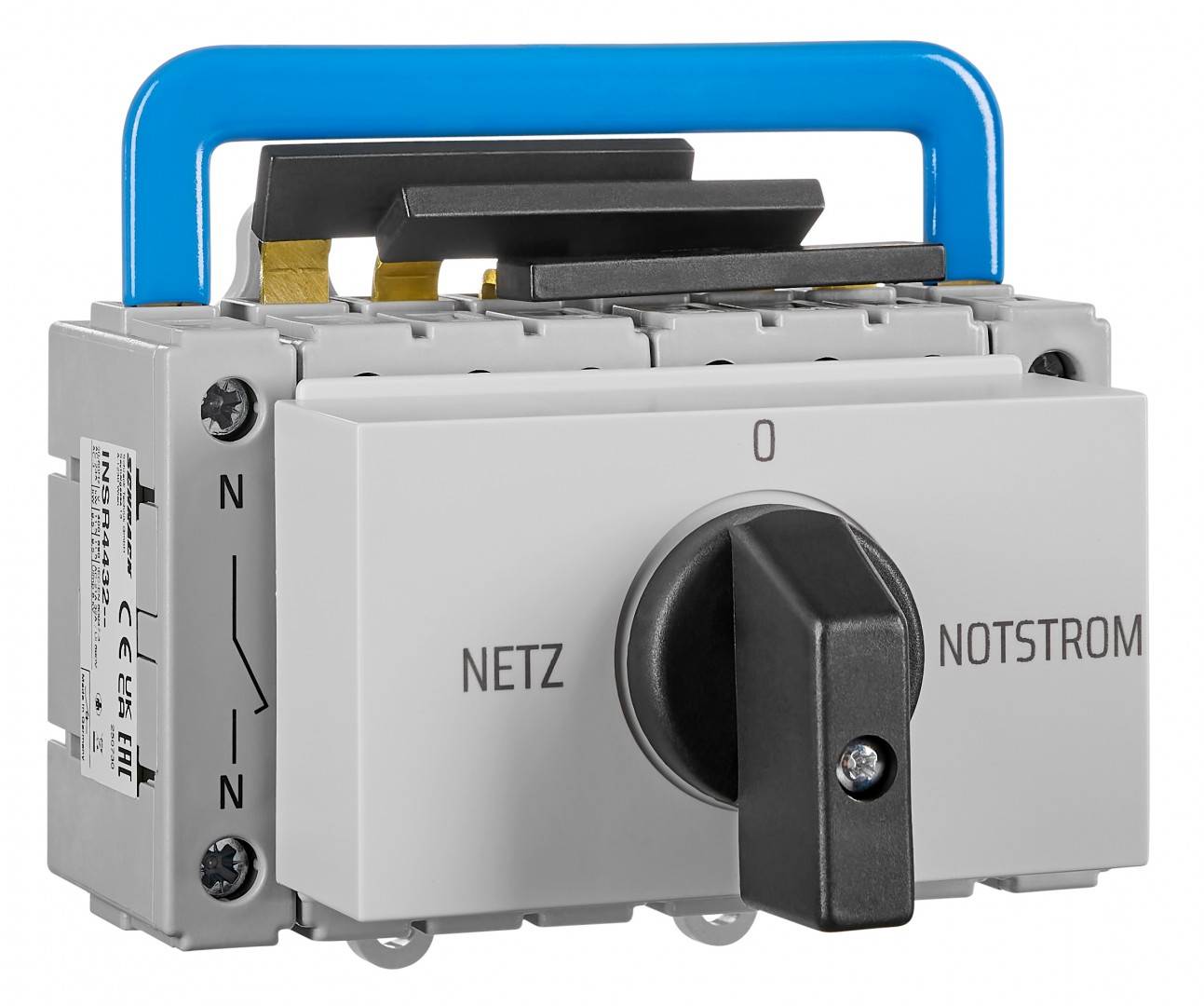

Maximum 2x INSHK001-- permitted. 1x can be snapped onto the left side of the main contact and 1x onto the right side of the main contact. Maximum configuration 2x NO / 2x NC (1x NO / 1x NC per switching position). ATTENTION! Switching behavior is not the same! In the “NETZ” switching position, only the auxiliary contacts that have been snapped onto the corresponding main contact will switch. In the “NOTSTROM” switching position, only the auxiliary contacts that have been snapped onto the corresponding main contact will switch.
Tinere la impuls de tensiune [Uimp]
6000 V
Accesorii optionale
INSHK001--
Curent termic conventional Ith
32 A
Curent nominal
32 A
Culoare
Gri
Tip conexiune
UL/CSA - AWG 14-6
Retrofit contacts
##
Tensiune nominala de izolatie (Ui)
690 V

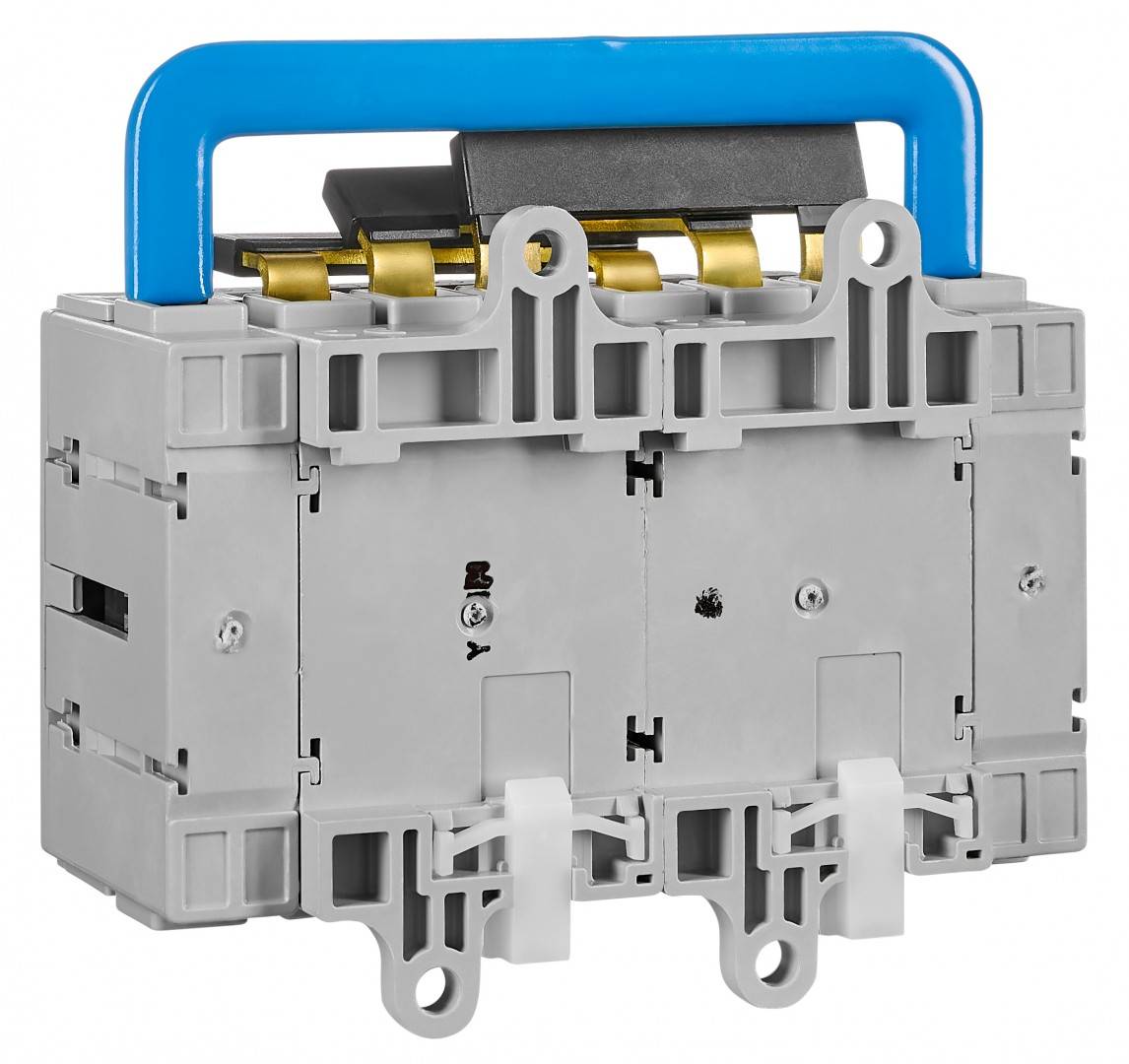

Montaj
Sina DIN
Temperatura maxima a mediului ambiant
55 °C
Masa neta
0,39 kg/m
Unitate de ambalare
1 m.
Anduranta mecanica
100000 switching cycles
grad de protectie
IP40 (front), IP00 (terminals)
Tensiune de alimentare AC
600 V
PU
10
Protectie impotriva contactului direct
Protectie degete si dosul palmei conform VDE 0106 partea 100
Power loss per pole
1,50 W
In conformitate cu UL 508 / CSA
##
Blocabil
Nu
Temperatura minima a mediului ambiant
-25 °C
Sectiune conexiune, fir flexibil cu pin
2,5-16 mm²
Cuplu de strangere
3 Nm
Active Power
3x120VAC - 3Hp;3x240VAC - 10Hp;3x480VAC - 20Hp;3x600VAC - 22Hp;1x120VAC - 2Hp;1x240VAC - 3Hp

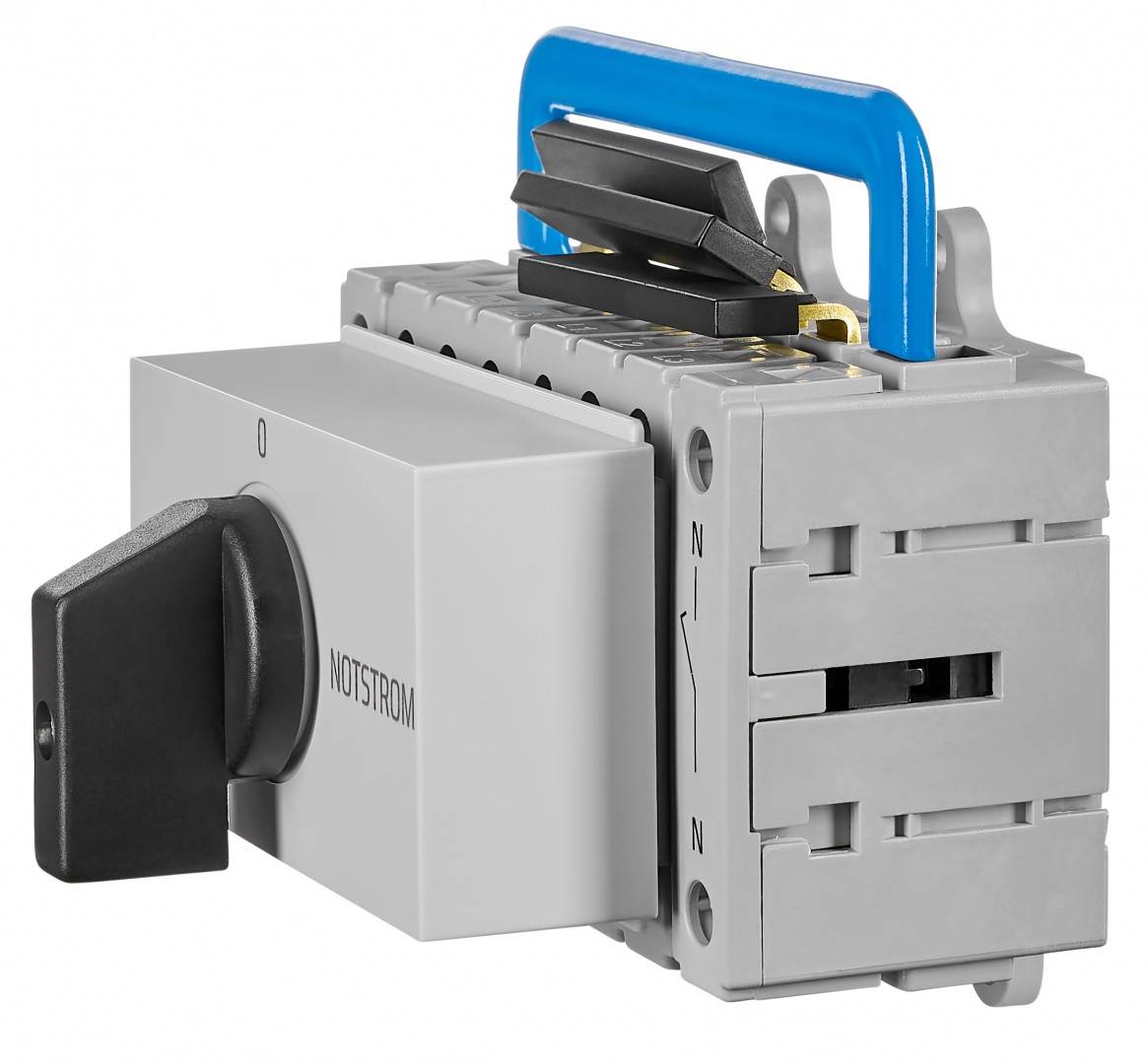

Neutral conductor contacts
Neutral conductor early-make, late-break design (closes before and opens after the phase conductors to prevent voltage displacement)
Temperatura de functionare
-25°C to +55°C
Thermal rated continuous current
32 A
Curent operational
AC-21A - 690V - 32A;AC-22A - 690V - 32A;AC-23A - 230V - 22A;AC-23A - 400V - 22A;AC-23A - 690V - 13A;AC-3 - 230V - 20A;AC-3 - 400V - 20A;AC-3 - 690V - 11.5A
Capacitate de comutare
AC-23A - 230V - 6kW;AC-23A - 400V - 11.5kW;AC-23A - 690V - 11.5kW;AC-3 - 230V - 5.5kW;AC-3 - 400V - 9.5kW;AC-3 - 690V - 9.5kW
PREG
2200
Conexiune
##
disipare
1,50 W
| Lungime | 89.4 mm |
| Latime | 78.4 mm |
| Inaltime | 45 mm |
| Greutate | 0.39 kg |
