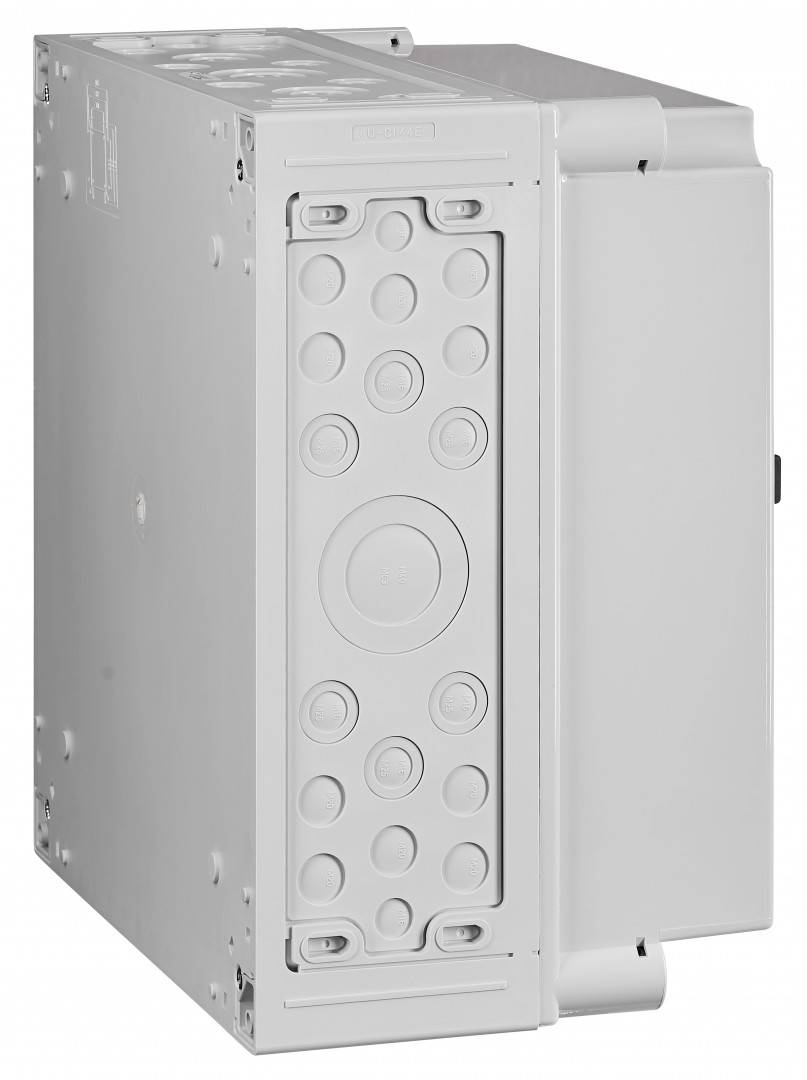

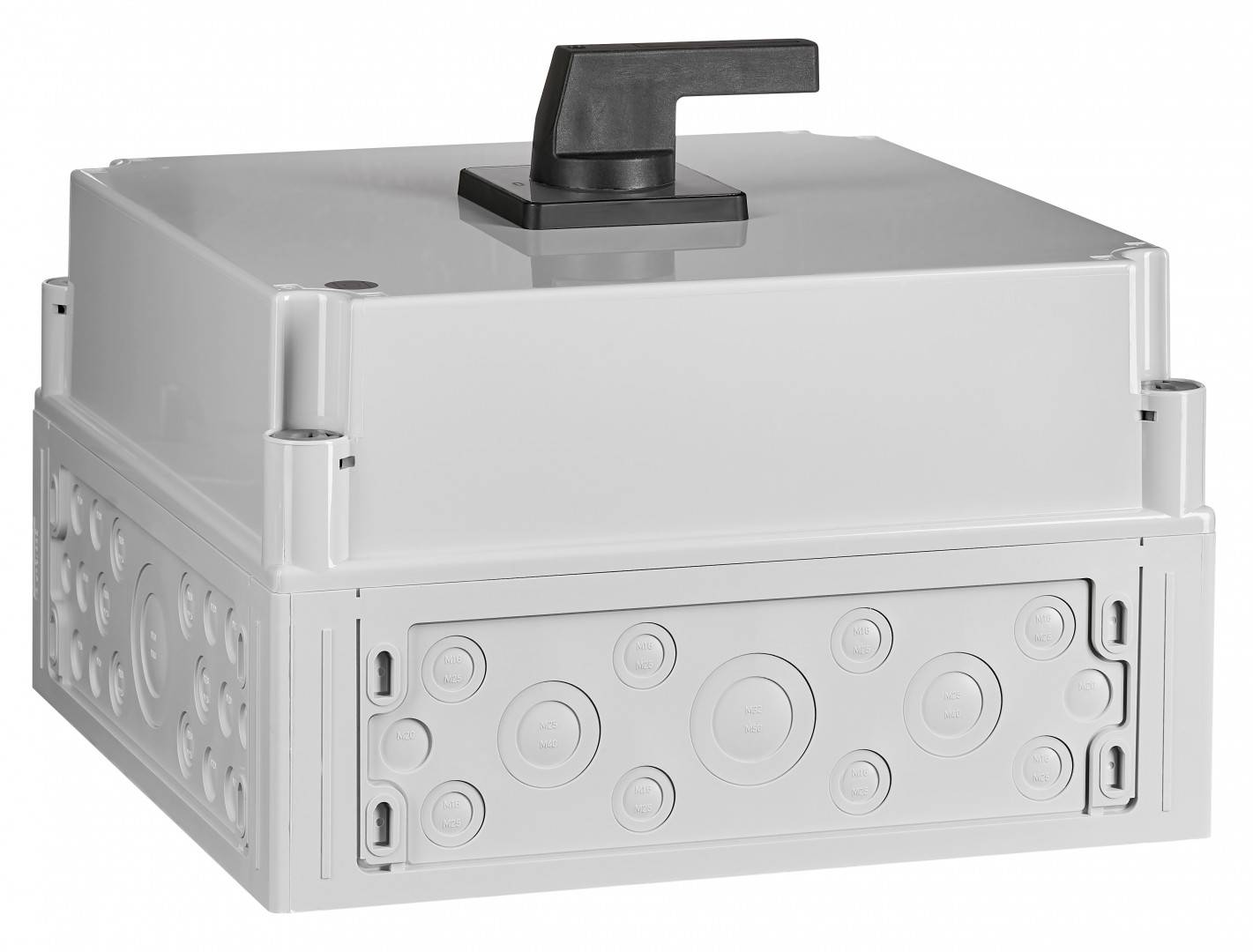

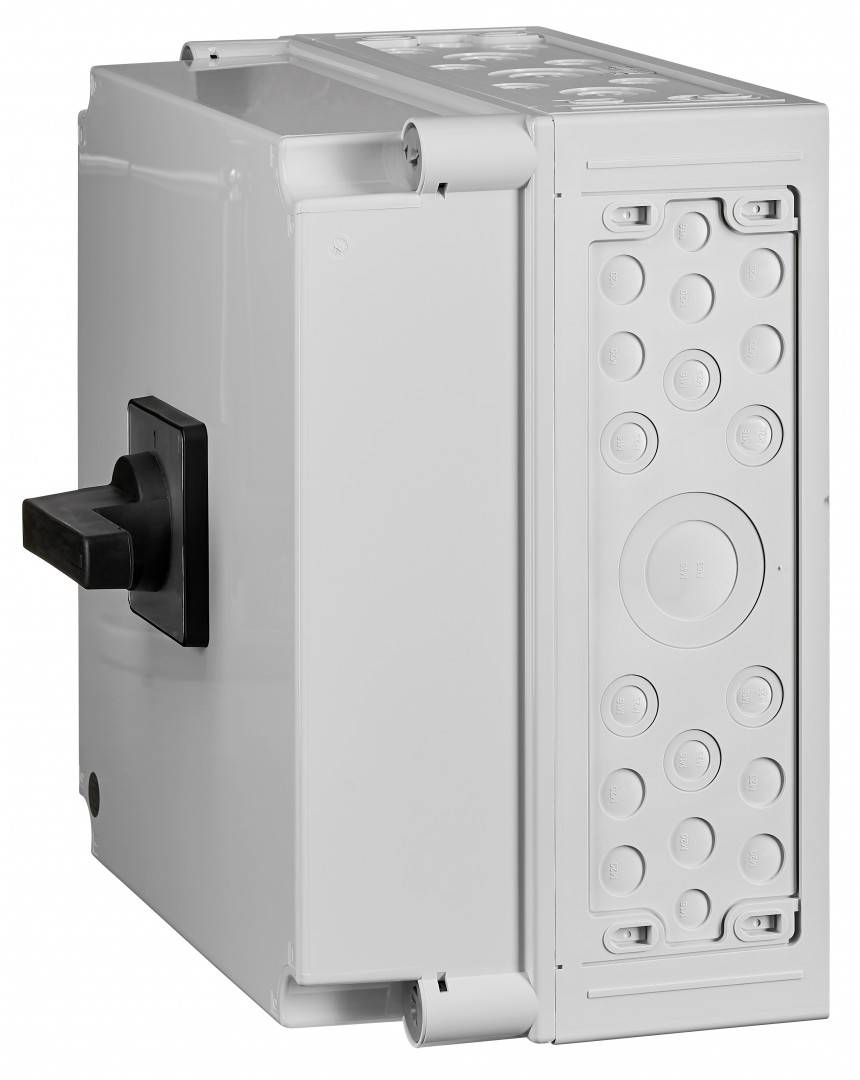

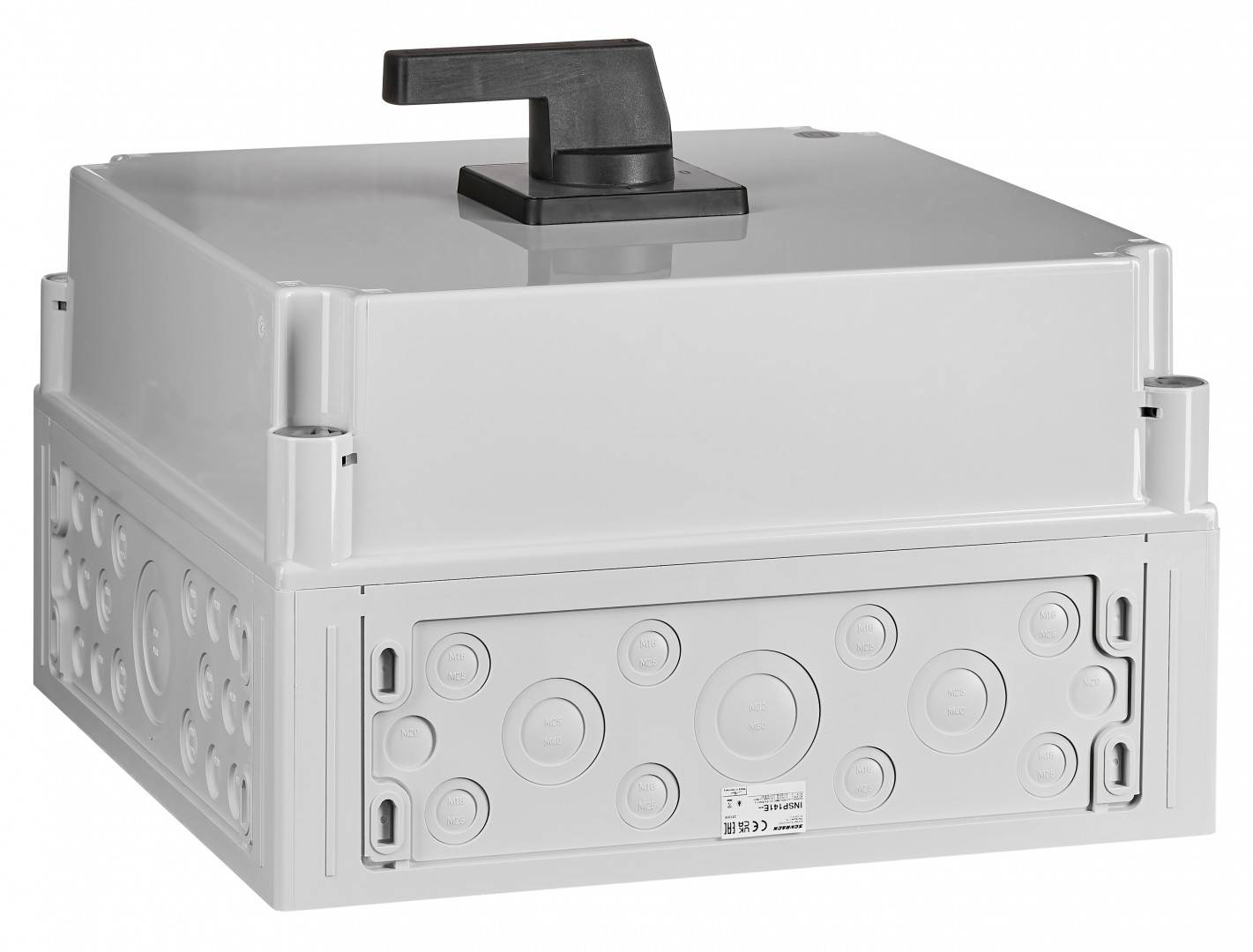

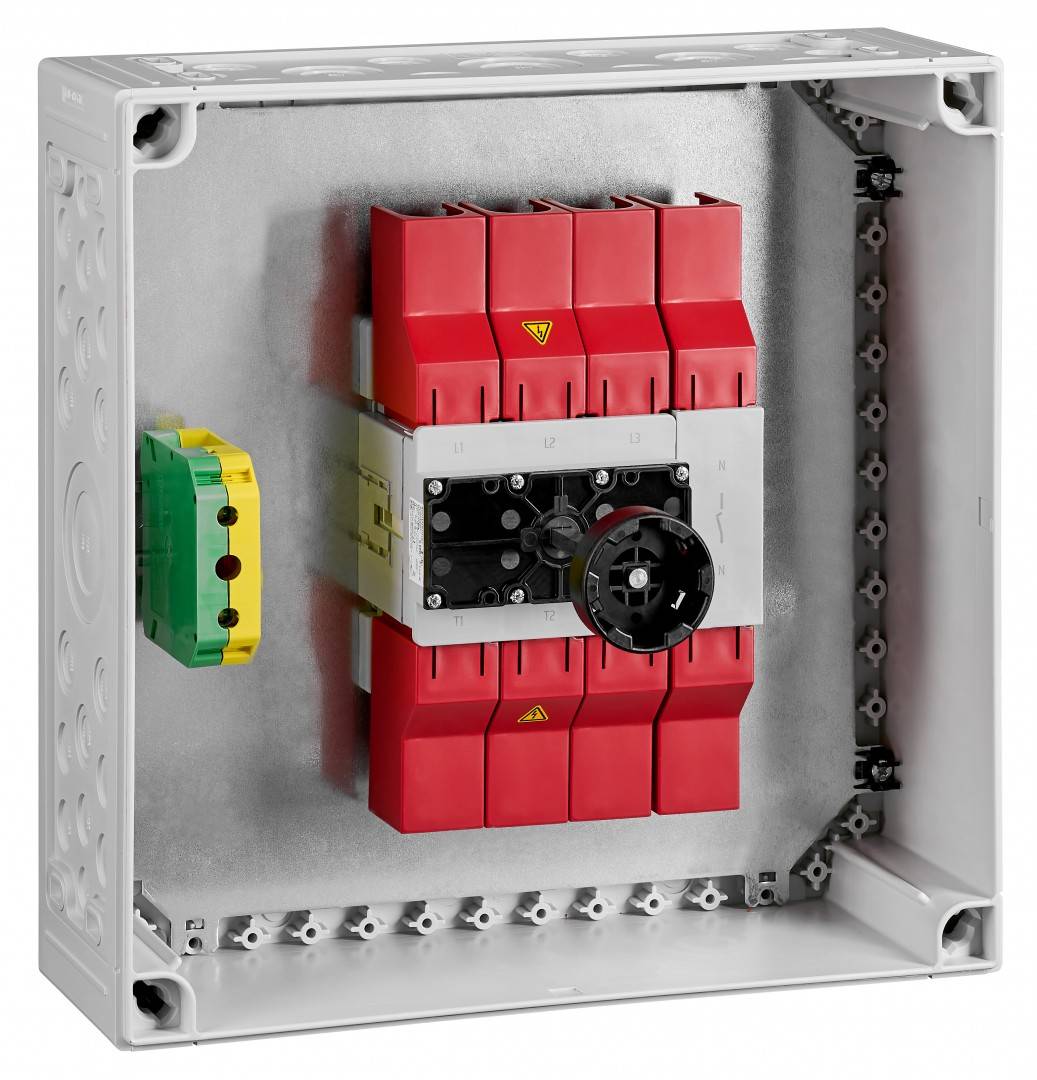

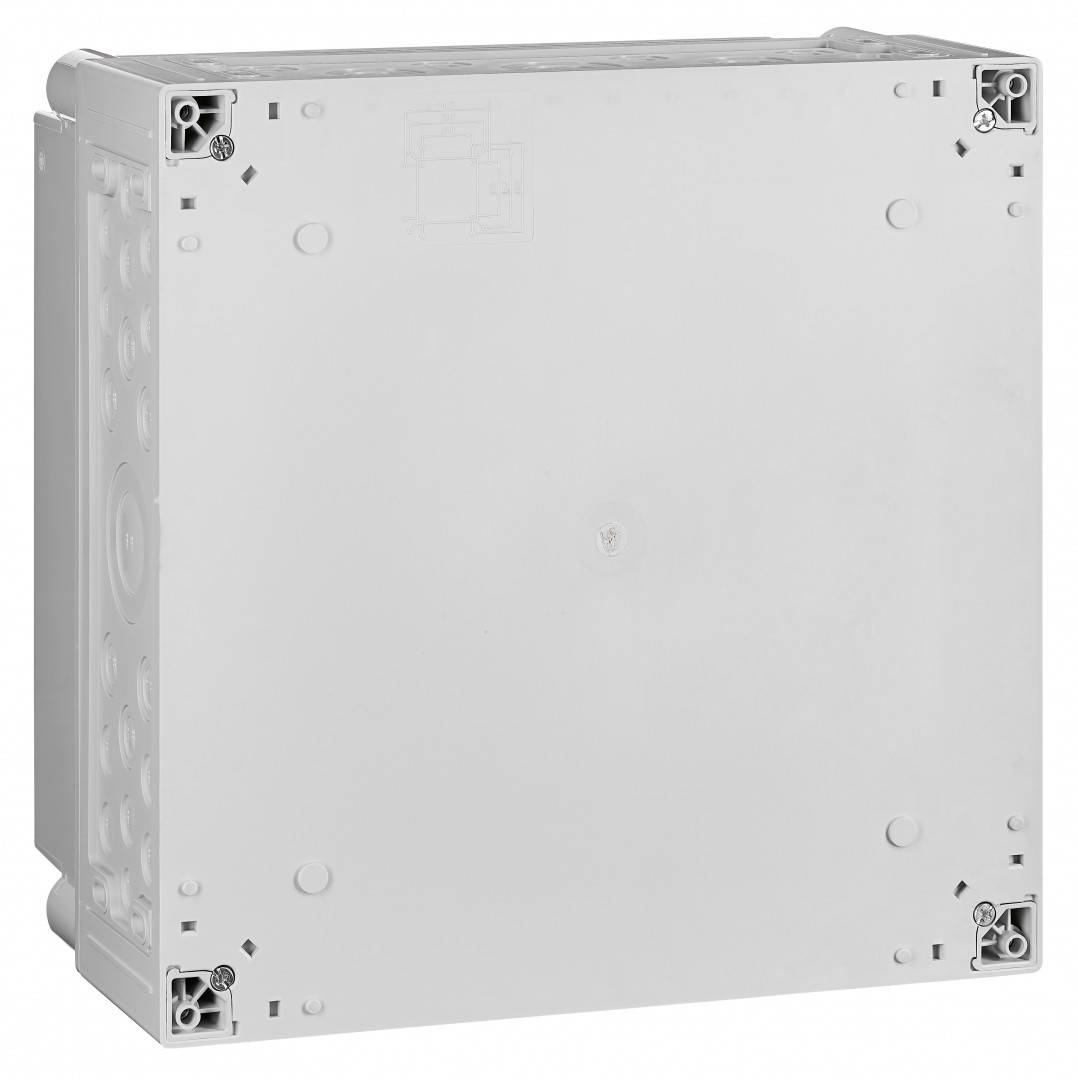

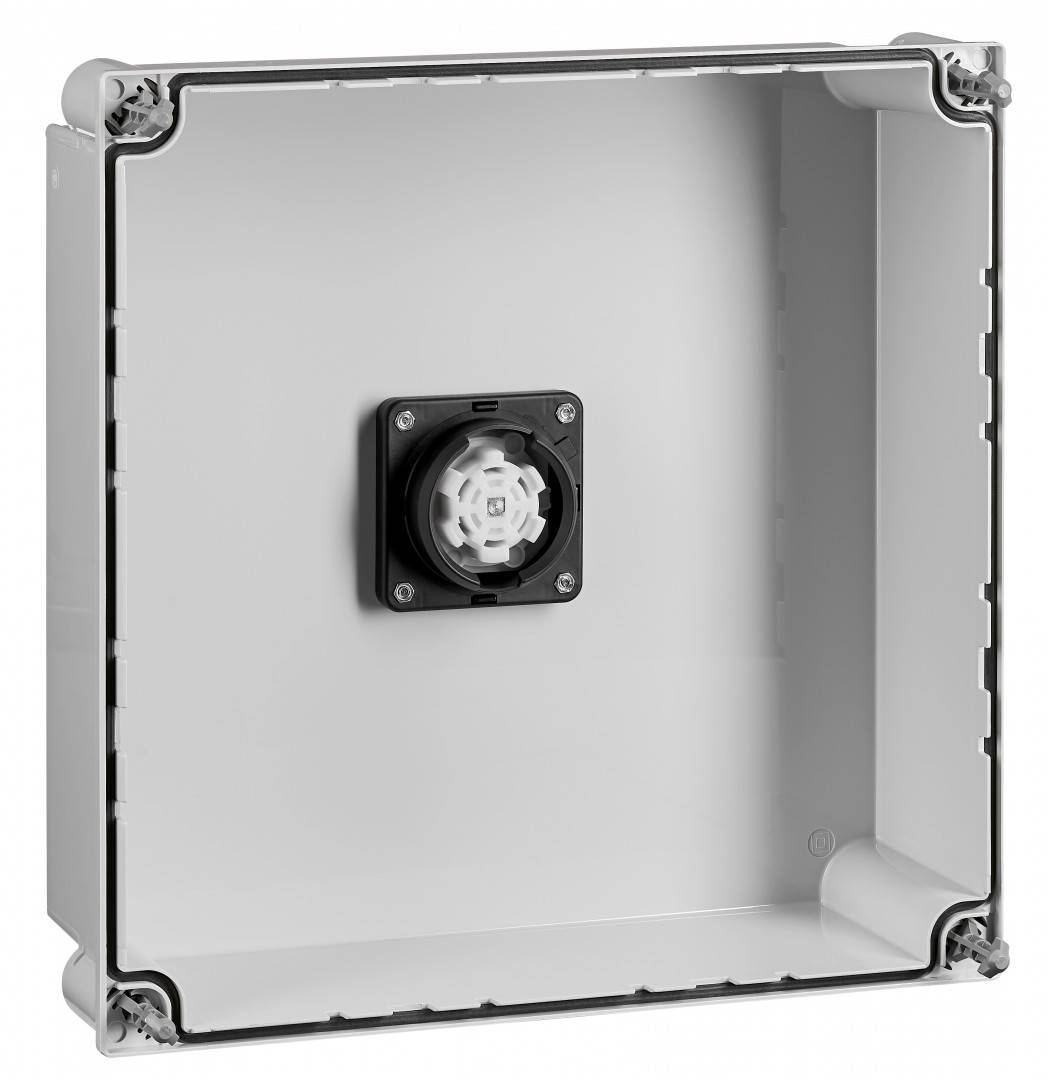

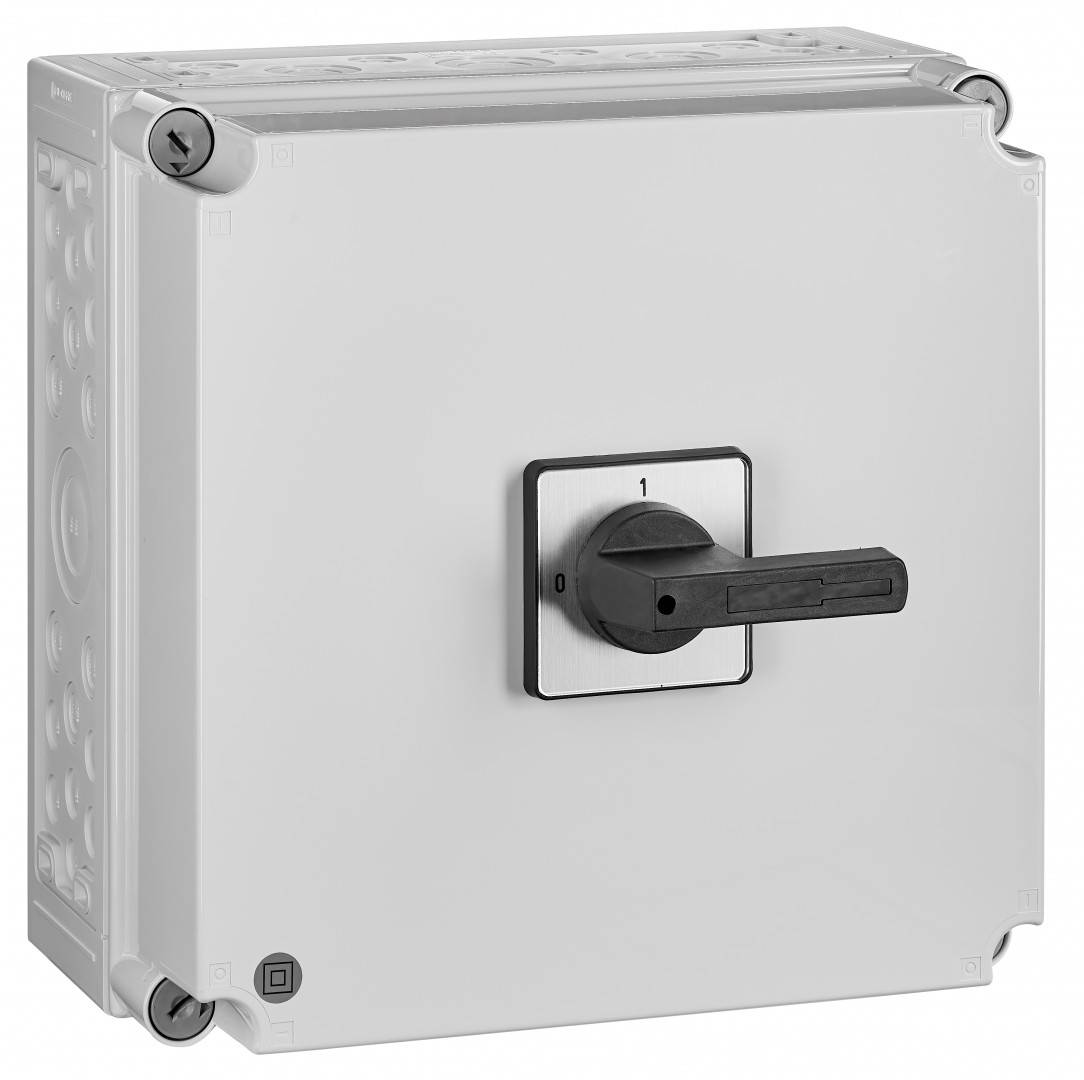

Specificatii Tehnice
Curent termic conventional Ith
400 A
Frecventa
50/60 Hz
Impuls de curent de scurtcircuit admisibil Icw
1000
Blocabil
Cu 3 lacate, fiecare cu diametru carlig de 4-6mm
Poli
4
Curent nominal
400 A
Curent nominal de scurtcircuit conditionat
10kA @ 440V / 6kA @ 690V
Standard
IEC 60947, EN 60947, VDE 0660
Tinere la impuls de tensiune [Uimp]
6000 V
Accesorii optionale
INSHK001--
Culoare
Gri
Curent operational
AC-21A - 690V - 400A;AC-23A - 400V - 230A;AC-23A - 690V - 57A;AC-3 - 400V - 195A;AC-3 - 690V - 47A
Retrofit contacts
##
Tensiune nominala de izolatie (Ui)
690 V
Conexiune
16-240mmp sectiune transversala cu papuc si surub M12, latime maxima papuc 32mm, diametru maxim al iesirii conexiunii 28mm
Temperatura maxima a mediului ambiant
55 °C
Unitate de ambalare
1 m.
Anduranta mecanica
100000 switching cycles
Thermal rated continuous current
400 A
Tensiune de alimentare AC
600 V
Contacte auxiliare
Maximum 2x INSHK001-- permitted. 1x INSHK001-- can be snapped on to the left side of the main contact and 1x INSHK001-- to the right side of the main contact. Maximum configuration 2x NC contact / 2x NO contact. The switching behavior is the same regardless of whether the auxiliary contact is snapped on to the left or right side of the main contact.
Masa neta
9,00 kg/m
Protectie impotriva contactului direct
Protectie degete si dosul palmei conform VDE 0106 partea 100
Capacitate de comutare
AC-23A - 400V - 132kW;AC-23A - 690V - 55kW;AC-3 - 400V - 110kW;AC-3 - 690V - 45kW
disipare
42,00 W
In conformitate cu UL 508 / CSA
##
Montaj
Montaj aparent
Temperatura minima a mediului ambiant
-25 °C

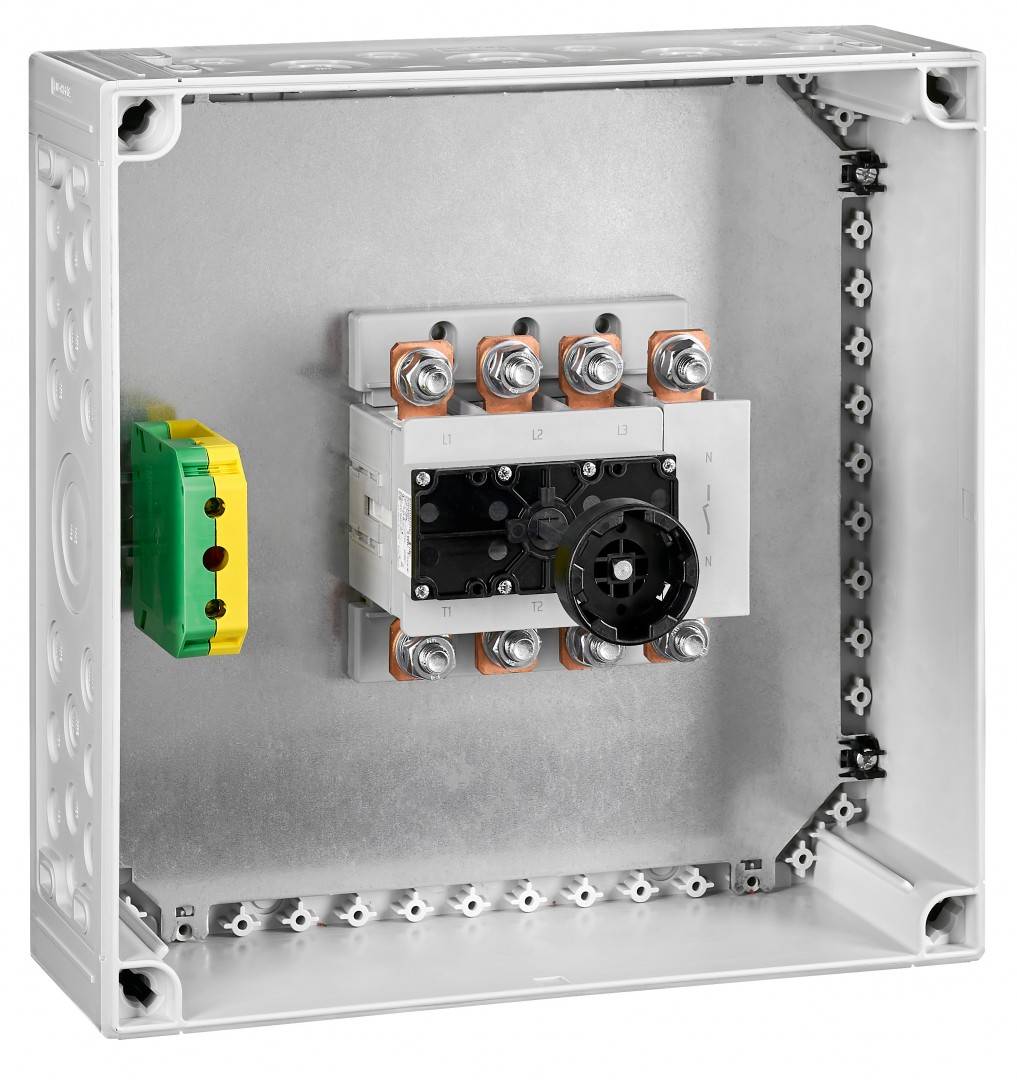

Versiune
Repairswitch
COD COMANDA
INSP141E
Cuplu de strangere
3 Nm
Neutral conductor contacts
Neutral conductor early-make, late-break design (closes before and opens after the phase conductors to prevent voltage displacement)
grad de protectie
IP65 (front), IP00 (connections)
Temperatura de functionare
-25°C to +55°C
LxBxH mm
225x374x374
PREG
2200
Power loss per pole
42 W
| Lungime | 225 mm |
| Latime | 374 mm |
| Inaltime | 374 mm |
| Greutate | 9 kg |
