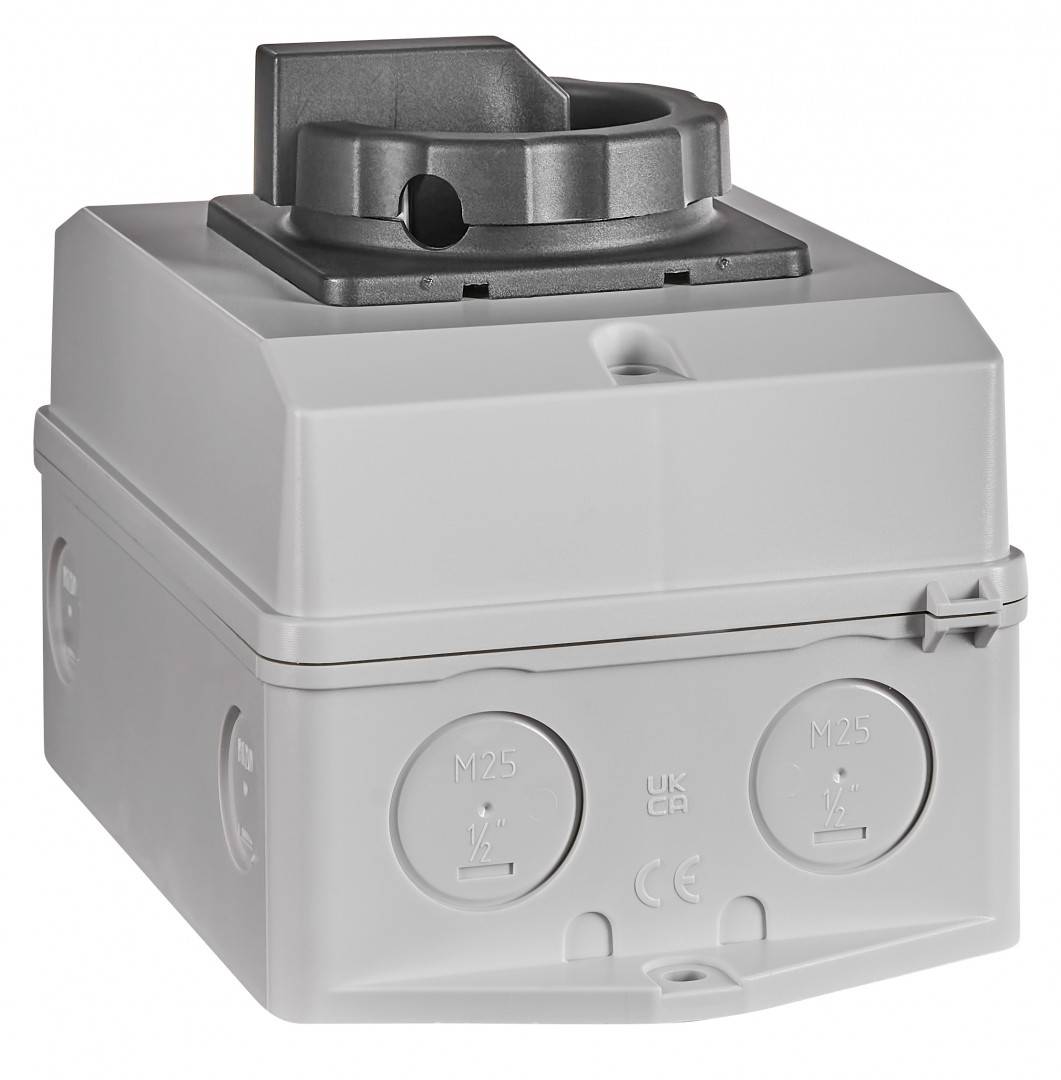

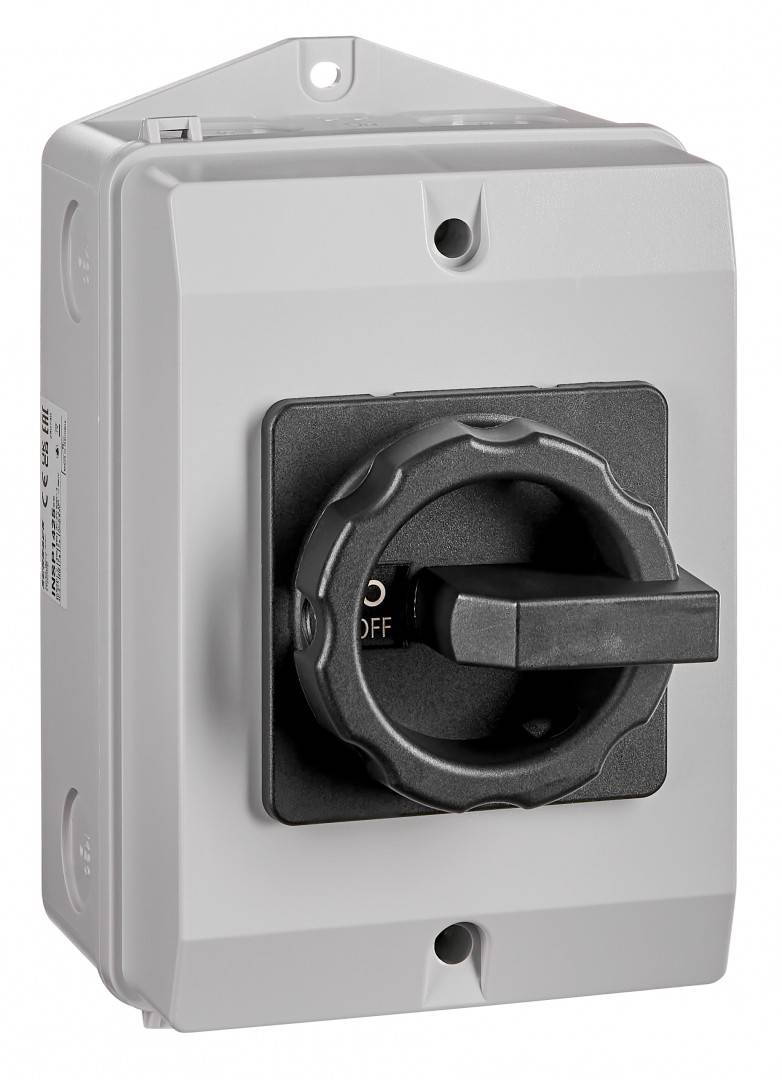

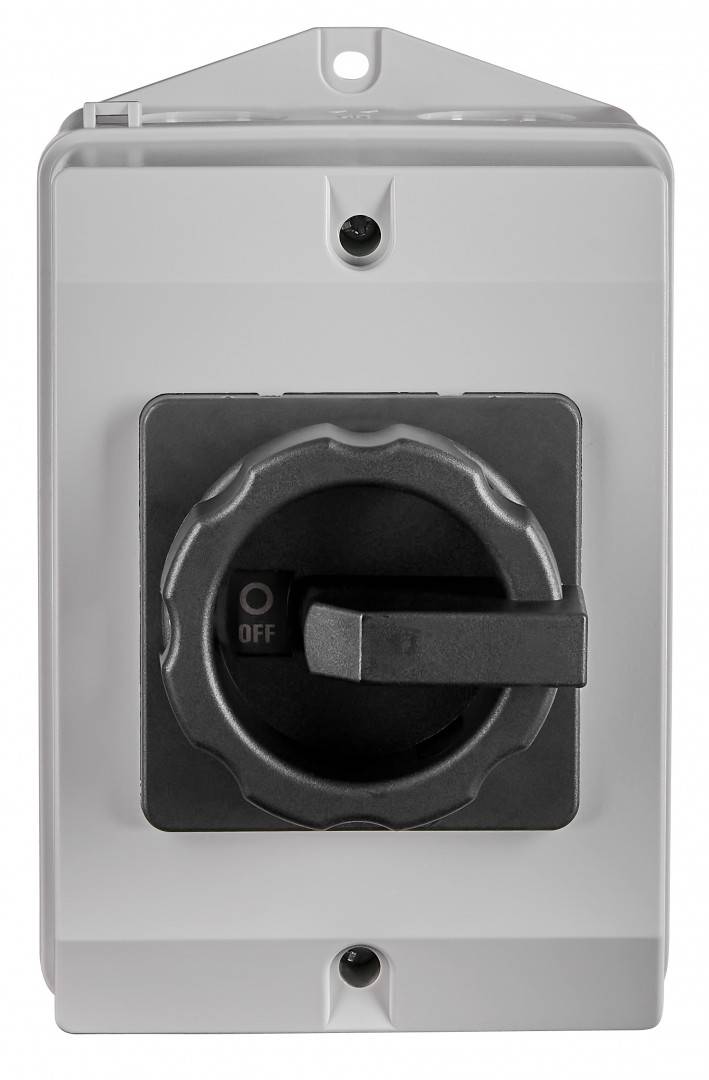

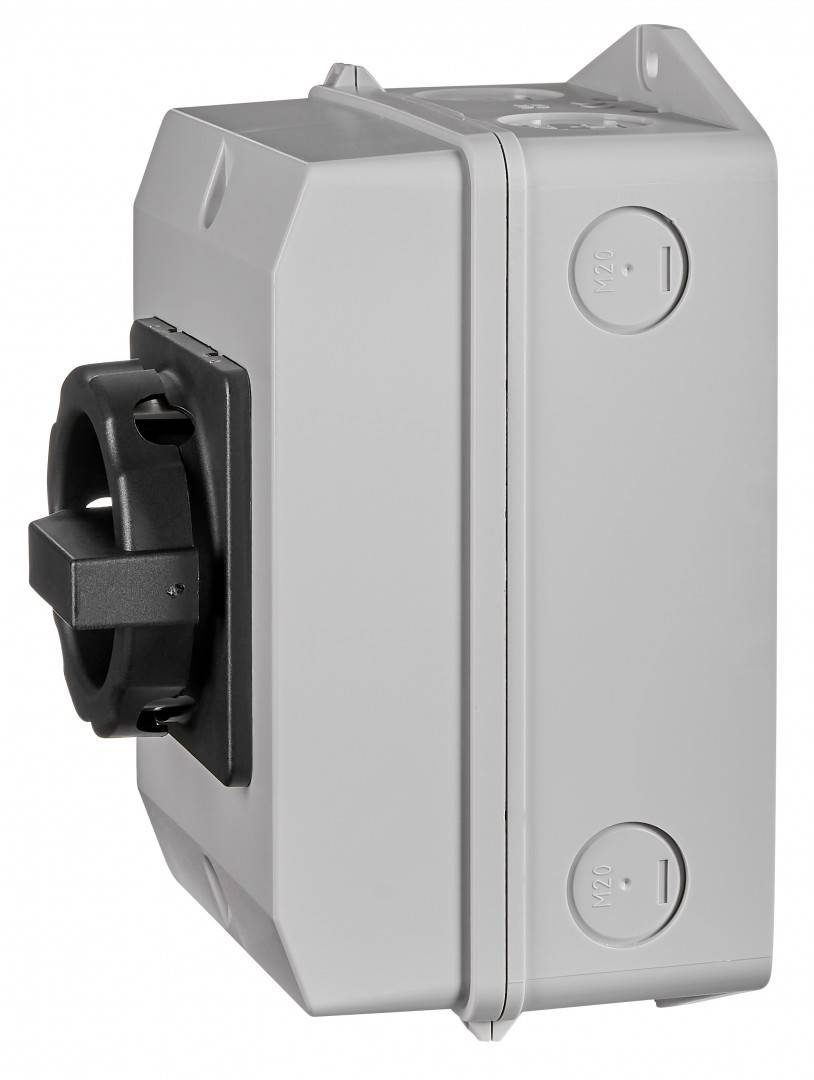

Specificatii Tehnice
Sectiune conexiune, multifilar
2,5-16 mm²
Frecventa
50/60 Hz
Curent operational
AC-21A - 690V - 25A;AC-22A - 690V - 25A;AC-23A - 230V - 11A;AC-23A - 400V - 19A;AC-23A - 690V - 11A;AC-3 - 230V - 15A;AC-3 - 400V - 16A;AC-3 - 690V - 9.5A
Curent termic conventional Ith
25 A
Sectiune conexiune, monofilar
2,5-16 mm²

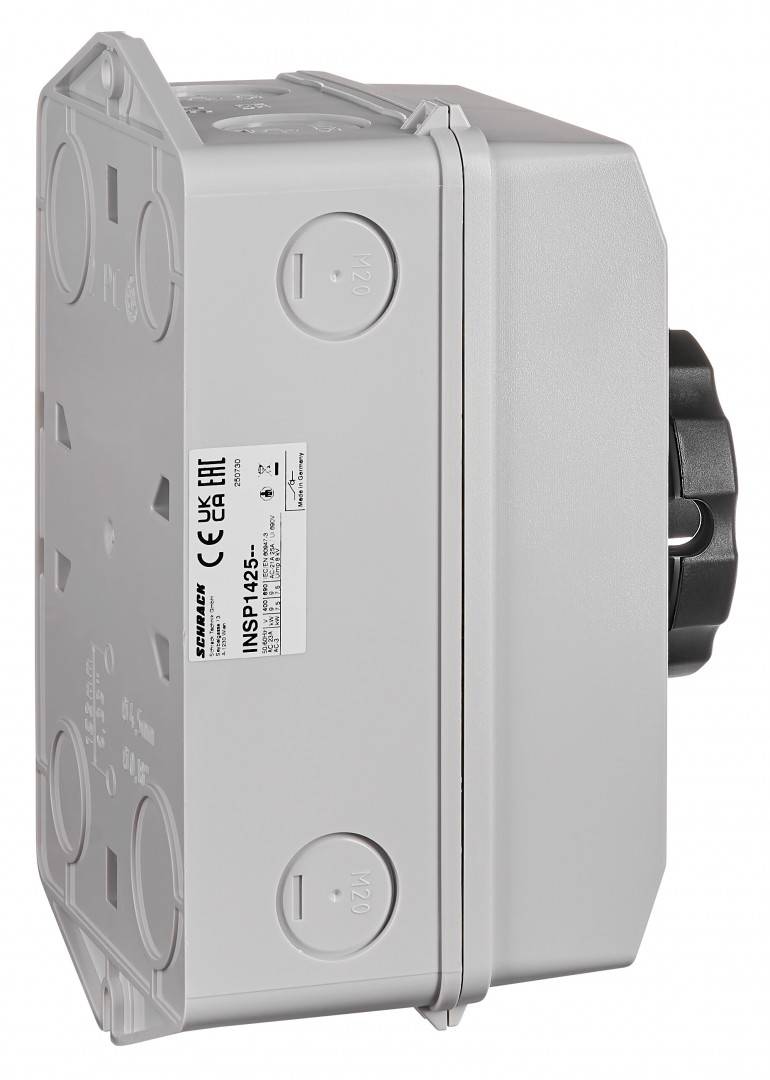

COD COMANDA
INSP1425
Poli
4
Fuzibil max. protectie la scurtcircuit
50
Impuls de curent de scurtcircuit admisibil Icw
500
Curent nominal de scurtcircuit conditionat
10kA @ 440V / 6kA @ 690V
Standard
IEC 60947, EN 60947, VDE 0660
Tinere la impuls de tensiune [Uimp]
6000 V
Accesorii optionale
INSHK001--
Culoare
Gri
Tip conexiune
UL/CSA - AWG 14-6
disipare
0,90 W
Retrofit contacts
##
Tensiune nominala de izolatie (Ui)
690 V
Power loss per pole
0,90 W
Temperatura maxima a mediului ambiant
55 °C
Unitate de ambalare
1 m.
Anduranta mecanica
100000 switching cycles
Tensiune de alimentare AC
600 V
PU
10
Contacte auxiliare
Maximum 2x INSHK001-- permitted. 1x INSHK001-- can be snapped on to the left side of the main contact and 1x INSHK001-- to the right side of the main contact. Maximum configuration 2x NC contact / 2x NO contact. The switching behavior is the same regardless of whether the auxiliary contact is snapped on to the left or right side of the main contact.
Protectie impotriva contactului direct
Protectie degete si dosul palmei conform VDE 0106 partea 100
In conformitate cu UL 508 / CSA
##

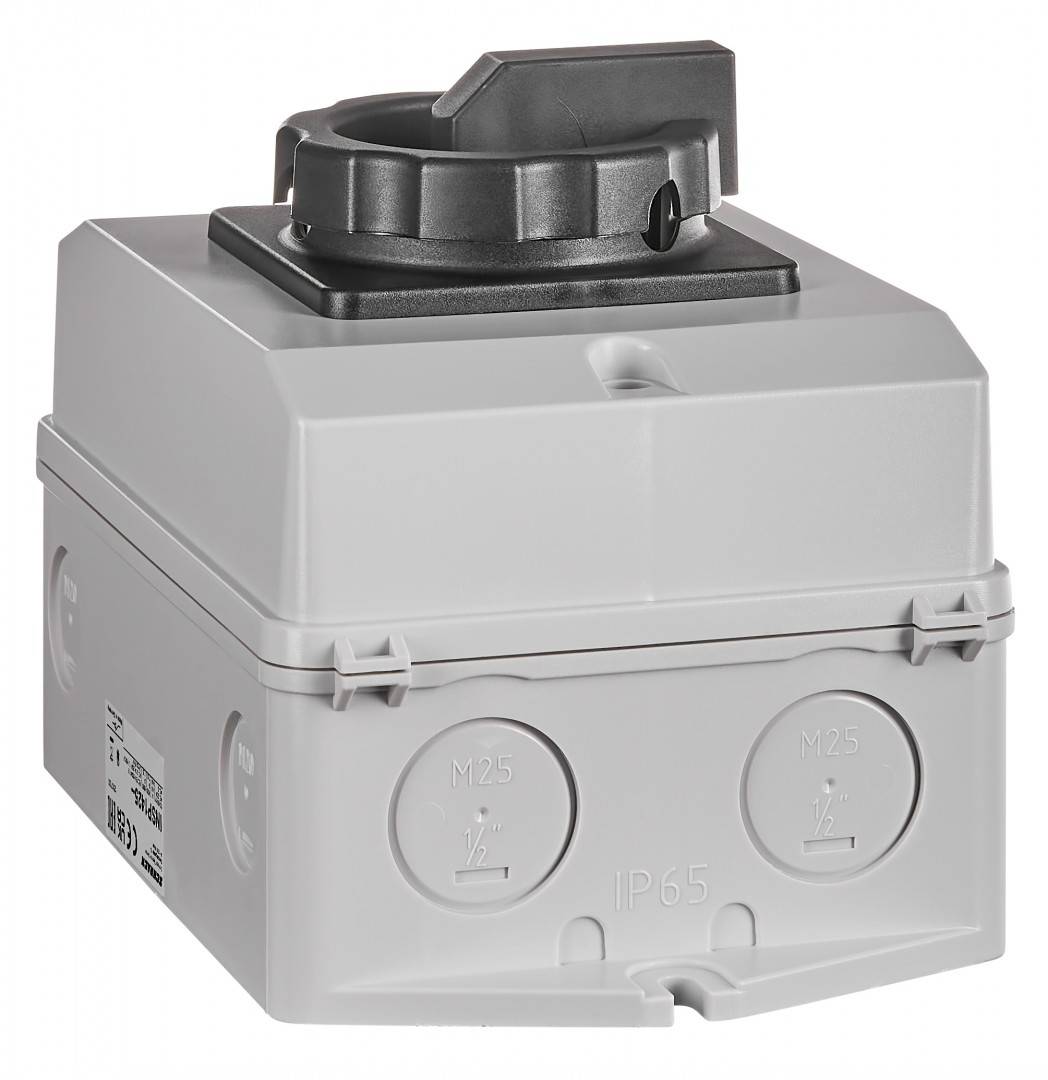

grad de protectie
IP65 (housing), IP20 (terminals)

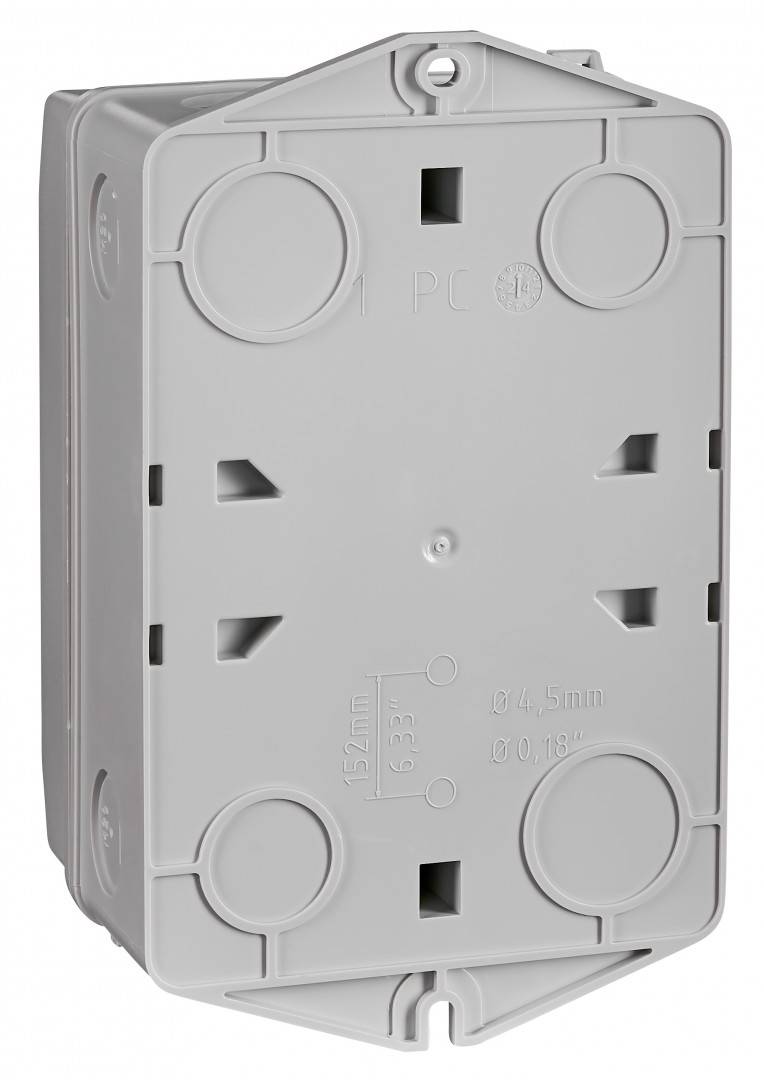

Montaj
Montaj aparent
Blocabil
Cu 3 lacate, fiecare cu diametru carlig de 4-8mm
LxBxH mm
115x100x140
Temperatura minima a mediului ambiant
-25 °C
Versiune
Repairswitch
Masa neta
0,43 kg/m
Capacitate de comutare
AC-23A - 230V - 4kW;AC-23A - 400V - 9kW;AC-23A - 690V - 9kW;AC-3 - 230V - 4kW;AC-3 - 400V - 7.5kW;AC-3 - 690V - 7.5kW
Sectiune conexiune, fir flexibil cu pin
2,5-16 mm²
Thermal rated continuous current
25 A
Cuplu de strangere
3 Nm

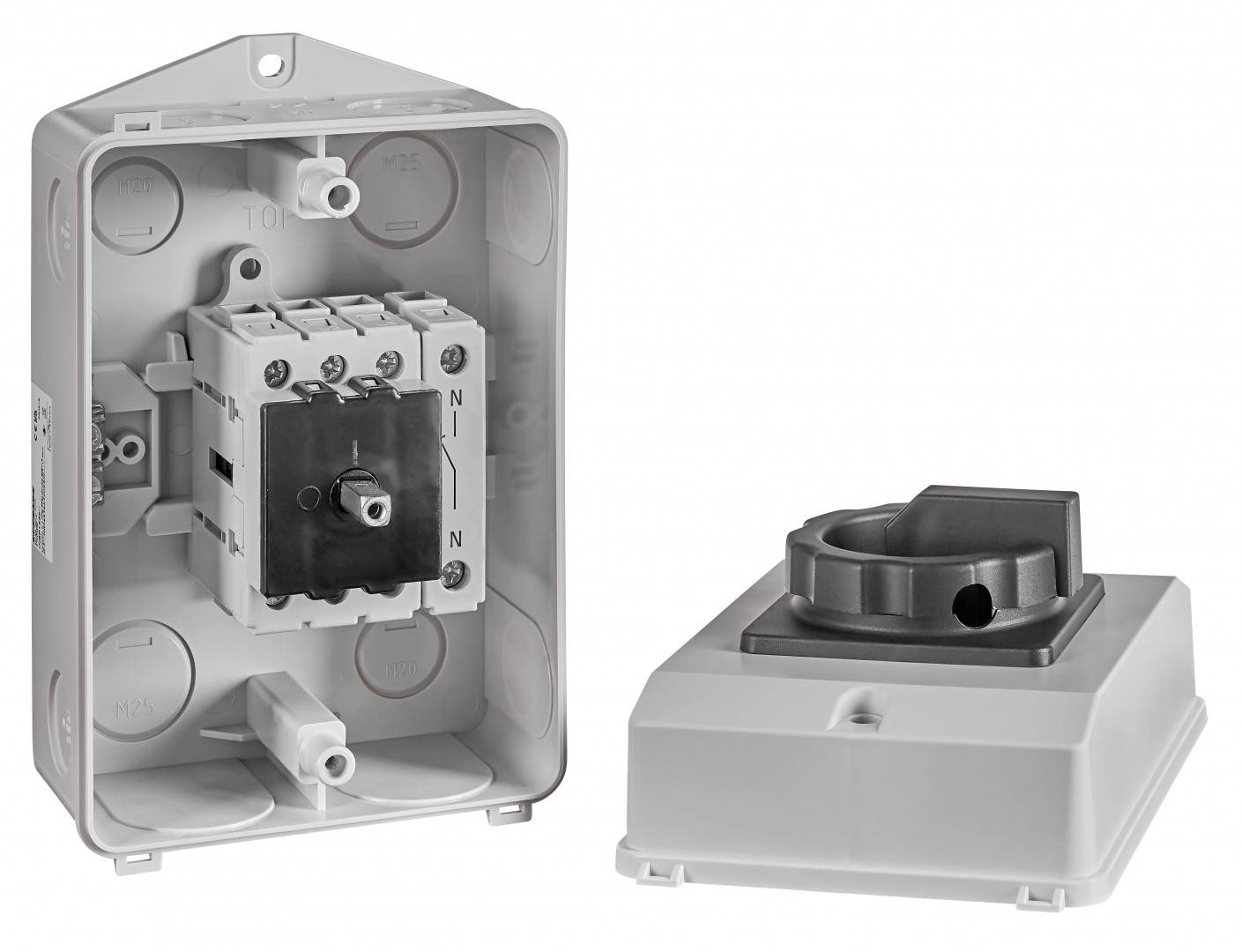

Neutral conductor contacts
Neutral conductor early-make, late-break design (closes before and opens after the phase conductors to prevent voltage displacement)
Temperatura de functionare
-25°C to +55°C
Curent nominal
25 A
PREG
2200
Conexiune
##
Active Power
3x120VAC - 3Hp;3x240VAC - 7.5Hp;3x480VAC - 10Hp;3x600VAC - 15Hp;1x120VAC - 2Hp;1x240VAC - 3Hp
| Lungime | 115 mm |
| Latime | 100 mm |
| Inaltime | 140 mm |
| Greutate | 0.43 kg |
