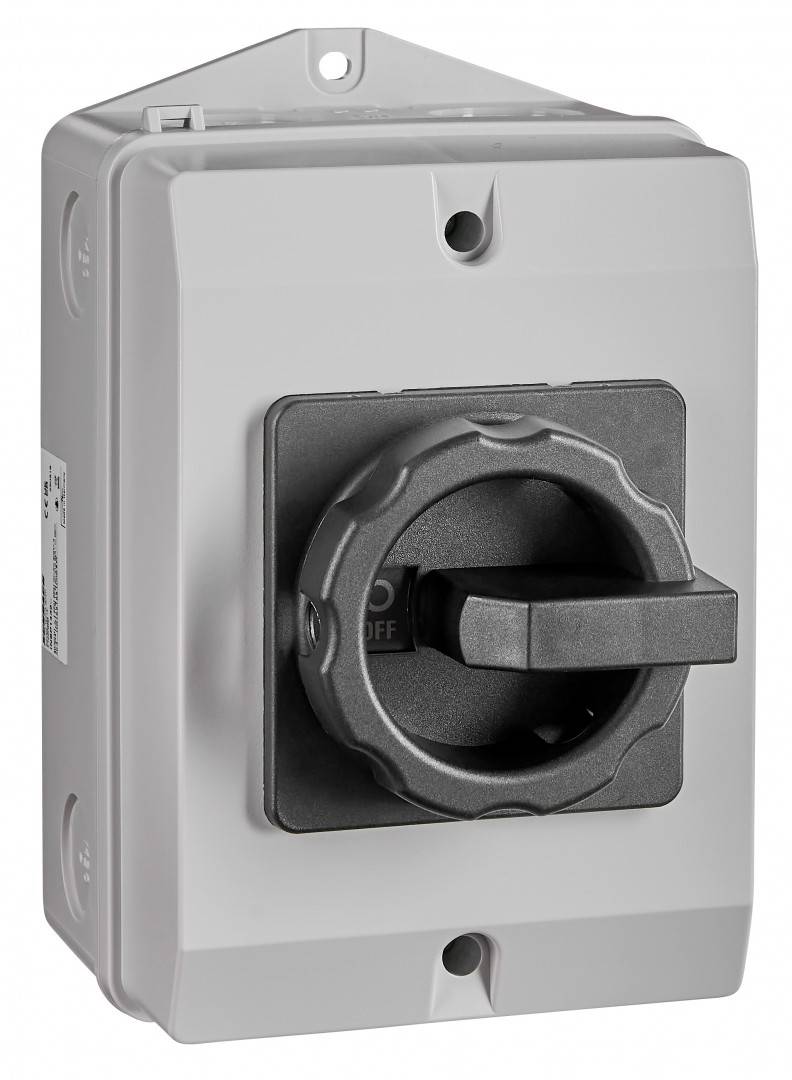

Specificatii Tehnice
Curent nominal
125 A
Frecventa
50/60 Hz
Impuls de curent de scurtcircuit admisibil Icw
1000
grad de protectie
IP65 (housing), IP10 (terminals)
Poli
4
Curent nominal de scurtcircuit conditionat
10kA @ 440V / 6kA @ 690V
Sectiune conexiune, monofilar
18354 mm²
Standard
IEC 60947, EN 60947, VDE 0660
Tinere la impuls de tensiune [Uimp]
6000 V
COD COMANDA
INSP141B
Accesorii optionale
INSHK001--
Capacitate de comutare
AC-23A - 230V - 22kW;AC-23A - 400V - 45kW;AC-23A - 690V - 37kW;AC-3 - 230V - 22kW;AC-3 - 400V - 37kW;AC-3 - 690V - 30kW
Culoare
Gri
Curent operational
AC-21A - 690V - 125A;AC-23A - 400V - 84A;AC-23A - 690V - 41A;AC-3 - 400V - 70A;AC-3 - 690V - 35A
Retrofit contacts
##
Tensiune nominala de izolatie (Ui)
690 V
Temperatura maxima a mediului ambiant
55 °C
Unitate de ambalare
1 m.
Anduranta mecanica
100000 switching cycles
Contacte auxiliare
Maximum 1x INSHK001-- permitted. Attention! INSHK001-- must be snapped onto the phase contact and is not allowed to be snapped onto the neutral conductor contact! Maximum configuration 1x NC contact / 1x NO contact.
Sectiune conexiune, multifilar
4-50 mm²
Tensiune de alimentare AC
600 V
Tip conexiune
UL/CSA - AWG 12-1
Protectie impotriva contactului direct
Protectie degete si dosul palmei conform VDE 0106 partea 100
In conformitate cu UL 508 / CSA
##
Montaj
Montaj aparent
Blocabil
Cu 3 lacate, fiecare cu diametru carlig de 4-8mm
Temperatura minima a mediului ambiant
-25 °C
Versiune
Repairswitch
Thermal rated continuous current
125 A
Cuplu de strangere
3 Nm
Neutral conductor contacts
Neutral conductor early-make, late-break design (closes before and opens after the phase conductors to prevent voltage displacement)
Temperatura de functionare
-25°C to +55°C
Masa neta
1,70 kg/m
PU
5
LxBxH mm
137x214x304
disipare
12,00 W
PREG
2200
Conexiune
##
Fuzibil max. protectie la scurtcircuit
125
Power loss per pole
12 W
Sectiune conexiune, fir flexibil cu pin
4-35 mm²
Active Power
3x240VAC - 40Hp;3x480VAC - 75Hp;3x600VAC - 100Hp
Curent termic conventional Ith
125 A
| Lungime | 137 mm |
| Latime | 214 mm |
| Inaltime | 304 mm |
| Greutate | 1.7 kg |
