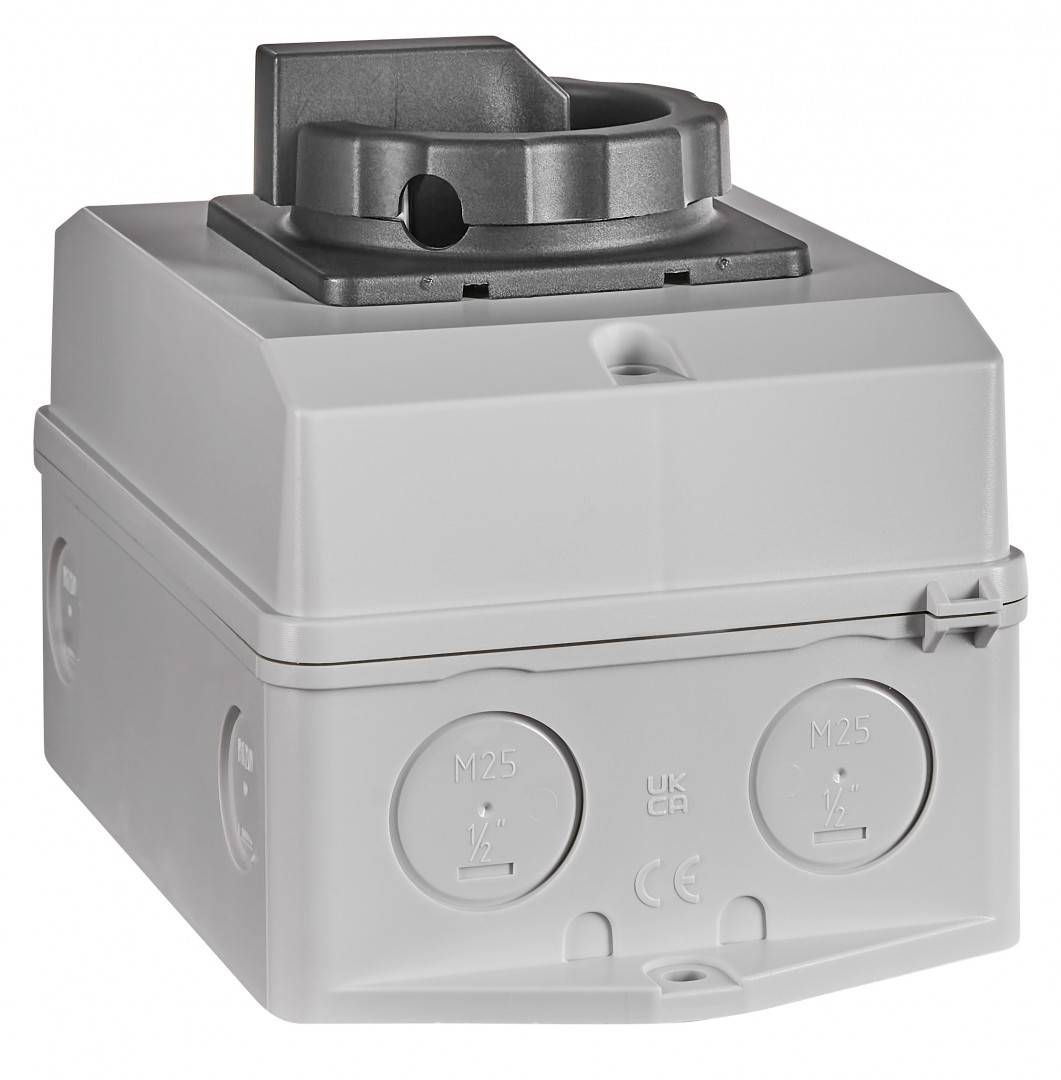

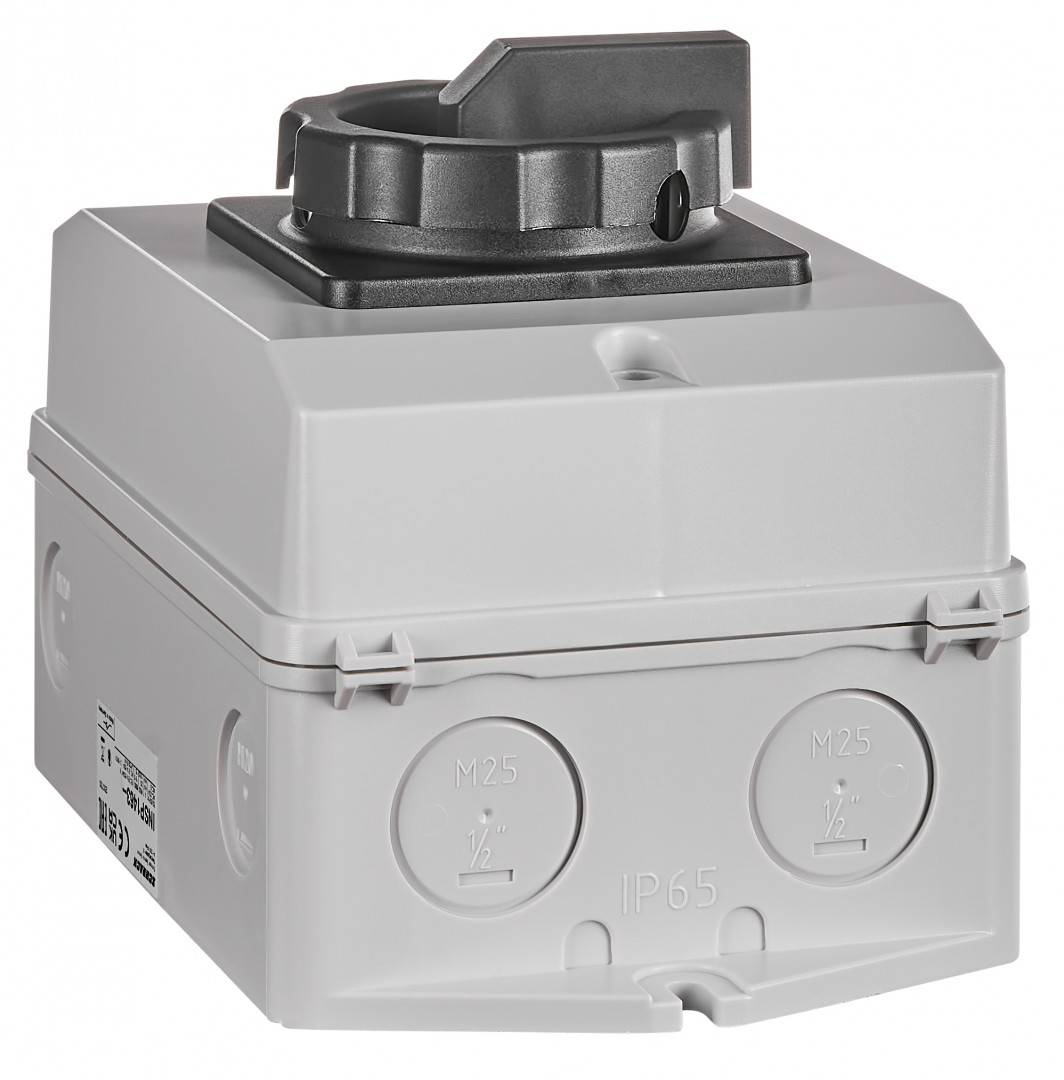

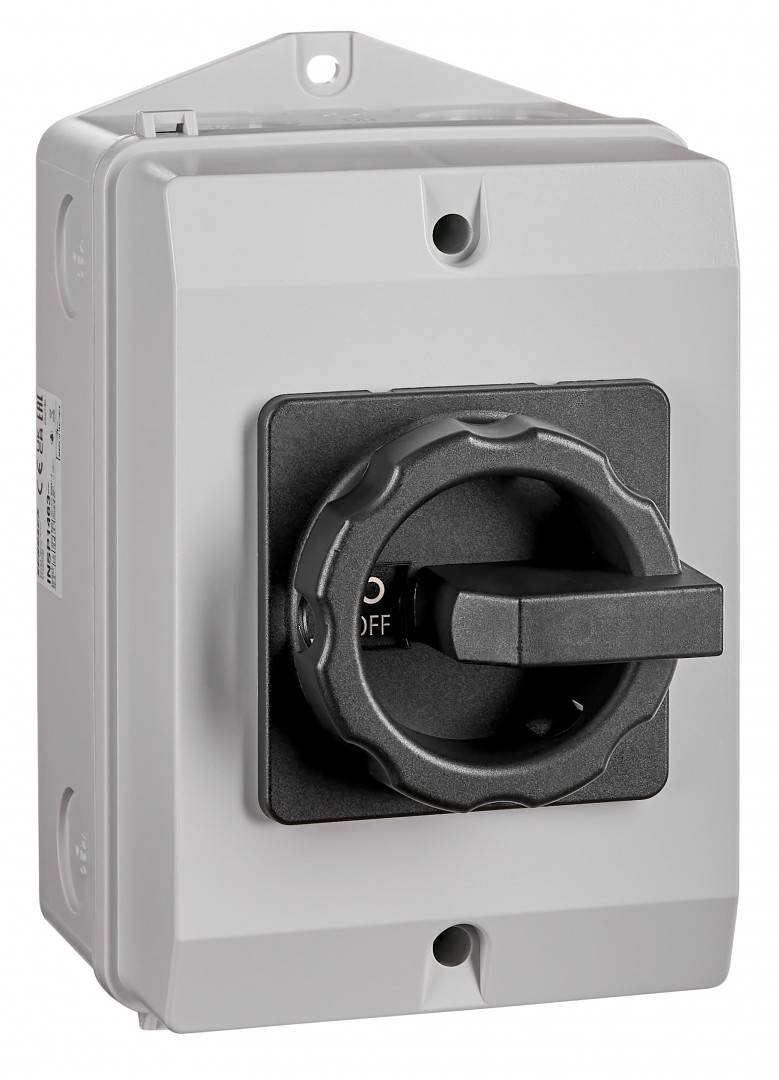

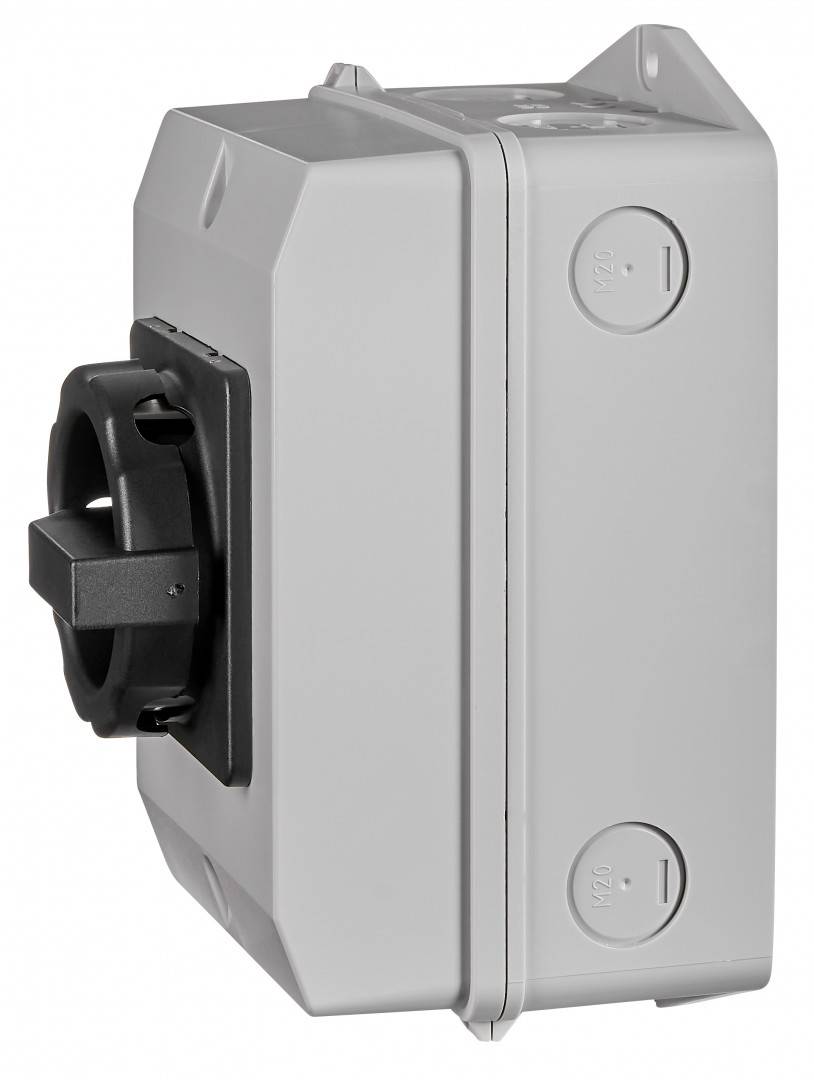

Specificatii Tehnice
Sectiune conexiune, multifilar
2,5-16 mm²
Curent operational
AC-21A - 690V - 63A;AC-22A - 690V - 63A;AC-23A - 230V - 38A;AC-23A - 400V - 41A;AC-23A - 690V - 21A;AC-3 - 230V - 38A;AC-3 - 400V - 36A;AC-3 - 690V - 17A
Frecventa
50/60 Hz
Impuls de curent de scurtcircuit admisibil Icw
1000
Curent nominal
63 A
Sectiune conexiune, monofilar
2,5-16 mm²
Poli
4
Curent nominal de scurtcircuit conditionat
10kA @ 440V / 6kA @ 690V
Standard
IEC 60947, EN 60947, VDE 0660
disipare
3,60 W
Power loss per pole
3,60 W
Tinere la impuls de tensiune [Uimp]
6000 V
Accesorii optionale
INSHK001--
Culoare
Gri
Tip conexiune
UL/CSA - AWG 14-6
Capacitate de comutare
AC-23A - 230V - 11kW;AC-23A - 400V - 22kW;AC-23A - 690V - 18.5kW;AC-3 - 230V - 11kW;AC-3 - 400V - 18.5kW;AC-3 - 690V - 15kW
Retrofit contacts
##
Tensiune nominala de izolatie (Ui)
690 V
Temperatura maxima a mediului ambiant
55 °C
Unitate de ambalare
1 m.
Anduranta mecanica
100000 switching cycles
Tensiune de alimentare AC
600 V
PU
10
Active Power
3x120VAC - 5Hp;3x240VAC - 15Hp;3x480VAC - 25Hp;3x600VAC - 30Hp;1x120VAC - 3Hp;1x240VAC - 10Hp
Contacte auxiliare
Maximum 2x INSHK001-- permitted. 1x INSHK001-- can be snapped on to the left side of the main contact and 1x INSHK001-- to the right side of the main contact. Maximum configuration 2x NC contact / 2x NO contact. The switching behavior is the same regardless of whether the auxiliary contact is snapped on to the left or right side of the main contact.
Thermal rated continuous current
63 A
Protectie impotriva contactului direct
Protectie degete si dosul palmei conform VDE 0106 partea 100
Fuzibil max. protectie la scurtcircuit
63
In conformitate cu UL 508 / CSA
##
grad de protectie
IP65 (housing), IP20 (terminals)

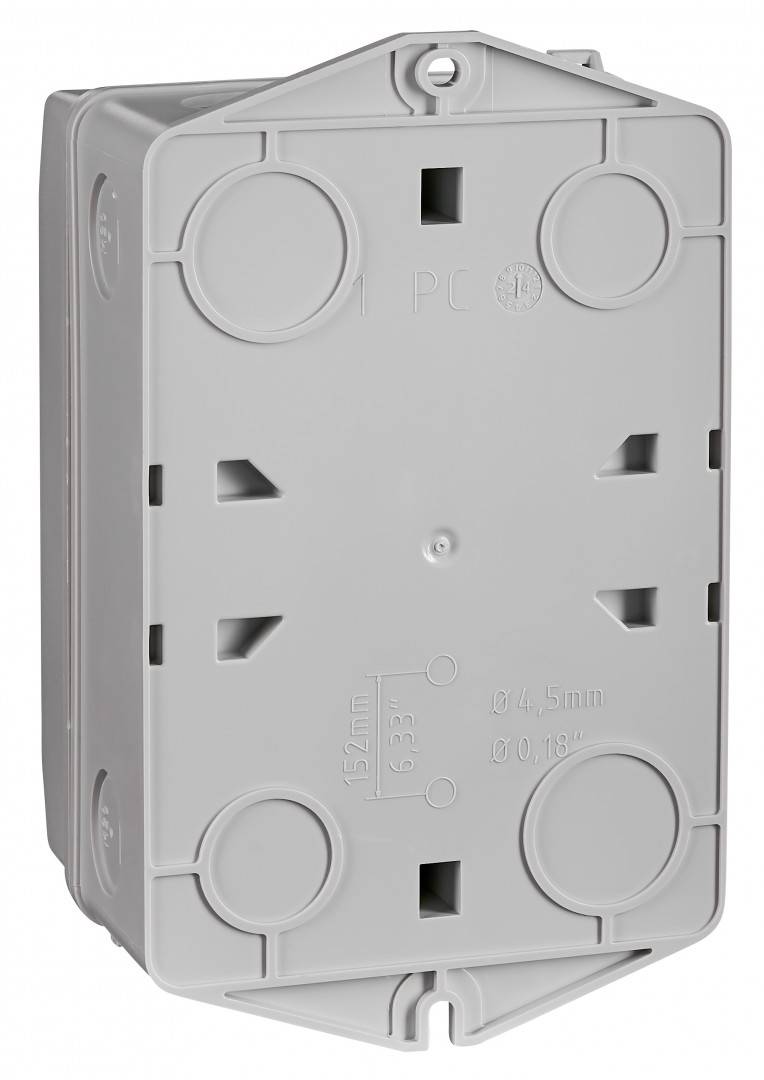

Montaj
Montaj aparent

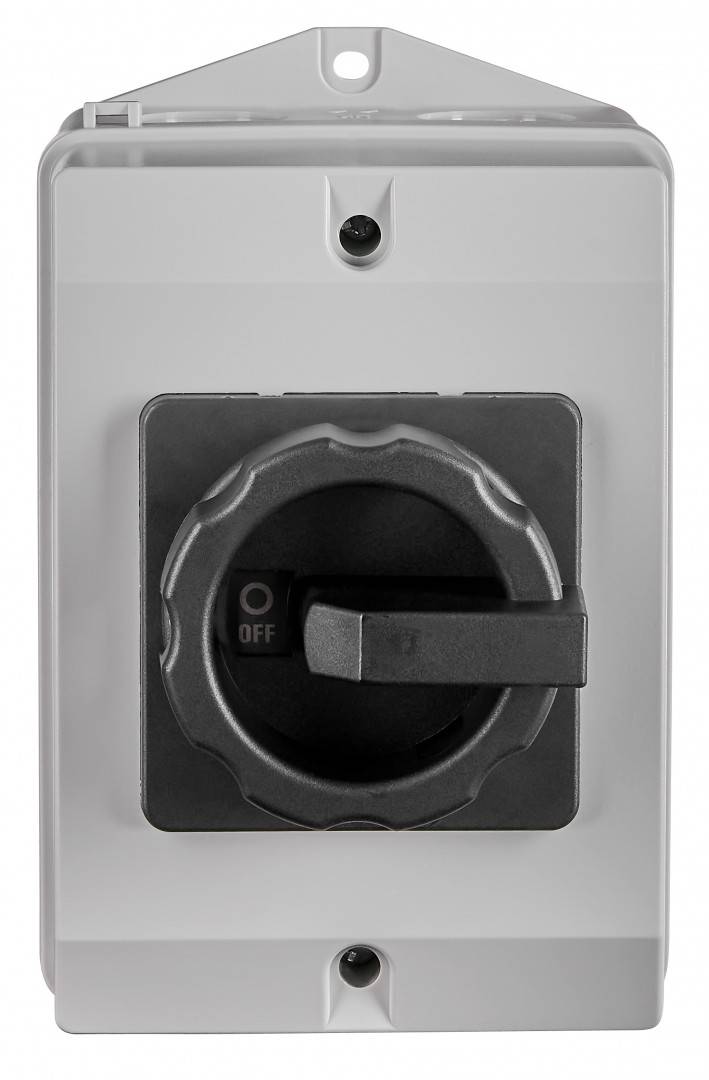

Blocabil
Cu 3 lacate, fiecare cu diametru carlig de 4-8mm
LxBxH mm
115x100x140
Temperatura minima a mediului ambiant
-25 °C
Curent termic conventional Ith
63 A
Versiune
Repairswitch
Masa neta
0,43 kg/m
Sectiune conexiune, fir flexibil cu pin
2,5-16 mm²
Cuplu de strangere
3 Nm

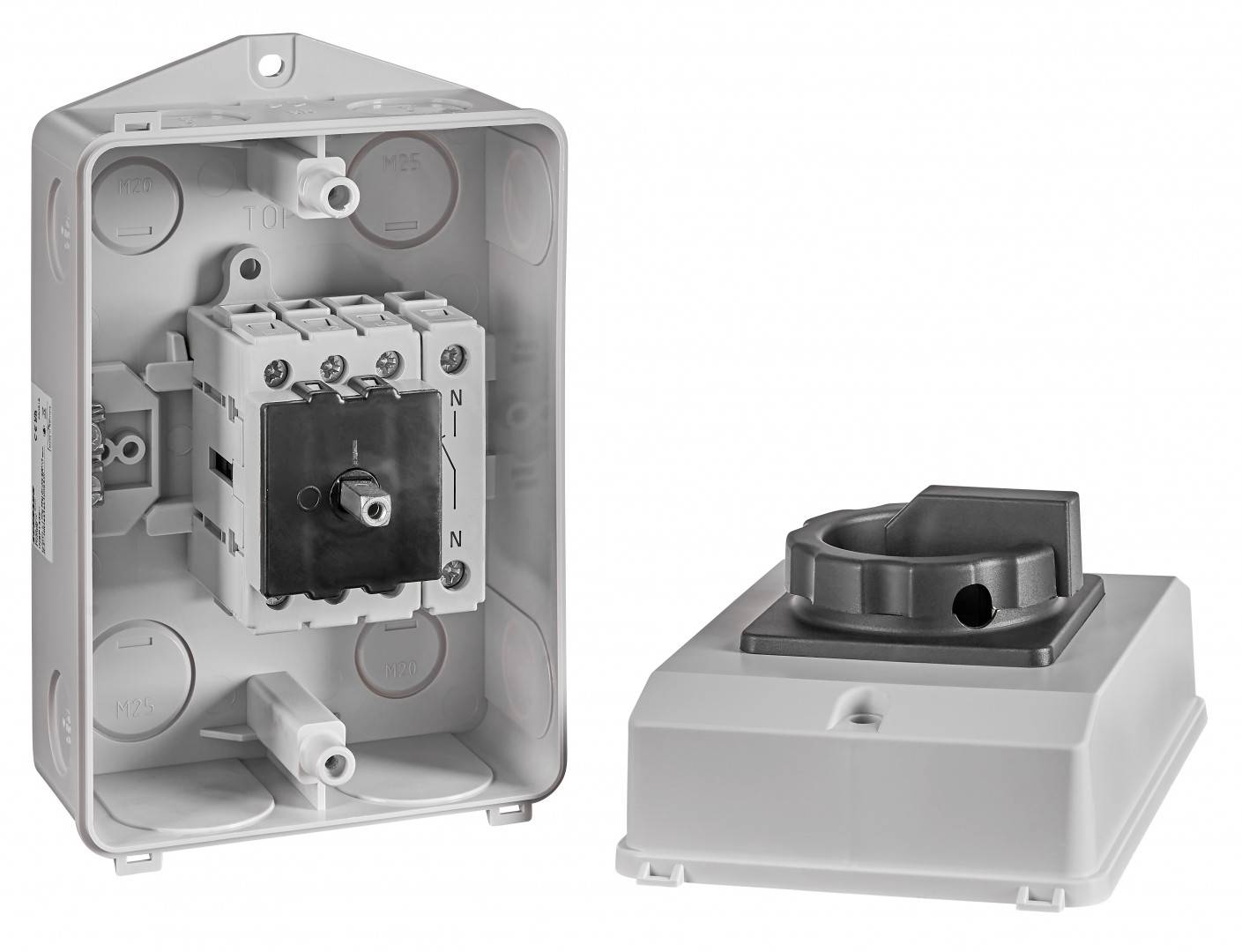

Neutral conductor contacts
Neutral conductor early-make, late-break design (closes before and opens after the phase conductors to prevent voltage displacement)

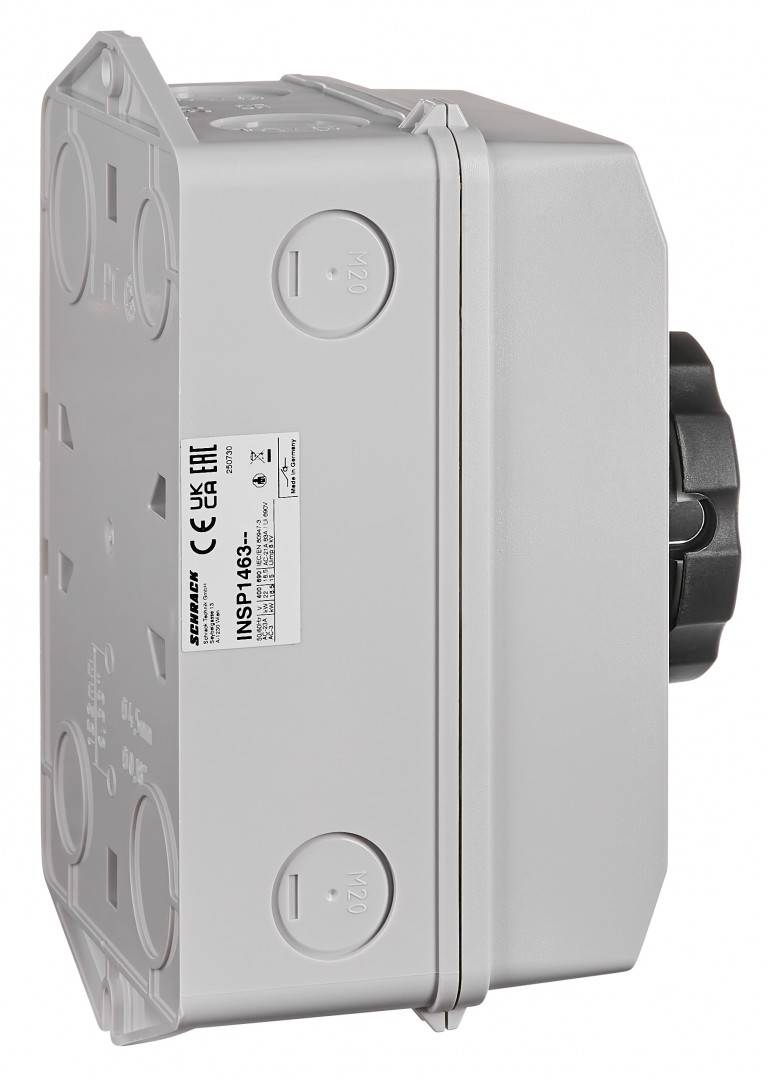

COD COMANDA
INSP1463
Temperatura de functionare
-25°C to +55°C
PREG
2200
Conexiune
##
| Lungime | 115 mm |
| Latime | 100 mm |
| Inaltime | 140 mm |
| Greutate | 0.43 kg |
