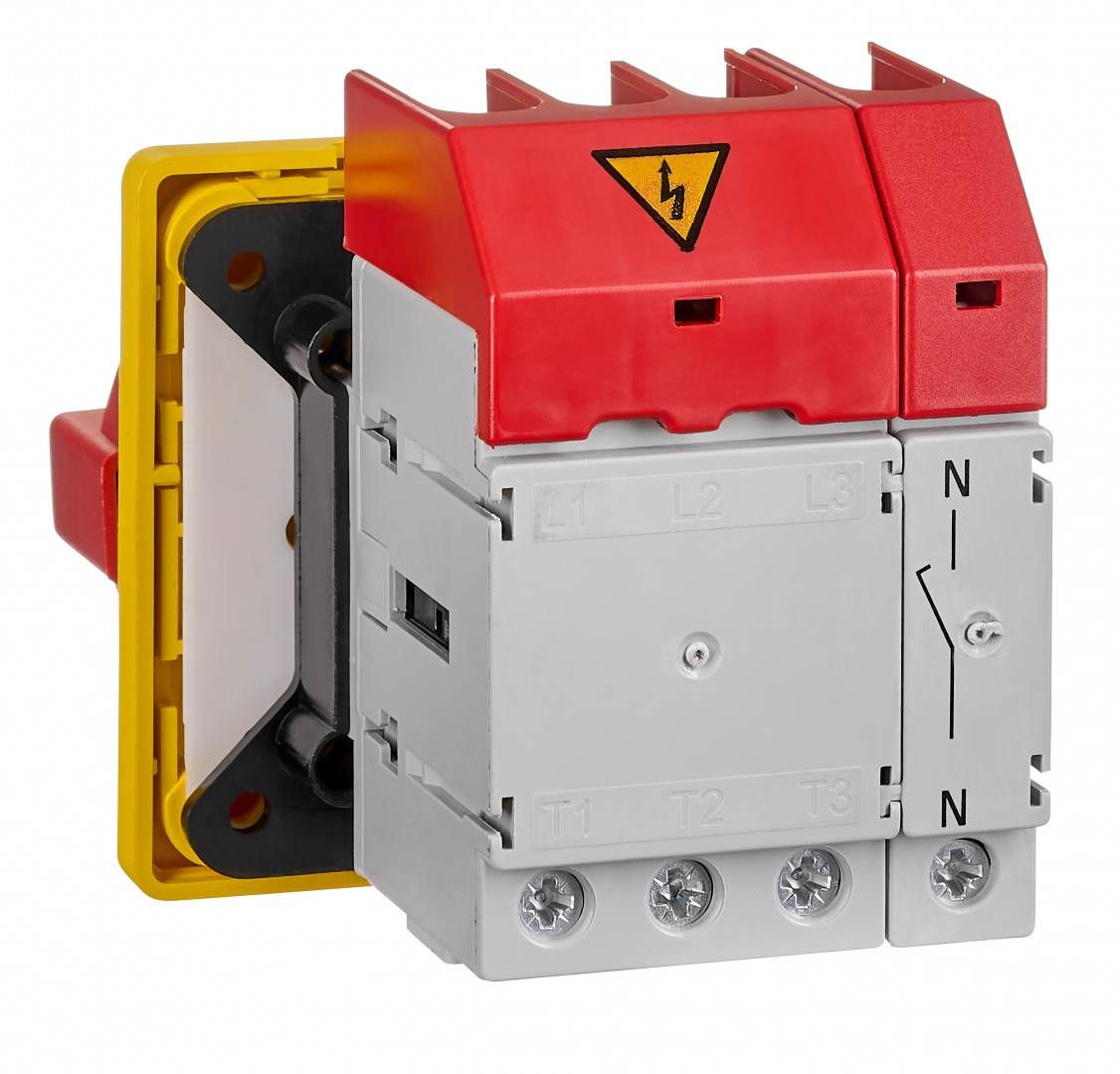

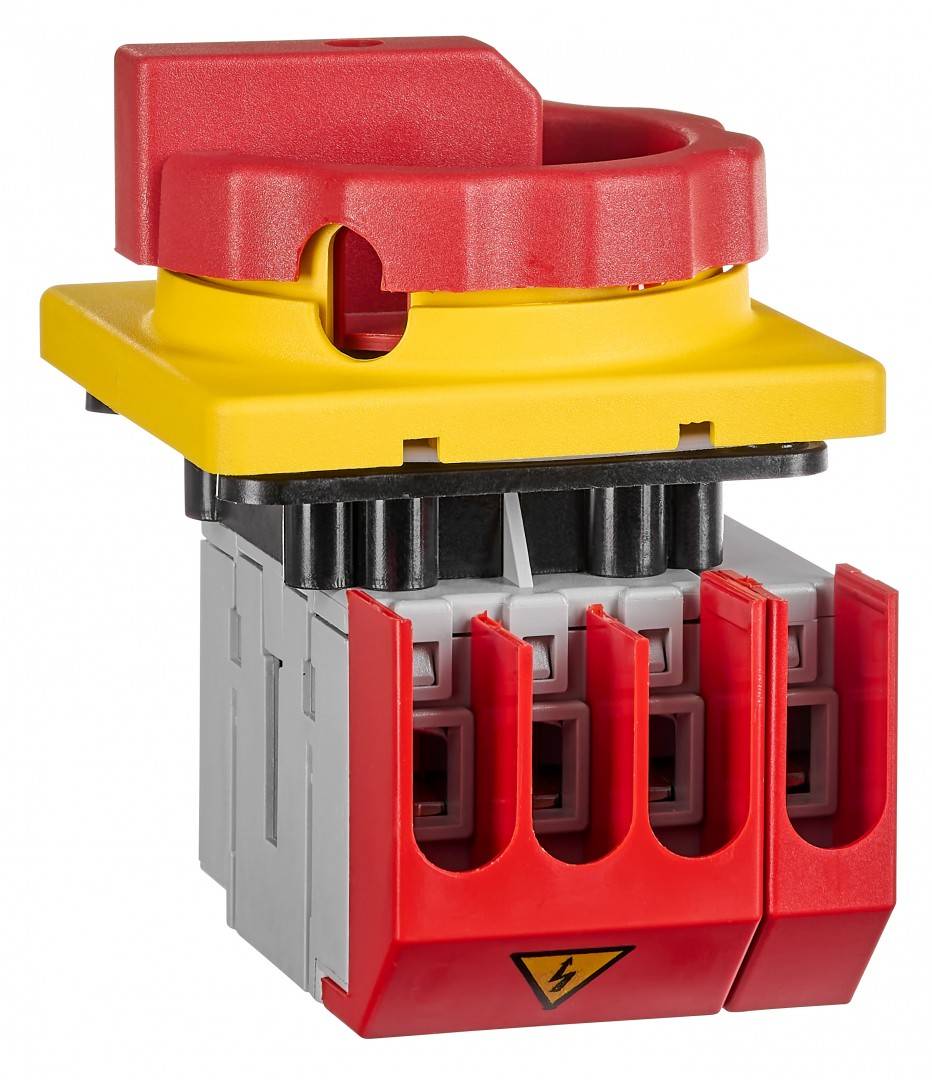

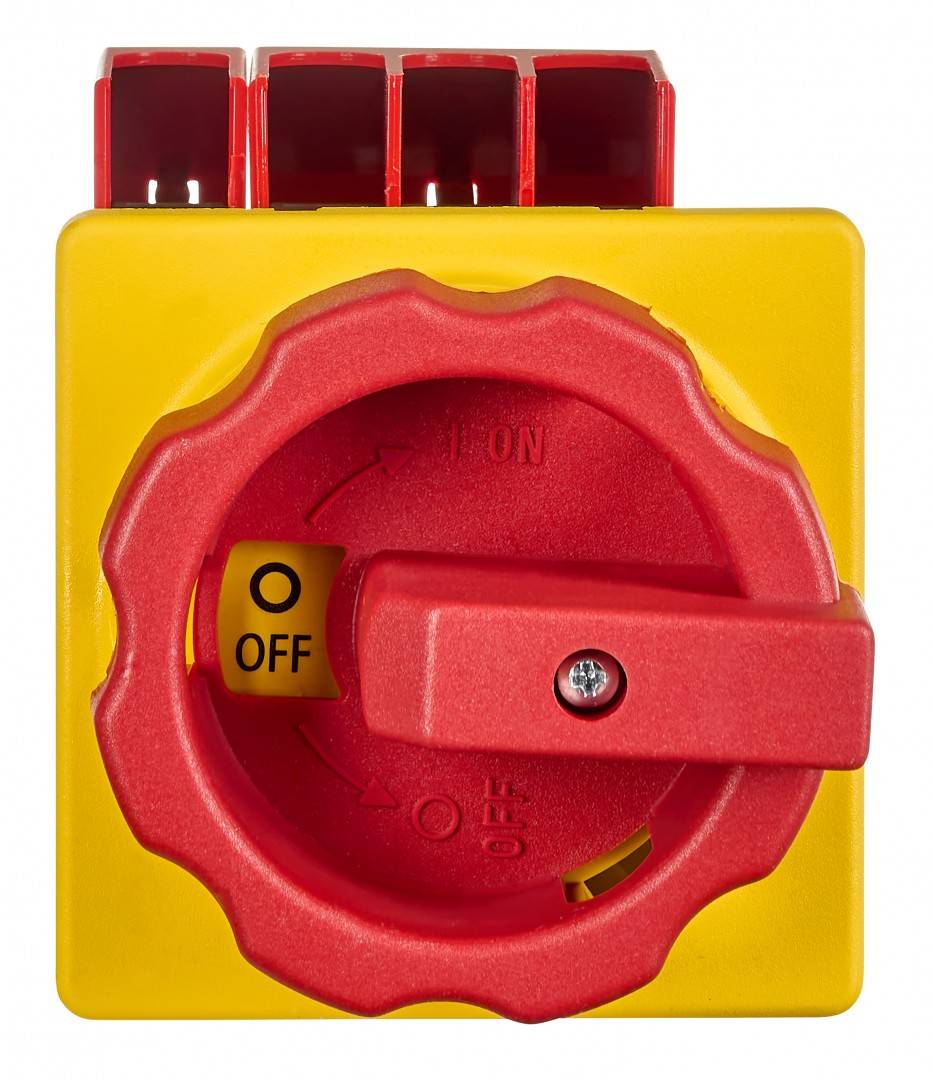

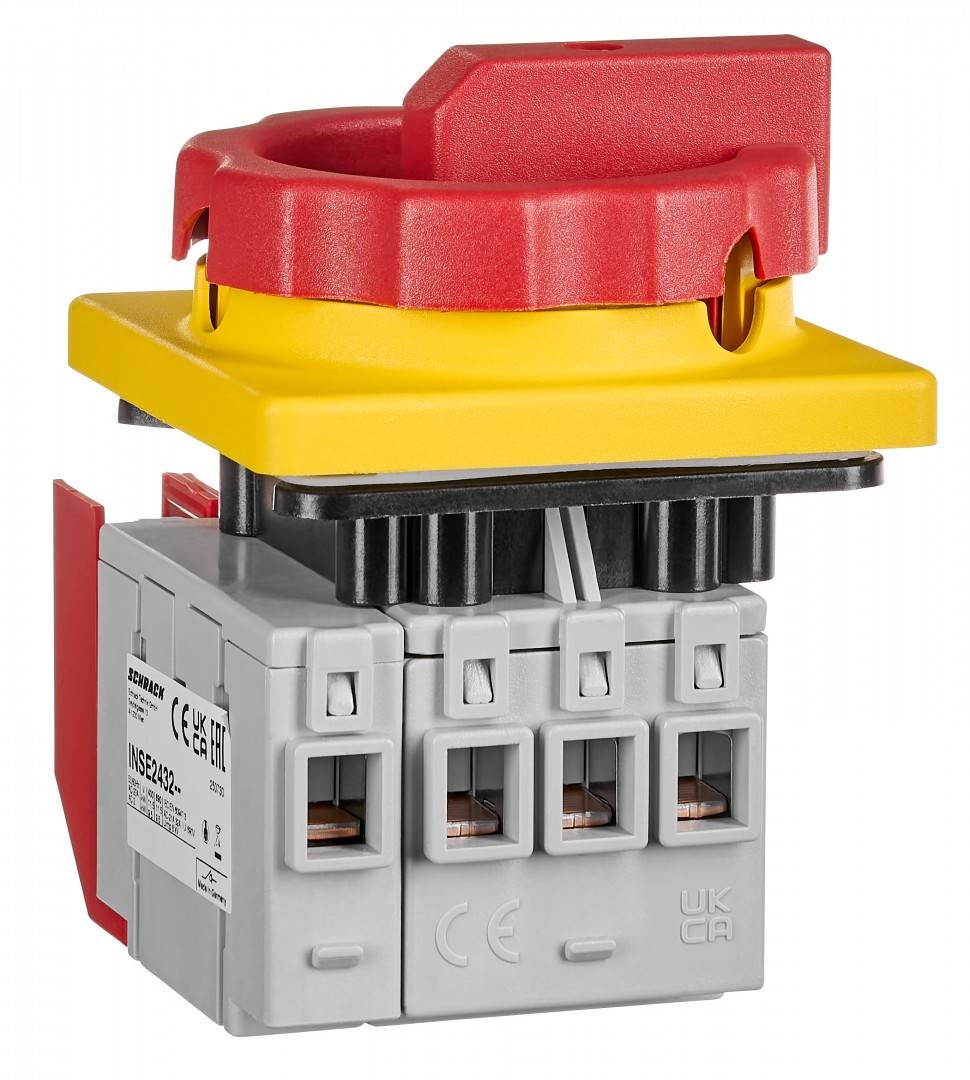

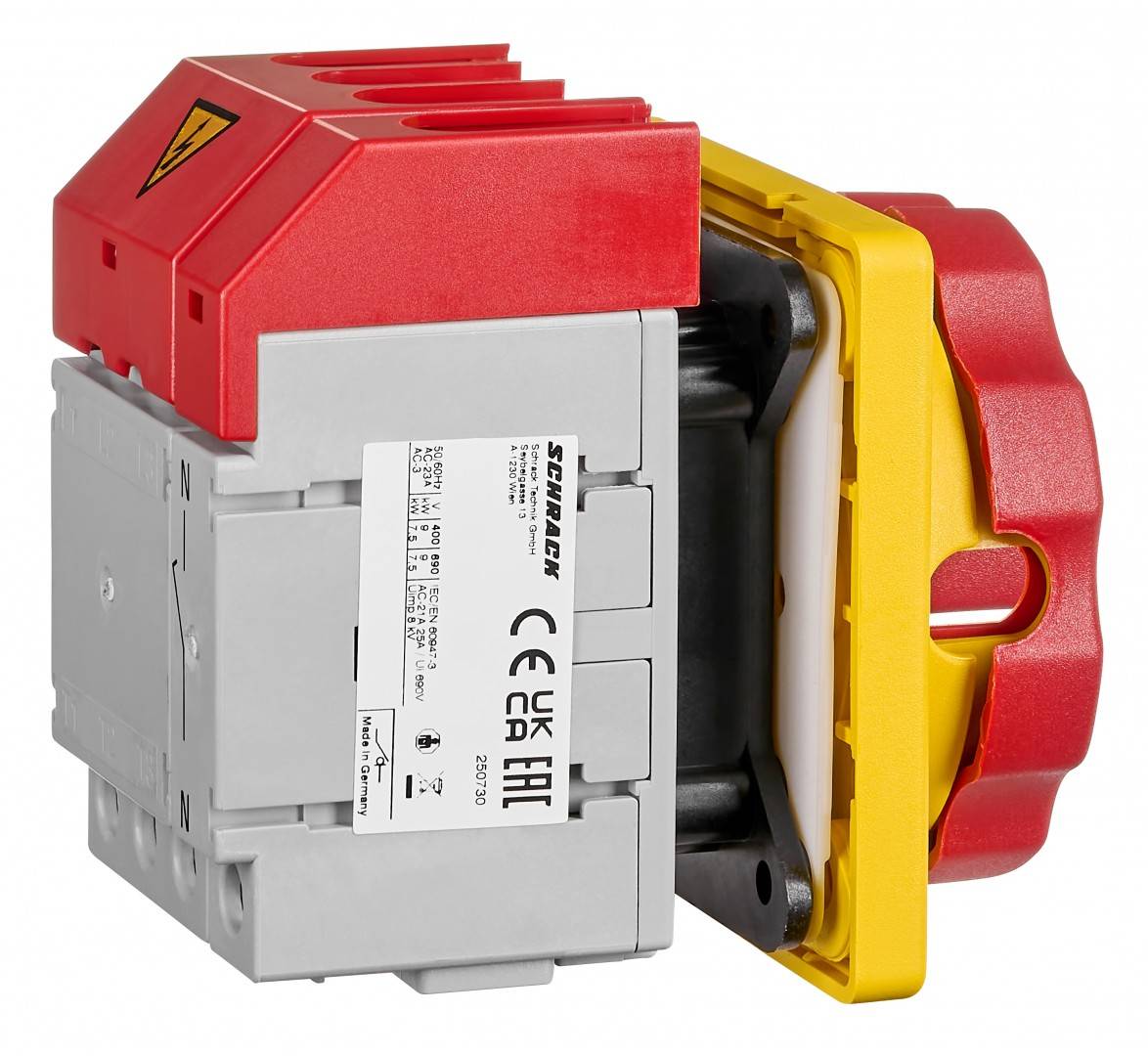

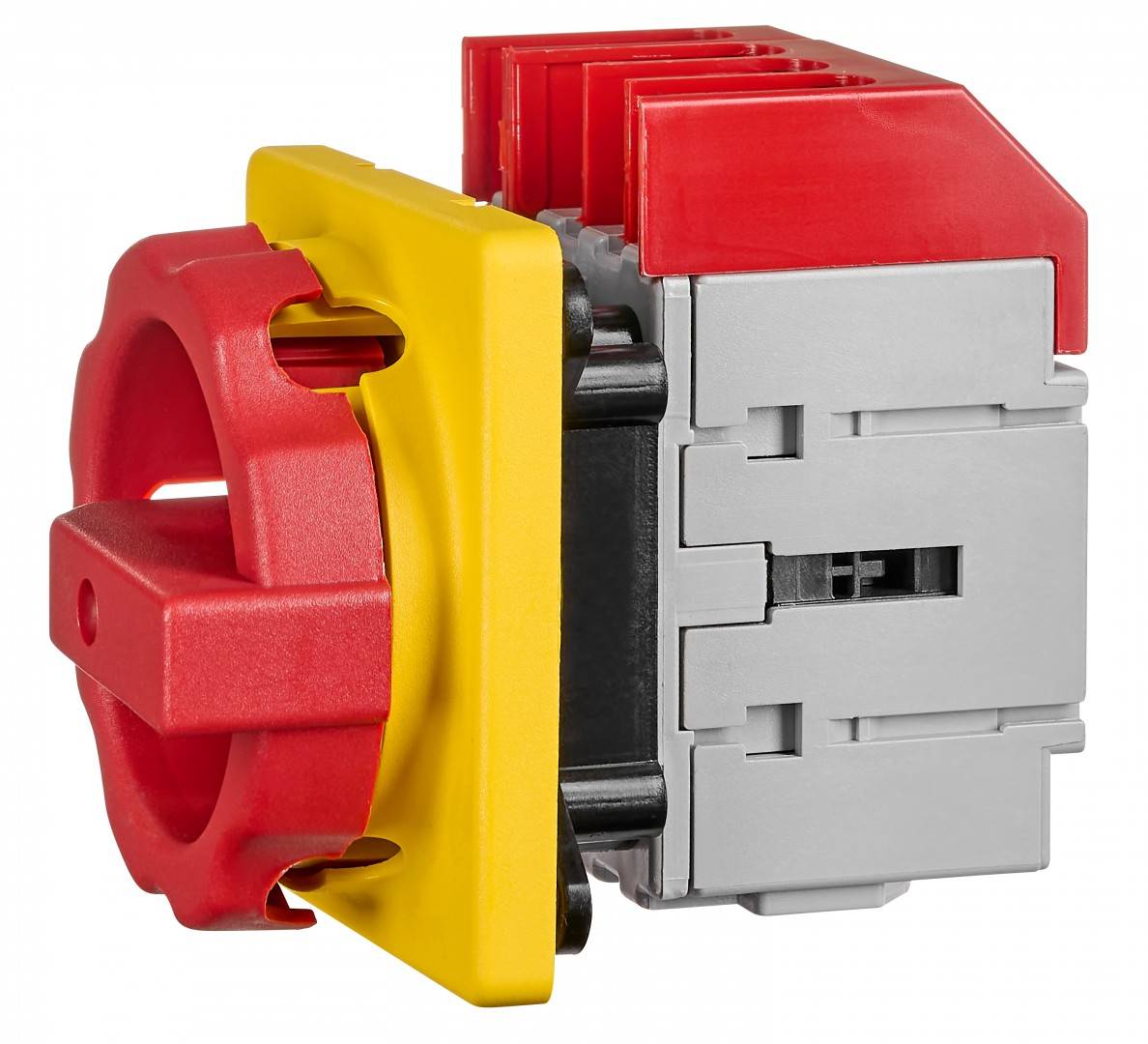

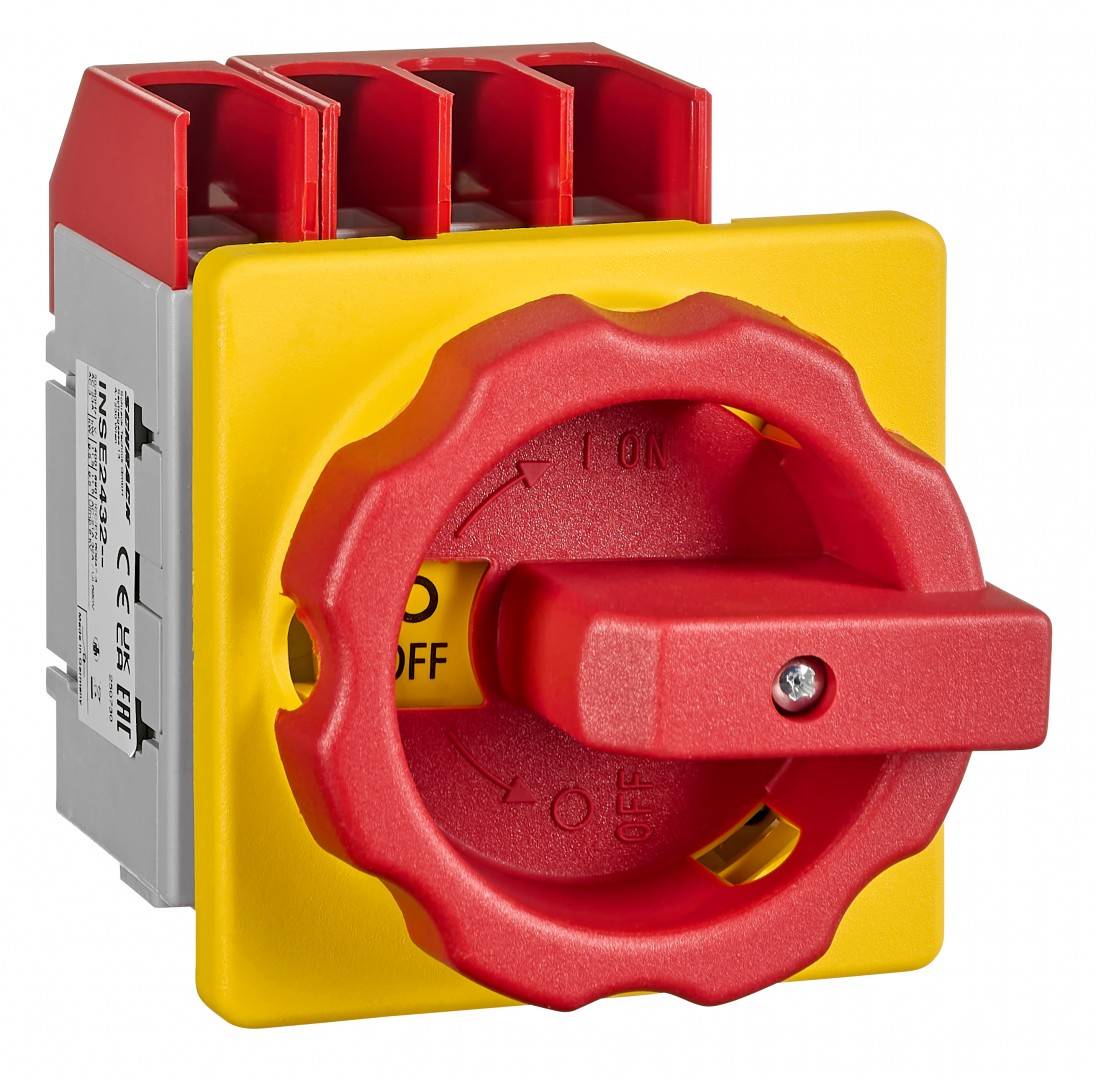

Specificatii Tehnice
Sectiune conexiune, multifilar
2,5-16 mm²
Montaj
front mount
Frecventa
50/60 Hz
Masa neta
0,21 kg/m
Culoare
rosu-galben
Sectiune conexiune, monofilar
2,5-16 mm²
Poli
4
Fuzibil max. protectie la scurtcircuit
50
Impuls de curent de scurtcircuit admisibil Icw
500
Curent nominal de scurtcircuit conditionat
10kA @ 440V / 6kA @ 690V
Standard
IEC 60947, EN 60947, VDE 0660
Tinere la impuls de tensiune [Uimp]
6000 V
Curent termic conventional Ith
32 A
COD COMANDA
INSE2432
Curent nominal
32 A
LxBxH mm
86x49x48
Tip conexiune
UL/CSA - AWG 14-6
Retrofit contacts
##
Tensiune nominala de izolatie (Ui)
690 V
Temperatura maxima a mediului ambiant
55 °C
Unitate de ambalare
1 m.
grad de protectie
IP65 (front), IP20 (terminals)
Anduranta mecanica
100000 switching cycles
Tensiune de alimentare AC
600 V
PU
10
Protectie impotriva contactului direct
Protectie degete si dosul palmei conform VDE 0106 partea 100
Versiune
intreruptor de emergenta
Accesorii optionale
INSHK002--
Power loss per pole
1,50 W
In conformitate cu UL 508 / CSA
##
Blocabil
Cu 3 lacate, fiecare cu diametru carlig de 4-8mm
Temperatura minima a mediului ambiant
-25 °C
Sectiune conexiune, fir flexibil cu pin
2,5-16 mm²
Contacte auxiliare
Maximum 2x INSHK002-- permitted. 1x INSHK002-- can be snapped on to the left of the main contact and 1x INSHK002-- to the right of the main contact. Maximum configuration 2x NO contact / 2x NC contact. Switching behavior is the same regardless of whether the auxiliary contact is snapped on to the left or right of the main contact.
Cuplu de strangere
3 Nm
Active Power
3x120VAC - 3Hp;3x240VAC - 10Hp;3x480VAC - 20Hp;3x600VAC - 22Hp;1x120VAC - 2Hp;1x240VAC - 3Hp
Neutral conductor contacts
Neutral conductor early-make, late-break design (closes before and opens after the phase conductors to prevent voltage displacement)
Temperatura de functionare
-25°C to +55°C
Thermal rated continuous current
32 A
Curent operational
AC-21A - 690V - 32A;AC-22A - 690V - 32A;AC-23A - 230V - 22A;AC-23A - 400V - 22A;AC-23A - 690V - 13A;AC-3 - 230V - 20A;AC-3 - 400V - 20A;AC-3 - 690V - 11.5A
Capacitate de comutare
AC-23A - 230V - 6kW;AC-23A - 400V - 11.5kW;AC-23A - 690V - 11.5kW;AC-3 - 230V - 5.5kW;AC-3 - 400V - 9.5kW;AC-3 - 690V - 9.5kW
PREG
2200
Conexiune
##
disipare
1,50 W
| Lungime | 86 mm |
| Latime | 49 mm |
| Inaltime | 48 mm |
| Greutate | 0.21 kg |
