Specificatii Tehnice
Sectiune conexiune, multifilar
2,5-16 mm²
COD COMANDA
INSA2463
Curent operational
AC-21A - 690V - 63A;AC-22A - 690V - 63A;AC-23A - 230V - 38A;AC-23A - 400V - 41A;AC-23A - 690V - 21A;AC-3 - 230V - 38A;AC-3 - 400V - 36A;AC-3 - 690V - 17A
Frecventa
50/60 Hz
Culoare
rosu-galben
Impuls de curent de scurtcircuit admisibil Icw
1000
Curent nominal
63 A
Sectiune conexiune, monofilar
2,5-16 mm²
Poli
4
Curent nominal de scurtcircuit conditionat
10kA @ 440V / 6kA @ 690V
Standard
IEC 60947, EN 60947, VDE 0660
disipare
3,60 W
Power loss per pole
3,60 W
Tinere la impuls de tensiune [Uimp]
6000 V
Accesorii optionale
INSHK001--
Tip conexiune
UL/CSA - AWG 14-6
Capacitate de comutare
AC-23A - 230V - 11kW;AC-23A - 400V - 22kW;AC-23A - 690V - 18.5kW;AC-3 - 230V - 11kW;AC-3 - 400V - 18.5kW;AC-3 - 690V - 15kW
Retrofit contacts
##
Tensiune nominala de izolatie (Ui)
690 V
Temperatura maxima a mediului ambiant
55 °C
Unitate de ambalare
1 m.
Anduranta mecanica
100000 switching cycles
Tensiune de alimentare AC
600 V
PU
10
Active Power
3x120VAC - 5Hp;3x240VAC - 15Hp;3x480VAC - 25Hp;3x600VAC - 30Hp;1x120VAC - 3Hp;1x240VAC - 10Hp
Contacte auxiliare
Maximum 2x INSHK001-- permitted. 1x INSHK001-- can be snapped on to the left side of the main contact and 1x INSHK001-- to the right side of the main contact. Maximum configuration 2x NC contact / 2x NO contact. The switching behavior is the same regardless of whether the auxiliary contact is snapped on to the left or right side of the main contact.
Thermal rated continuous current
63 A
Protectie impotriva contactului direct
Protectie degete si dosul palmei conform VDE 0106 partea 100
Montaj
Montaj in pardoseala
Versiune

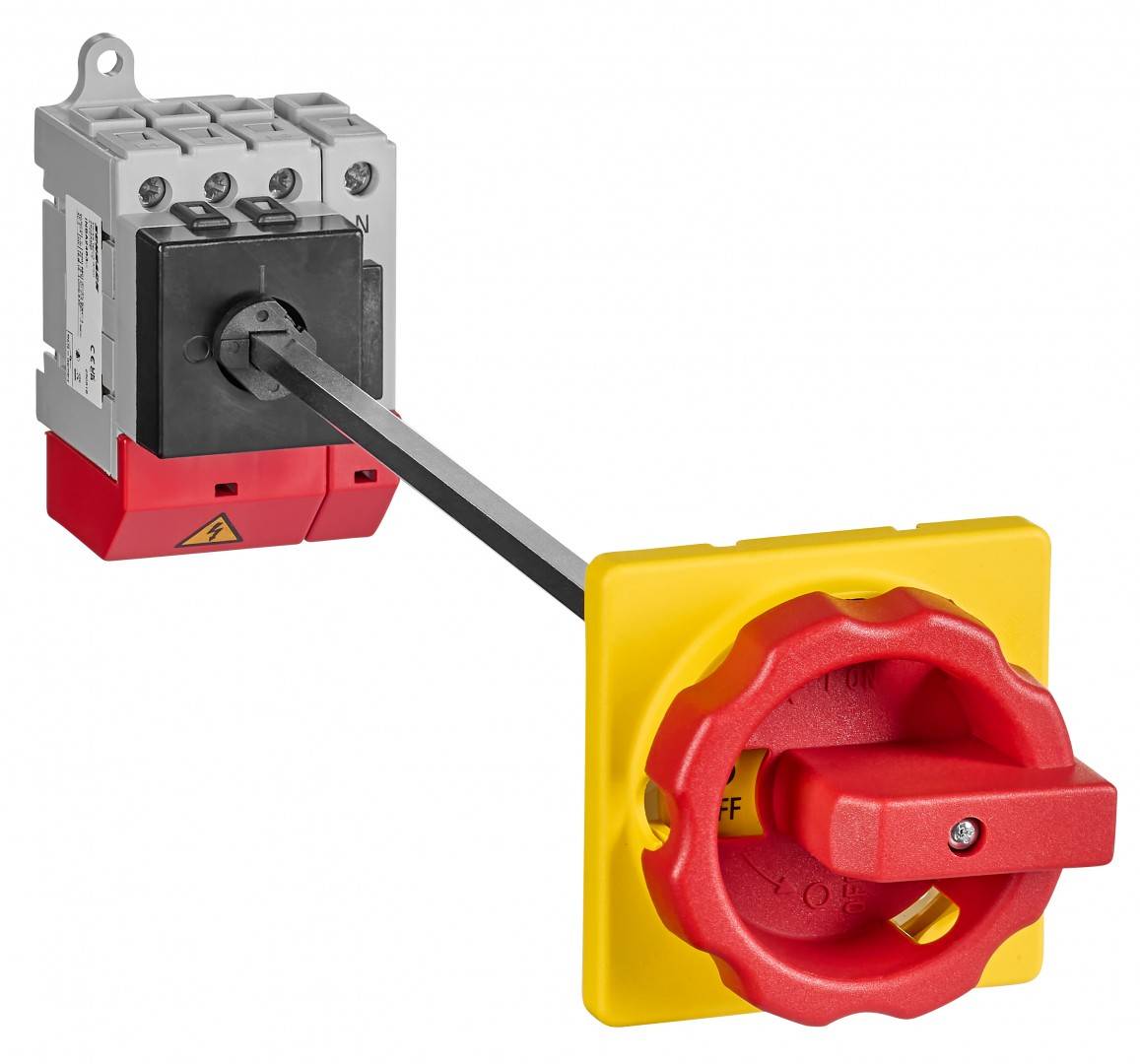

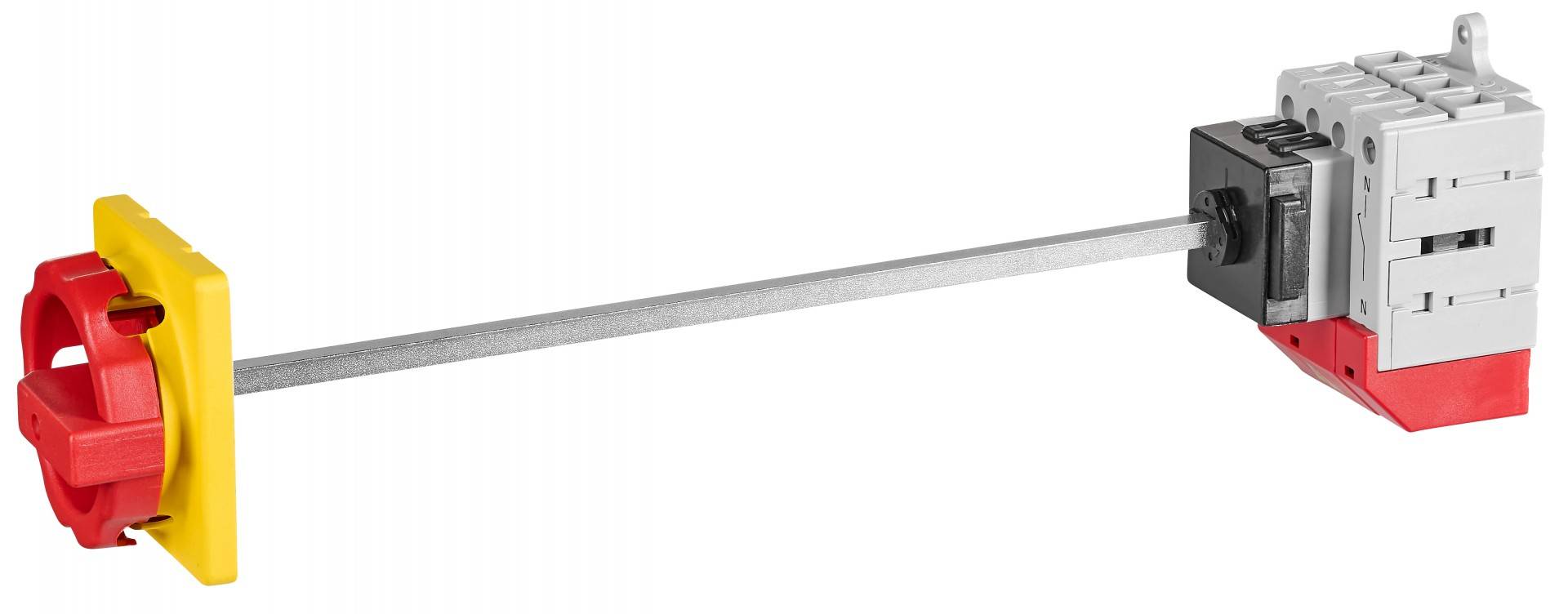

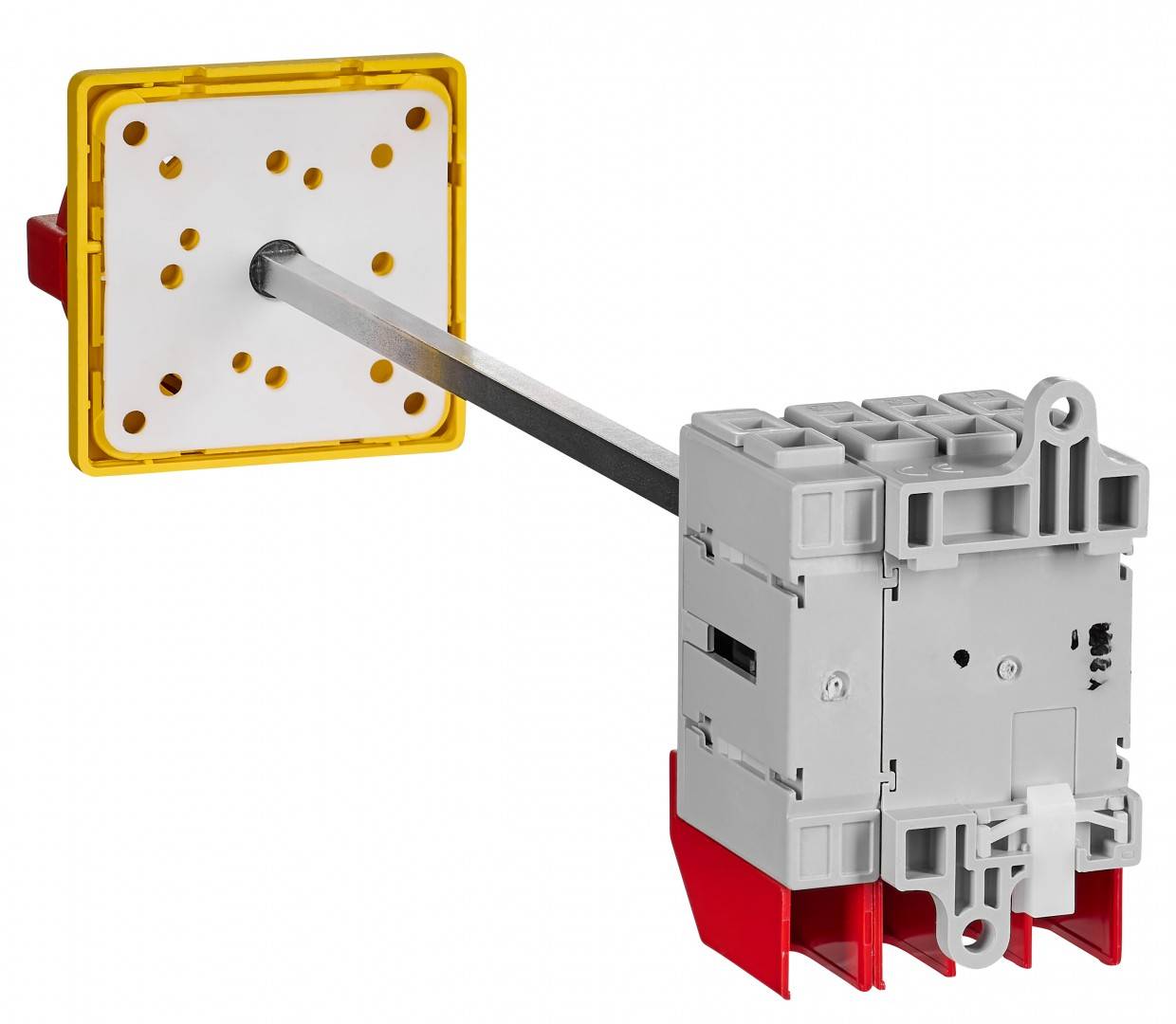

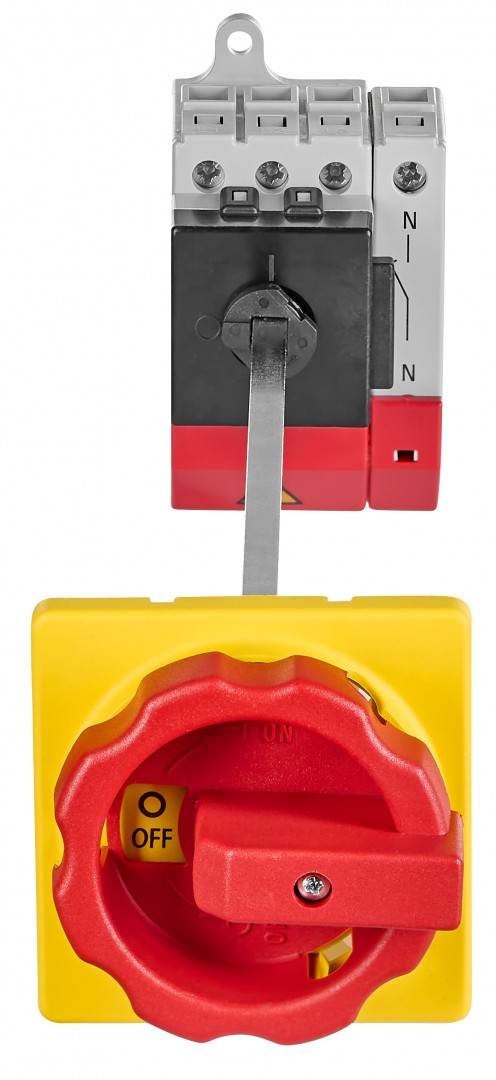

intreruptor de emergenta
Fuzibil max. protectie la scurtcircuit
63
In conformitate cu UL 508 / CSA
##
Masa neta
0,35 kg/m
Blocabil
Cu 3 lacate, fiecare cu diametru carlig de 4-8mm
Temperatura minima a mediului ambiant
-25 °C
Curent termic conventional Ith
63 A
grad de protectie
IP54 (front), IP20 (connections)
Sectiune conexiune, fir flexibil cu pin
2,5-16 mm²
Cuplu de strangere
3 Nm
Neutral conductor contacts
Neutral conductor early-make, late-break design (closes before and opens after the phase conductors to prevent voltage displacement)
Temperatura de functionare
-25°C to +55°C
PREG
2200
Conexiune
##
LxBxH mm
304x49x48
| Lungime | 304 mm |
| Latime | 49 mm |
| Inaltime | 48 mm |
| Greutate | 0.35 kg |
