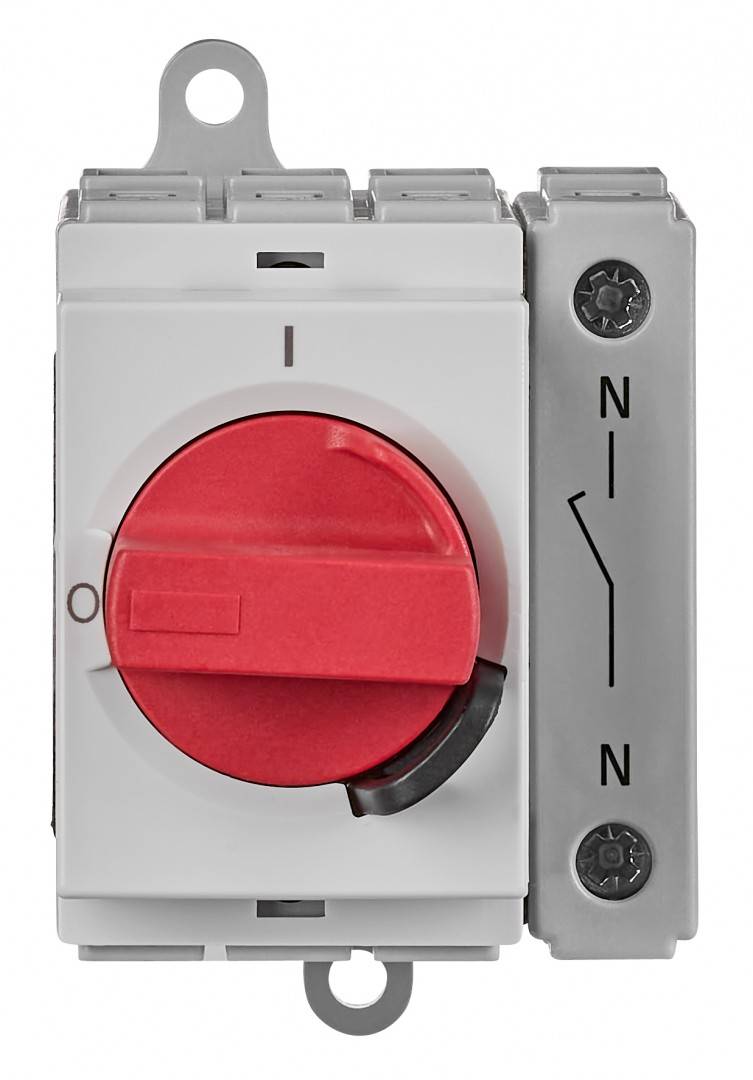

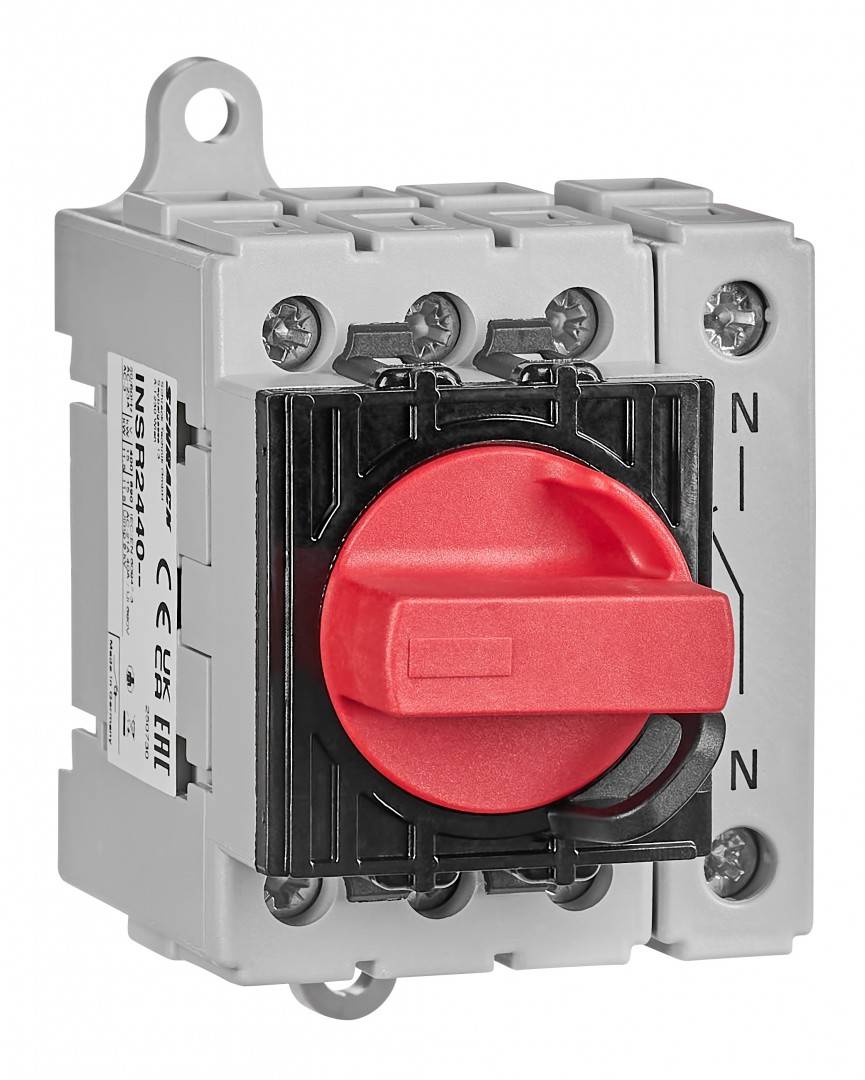

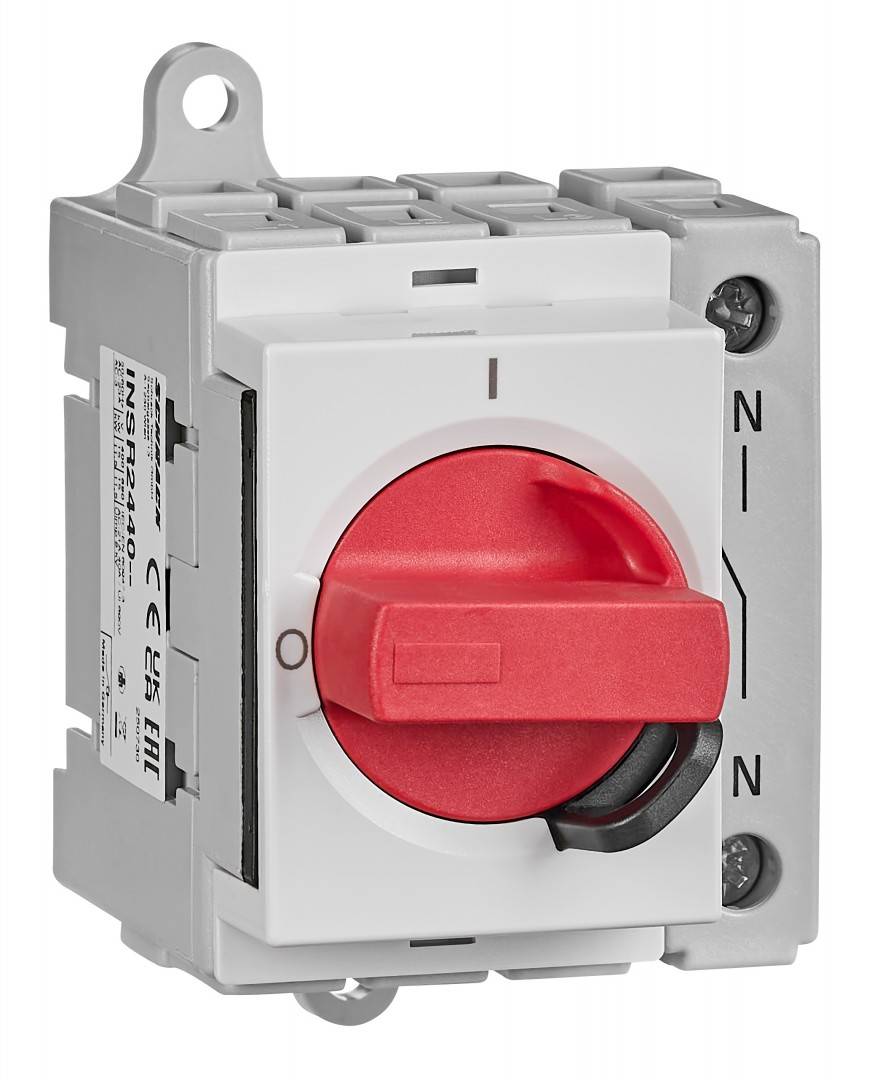

Specificatii Tehnice
grad de protectie
IP40 (front), IP20 (terminals)
Sectiune conexiune, multifilar
2,5-16 mm²
Masa neta
0,17 kg/m
Frecventa
50/60 Hz
Culoare
rosu-galben
Impuls de curent de scurtcircuit admisibil Icw
1000
Sectiune conexiune, monofilar
2,5-16 mm²
Poli
4
LxBxH mm
81x49x45
Fuzibil max. protectie la scurtcircuit
50
Curent operational
AC-21A - 690V - 40A;AC-22A - 690V - 40A;AC-23A - 230V - 27A;AC-23A - 400V - 29A;AC-23A - 690V - 17A;AC-3 - 230V - 27A;AC-3 - 400V - 22A;AC-3 - 690V - 13A
Curent nominal de scurtcircuit conditionat
10kA @ 440V / 6kA @ 690V
Standard
IEC 60947, EN 60947, VDE 0660
Tinere la impuls de tensiune [Uimp]
6000 V
Accesorii optionale
INSHK001--
Thermal rated continuous current
40 A

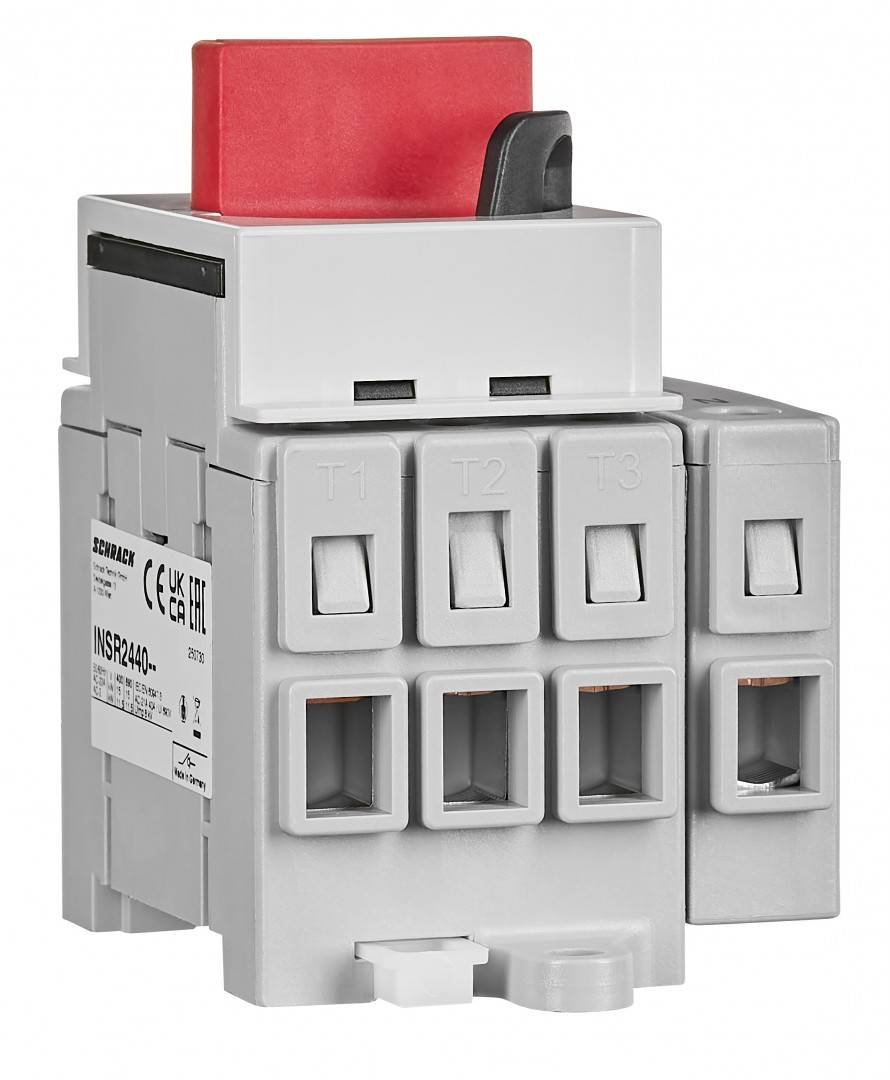

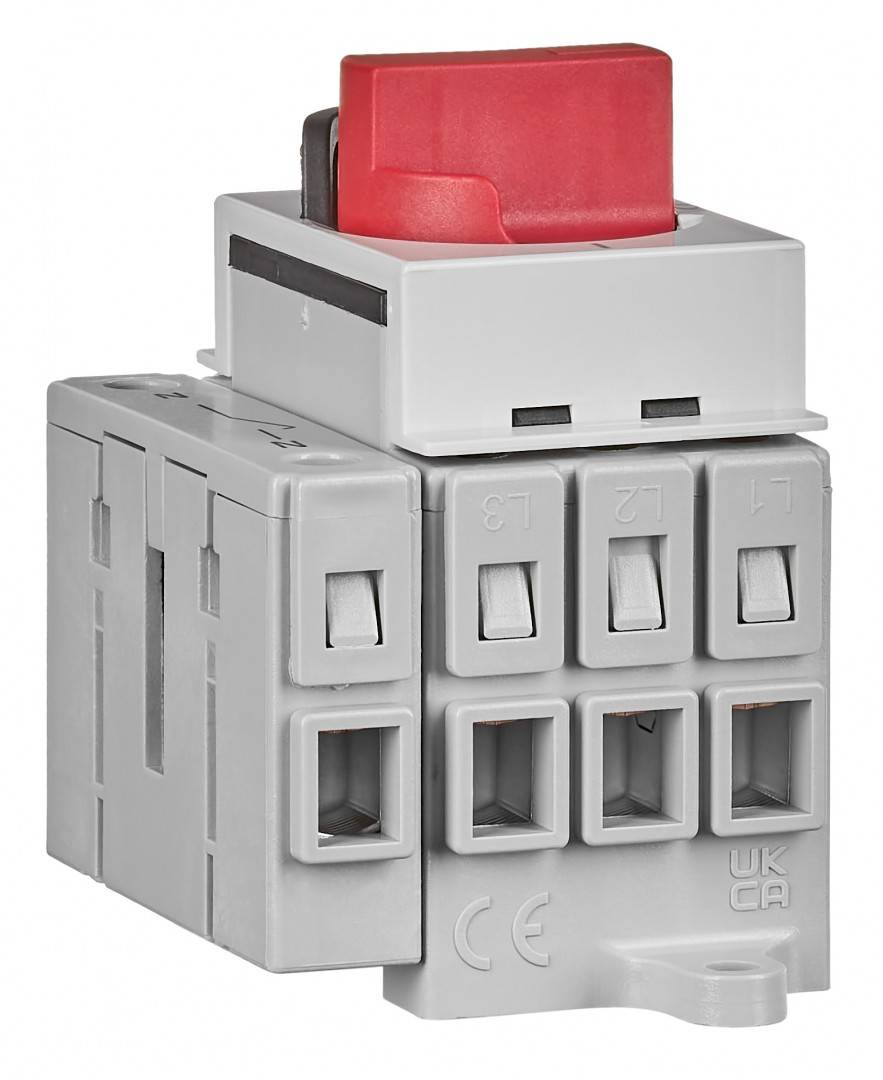

Tip conexiune
UL/CSA - AWG 14-6
Retrofit contacts
##
Tensiune nominala de izolatie (Ui)
690 V

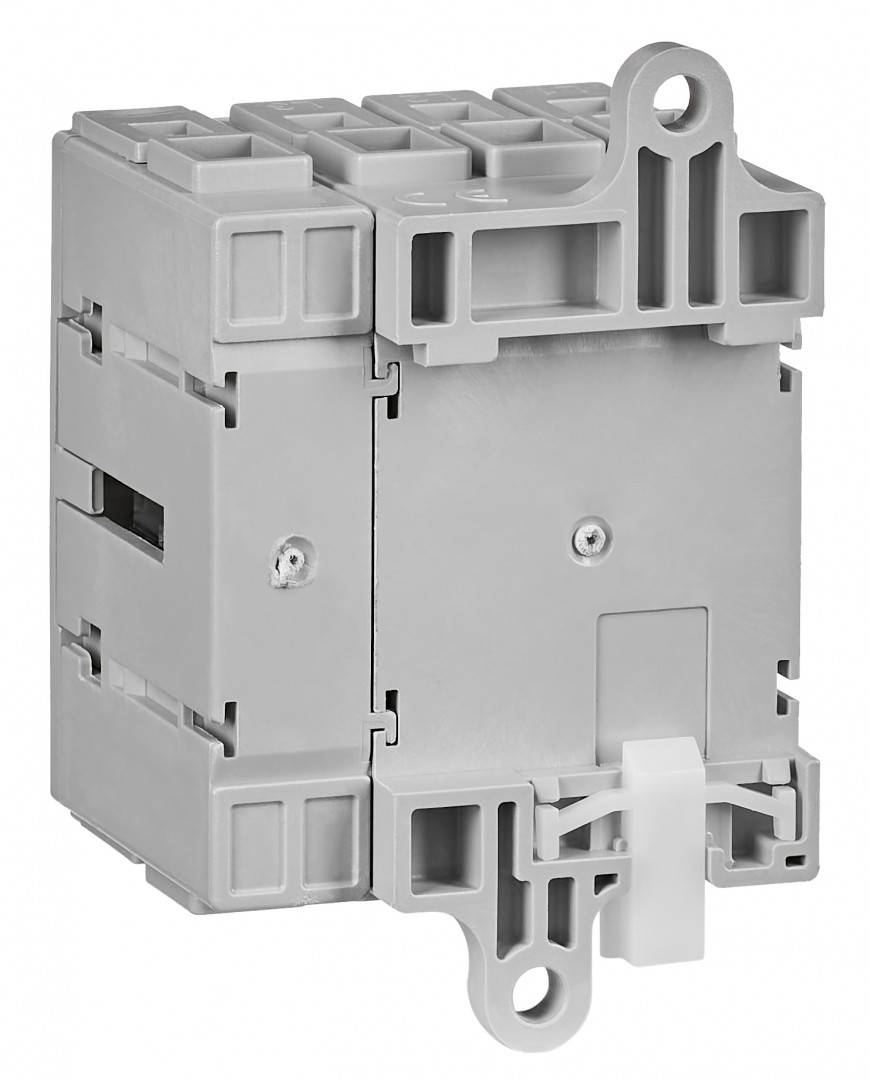

Montaj
Sina DIN
Temperatura maxima a mediului ambiant
55 °C
Unitate de ambalare
1 m.
Anduranta mecanica
100000 switching cycles
Tensiune de alimentare AC
600 V
PU
10
Contacte auxiliare
Maximum 2x INSHK001-- permitted. 1x INSHK001-- can be snapped on to the left side of the main contact and 1x INSHK001-- to the right side of the main contact. Maximum configuration 2x NC contact / 2x NO contact. The switching behavior is the same regardless of whether the auxiliary contact is snapped on to the left or right side of the main contact.
Protectie impotriva contactului direct
Protectie degete si dosul palmei conform VDE 0106 partea 100
Versiune
intreruptor de emergenta
disipare
2,40 W
In conformitate cu UL 508 / CSA
##
Capacitate de comutare
AC-23A - 230V - 7.5kW;AC-23A - 400V - 15kW;AC-23A - 690V - 15kW;AC-3 - 230V - 7.5kW;AC-3 - 400V - 11.5kW;AC-3 - 690V - 11.5kW
Power loss per pole
2,40 W
Temperatura minima a mediului ambiant
-25 °C
Curent nominal
40 A
Sectiune conexiune, fir flexibil cu pin
2,5-16 mm²
Cuplu de strangere
3 Nm
Blocabil
Cu 2 lacate, fiecare cu diametru carlig de 4-6mm

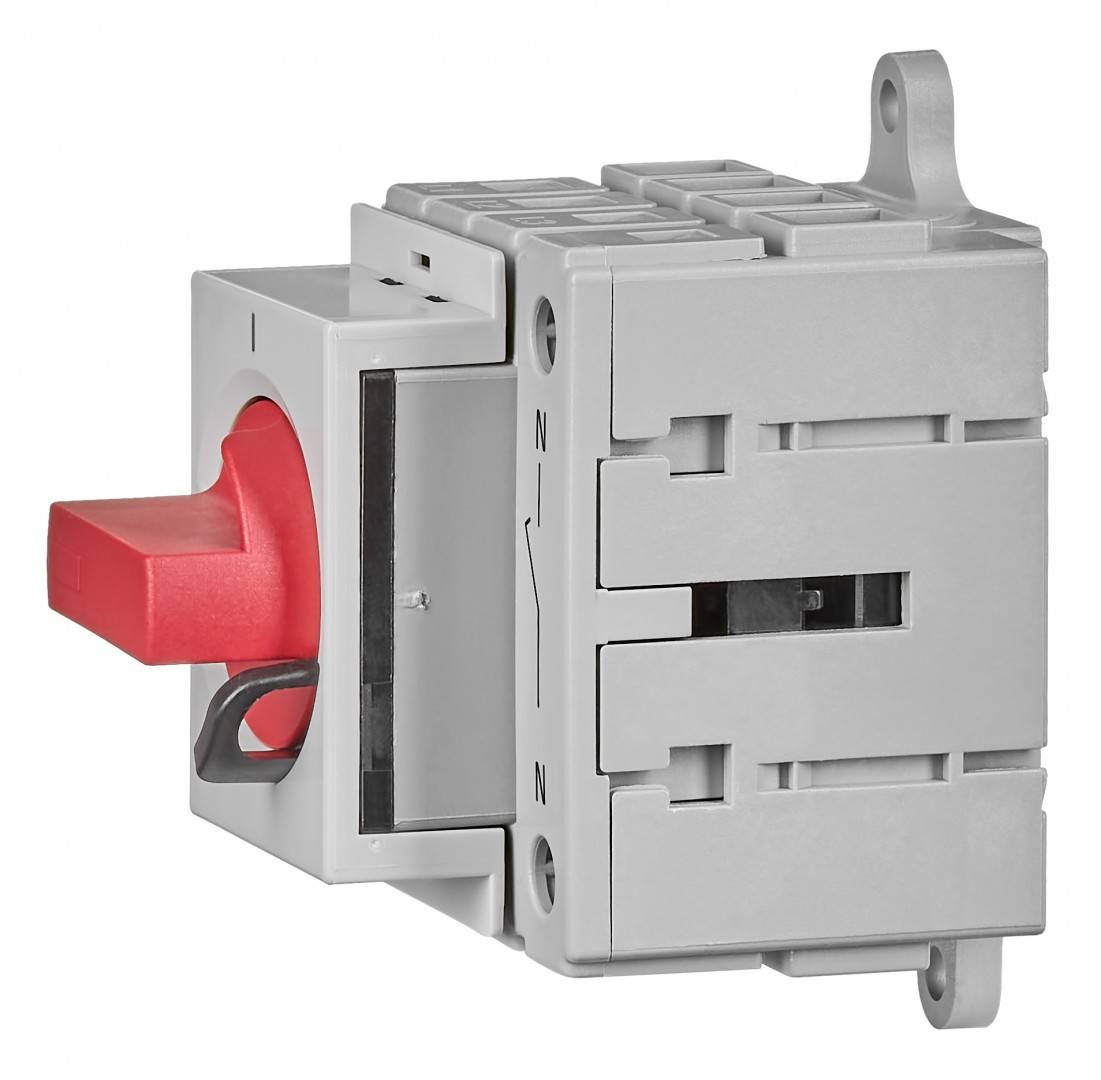

Neutral conductor contacts
Neutral conductor early-make, late-break design (closes before and opens after the phase conductors to prevent voltage displacement)
Temperatura de functionare
-25°C to +55°C

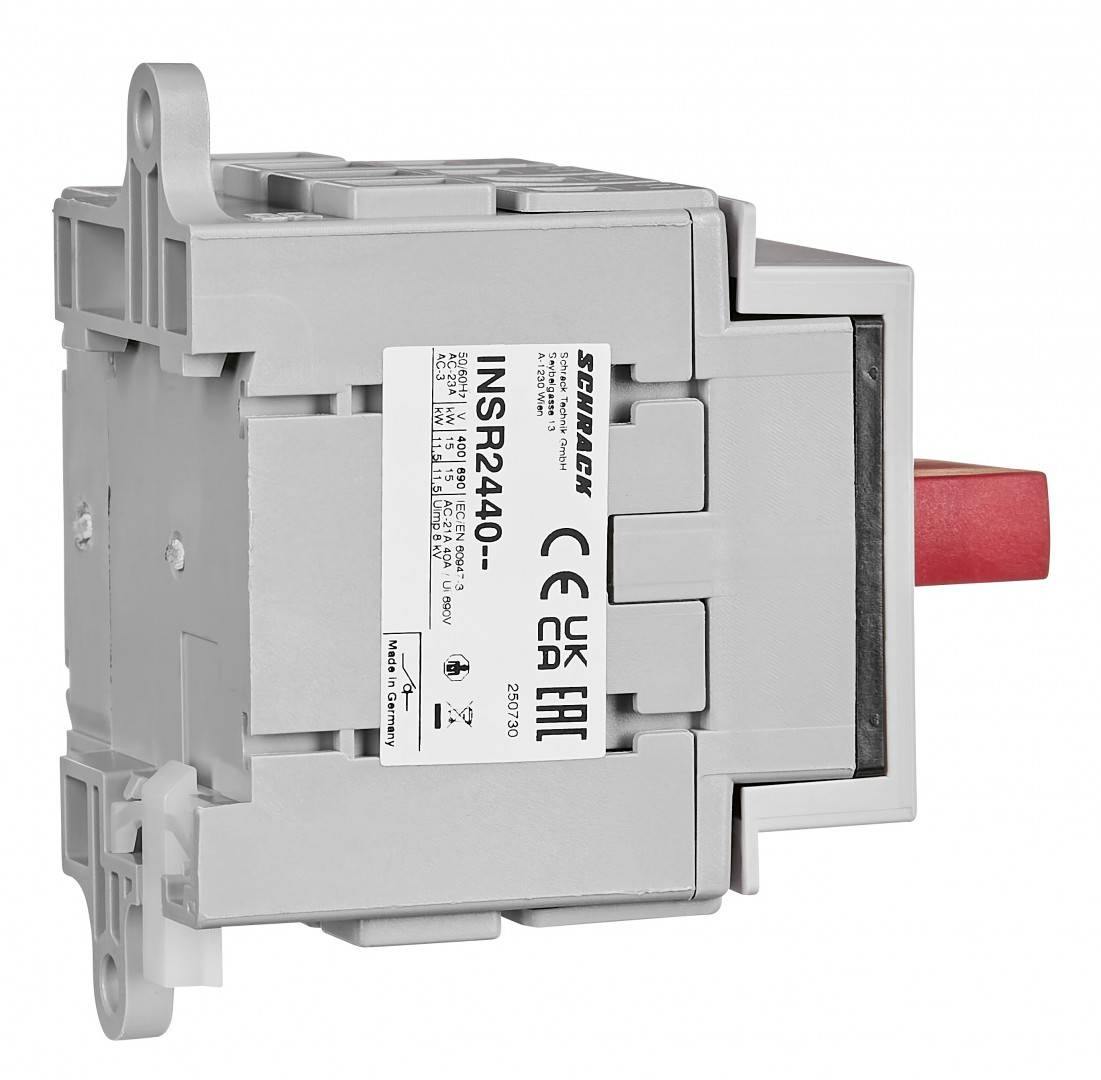

COD COMANDA
INSR2440
Active Power
3x120VAC - 5Hp;3x240VAC - 10Hp;3x480VAC - 20Hp;3x600VAC - 22Hp;1x120VAC - 2Hp;1x240VAC - 4Hp
PREG
2200
Conexiune
##
Curent termic conventional Ith
40 A
| Lungime | 81 mm |
| Latime | 49 mm |
| Inaltime | 45 mm |
| Greutate | 0.17 kg |
