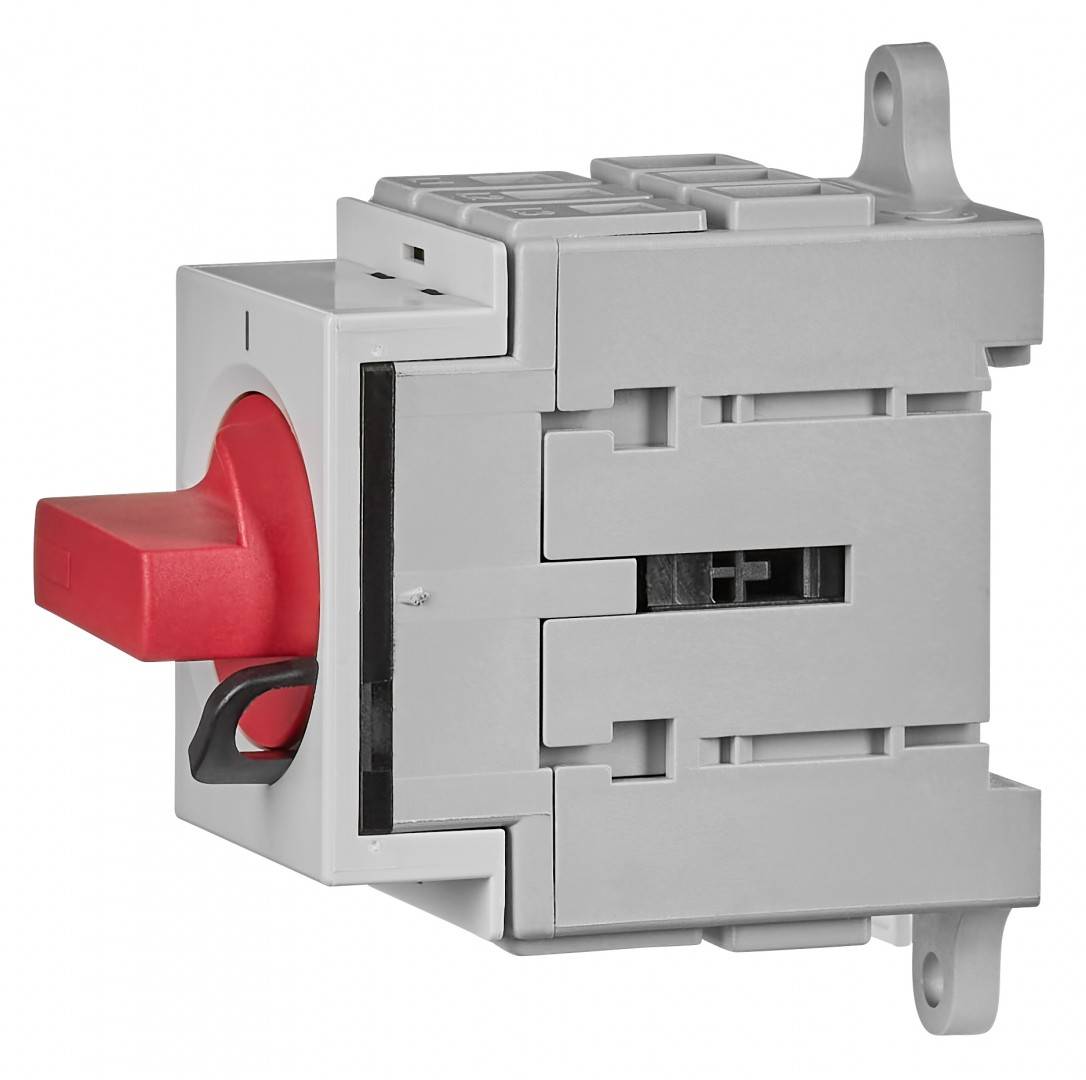

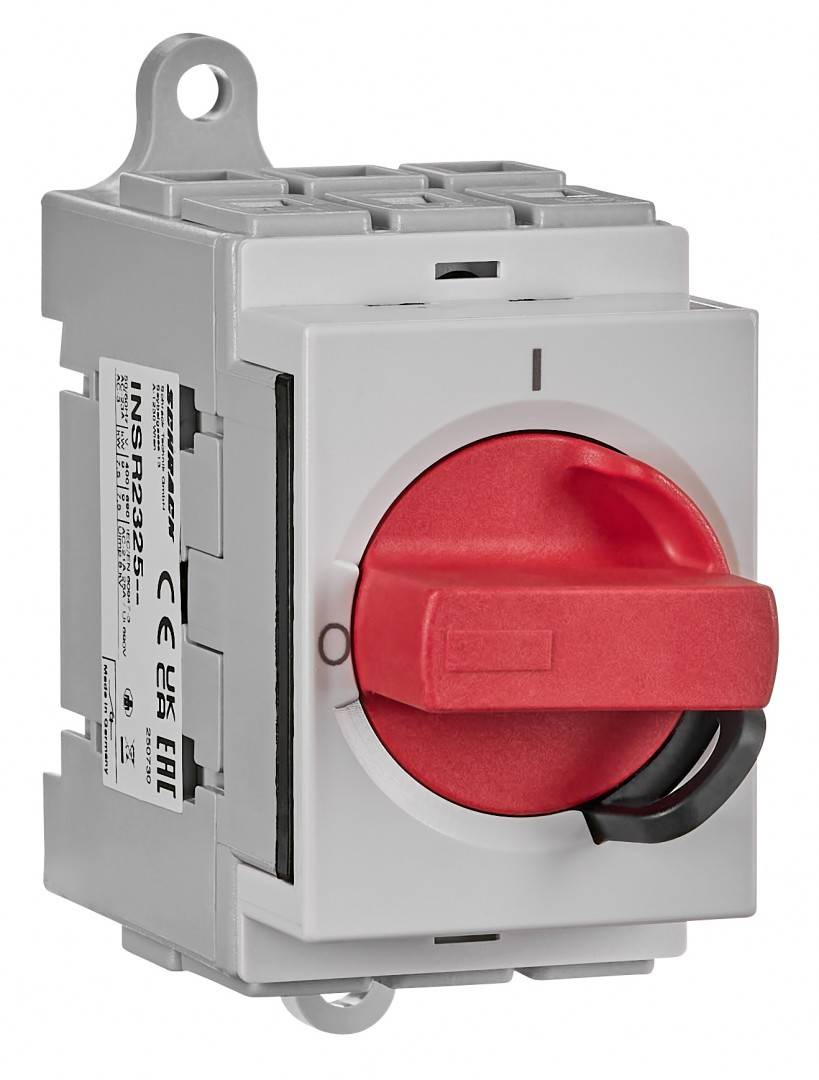

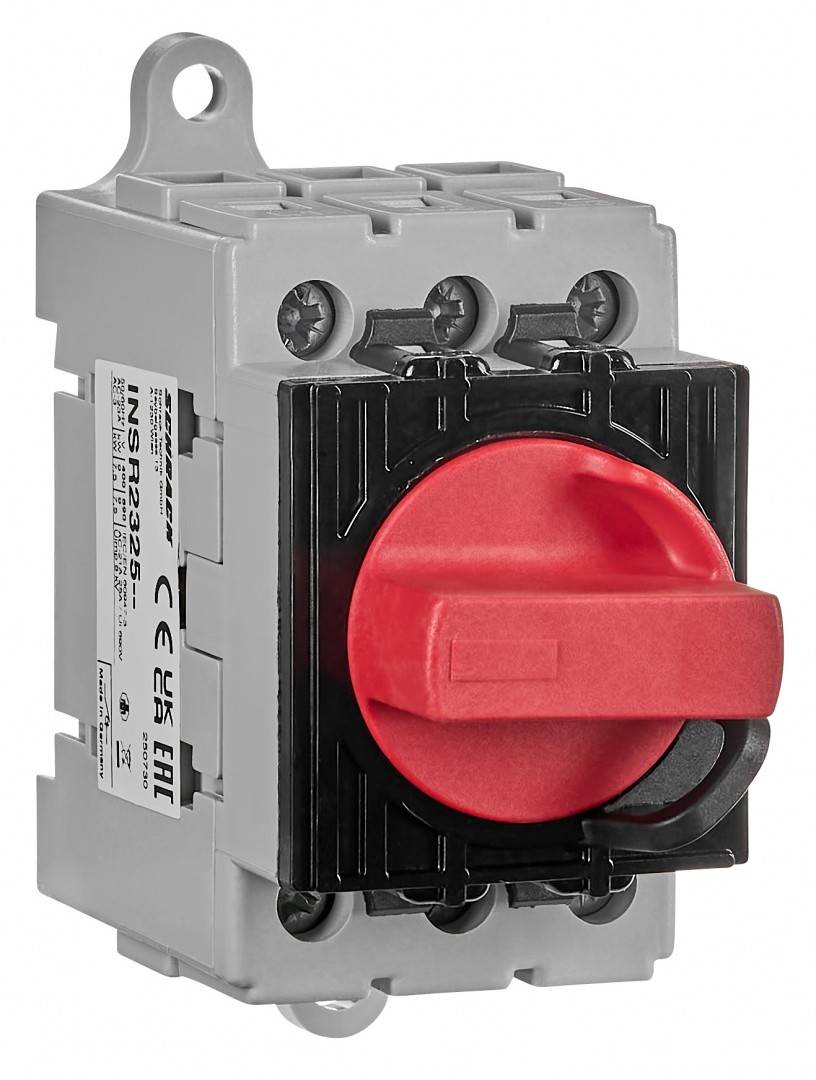

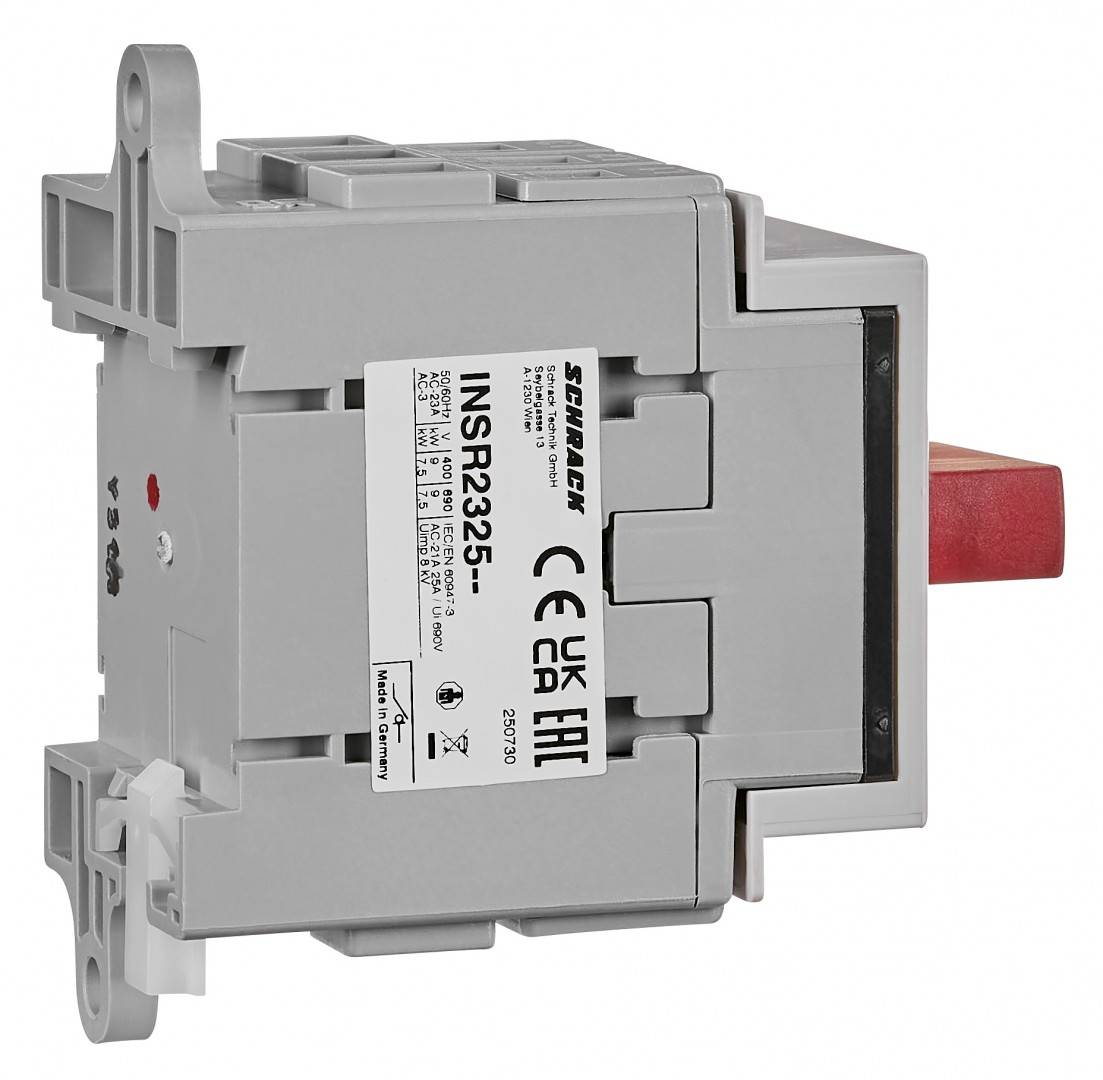

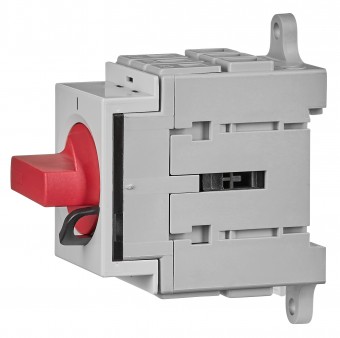

Specificatii Tehnice
grad de protectie
IP40 (front), IP20 (terminals)
Sectiune conexiune, multifilar
2,5-16 mm²
Frecventa
50/60 Hz
Curent operational
AC-21A - 690V - 25A;AC-22A - 690V - 25A;AC-23A - 230V - 11A;AC-23A - 400V - 19A;AC-23A - 690V - 11A;AC-3 - 230V - 15A;AC-3 - 400V - 16A;AC-3 - 690V - 9.5A
Culoare
rosu-galben
Curent termic conventional Ith
25 A
Masa neta
0,12 kg/m
Sectiune conexiune, monofilar
2,5-16 mm²
Fuzibil max. protectie la scurtcircuit
50
Impuls de curent de scurtcircuit admisibil Icw
500
Curent nominal de scurtcircuit conditionat
10kA @ 440V / 6kA @ 690V
Standard
IEC 60947, EN 60947, VDE 0660
Tinere la impuls de tensiune [Uimp]
6000 V

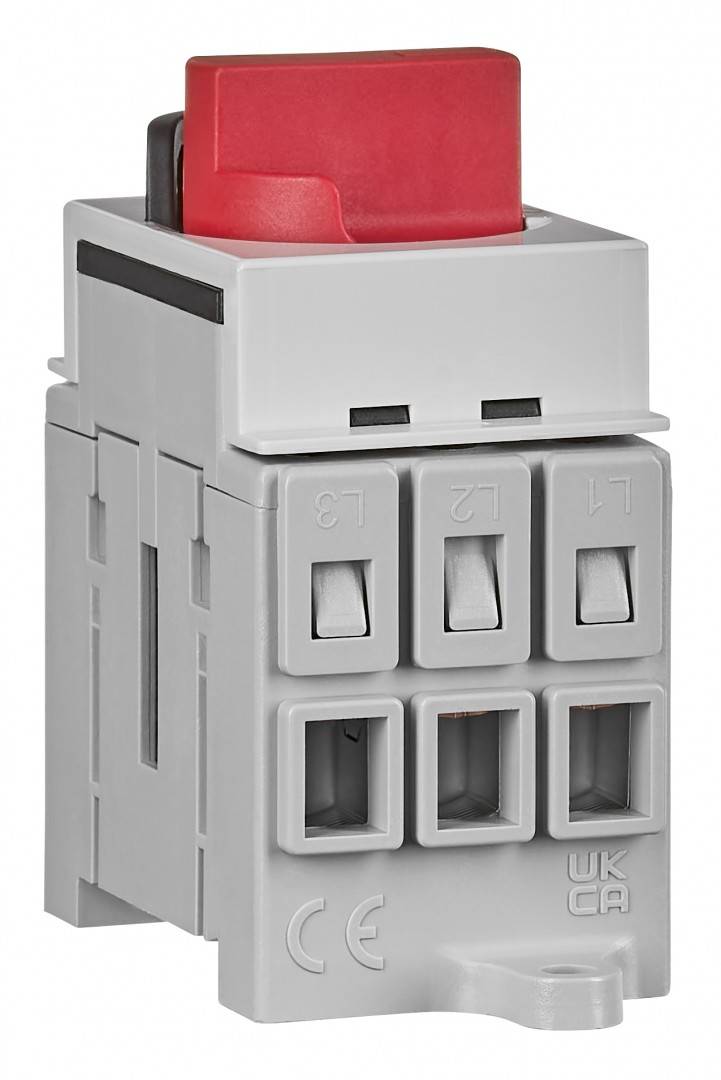

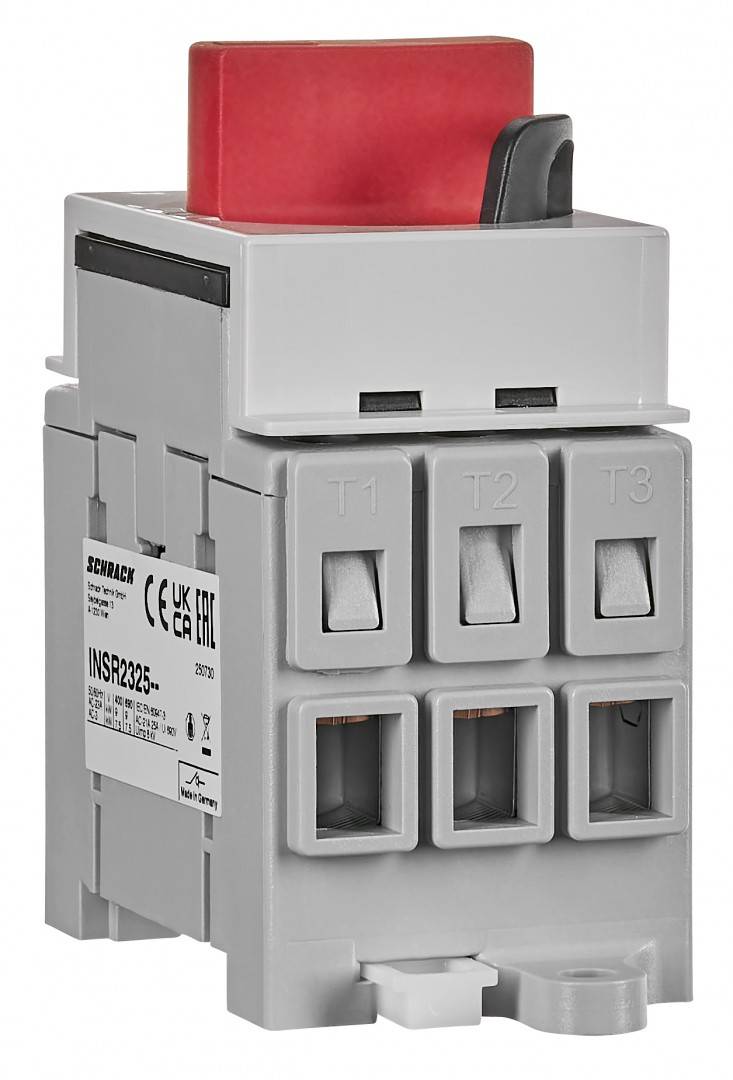

Tip conexiune
UL/CSA - AWG 14-6
disipare
0,90 W
COD COMANDA
INSR2325
Retrofit contacts
##
Tensiune nominala de izolatie (Ui)
690 V

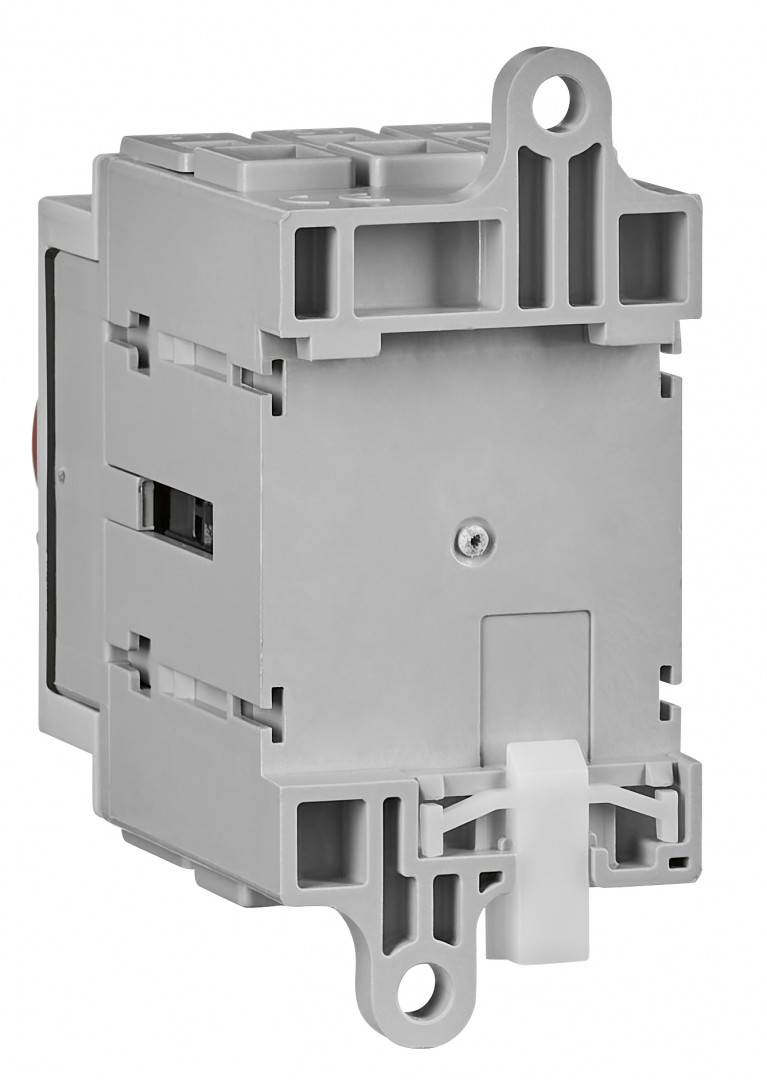

Montaj
Sina DIN
Power loss per pole
0,90 W
Temperatura maxima a mediului ambiant
55 °C
Unitate de ambalare
1 m.
Anduranta mecanica
100000 switching cycles
LxBxH mm
70x36x45
Tensiune de alimentare AC
600 V
PU
10
Contacte auxiliare
Maximum 2x INSHK001-- permitted. 1x INSHK001-- can be snapped on to the left side of the main contact and 1x INSHK001-- to the right side of the main contact. Maximum configuration 2x NC contact / 2x NO contact. The switching behavior is the same regardless of whether the auxiliary contact is snapped on to the left or right side of the main contact.
Protectie impotriva contactului direct
Protectie degete si dosul palmei conform VDE 0106 partea 100
Poli
3
Versiune
intreruptor de emergenta
In conformitate cu UL 508 / CSA
##
Accesorii optionale
INSHK001--; INSNK010--
Temperatura minima a mediului ambiant
-25 °C
Capacitate de comutare
AC-23A - 230V - 4kW;AC-23A - 400V - 9kW;AC-23A - 690V - 9kW;AC-3 - 230V - 4kW;AC-3 - 400V - 7.5kW;AC-3 - 690V - 7.5kW
Sectiune conexiune, fir flexibil cu pin
2,5-16 mm²
Thermal rated continuous current
25 A
Cuplu de strangere
3 Nm
Blocabil
Cu 2 lacate, fiecare cu diametru carlig de 4-6mm
Temperatura de functionare
-25°C to +55°C
Neutral conductor contacts
ATTENTION! If this 3-pole switch is converted to a 4-pole switch using neutral conductor contact INSNK010--, no additional auxiliary contact can be snapped onto the N contact. On the other side, auxiliary contact INSHK001-- can be used as normal. For further details, see Auxiliary contact and N contact overview
Curent nominal
25 A
PREG
2200
Conexiune
##
Active Power
3x120VAC - 3Hp;3x240VAC - 7.5Hp;3x480VAC - 10Hp;3x600VAC - 15Hp;1x120VAC - 2Hp;1x240VAC - 3Hp
| Lungime | 70 mm |
| Latime | 35.5 mm |
| Inaltime | 45 mm |
| Greutate | 0.12 kg |
