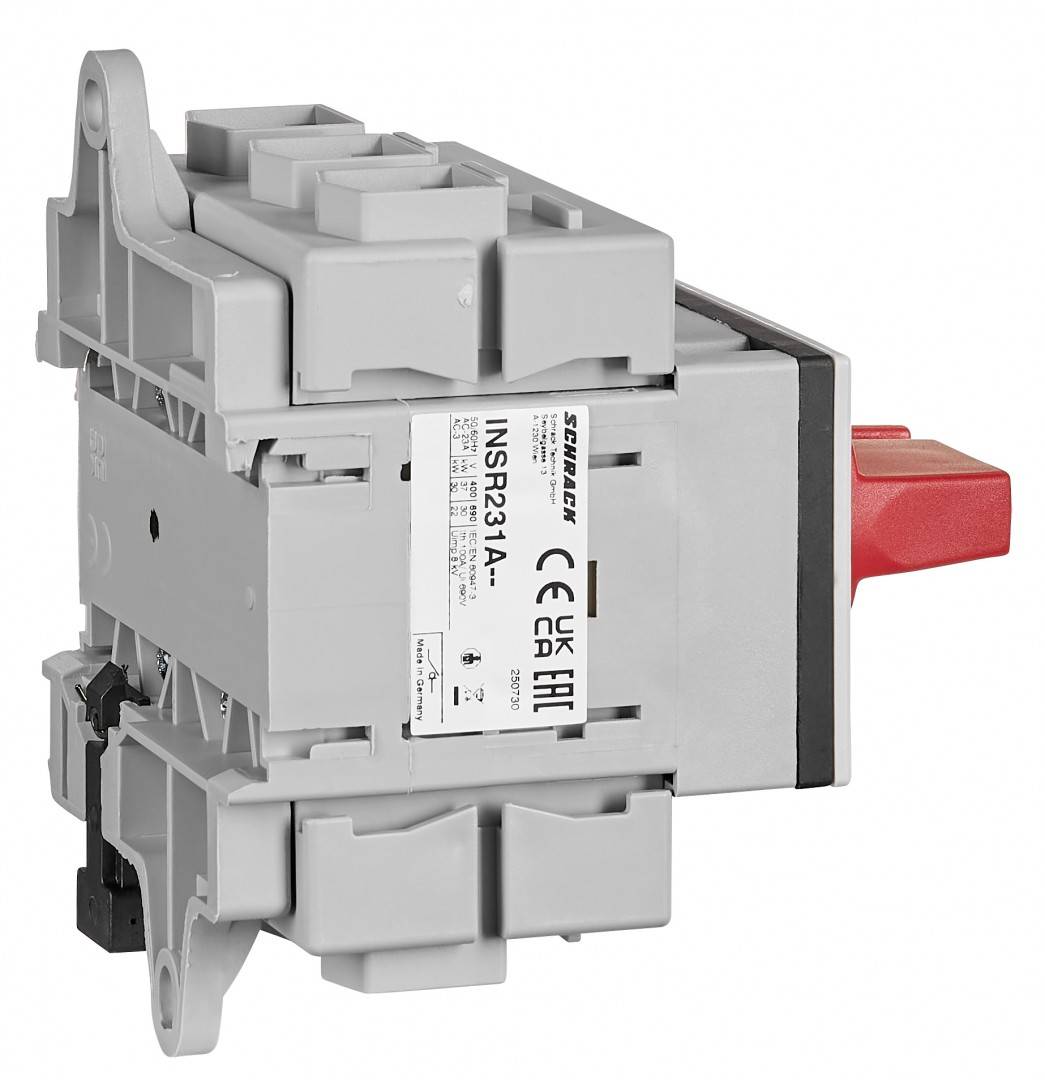

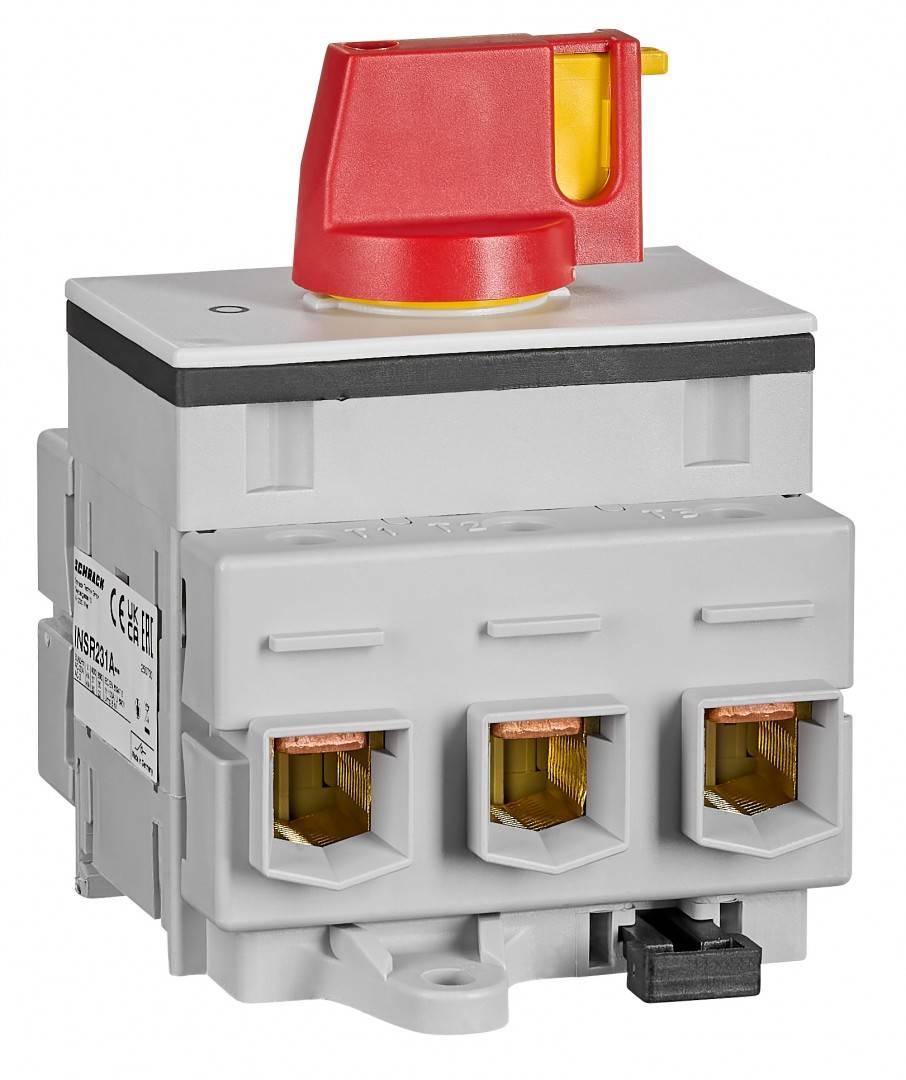

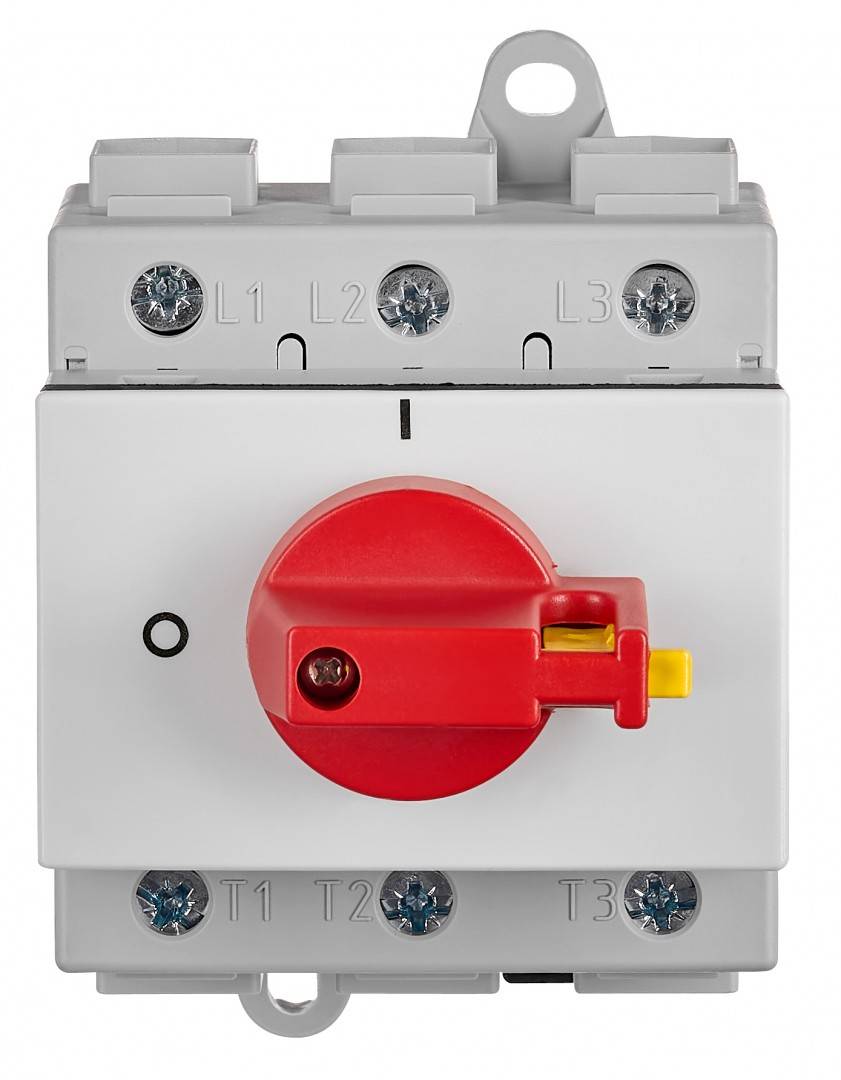

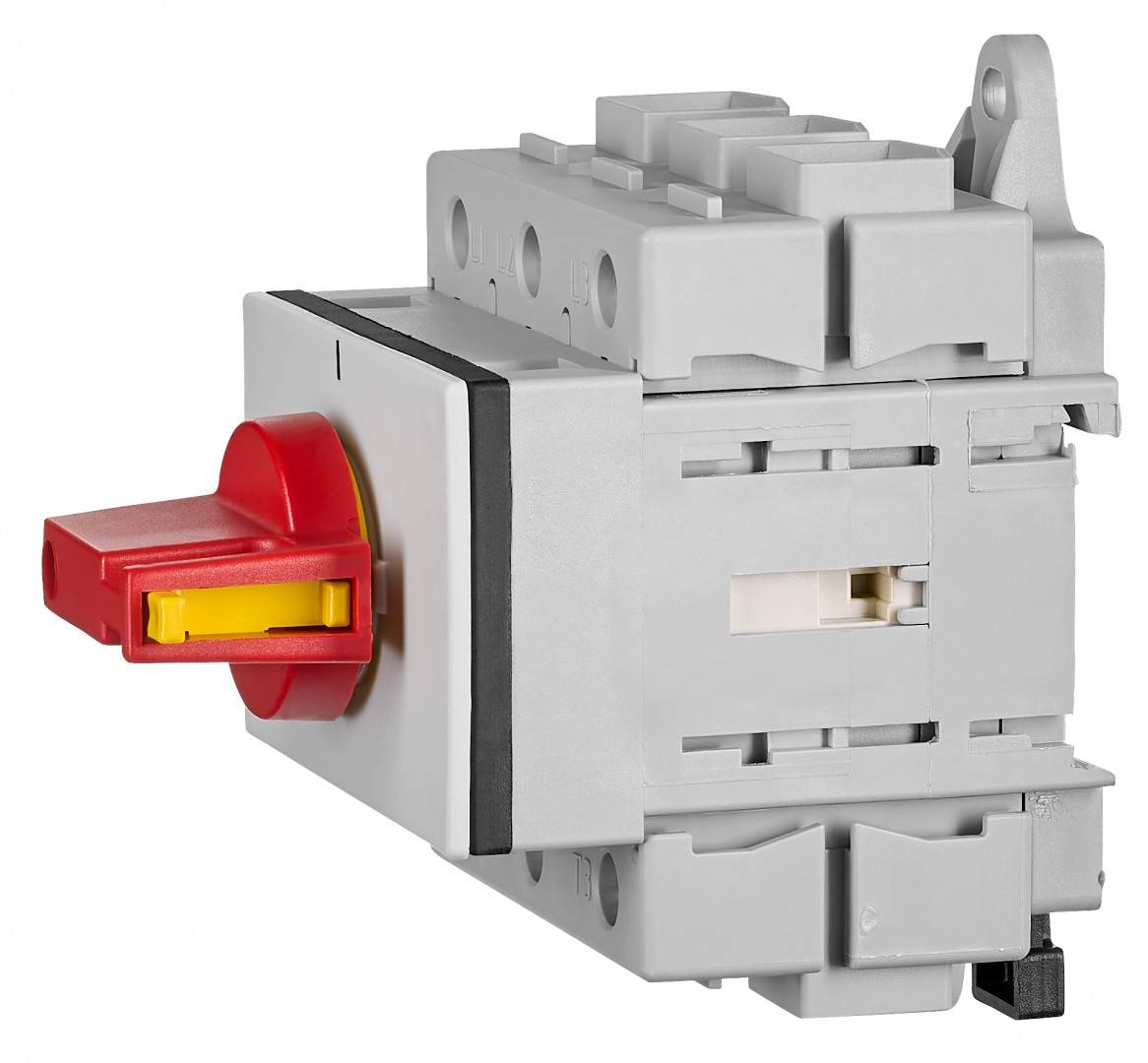

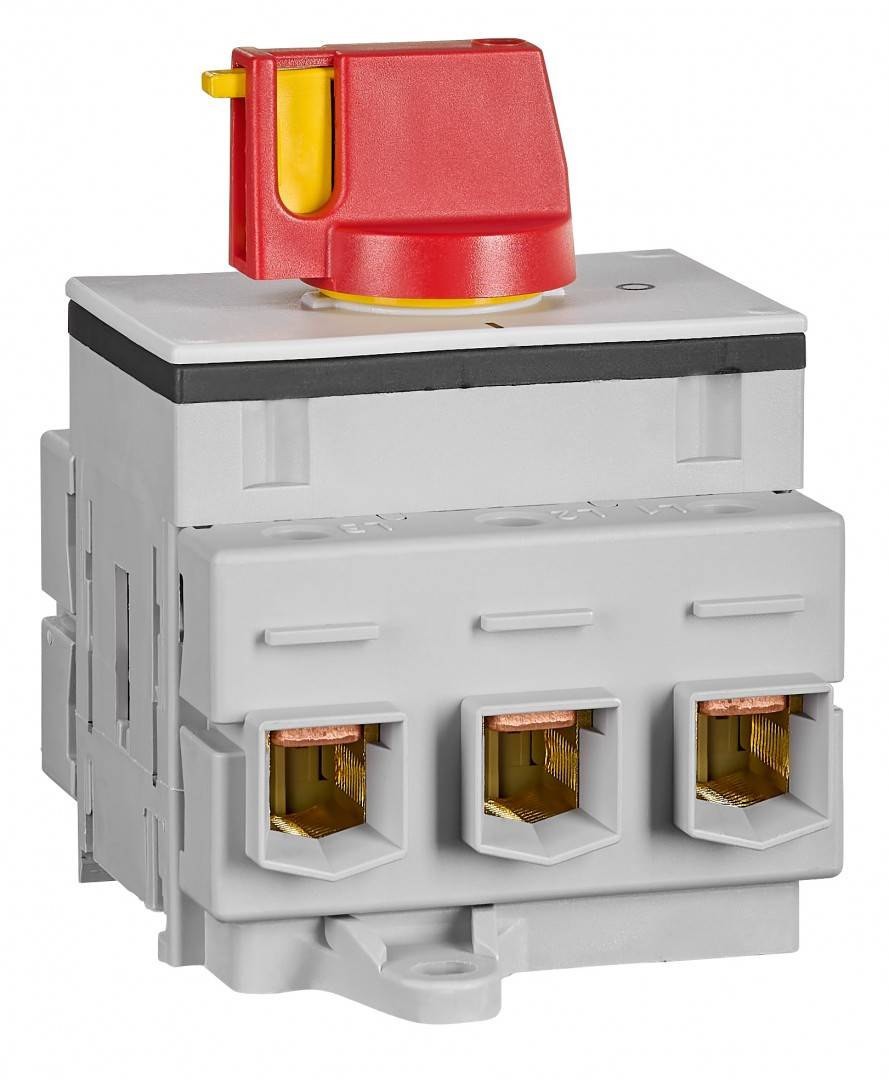

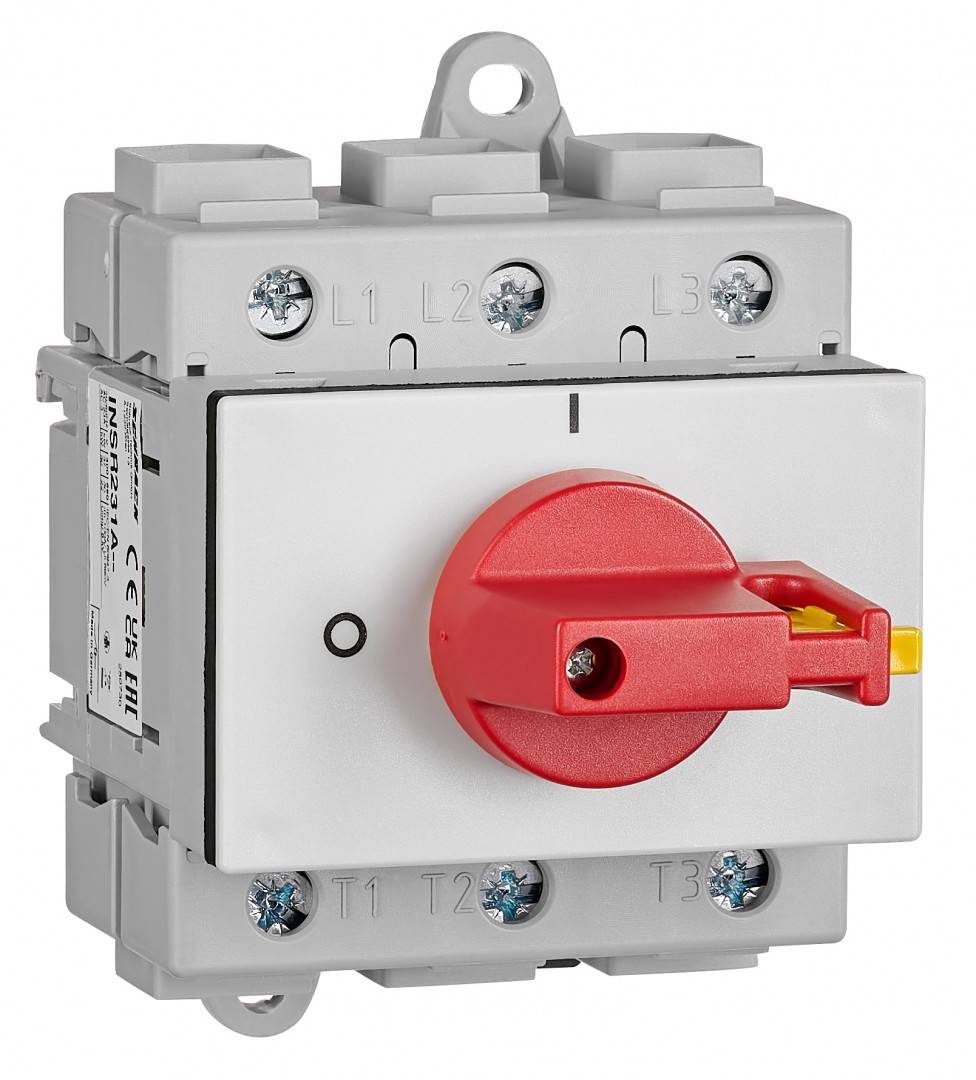

Specificatii Tehnice
grad de protectie
IP40 (front), IP10 (terminals)
Frecventa
50/60 Hz
Culoare
rosu-galben
Curent nominal
100 A
Impuls de curent de scurtcircuit admisibil Icw
1000
Power loss per pole
7,50 W
Curent nominal de scurtcircuit conditionat
10kA @ 440V / 6kA @ 690V
Standard
IEC 60947, EN 60947, VDE 0660
Capacitate de comutare
AC-23A - 400V - 37kW;AC-23A - 690V - 30kW;AC-3 - 400V - 30kW;AC-3 - 690V - 22kW
Tinere la impuls de tensiune [Uimp]
6000 V
Retrofit contacts
##
Tensiune nominala de izolatie (Ui)
690 V

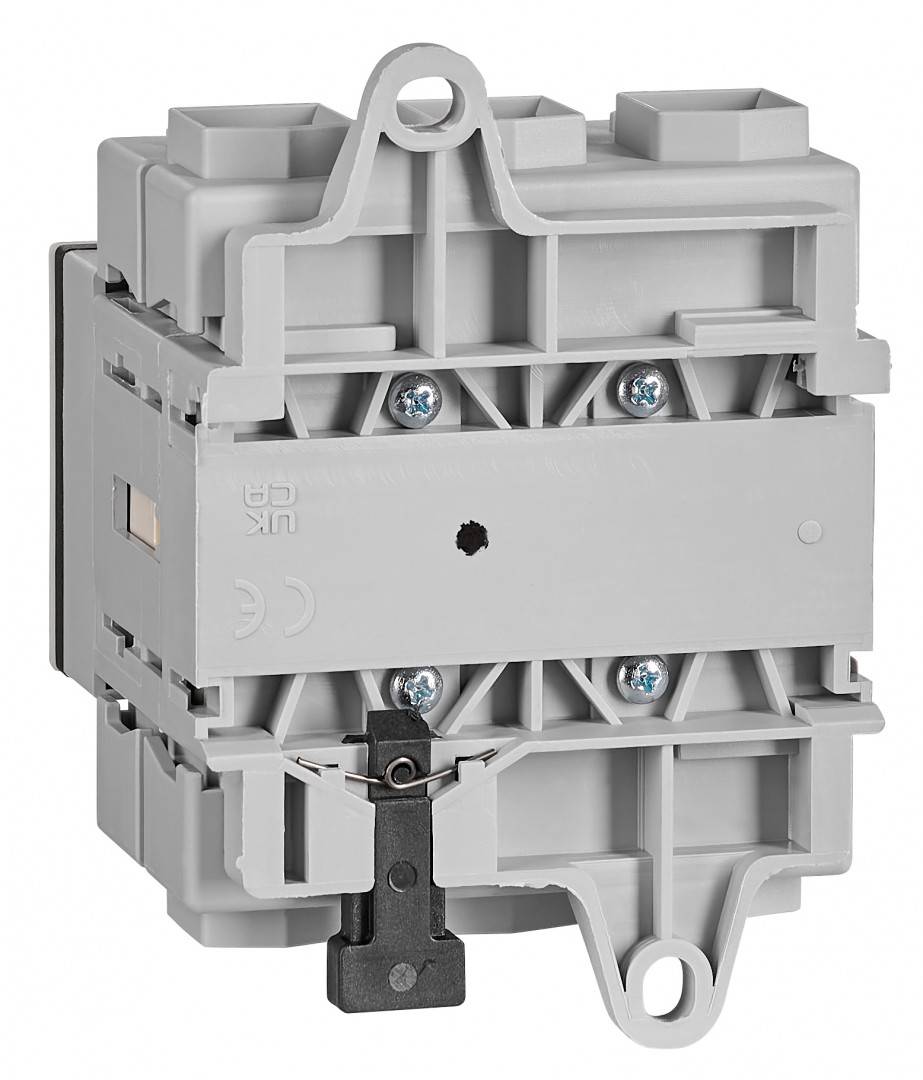

Montaj
Sina DIN
Temperatura maxima a mediului ambiant
55 °C
Unitate de ambalare
1 m.
Anduranta mecanica
100000 switching cycles
Accesorii optionale
INSHK001--; INSNK013--
Sectiune conexiune, multifilar
4-50 mm²
Tensiune de alimentare AC
600 V
Contacte auxiliare
Maximum 2x INSHK001-- permitted. 1x INSHK001-- can be snapped on to the left side of the main contact and 1x INSHK001-- to the right side of the main contact. Maximum configuration 2x NC contact / 2x NO contact. The switching behavior is the same regardless of whether the auxiliary contact is snapped on to the left or right side of the main contact.
Tip conexiune
UL/CSA - AWG 12-1
Protectie impotriva contactului direct
Protectie degete si dosul palmei conform VDE 0106 partea 100
Poli
3
Versiune
intreruptor de emergenta
In conformitate cu UL 508 / CSA
##
disipare
7,50 W
Curent termic conventional Ith
100 A
Temperatura minima a mediului ambiant
-25 °C
Masa neta
0,34 kg/m
Neutral conductor contacts
ATTENTION! If this 3-pole switch is converted to a 4-pole switch using neutral conductor contact INSNK013--, no additional auxiliary contact can be snapped onto the N contact. On the other side, auxiliary contact INSHK001-- can be used as normal. For further details, see Auxiliary contact and N contact overview.
COD COMANDA
INSR231A
Cuplu de strangere
3 Nm
Sectiune conexiune, monofilar
4-50 mm²
Blocabil
Cu 2 lacate, fiecare cu diametru carlig de 4-6mm
Temperatura de functionare
-25°C to +55°C
PU
5
Active Power
3x240VAC - 30Hp;3x480VAC - 60Hp;3x600VAC - 75Hp
Thermal rated continuous current
100 A
PREG
2200
Conexiune
##
Fuzibil max. protectie la scurtcircuit
125
Sectiune conexiune, fir flexibil cu pin
4-35 mm²
LxBxH mm
90x70x45
Curent operational
AC-21A - 690V - 100A;AC-23A - 400V - 70A;AC-23A - 690V - 34A;AC-3 - 400V - 53A;AC-3 - 690V - 25.5A
| Lungime | 89.5 mm |
| Latime | 70 mm |
| Inaltime | 45 mm |
| Greutate | 0.34 kg |
