Specificatii Tehnice
grad de protectie
IP40 (front), IP10 (terminals)
Sectiune conexiune, multifilar
2,5-35 mm²
Accesorii optionale
INSHK001--; INSNK012--
Curent nominal
80 A
Frecventa
50/60 Hz
Masa neta
0,27 kg/m
Active Power
3x240VAC - 15Hp;3x480VAC - 40Hp;3x600VAC - 50Hp;1x120VAC - 10Hp
Impuls de curent de scurtcircuit admisibil Icw
1000
Versiune

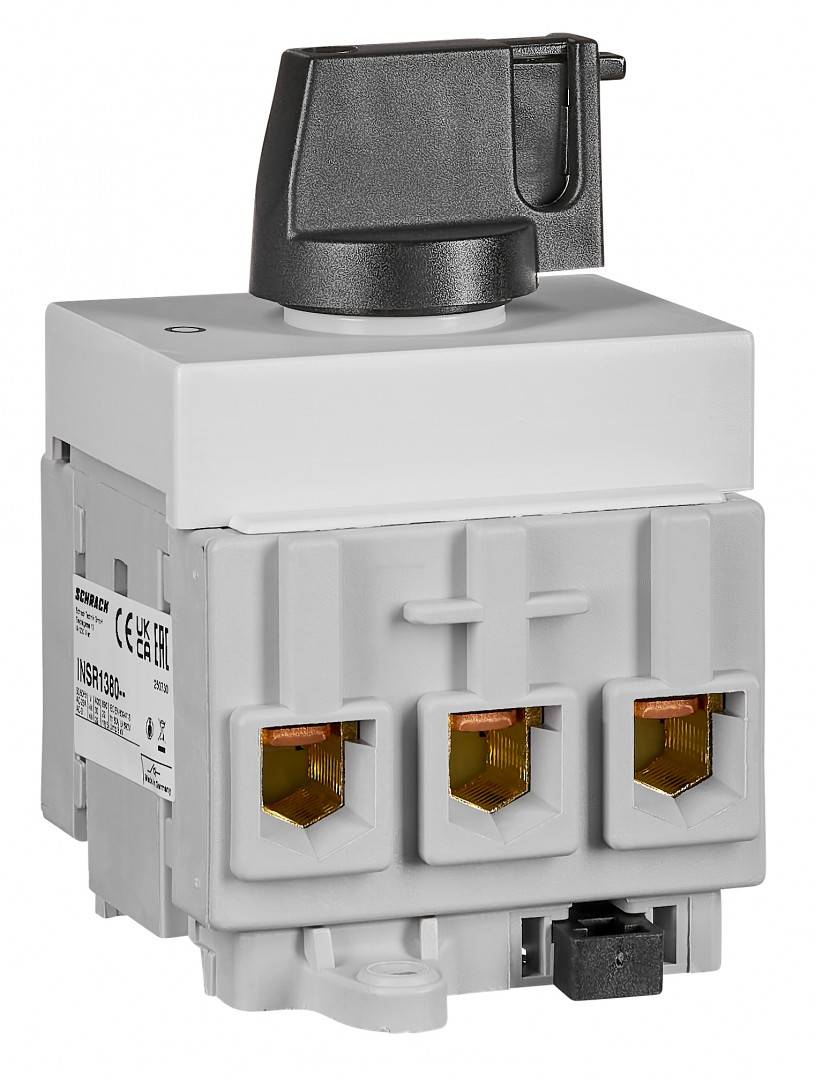

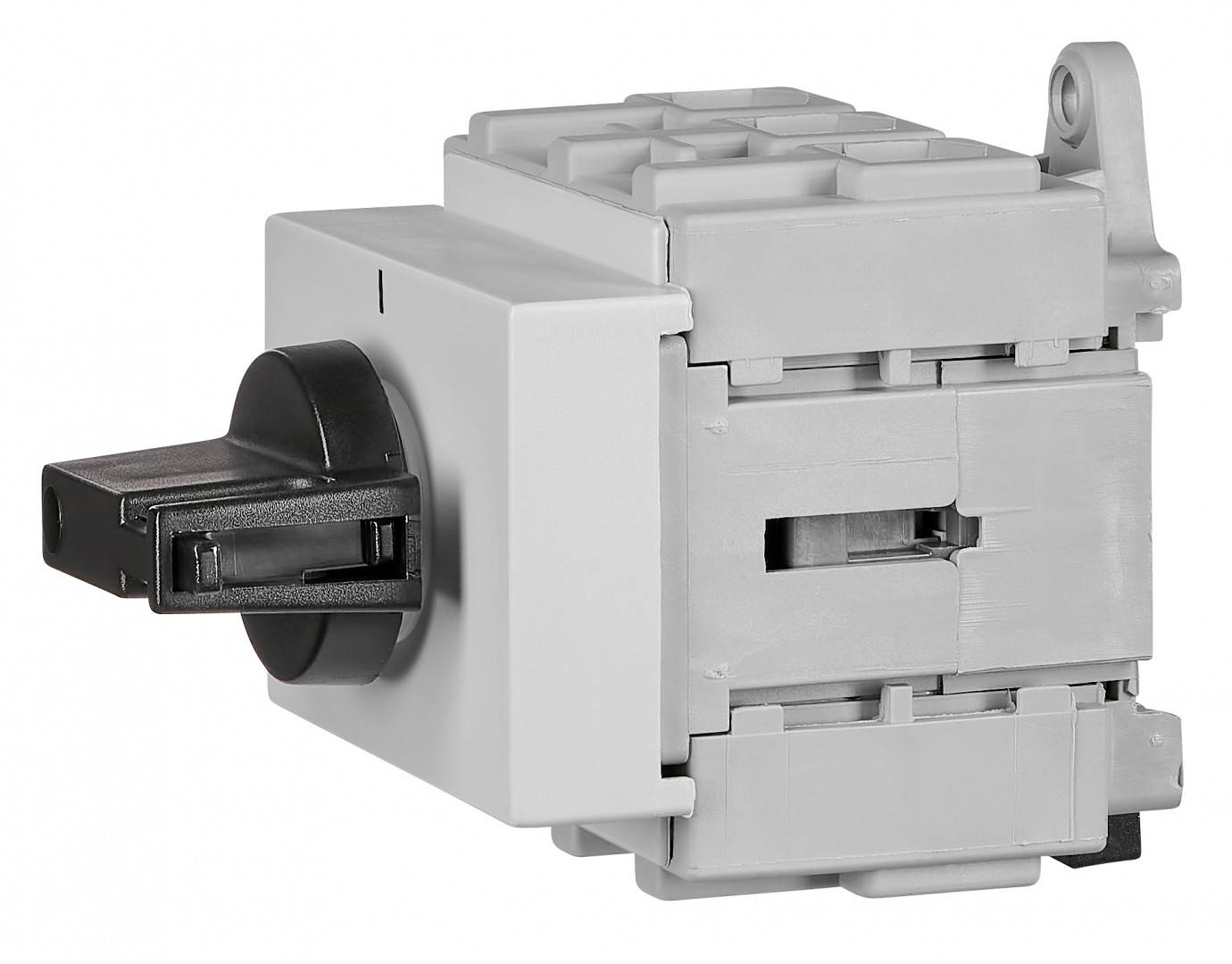

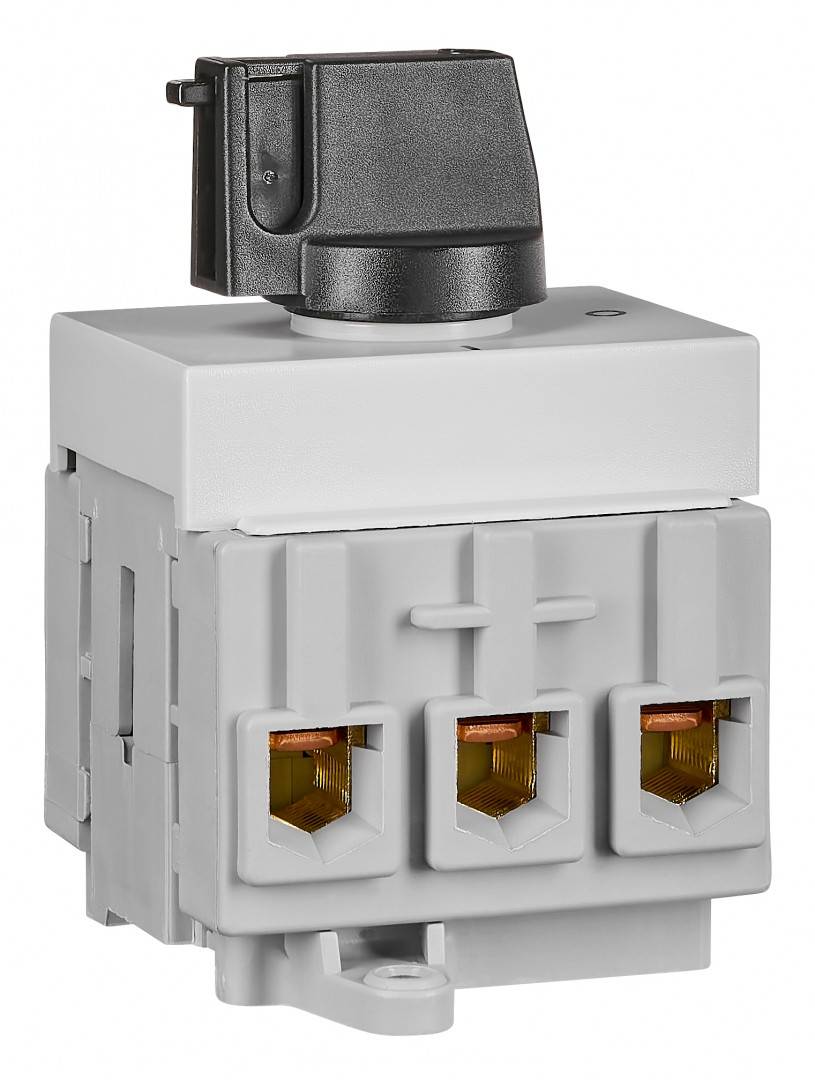

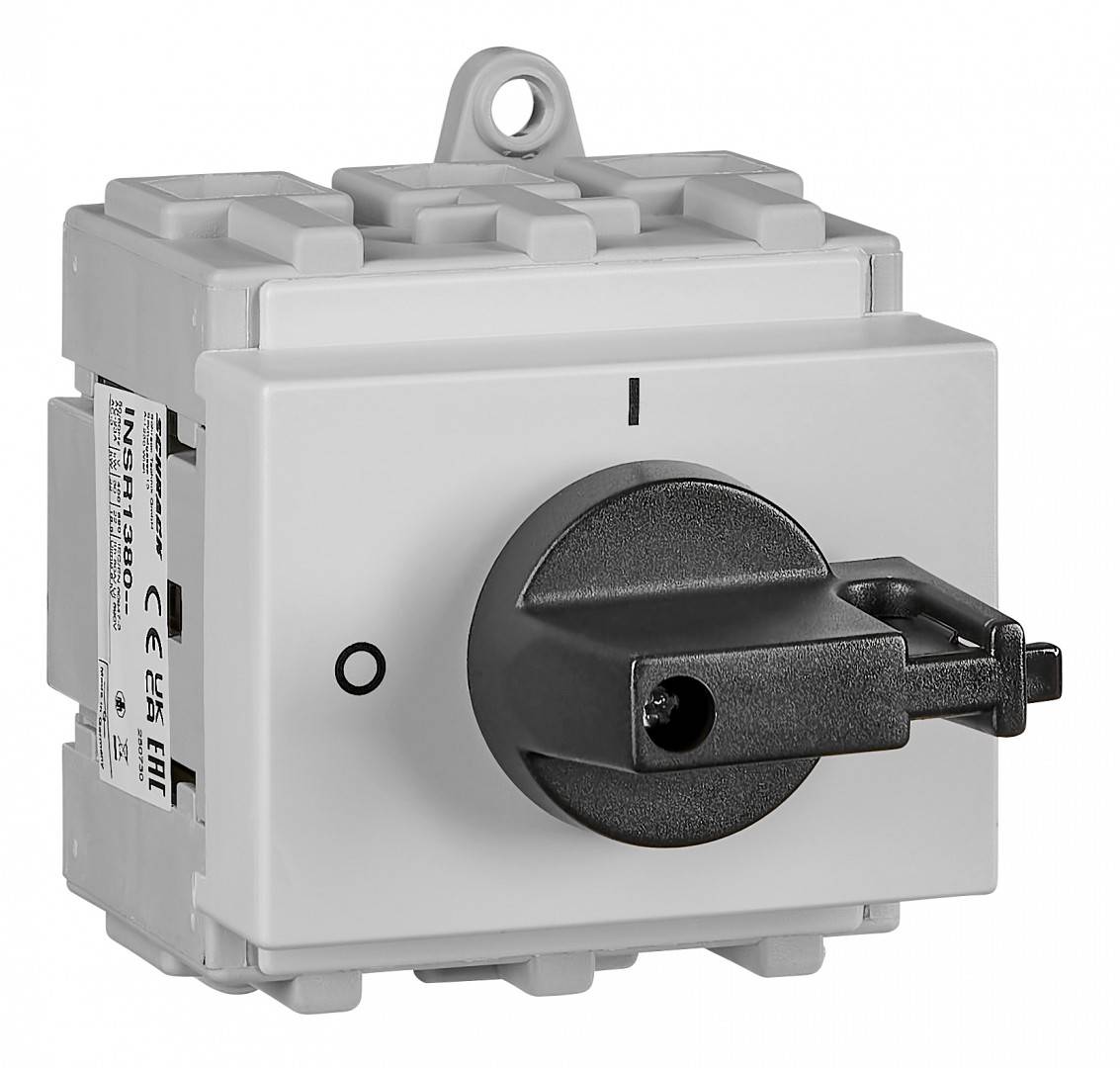

comutator principal
Curent termic conventional Ith
80 A
Thermal rated continuous current
80 A
Curent nominal de scurtcircuit conditionat
10kA @ 440V / 6kA @ 690V
Standard
IEC 60947, EN 60947, VDE 0660
Tinere la impuls de tensiune [Uimp]
6000 V
Culoare
Gri
Tip conexiune
UL/CSA - AWG 14-6
COD COMANDA

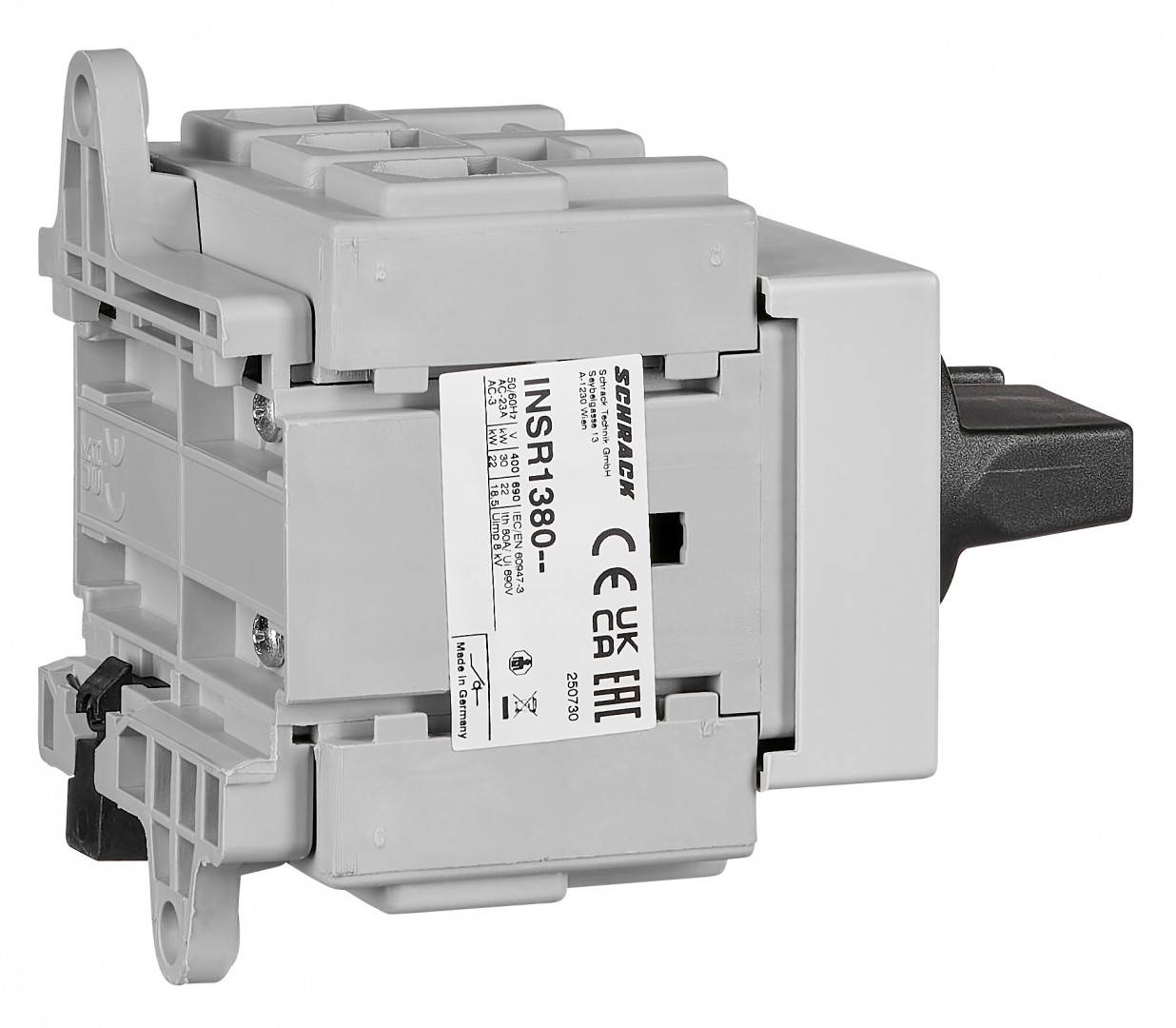

INSR1380
Retrofit contacts
##
Tensiune nominala de izolatie (Ui)
690 V

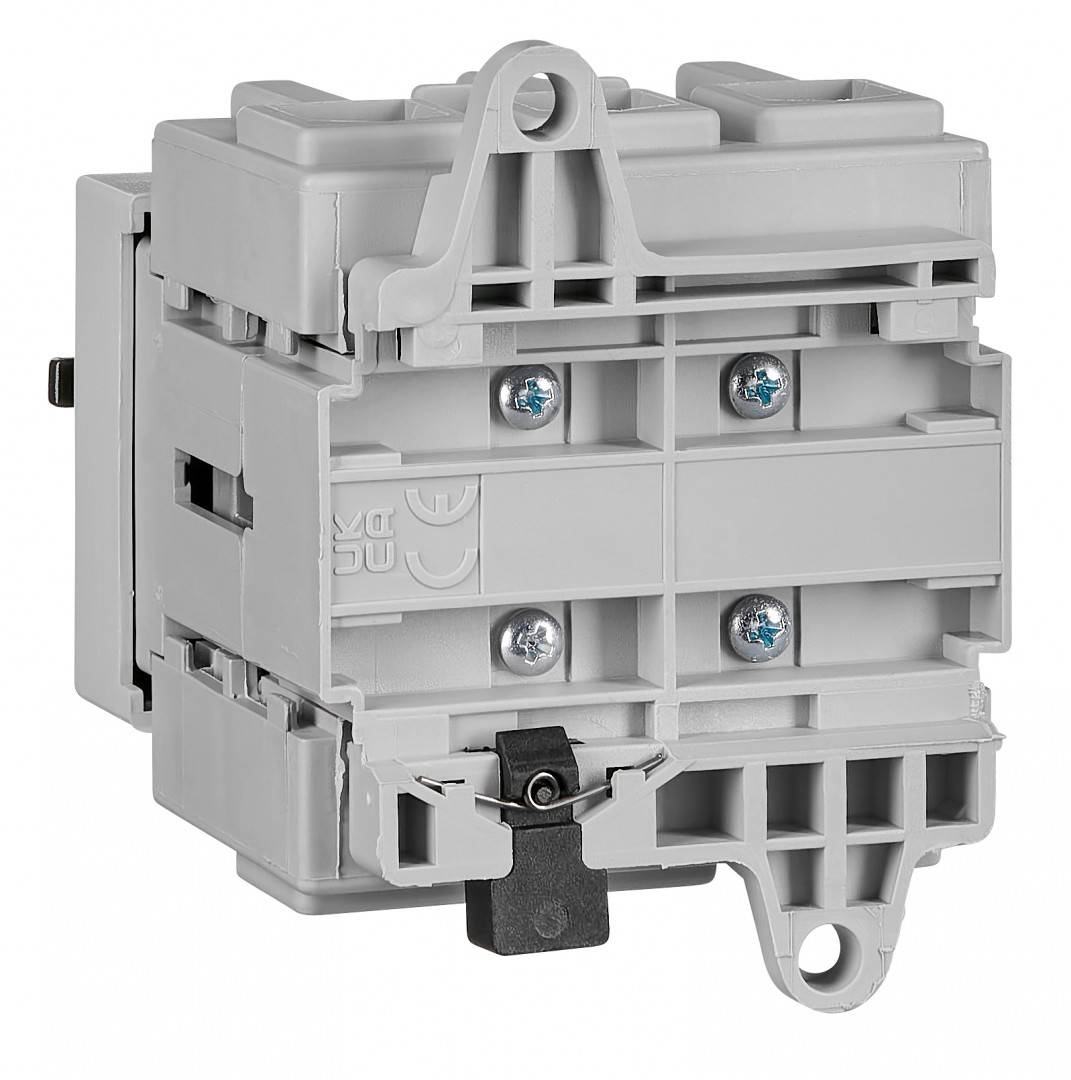

Montaj
Sina DIN
LxBxH mm
88x63x45
Temperatura maxima a mediului ambiant
55 °C
Unitate de ambalare
1 m.
Anduranta mecanica
100000 switching cycles
Neutral conductor contacts
ATTENTION! If this 3-pole switch is converted to a 4-pole switch using neutral conductor contact INSNK012--, no additional auxiliary contact can be snapped onto the N contact. On the other side, auxiliary contact INSHK001-- can be used as normal. For further details, see Auxiliary contact and N contact overview
Tensiune de alimentare AC
600 V
Contacte auxiliare
Maximum 2x INSHK001-- permitted. 1x INSHK001-- can be snapped on to the left side of the main contact and 1x INSHK001-- to the right side of the main contact. Maximum configuration 2x NC contact / 2x NO contact. The switching behavior is the same regardless of whether the auxiliary contact is snapped on to the left or right side of the main contact.
Protectie impotriva contactului direct
Protectie degete si dosul palmei conform VDE 0106 partea 100
Poli
3
disipare
5,50 W
Sectiune conexiune, monofilar
2,5-35 mm²
Curent operational
AC-21A - 690V - 80A;AC-23A - 400V - 43A;AC-23A - 690V - 22A;AC-3 - 400V - 43A;AC-3 - 690V - 22A
In conformitate cu UL 508 / CSA
##
Temperatura minima a mediului ambiant
-25 °C
Fuzibil max. protectie la scurtcircuit
80
Sectiune conexiune, fir flexibil cu pin
2,5-16 mm²
Cuplu de strangere
3 Nm
Blocabil
Cu 2 lacate, fiecare cu diametru carlig de 4-6mm
Temperatura de functionare
-25°C to +55°C
Capacitate de comutare
AC-23A - 400V - 30kW;AC-23A - 690V - 22kW;AC-3 - 400V - 22kW;AC-3 - 690V - 18.5kW
PU
5
Power loss per pole
5,50 W
PREG
2200
Conexiune
##
| Lungime | 88 mm |
| Latime | 63 mm |
| Inaltime | 45 mm |
| Greutate | 0.27 kg |
