Specificatii Tehnice
Sectiune conexiune, multifilar
2,5-16 mm²
Frecventa
50/60 Hz
Versiune
comutator de sursa
disipare
0,80 W
Sectiune conexiune, monofilar
2,5-16 mm²
Poli
4
Fuzibil max. protectie la scurtcircuit
50
Impuls de curent de scurtcircuit admisibil Icw
500
Curent operational
AC-21A - 690V - 20A;AC-22A - 690V - 20A;AC-23A - 230V - 11A;AC-23A - 400V - 16A;AC-23A - 690V - 9A;AC-3 - 230V - 11A;AC-3 - 400V - 7A;AC-3 - 690V - 7A
Capacitate de comutare
AC-23A - 230V - 3kW;AC-23A - 400V - 7.5kW;AC-23A - 690V - 7.5kW;AC-3 - 230V - 3kW;AC-3 - 400V - 5.5kW;AC-3 - 690V - 5.5kW
Curent nominal de scurtcircuit conditionat
10kA @ 440V / 6kA @ 690V
Standard
IEC 60947, EN 60947, VDE 0660

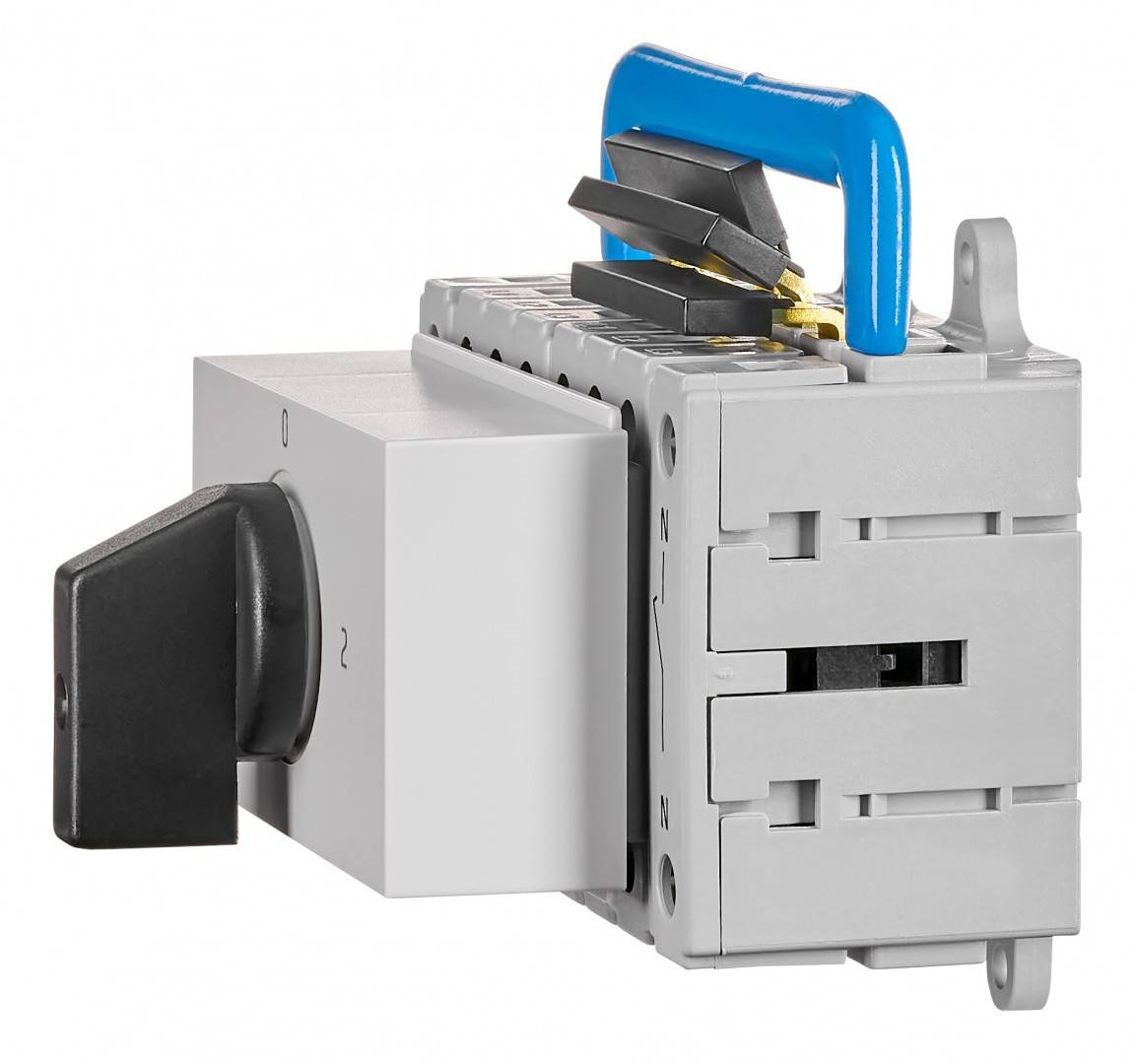

Contacte auxiliare
Maximum 2x INSHK001-- permitted. 1x can be snapped onto the left side of the main contact and 1x onto the right side of the main contact. Maximum configuration 2x NC contacts / 2x NO contacts (1x NC contact / 1x NO contact per switching position). ATTENTION! Switching behavior is not the same! In switching position “1”, only the auxiliary contacts that have been snapped onto the corresponding main contact will switch. In switching position “2”, only the auxiliary contacts that have been snapped onto the corresponding main contact will switch.
LxBxH mm
89x78x45
Thermal rated continuous current
20 A
Tinere la impuls de tensiune [Uimp]
6000 V
Accesorii optionale
INSHK001--
Culoare
Gri
Tip conexiune
UL/CSA - AWG 14-6
Power loss per pole
0,40 W
Retrofit contacts
##
Tensiune nominala de izolatie (Ui)
690 V

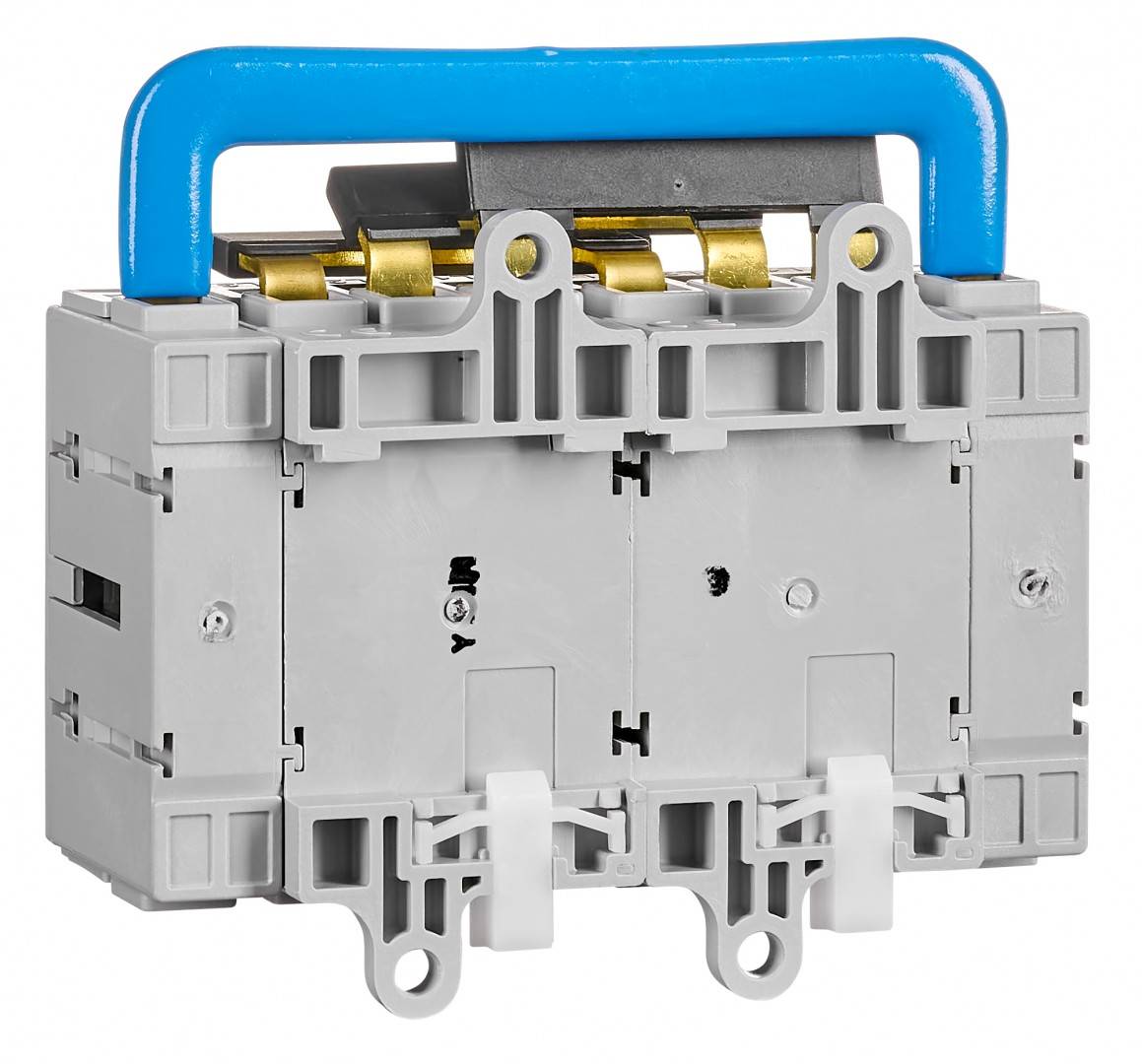

Montaj
Sina DIN
Temperatura maxima a mediului ambiant
55 °C
Masa neta
0,39 kg/m
Unitate de ambalare
1 m.
Anduranta mecanica
100000 switching cycles
grad de protectie
IP40 (front), IP00 (terminals)
Curent termic conventional Ith
20 A
Tensiune de alimentare AC
600 V
PU
10
Active Power
3x120VAC - 1Hp;3x240VAC - 3Hp;3x480VAC - 7.5Hp;3x600VAC - 10Hp;1x120VAC - 0.5Hp;1x240VAC - 1.5Hp
Protectie impotriva contactului direct
Protectie degete si dosul palmei conform VDE 0106 partea 100
COD COMANDA

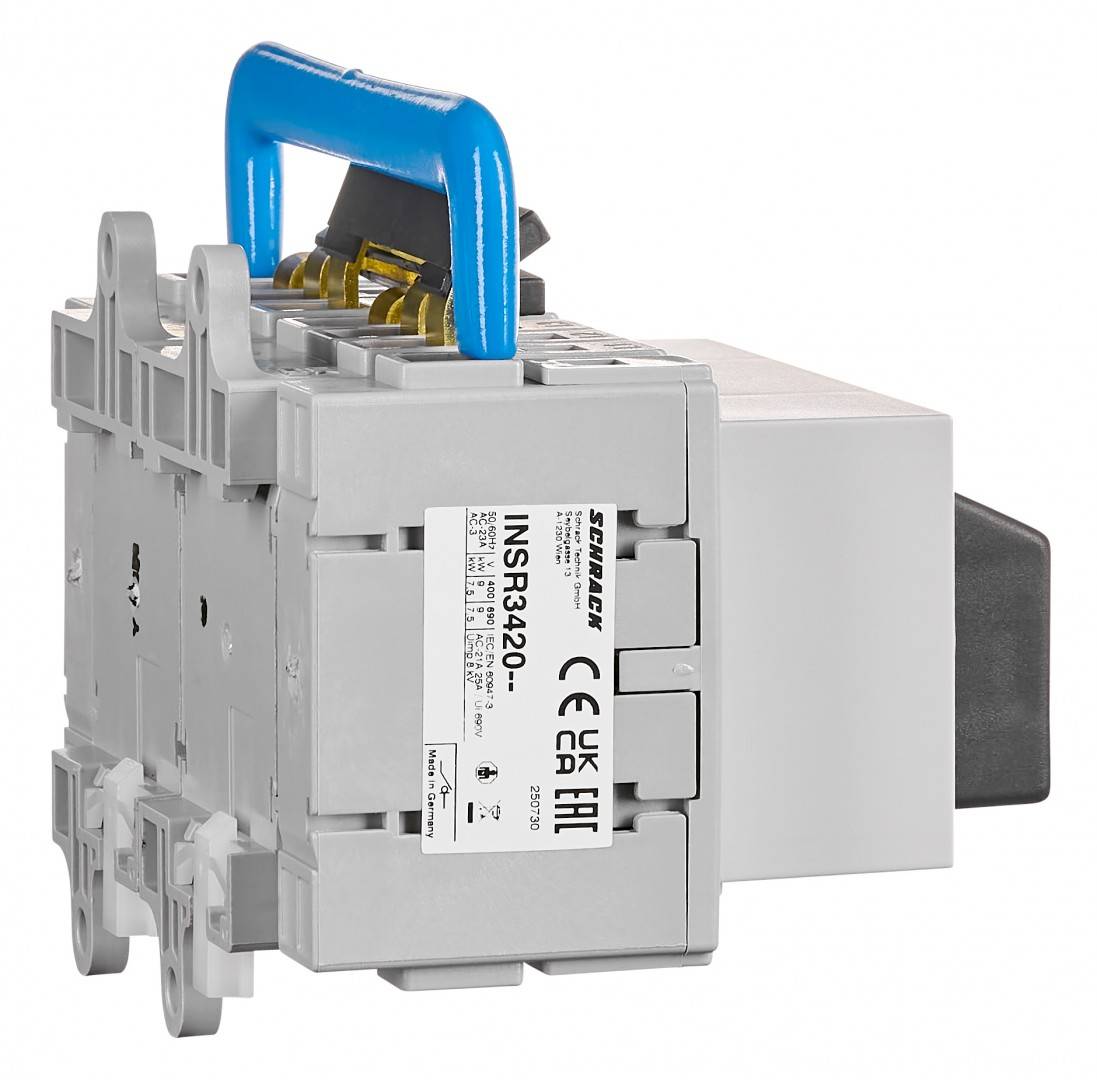

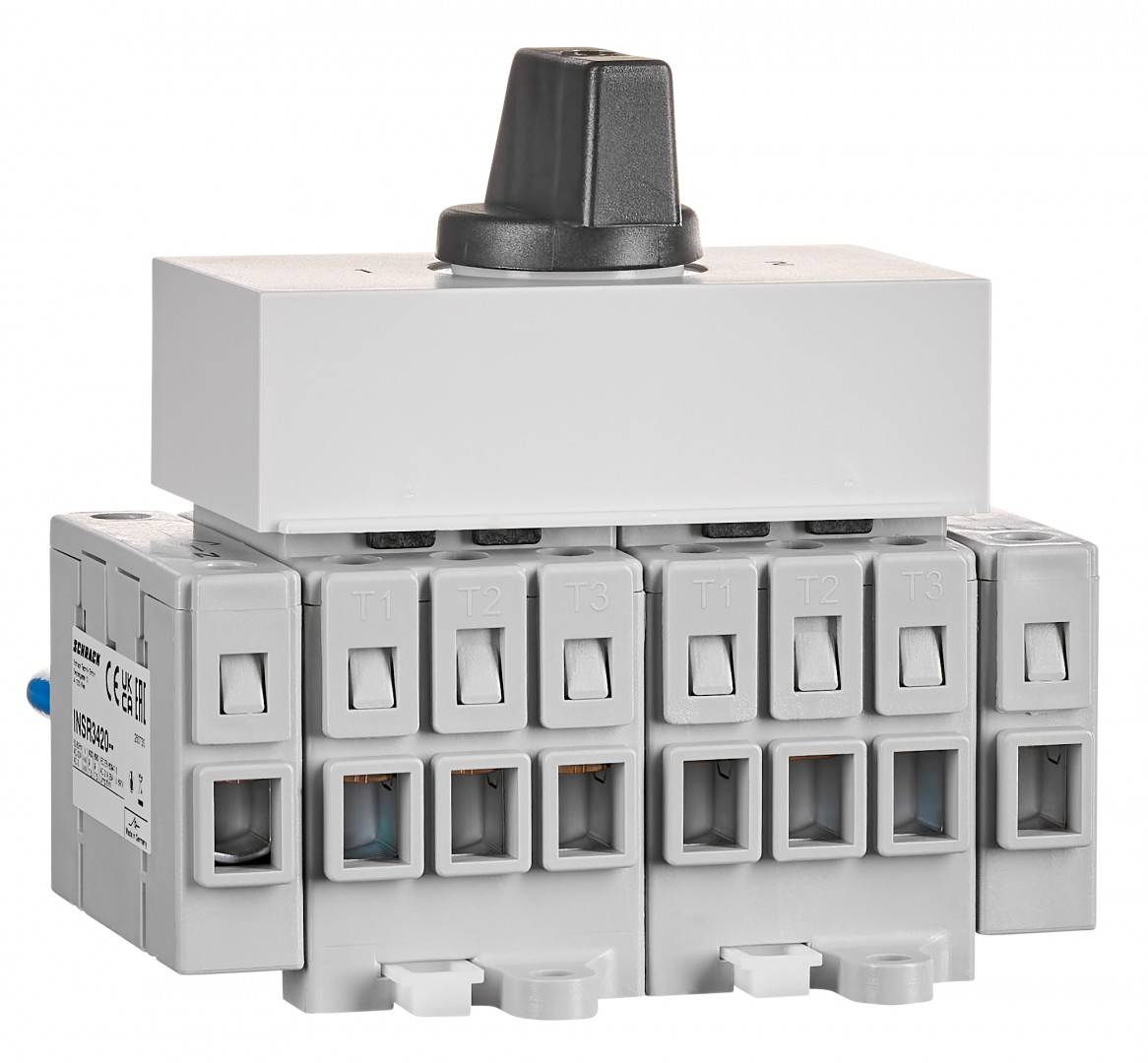

INSR3420
In conformitate cu UL 508 / CSA
##
Blocabil
Nu
Temperatura minima a mediului ambiant
-25 °C
Sectiune conexiune, fir flexibil cu pin
2,5-16 mm²
Cuplu de strangere
3 Nm

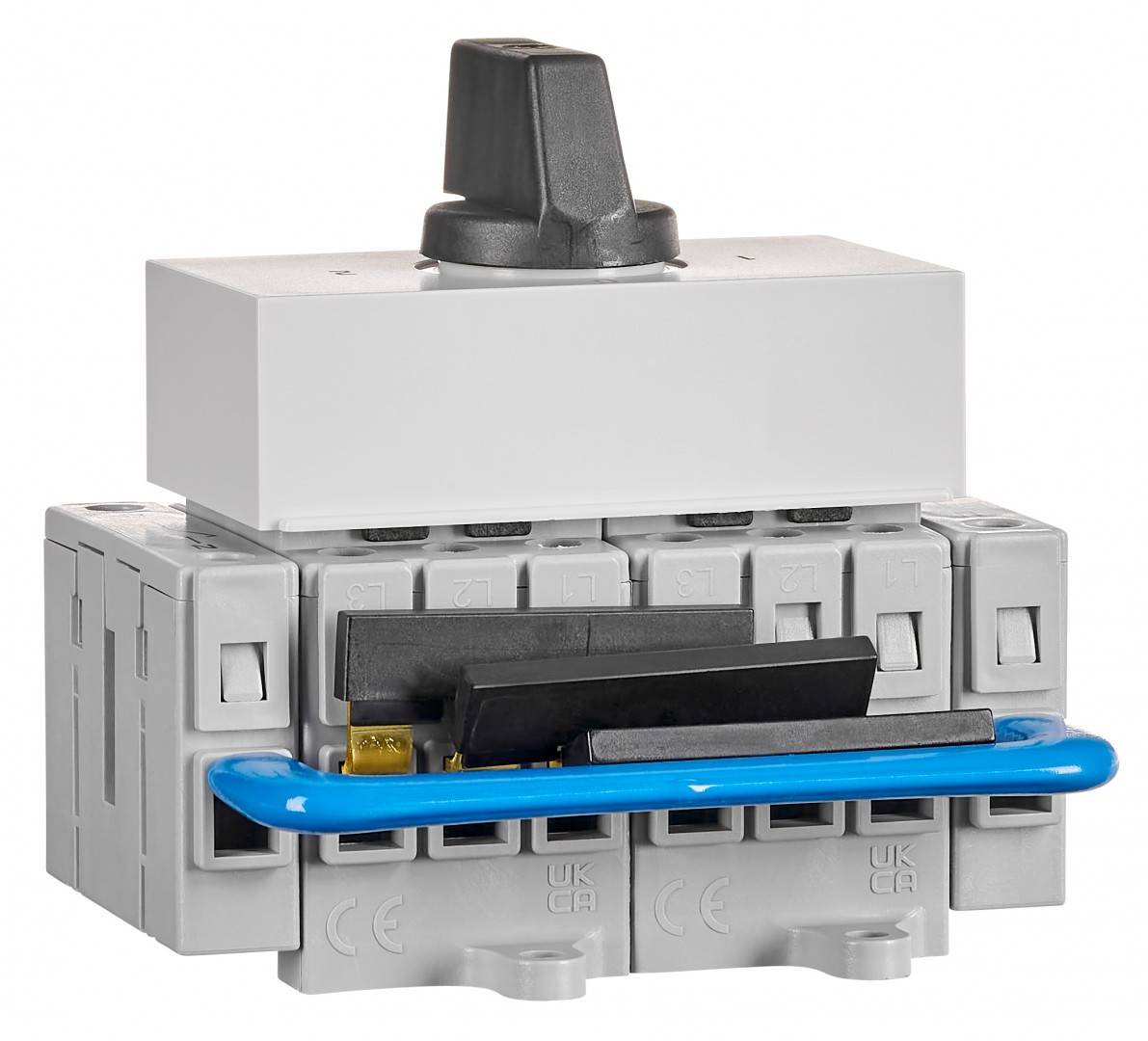

Neutral conductor contacts

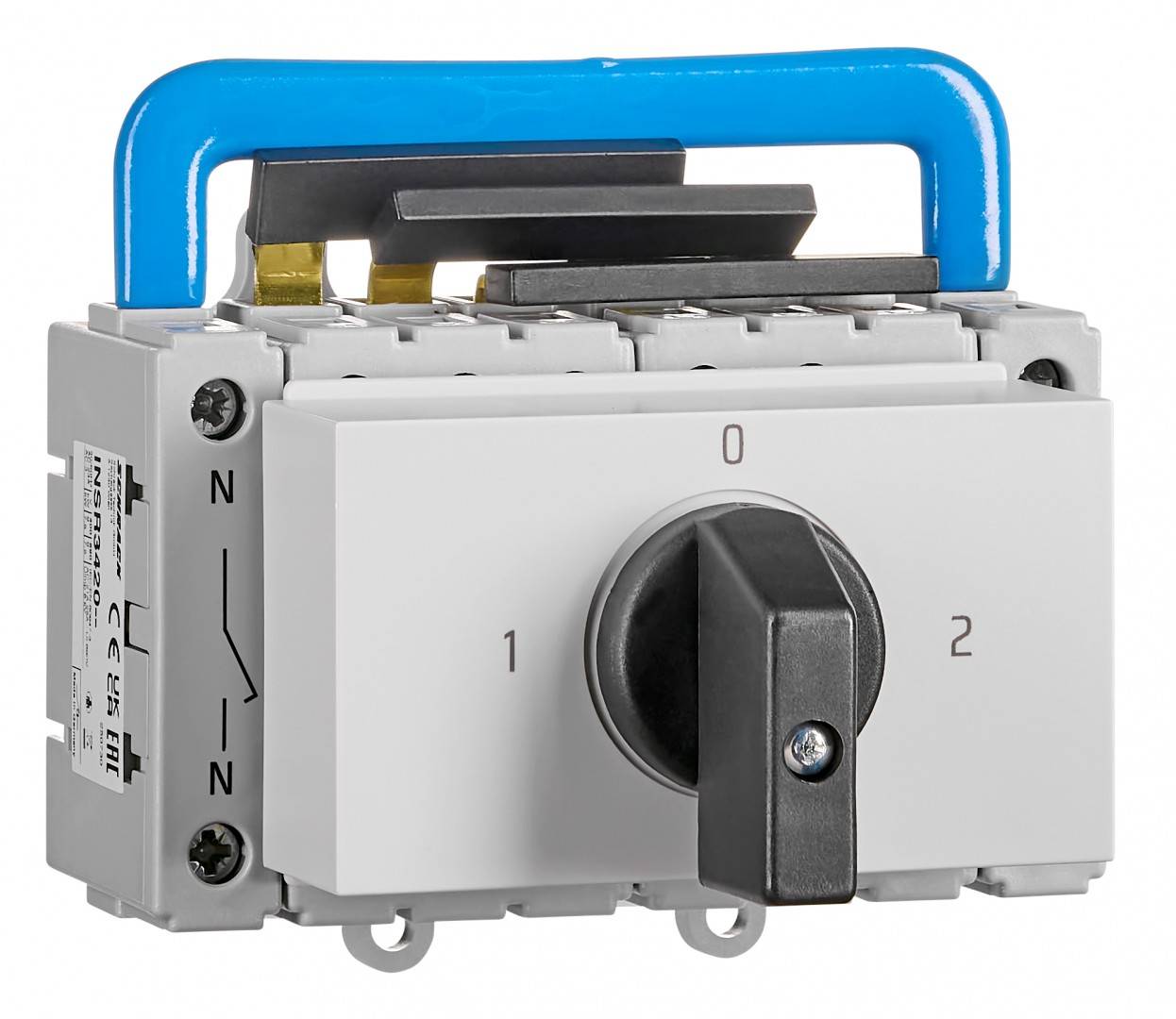

Neutral conductor early-make, late-break design (closes before and opens after the phase conductors to prevent voltage displacement)
Temperatura de functionare
-25°C to +55°C
PREG
2200
Conexiune
##
Curent nominal
20 A
| Lungime | 89.4 mm |
| Latime | 78.4 mm |
| Inaltime | 45 mm |
| Greutate | 0.39 kg |
