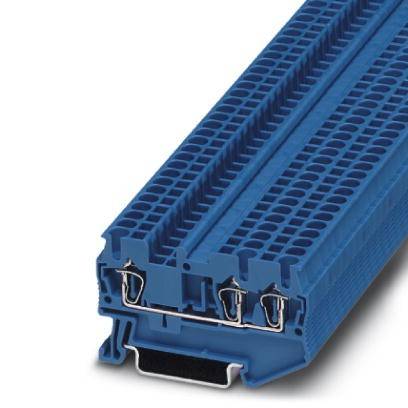

Clema sir trecere ST 2,5-TWIN BU
Cod produs: IP3031254-
Marca: SCHRACK TECHNIK
Pret cu TVA: 3.09 Lei / buc.
|
|
|
|
Comanda instant - Clema sir trecere ST 2,5-TWIN BU
|
Clema sir trecere ST 2,5-TWIN BU
|
|
Specificatii Tehnice Accesorii optionale IP3022263-;IP3022276-;IP3022218-;IP1201442-;IP1201413-;IP1401637-;IP1421659-;IP0800886-;IP196001--;IP196031--;IP196061--;IP196091--;IP196121--;IP196151--;IP196181--;IP196211--;IP196241--;IP196271--;IP196301--;IP196331--;IP196361--;IP196391--;IP196421--;IP196451--;IP196481--;IP10500171;IP10500172;IP10500173;IP10500174;IP10500175;IP10500176;IP10500177;IP10500178;IP10500179;IP1050017H;IP08086711;IP08086712;IP08086713;IP08086714;IP08086715;IP08086716;IP08086717;IP08086718;IP08086719;IP0808671H;IP3030488-;IP3030161-;IP3030174-;IP3030213-;IP0201744-;IP1204517- Accesorii Feed-through terminal Culoare Albastru disipare 0,77 W PU 50 Sectiune maxima, conductor solid 4 mm² Sistem spring-cage-terminal PREG 1670 Temperatura maxima a mediului ambiant 120 °C LxIxA mm 5x61x37 HxBxT mm 61x5x37 Curent nominal 24 A Sectiune minima, conductor flexibil 0,08 mm² Unitate de ambalare 1 m. Sectiune maxima, conductor flexibil 2,50 mm² Serie ST COD COMANDA IP3031254 Min. cross section, flexible wire with ferrule 0,14 mm² Descriere de baza Clema Masa neta 0,01 kg/m Sectiune minima, conductor solid 0,08 mm² Versiune clema trecere Descriere electrica CAD ${querschnitt} Sectiune 2.5 mm² Max. cross section, flexible wire with ferrule 2,50 mm² Temperatura minima a mediului ambiant -40 °C Fabricant Phoenix Contact Simbol CAD X | Lungime | 36.5 mm | | Latime | 5.2 mm | | Inaltime | 60.5 mm | | Greutate | 0.01 kg |
|
|
|
|
|
