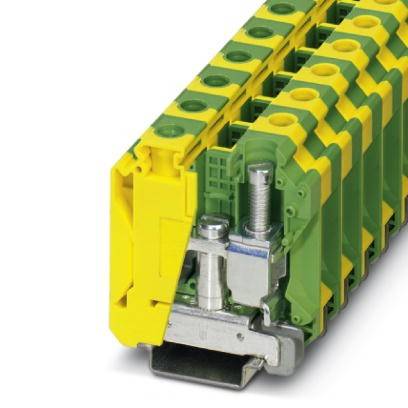

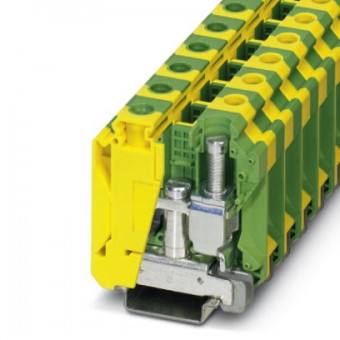

Clema sir PE, 35mmp, TB 35-PE I
Cod produs: IP3059906-
Marca: SCHRACK TECHNIK
Pret cu TVA: 17.64 Lei / buc.
|
|
|
|
Comanda instant - Clema sir PE, 35mmp, TB 35-PE I
|
Clema sir PE, 35mmp, TB 35-PE I
|
|
Specificatii Tehnice PU 50 Sistem cleme cu surub Sectiune maxima, conductor solid 35 mm² Sectiune minima, conductor solid 10 mm² Serie TB Accesorii Ground modular terminal PREG 1670 COD COMANDA IP3059906 Temperatura maxima a mediului ambiant 120 °C LxIxA mm 15x54x62 Sectiune maxima, conductor flexibil 35 mm² Masa neta 0,08 kg/m Unitate de ambalare 1 m. Min. cross section, flexible wire with ferrule 10 mm² Descriere de baza Clema Sectiune minima, conductor flexibil 10 mm² Descriere electrica CAD ${querschnitt} Versiune Protective conductor terminal Culoare Verde-galben Accesorii optionale IP3022263-;IP3022276-;IP3022218-;IP1201442-;IP1201413-;IP1401637-;IP1421659-;IP0800886-;IP196001--;IP196031--;IP196061--;IP196091--;IP196121--;IP196151--;IP196181--;IP196211--;IP196241--;IP196271--;IP196301--;IP196331--;IP196361--;IP196391--;IP196421--;IP196451--;IP196481--;IP1205066- Temperatura minima a mediului ambiant -40 °C Fabricant Phoenix Contact Max. cross section, flexible wire with ferrule 35 mm² Simbol CAD X Sectiune 35 mm² HxBxT mm 54x15x62 | Lungime | 62.1 mm | | Latime | 15.2 mm | | Inaltime | 53.5 mm | | Greutate | 0.08 kg |
|
|
|
|
|
