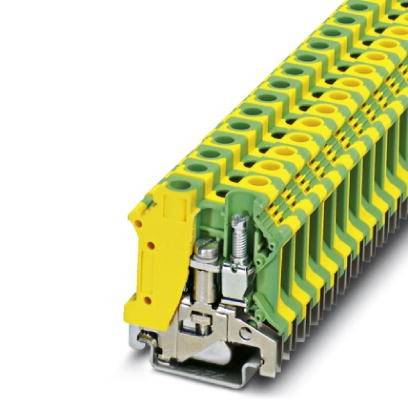

Clema sir PE, 10mmp,TB 10-PE I
Cod produs: IP3059883-
Marca: SCHRACK TECHNIK
Pret cu TVA: 14.45 Lei / buc.
|
|
|
|
Comanda instant - Clema sir PE, 10mmp,TB 10-PE I
|
Clema sir PE, 10mmp,TB 10-PE I
|
|
Specificatii Tehnice PU 50 Sistem cleme cu surub Masa neta 0,03 kg/m Serie TB Accesorii Ground modular terminal PREG 1670 Temperatura maxima a mediului ambiant 120 °C Sectiune maxima, conductor solid 16 mm² Max. cross section, flexible wire with ferrule 10 mm² Sectiune 10 mm² HxBxT mm 43x10x47 Sectiune minima, conductor flexibil 1,5 mm² Min. cross section, flexible wire with ferrule 1,5 mm² Unitate de ambalare 1 m. COD COMANDA IP3059883 Descriere de baza Clema LxIxA mm 10x43x47 Descriere electrica CAD ${querschnitt} Versiune Protective conductor terminal Culoare Verde-galben Sectiune minima, conductor solid 1,5 mm² Temperatura minima a mediului ambiant -40 °C Fabricant Phoenix Contact Accesorii optionale IP3022263-;IP3022276-;IP3022218-;IP1201442-;IP1201413-;IP1401637-;IP1421659-;IP0800886-;IP196001--;IP196031--;IP196061--;IP196091--;IP196121--;IP196151--;IP196181--;IP196211--;IP196241--;IP196271--;IP196301--;IP196331--;IP196361--;IP196391--;IP196421--;IP196451--;IP196481--;IP1053001-;IP10530141;IP10530142;IP10530143;IP10530144;IP10530145;IP10530146;IP10530147;IP10530148;IP10530149;IP1053014H;IP0809997-;IP08100091;IP08100092;IP08100093;IP08100094;IP08100095;IP08100096;IP08100097;IP08100098;IP08100099;IP0810009H;IP3046272-;IP1212602- Simbol CAD X Sectiune maxima, conductor flexibil 10 mm² | Lungime | 47 mm | | Latime | 10.2 mm | | Inaltime | 42.5 mm | | Greutate | 0.03 kg |
|
|
|
|
|
