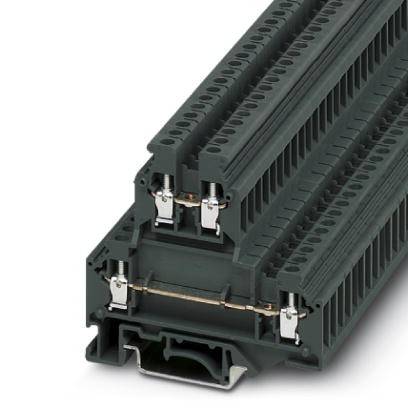

Clema sir doua niveluri TB 4-2L I
Cod produs: IP3246544-
Marca: SCHRACK TECHNIK
Pret cu TVA: 19.87 Lei / buc.
|
|
|
|
Comanda instant - Clema sir doua niveluri TB 4-2L I
|
Clema sir doua niveluri TB 4-2L I
|
|
Specificatii Tehnice PU 50 Sistem cleme cu surub Serie TB PREG 1670 Temperatura maxima a mediului ambiant 120 °C Accesorii optionale IP3022263-;IP3022276-;IP3022218-;IP1201442-;IP1201413-;IP1401637-;IP1421659-;IP0800886-;IP196001--;IP196031--;IP196061--;IP196091--;IP196121--;IP196151--;IP196181--;IP196211--;IP196241--;IP196271--;IP196301--;IP196331--;IP196361--;IP196391--;IP196421--;IP196451--;IP196481--;IP10510161;IP10510162;IP10510163;IP10510164;IP10510165;IP10510166;IP10510167;IP10510168;IP10510169;IP1051016H;IP0808710-;IP08087491;IP08087492;IP08087493;IP08087494;IP08087495;IP08087496;IP08087497;IP08087498;IP08087499;IP0808749H;IP3059964-;IP3059977-;IP3246120-;IP3246188-;IP3062841-;IP3246230-;IP0800886-;IP1201413-;IP1201442-;IP1212602-; Culoare Gri inchis Min. cross section, flexible wire with ferrule 0,5 mm² COD COMANDA IP3246544 Curent nominal 32 A Max. cross section, flexible wire with ferrule 4 mm² Accesorii Double-level terminal Sectiune maxima, conductor flexibil 4 mm² disipare 1,02 W Unitate de ambalare 1 m. Sectiune maxima, conductor solid 6 mm² Descriere de baza Clema HxBxT mm 67x6x62 Masa neta 0,01 kg/m LxIxA mm 6x67x62 Sectiune minima, conductor solid 0,5 mm² Descriere electrica CAD ${querschnitt} Temperatura minima a mediului ambiant -40 °C Fabricant Phoenix Contact Simbol CAD X Sectiune 4 mm² Sectiune minima, conductor flexibil 0,5 mm² Versiune clema dublu etajata | Lungime | 62 mm | | Latime | 6.2 mm | | Inaltime | 67 mm | | Greutate | 0.01 kg |
|
|
|
|
|
