Specificatii Tehnice
PU
50
Sistem
spring-cage-terminal
Unitate de ambalare
50 m.
PREG
1670
Temperatura maxima a mediului ambiant
120 °C
COD COMANDA
IP3036013
Versiune

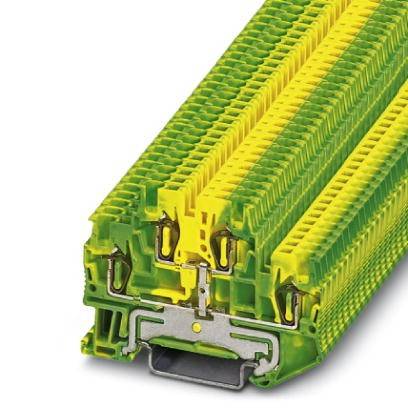

Ground-double-level terminal
LxIxA mm
4x68x48
Sectiune maxima, conductor flexibil
1,50 mm²
Sectiune minima, conductor flexibil
0,08 mm²
HxBxT mm
68x4x48
Serie
ST
Min. cross section, flexible wire with ferrule
0,14 mm²
Descriere de baza
Clema
Masa neta
0,01 kg/m
Sectiune minima, conductor solid
0,08 mm²
Descriere electrica CAD
${querschnitt}
Culoare
Verde-galben
Accesorii
Ground-double-level terminal block
Temperatura minima a mediului ambiant
-40 °C
Fabricant
Phoenix Contact
Simbol CAD
X
Sectiune
1.5 mm²
Max. cross section, flexible wire with ferrule
1,50 mm²
Sectiune maxima, conductor solid
1,50 mm²
Accesorii optionale
IP3022263-;IP3022276-;IP3022218-;IP1201442-;IP1201413-;IP1401637-;IP1421659-;IP0800886-;IP196001--;IP196031--;IP196061--;IP196091--;IP196121--;IP196151--;IP196181--;IP196211--;IP196241--;IP196271--;IP196301--;IP196331--;IP196361--;IP196391--;IP196421--;IP196451--;IP196481--;IP0805001-;IP08057391;IP08057392;IP08057393;IP08057394;IP08057395;IP08057396;IP08057397;IP08057398;IP08057399;IP0805739H;IP0808587-;IP08086261;IP08086262;IP08086263;IP08086264;IP08086265;IP08086266;IP08086267;IP08086268;IP08086269;IP0808626H;IP3030459-;IP1204504-
| Lungime | 47.5 mm |
| Latime | 4.2 mm |
| Inaltime | 67.5 mm |
| Greutate | 0.01 kg |
