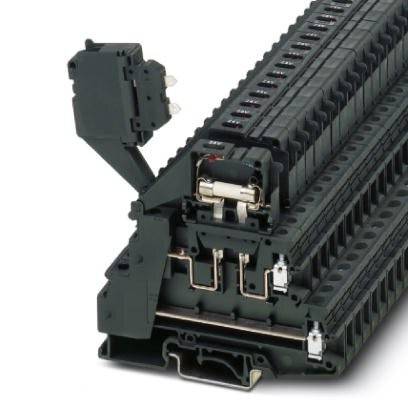

Clema sir cu fuzibil TB 4-2L-HESILED 24 (5X20) I
Cod produs: IP3246854-
Marca: SCHRACK TECHNIK
Pret cu TVA: 108.95 Lei / buc.
|
|
|
|
Comanda instant - Clema sir cu fuzibil TB 4-2L-HESILED 24 (5X20) I
|
Clema sir cu fuzibil TB 4-2L-HESILED 24 (5X20) I
|
|
Specificatii Tehnice Accesorii Fuse terminal PU 50 Sistem cleme cu surub Masa neta 0,03 kg/m Unitate de ambalare 50 m. Serie TB PREG 1670 Temperatura maxima a mediului ambiant 120 °C Culoare Gri inchis Versiune cleme cu fuzibil Min. cross section, flexible wire with ferrule 0,5 mm² Curent nominal 30 A LxIxA mm 8x87x79 Max. cross section, flexible wire with ferrule 4 mm² Sectiune maxima, conductor flexibil 4 mm² disipare 1,02 W Sectiune maxima, conductor solid 6 mm² Descriere de baza Clema COD COMANDA IP3246854 HxBxT mm 87x8x79 Sectiune minima, conductor solid 0,5 mm² Accesorii optionale IP3022263-;IP3022276-;IP3022218-;IP1201442-;IP1201413-;IP1401637-;IP1421659-;IP0800886-;IP196001--;IP196031--;IP196061--;IP196091--;IP196121--;IP196151--;IP196181--;IP196211--;IP196241--;IP196271--;IP196301--;IP196331--;IP196361--;IP196391--;IP196421--;IP196451--;IP196481--;IP1052002-;IP10520151;IP10520152;IP10520153;IP10520154;IP10520155;IP10520156;IP10520157;IP10520158;IP10520159;IP1052015H;IP0808781-;IP08088041;IP08088042;IP08088043;IP08088044;IP08088045;IP08088046;IP08088047;IP08088048;IP08088049;IP0808804H;IP3246133-;IP3247159-;IP3001262-;IP0800886-;IP1201413-;IP1201442-;IP1212602- Descriere electrica CAD ${querschnitt} Temperatura minima a mediului ambiant -40 °C Fabricant Phoenix Contact Simbol CAD X Sectiune 4 mm² Sectiune minima, conductor flexibil 0,5 mm² | Lungime | 79 mm | | Latime | 8.2 mm | | Inaltime | 86.5 mm | | Greutate | 0.03 kg |
|
|
|
|
|
