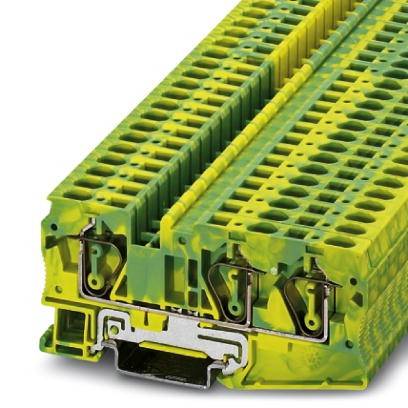

Clema impamantare ST 6-TWIN-PE
Cod produs: IP3036482-
Marca: SCHRACK TECHNIK
Pret cu TVA: 67.00 Lei / buc.
|
|
|
|
Comanda instant - Clema impamantare ST 6-TWIN-PE
|
Clema impamantare ST 6-TWIN-PE
|
|
Specificatii Tehnice PU 50 Sistem spring-cage-terminal Sectiune maxima, conductor flexibil 6 mm² Masa neta 0,03 kg/m HxBxT mm 91x8x44 Unitate de ambalare 50 m. PREG 1670 Sectiune minima, conductor solid 0,20 mm² Temperatura maxima a mediului ambiant 120 °C Versiune Ground terminal Sectiune minima, conductor flexibil 0,20 mm² Sectiune maxima, conductor solid 10 mm² LxIxA mm 8x91x44 Accesorii optionale IP3022263-;IP3022276-;IP3022218-;IP1201442-;IP1201413-;IP1401637-;IP1421659-;IP0800886-;IP196001--;IP196031--;IP196061--;IP196091--;IP196121--;IP196151--;IP196181--;IP196211--;IP196241--;IP196271--;IP196301--;IP196331--;IP196361--;IP196391--;IP196421--;IP196451--;IP196481--;IP1052002-;IP10520151;IP10520152;IP10520153;IP10520154;IP10520155;IP10520156;IP10520157;IP10520158;IP10520159;IP1052015H;IP0808781-;IP08088041;IP08088042;IP08088043;IP08088044;IP08088045;IP08088046;IP08088047;IP08088048;IP08088049;IP0808804H;IP3036767-;IP1204517- Serie ST Descriere de baza Clema Descriere electrica CAD ${querschnitt} COD COMANDA IP3036482 Sectiune 6 mm² Max. cross section, flexible wire with ferrule 6 mm² Culoare Verde-galben Temperatura minima a mediului ambiant -40 °C Fabricant Phoenix Contact Min. cross section, flexible wire with ferrule 0,25 mm² Simbol CAD X | Lungime | 43.5 mm | | Latime | 8.2 mm | | Inaltime | 90.5 mm | | Greutate | 0.03 kg |
|
|
|
|
|
