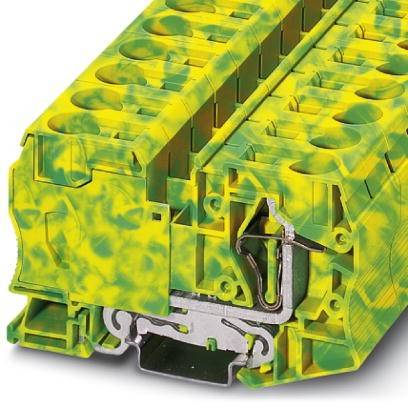

Clema impamantare ST 35-PE
Cod produs: IP3036194-
Marca: SCHRACK TECHNIK
Pret cu TVA: 304.94 Lei / buc.
|
|
|
|
Comanda instant - Clema impamantare ST 35-PE
|
Clema impamantare ST 35-PE
|
|
Specificatii Tehnice Sistem spring-cage-terminal Sectiune maxima, conductor solid 35 mm² PREG 1670 Temperatura maxima a mediului ambiant 120 °C Sectiune minima, conductor flexibil 2,50 mm² Versiune Ground terminal HxBxT mm 100x16x59 Masa neta 0,11 kg/m Sectiune maxima, conductor flexibil 35 mm² Serie ST PU 10 Descriere de baza Clema Accesorii optionale IP3022263-;IP3022276-;IP3022218-;IP1201442-;IP1201413-;IP1401637-;IP1421659-;IP0800886-;IP196001--;IP196031--;IP196061--;IP196091--;IP196121--;IP196151--;IP196181--;IP196211--;IP196241--;IP196271--;IP196301--;IP196331--;IP196361--;IP196391--;IP196421--;IP196451--;IP196481--;IP0827461-;IP0827464-;IP1206612-;IP1206612- Descriere electrica CAD ${querschnitt} Culoare Verde-galben Sectiune minima, conductor solid 2,50 mm² COD COMANDA IP3036194 LxIxA mm 16x100x59 Temperatura minima a mediului ambiant -40 °C Fabricant Phoenix Contact Max. cross section, flexible wire with ferrule 35 mm² Simbol CAD X Sectiune 35 mm² Unitate de ambalare 10 m. Min. cross section, flexible wire with ferrule 2,50 mm² | Lungime | 59 mm | | Latime | 16 mm | | Inaltime | 100 mm | | Greutate | 0.11 kg |
|
|
|
|
|
