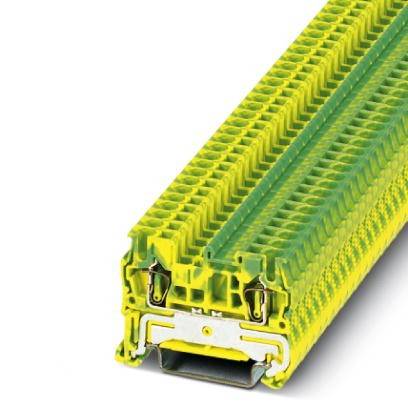

Clema impamantare ST 2,5-PE
Cod produs: IP3031238-
Marca: SCHRACK TECHNIK
Pret cu TVA: 8.91 Lei / buc.
|
|
|
|
Comanda instant - Clema impamantare ST 2,5-PE
|
Clema impamantare ST 2,5-PE
|
|
Specificatii Tehnice COD COMANDA IP3031238 PU 50 Sectiune maxima, conductor solid 4 mm² Sistem spring-cage-terminal Accesorii optionale IP3022263-;IP3022276-;IP3022218-;IP1201442-;IP1201413-;IP1401637-;IP1421659-;IP0800886-;IP196001--;IP196031--;IP196061--;IP196091--;IP196121--;IP196151--;IP196181--;IP196211--;IP196241--;IP196271--;IP196301--;IP196331--;IP196361--;IP196391--;IP196421--;IP196451--;IP196481--;IP10500171;IP10500172;IP10500173;IP10500174;IP10500175;IP10500176;IP10500177;IP10500178;IP10500179;IP1050017H;IP08086711;IP08086712;IP08086713;IP08086714;IP08086715;IP08086716;IP08086717;IP08086718;IP08086719;IP0808671H;IP3030417-;IP1204517- PREG 1670 Temperatura maxima a mediului ambiant 120 °C Accesorii Spring-cage ground terminal Versiune Ground terminal HxBxT mm 49x5x37 Sectiune minima, conductor flexibil 0,08 mm² Unitate de ambalare 1 m. Sectiune maxima, conductor flexibil 2,50 mm² Serie ST Min. cross section, flexible wire with ferrule 0,14 mm² Descriere de baza Clema Masa neta 0,01 kg/m Sectiune minima, conductor solid 0,08 mm² Descriere electrica CAD ${querschnitt} Sectiune 2.5 mm² LxIxA mm 5x49x37 Culoare Verde-galben Max. cross section, flexible wire with ferrule 2,50 mm² Temperatura minima a mediului ambiant -40 °C Fabricant Phoenix Contact Simbol CAD X | Lungime | 36.5 mm | | Latime | 5.2 mm | | Inaltime | 48.5 mm | | Greutate | 0.01 kg |
|
|
|
|
|
