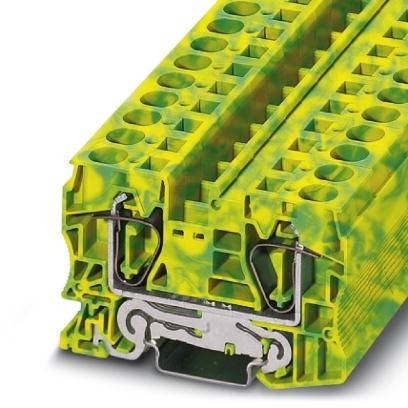

Clema impamantare ST 16-PE
Cod produs: IP3036165-
Marca: SCHRACK TECHNIK
Pret cu TVA: 21.11 Lei / buc.
|
|
|
|
Comanda instant - Clema impamantare ST 16-PE
|
Clema impamantare ST 16-PE
|
|
Specificatii Tehnice Max. cross section, flexible wire with ferrule 16 mm² LxIxA mm 12x80x52 HxBxT mm 80x12x52 Sistem spring-cage-terminal Sectiune maxima, conductor flexibil 16 mm² PREG 1670 Sectiune minima, conductor solid 0,20 mm² Temperatura maxima a mediului ambiant 120 °C Unitate de ambalare 25 m. Versiune Ground terminal Sectiune minima, conductor flexibil 0,20 mm² Serie ST Descriere de baza Clema Accesorii optionale IP3022263-;IP3022276-;IP3022218-;IP1201442-;IP1201413-;IP1401637-;IP1421659-;IP0800886-;IP196001--;IP196031--;IP196061--;IP196091--;IP196121--;IP196151--;IP196181--;IP196211--;IP196241--;IP196271--;IP196301--;IP196331--;IP196361--;IP196391--;IP196421--;IP196451--;IP196481--;IP0812120-;IP0809735-;IP3036657-;IP1206612- Descriere electrica CAD ${querschnitt} Sectiune maxima, conductor solid 25 mm² COD COMANDA IP3036165 Culoare Verde-galben PU 25 Masa neta 0,05 kg/m Temperatura minima a mediului ambiant -40 °C Fabricant Phoenix Contact Min. cross section, flexible wire with ferrule 0,25 mm² Sectiune 16 mm² Simbol CAD X | Lungime | 51.5 mm | | Latime | 12.2 mm | | Inaltime | 80 mm | | Greutate | 0.05 kg |
|
|
|
|
|
