Specificatii Tehnice
EB-ZB

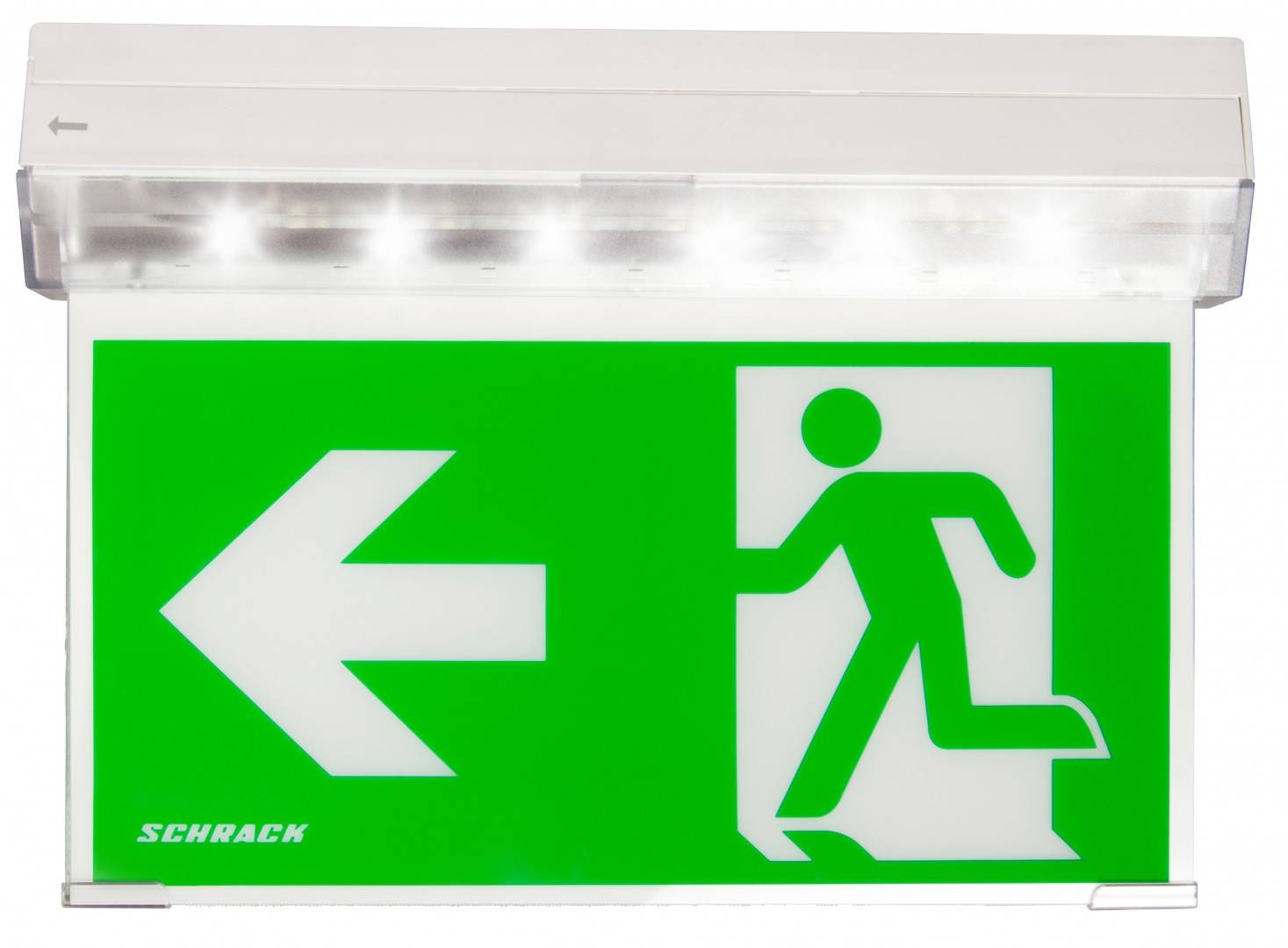

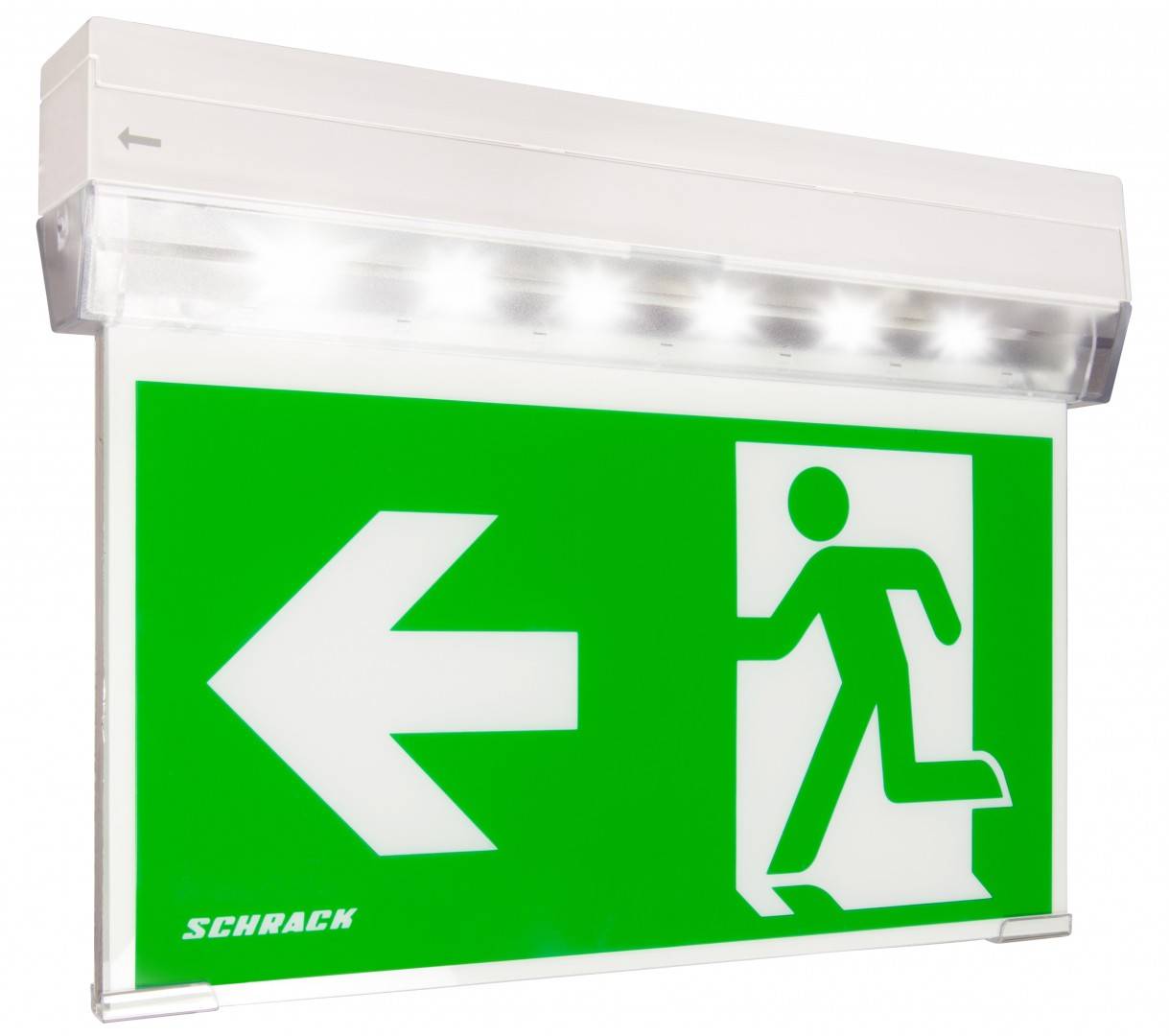

Central power supply luminaire
Functie
Cu monitorizare - comutatie centralizata
Power max.
5,20 W
Rezistenta la impact
≥ IK03
Clasa de protectie
II
COD COMANDA
NLKXU009EL
Tip
KX
PREG
4000
Domeniu recunoastere
30 m.
Pictogram
Slide-in pictogram set (arrow left, right, bottom, top and white foil for single side use) included in accordance with ISO 7010
Power maintained mode
5,20 W
grad de protectie
IP40
Masa neta
0,80 kg/m
Accesorii optionale
NLKXBE----;NLKXE-----;NLKEE-----;NL2DW-----;NL2PW-----;NLAWX001--;NLBALL2---;NLDSA000--;NLCORD2---;NLCORD4---
Temperatura maxima a mediului ambiant
40 °C
Unitate de ambalare
1 m.
Fara halogen
Housing made of halogen-free plastic
Sursa iluminare
LED
Temperatura minima a mediului ambiant
-20 °C
Fabricant
Schrack
disipare
1,00 W
AA Clasa E 8101
AA4
Tensiunea de alimentare
230V AC 50Hz ±20%; 230V DC ±20% V
Montaj
Montaj de perete;Montaj incastrat in plafon;recessed mounting ceiling optional;universal
Power non-maintained mode
1,10 W
Culoare
RAL 9003 (alb)
Tip iluminare
semn (corp) iluminat siguranta;lampa de siguranta;Combined rescue path and rescue sign luminaire
Versiune
lampa iluminat marginala;corp iluminat din plastic
Sursa de lumina
LED (3W)
Lumen
300
LxBxH mm
332x48x242
| Lungime | 332 mm |
| Latime | 48 mm |
| Inaltime | 242 mm |
| Greutate | 0.8 kg |
