Specificatii Tehnice
EB-ZB

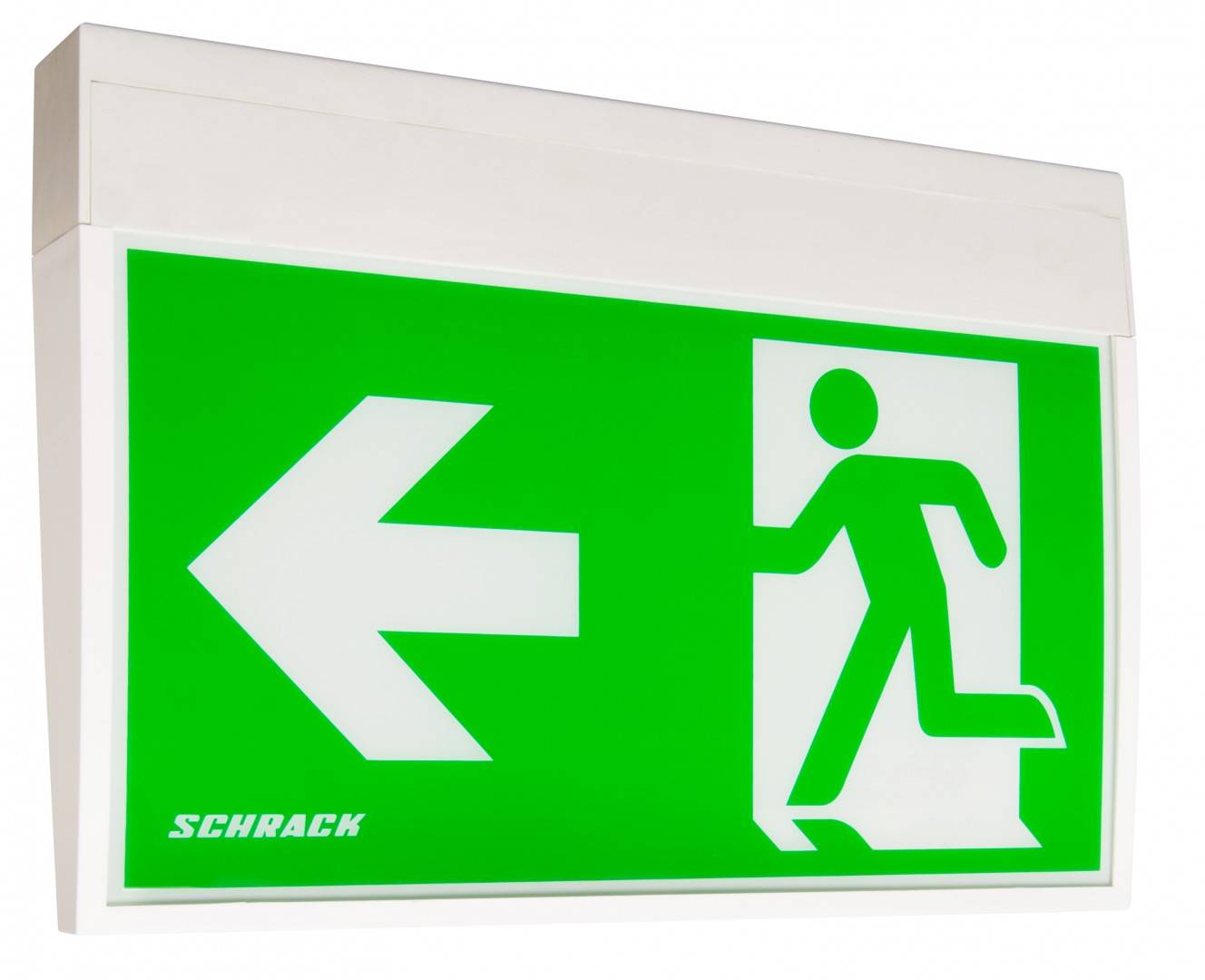

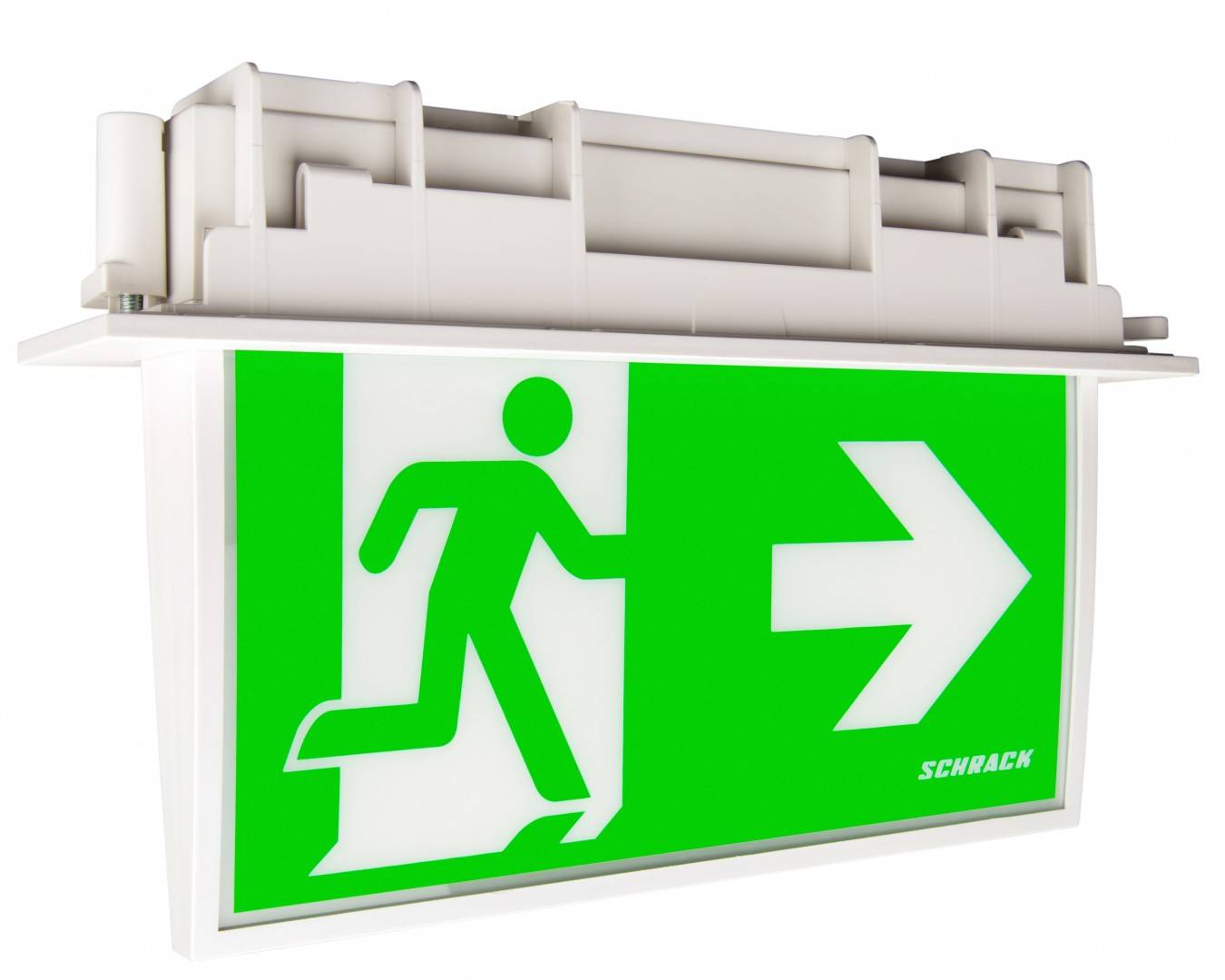

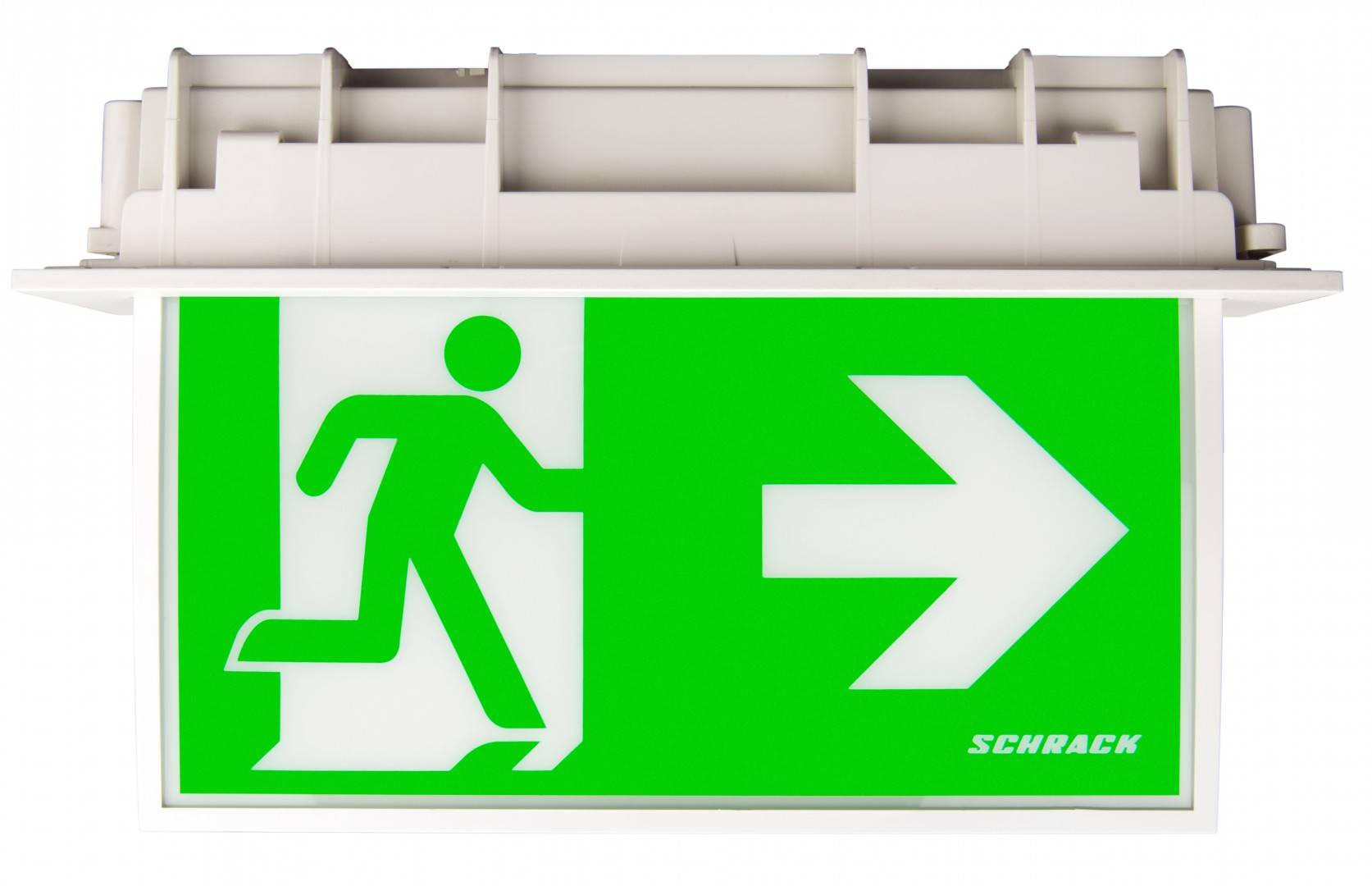

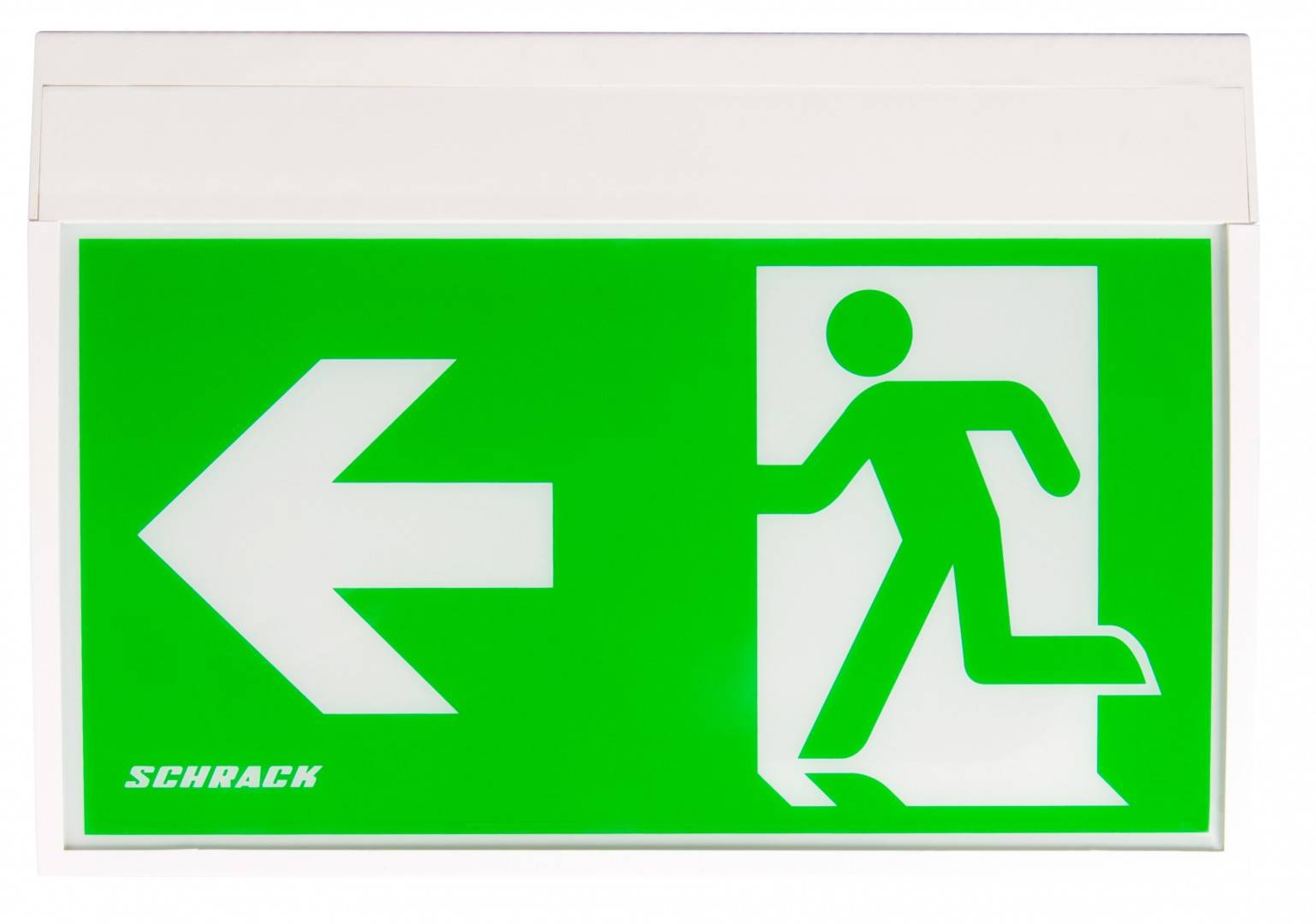

Central power supply luminaire
AA Clasa E 8101
AA3;AA4;AA5
Functie
Cu monitorizare - comutatie centralizata
Rezistenta la impact
IK03
Clasa de protectie
II
LxBxH mm
250x34x174
PREG
4000
Tip
KM
Pictogram
Slide-in pictogram set (arrow left, right, bottom, top and white foil for single side use) included in accordance with ISO 7010
Versiune
corp iluminat din plastic
Culoare
Alb
Tip iluminare
semn (corp) iluminat siguranta
Accesorii optionale
NLKME-----;NLKMBE----;NLAWKSU---;NL2DWKMKS-;NLDSA000--;NLCORD2---;NLCORD4---
grad de protectie
IP54
Temperatura minima a mediului ambiant
-30 °C
COD COMANDA
NLKMU009EL
Temperatura maxima a mediului ambiant
40 °C
Unitate de ambalare
1 m.
Power maintained mode
3,20 W
Fara halogen
Housing made of halogen-free plastic
Sursa iluminare
LED
Power max.
3,20 W
Fabricant
Schrack
disipare
1,00 W
Tensiunea de alimentare
230V AC 50Hz ±20%; 230V DC ±20% V
Sursa de lumina
LED (2W)
Montaj
Montaj de perete;Montaj incastrat in plafon;recessed mounting ceiling optional;universal
Lumen
200
Domeniu recunoastere
24 m.
Masa neta
0,25 kg/m
Power non-maintained mode
1 W
| Lungime | 250 mm |
| Latime | 34 mm |
| Inaltime | 174 mm |
| Greutate | 0.25 kg |
