Specificatii Tehnice
EB-ZB

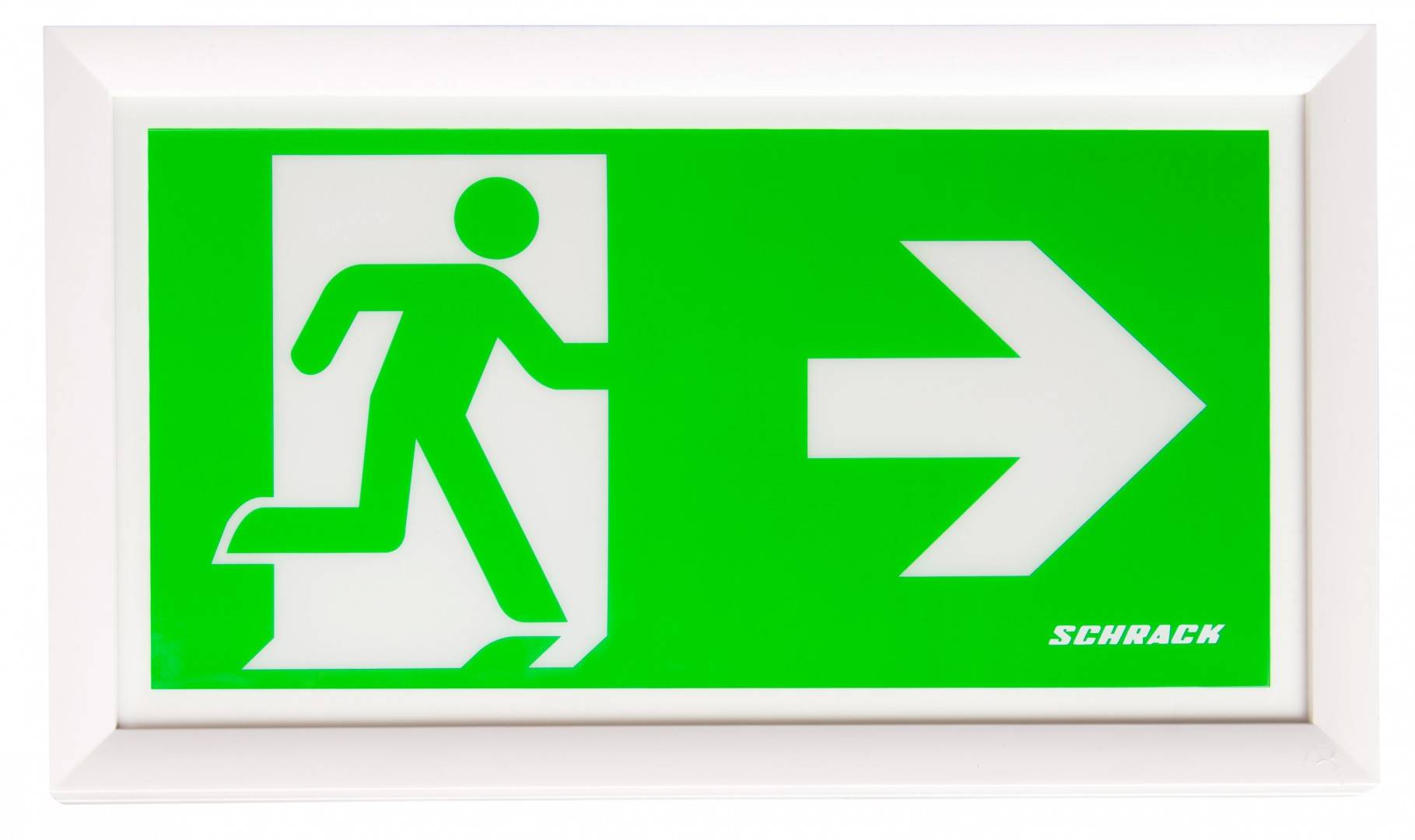

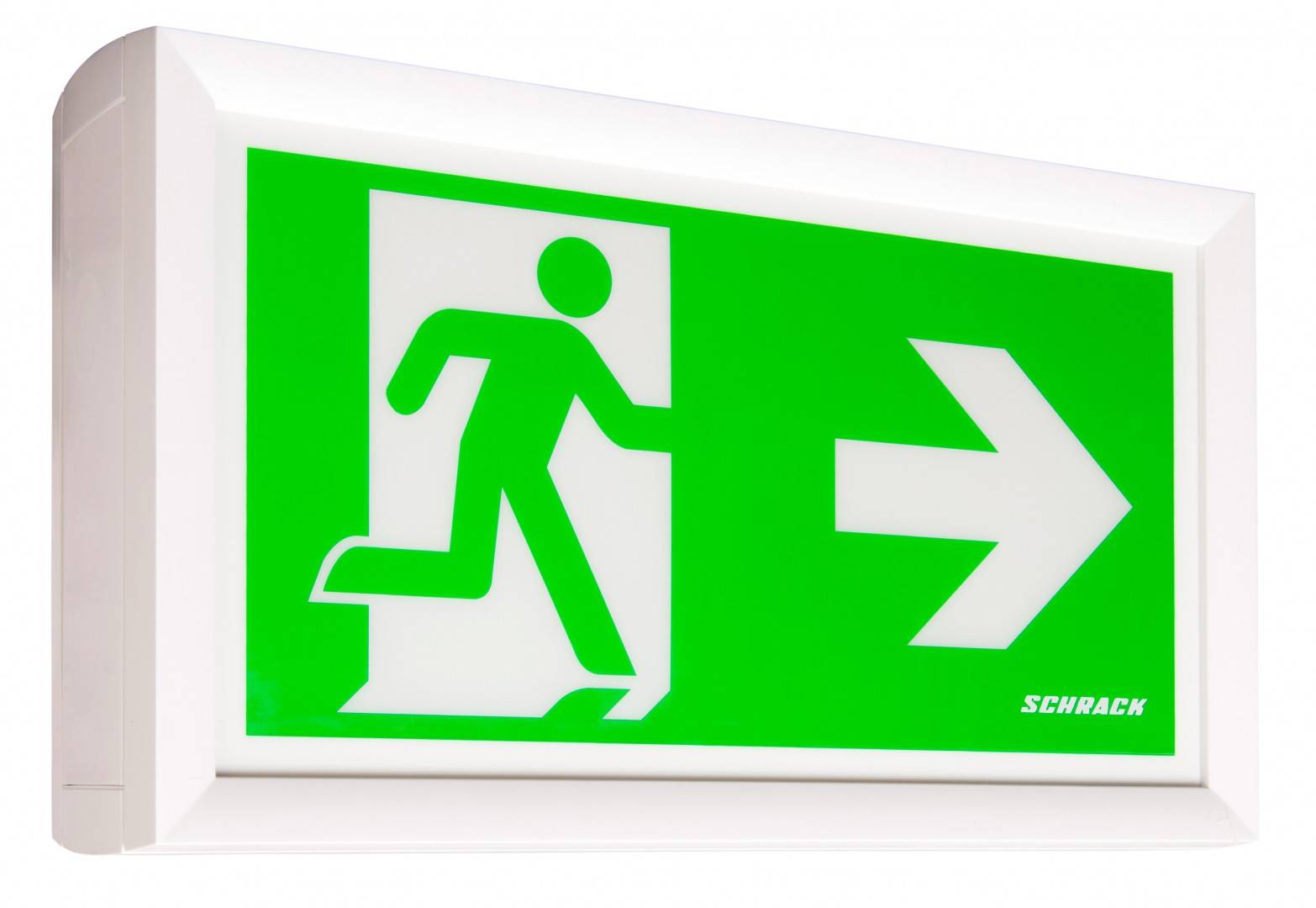

Central power supply luminaire
Functie
Cu monitorizare - comutatie centralizata
Rezistenta la impact
IK03
Domeniu recunoastere
22 m.
LxBxH mm
260x70x155
Clasa de protectie
II
Power maintained mode
3,10 W
COD COMANDA
NLKDU009EL
Pictogram
Slide-in pictogram set (arrow left, right, bottom, top) included in accordance with ISO 7010
PREG
4000
Versiune
corp iluminat din plastic
Tip iluminare
semn (corp) iluminat siguranta
Tip
KD
grad de protectie
IP54
Accesorii optionale
NL2DS-----;NL2DW-----;NL2PW-----;NLBALL1---;NLDSA000--;NLCORD2---;NLCORD4---
Temperatura maxima a mediului ambiant
40 °C
Montaj
Montaj de perete;Montaj incastrat in plafon;universal
Unitate de ambalare
1 m.
Fara halogen
Housing made of halogen-free plastic
Sursa iluminare
LED
Temperatura minima a mediului ambiant
-20 °C
Power max.
4,20 W
Fabricant
Schrack
disipare
1,00 W
AA Clasa E 8101
AA4
Tensiunea de alimentare
230V AC 50Hz ±20%; 230V DC ±20% V
Culoare
RAL 9003 (alb)
Power non-maintained mode
1,10 W
Masa neta
0,50 kg/m
Sursa de lumina
LED (3W)
Lumen
300
| Lungime | 260 mm |
| Latime | 70 mm |
| Inaltime | 155 mm |
| Greutate | 0.5 kg |
