Specificatii Tehnice
EB-ZB
Central power supply luminaire
AA Clasa E 8101
AA3;AA4;AA5
Functie
Cu monitorizare - comutatie centralizata
Accesorii optionale
NLKCRD----;NLKCBERO--;NLKCER00--;NLKCIP65--;NLKCH-----;NLBALL2---;NLKCPIKTLO;NLKCPIKTLU;NLKCPIKTRO;NLKCPIKTRU
Power max.
5,20 W
Rezistenta la impact
≥ IK03
Clasa de protectie
II
Lumen
520
Pictogram

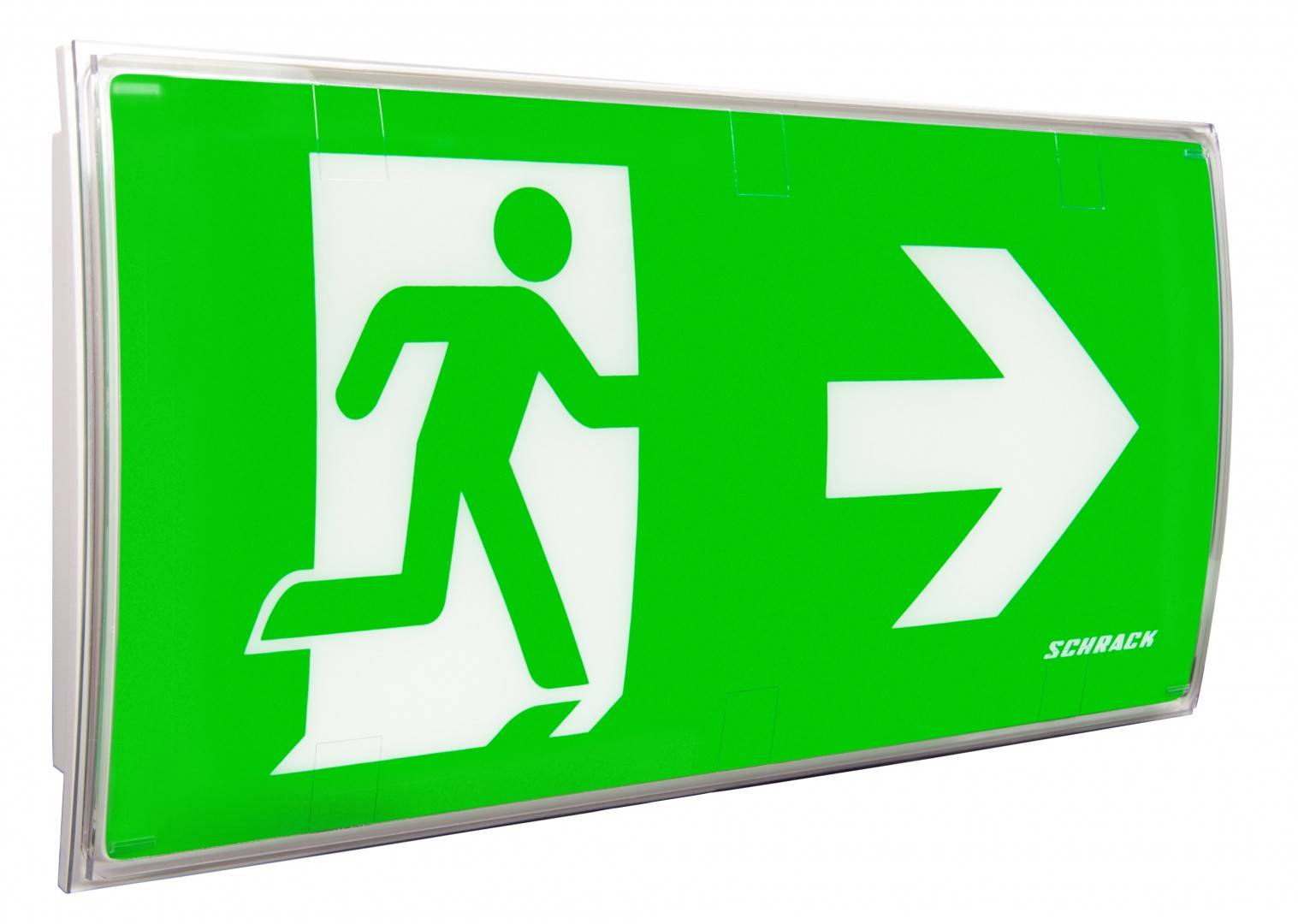

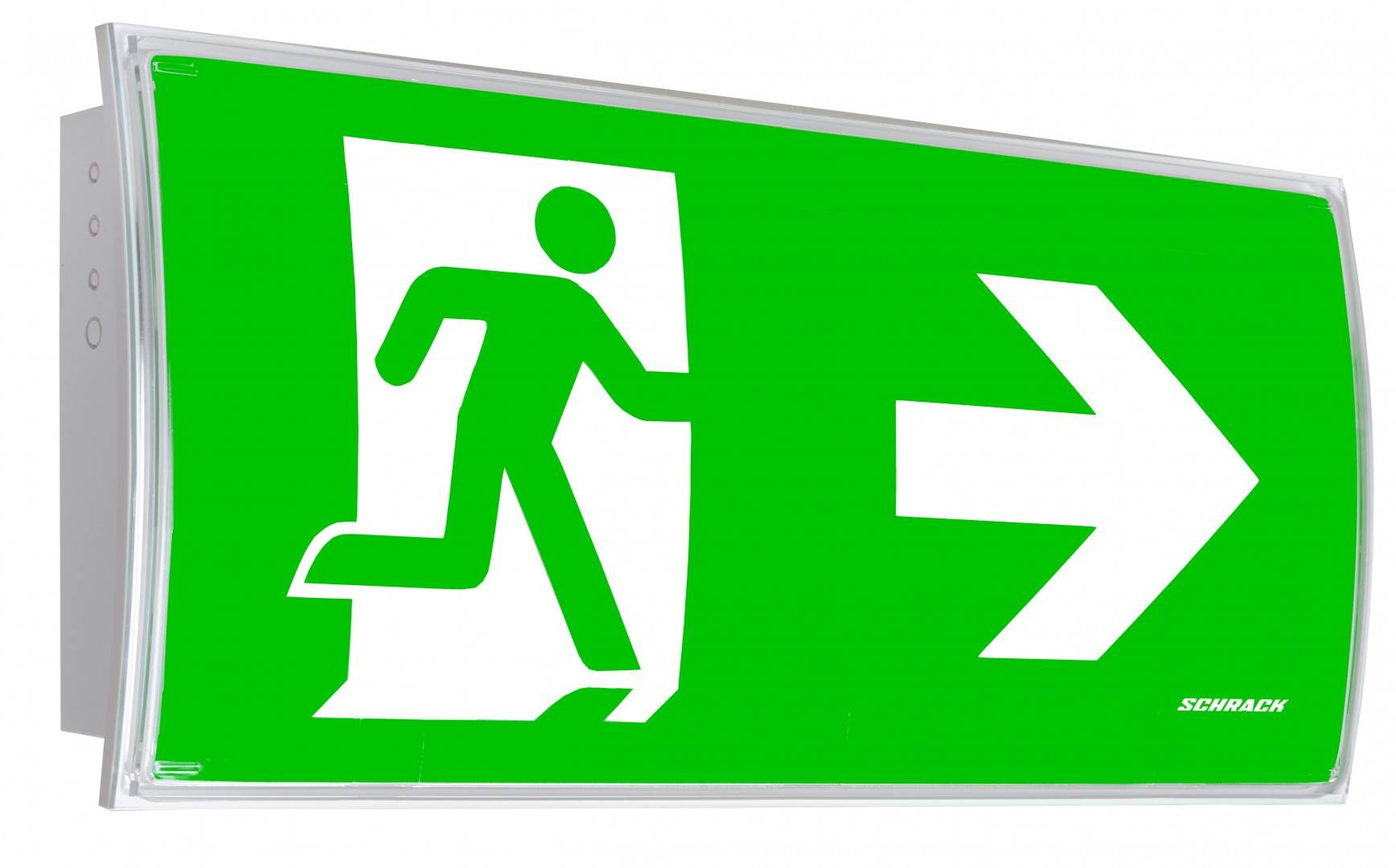

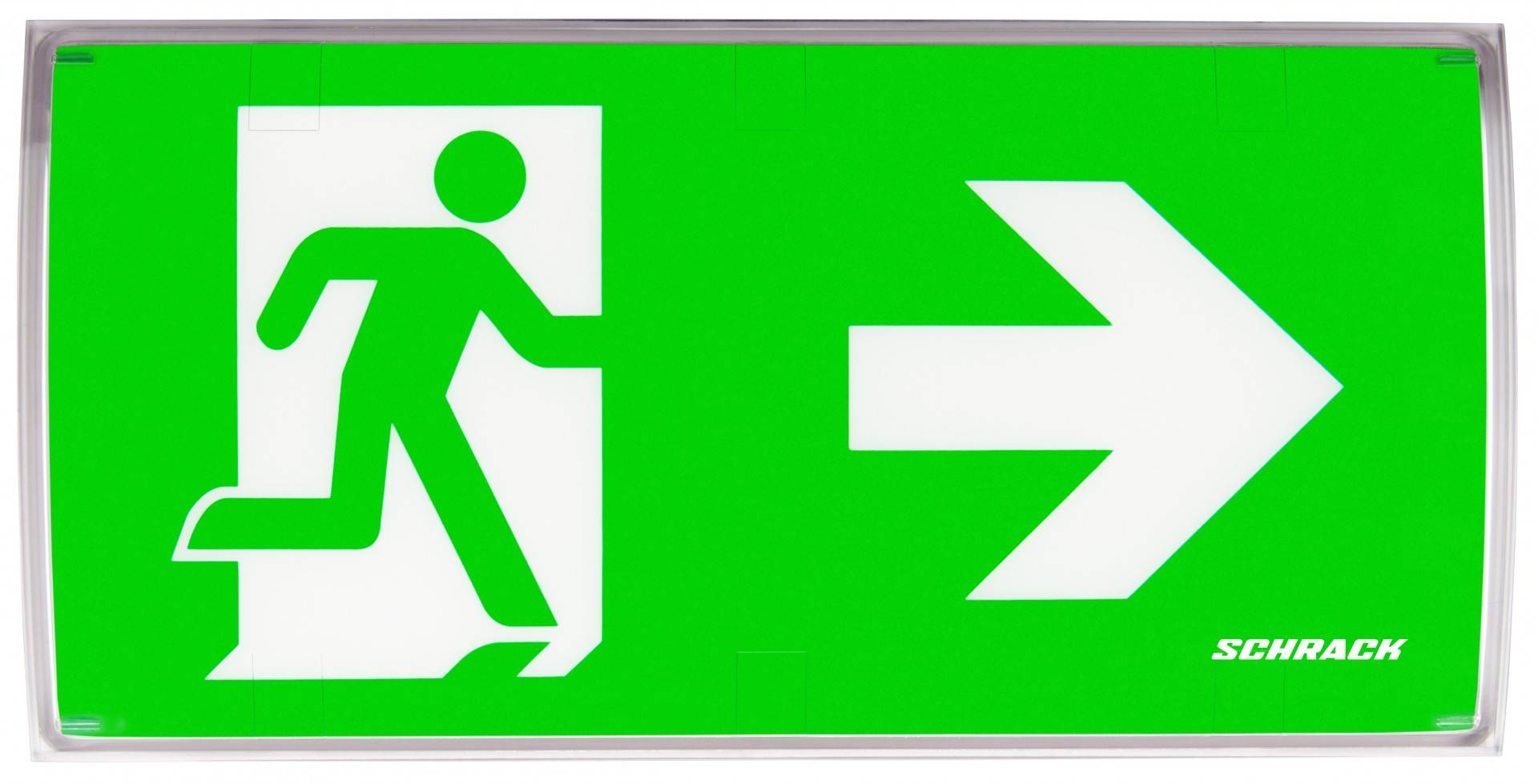

Slide-in pictogram set (arrow left, right, bottom, top) included in accordance with ISO 7010
PREG
4000
Domeniu recunoastere
30 m.
Versiune
corp iluminat din plastic
Power maintained mode
5,20 W
Masa neta
0,80 kg/m
grad de protectie
IP54
Sursa de lumina
ERT-LED (4W)
Temperatura minima a mediului ambiant
-30 °C
Temperatura maxima a mediului ambiant
55 °C
Unitate de ambalare
1 m.
Fara halogen
Housing made of halogen-free plastic
Sursa iluminare
ERT-LED
LxBxH mm
340x60x170
Tip
KC
Fabricant
Schrack
disipare
1,00 W
Tensiunea de alimentare
230V AC 50Hz ±20%; 230V DC ±20% V
PU
180
Montaj

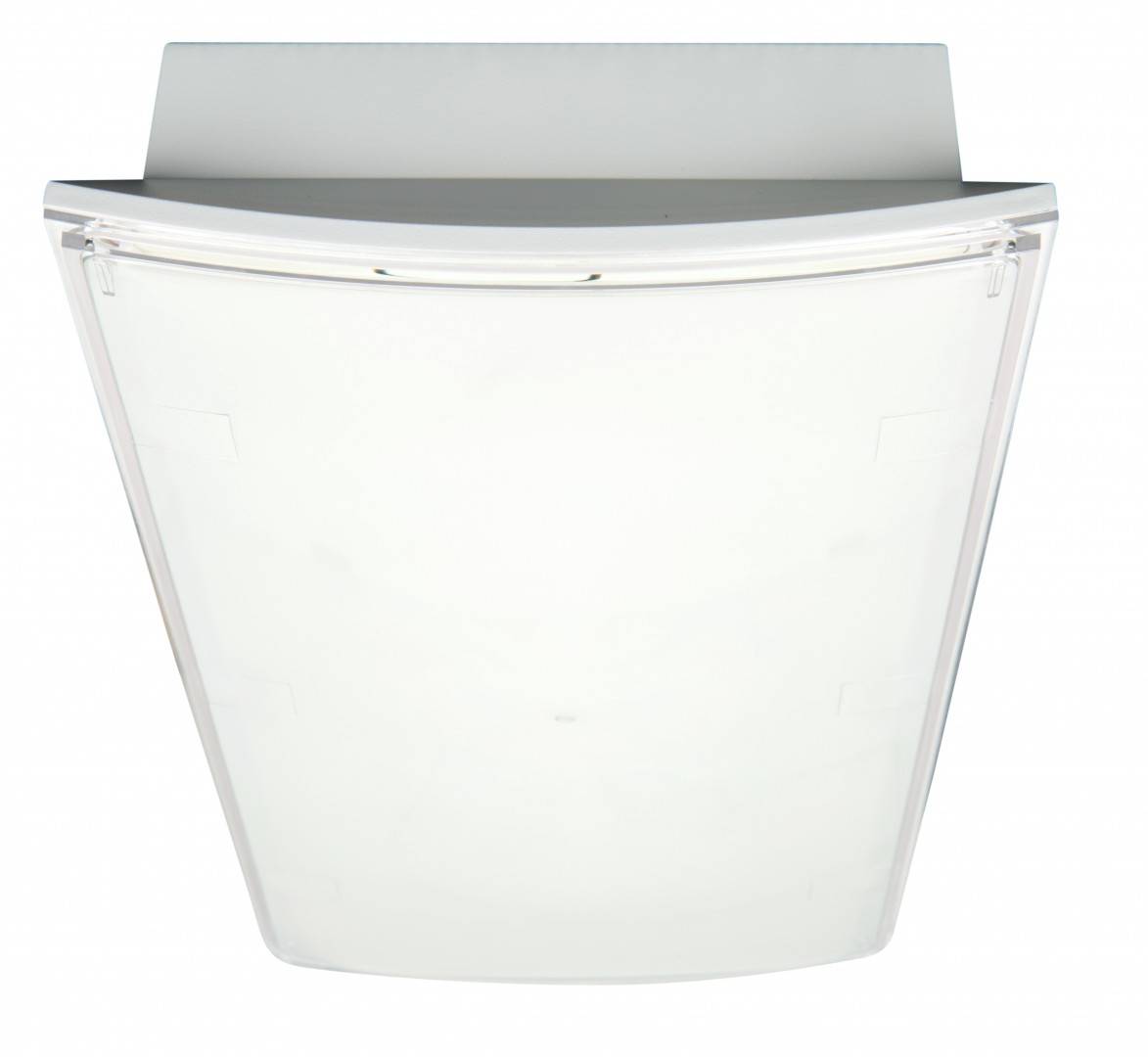

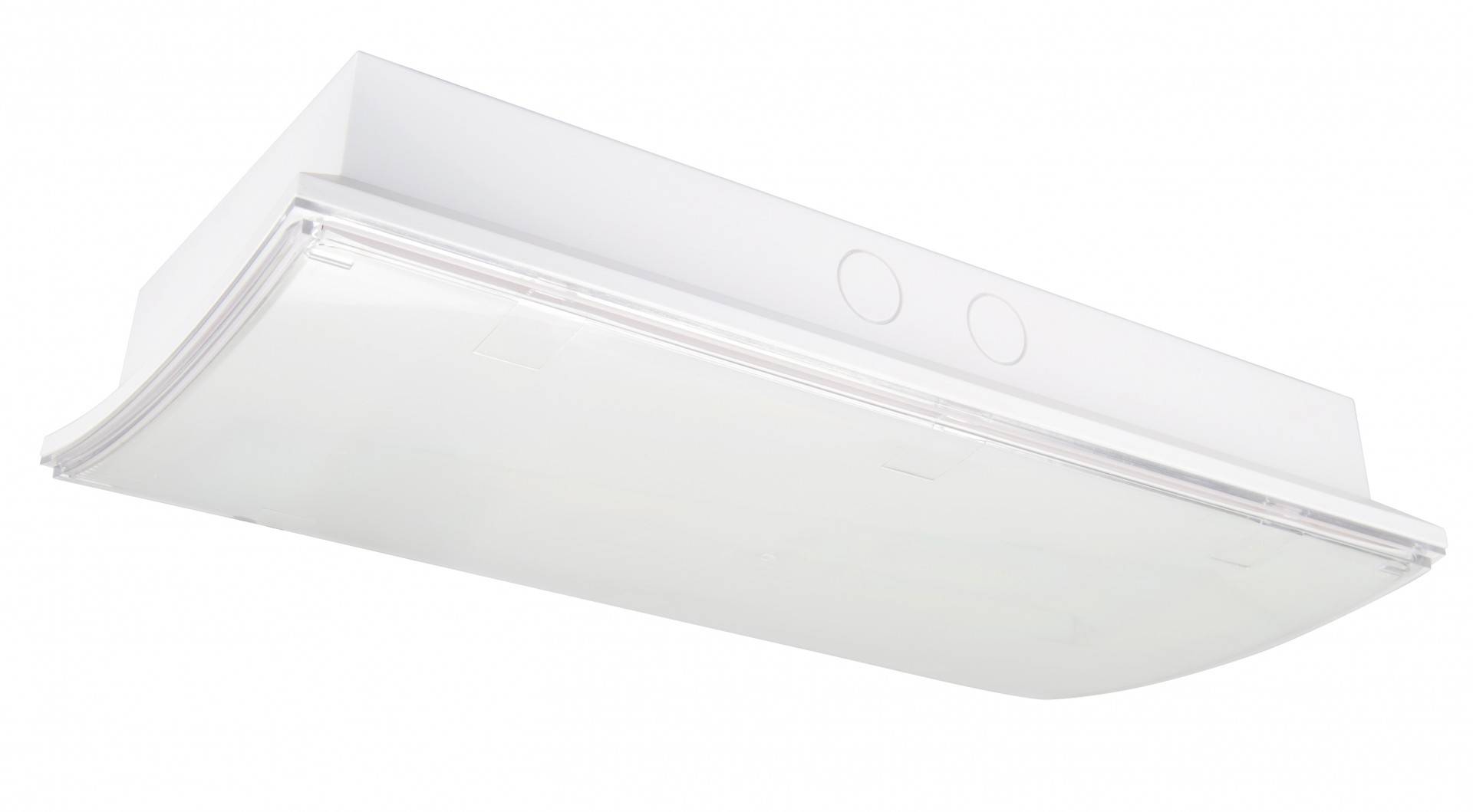

Montaj de perete;Montaj incastrat in plafon;recessed mounting ceiling optional;universal
Culoare
RAL 9003 (alb)
Power non-maintained mode
1,10 W
COD COMANDA
NLKCWP039E
Tip iluminare
semn (corp) iluminat siguranta;lampa de siguranta;Combined rescue path and rescue sign luminaire
| Lungime | 340 mm |
| Latime | 60 mm |
| Inaltime | 170 mm |
| Greutate | 0.8 kg |
