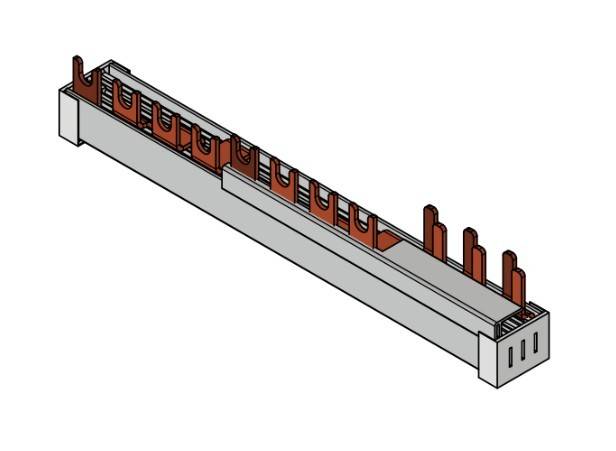

Busbar B-RCCB N+3, 1xMCB N+3, 3xMCB N+1/1MW, for Amparo 11MW
Cod produs: BSA90159--
Marca: SCHRACK TECHNIK
Pret cu TVA: 87.70 Lei / buc.
|
|
|
|
Comanda instant - Busbar B-RCCB N+3, 1xMCB N+3, 3xMCB N+1/1MW, for Amparo 11MW
|
Busbar B-RCCB N+3, 1xMCB N+3, 3xMCB N+1/1MW, for Amparo 11MW
|
|
Specificatii Tehnice Min. air disdance ≥3,0mm Max. current middle 130A PREG 1300 Aplicatie siguranta automata, siguranta diferentiala, siguranta protecte linii (pas polar 17.8mm) Masa cupru 216,0000 gr. COD COMANDA BSA90159 Masa neta 0,12 kg/m Fara halogen no Poli 4 disipare 4,50 W Temperatura maxima a mediului ambiant 70 °C Tensiune nominala 240/415VAC/DC Tracking resistance CTI 600 Material izolatie Policlorura de vinil (PVC) Grad de poluare 2 Max. permissible back-up fuse against short circuit 100A gL A gG Tinere la impuls de tensiune [Uimp] 4kV V Material E-Cu-ETP Unitate de ambalare 1 m. Serie AMPARO Standard produs EN 61439-1 PU 10 Max. current beginning 80A Fabricant Schrack Temperature resistance PVC up to 80°C; PC/ABS up to 90°C °C Temperatura minima a mediului ambiant -35 °C Categoria de supratensiune 3 Accesorii bare Min. creepage distance ≥5,0mm LxTxH mm 214x23x29 Versiune cu furca Accesorii optionale BSB00303-- Sectiune 16 mm² grad de protectie IP20 with terminal cover;IP00 terminals Curent nominal de scurtcircuit conditionat ≤50kA | Lungime | 23 mm | | Inaltime | 29 mm | | Greutate | 0.12 kg |
|
|
|
|
|
