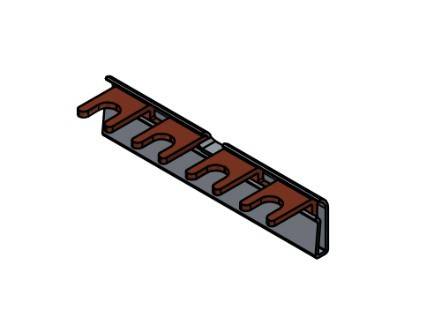

Bus bar 4-pole with insulation
Cod produs: IS010007-B
Marca: SCHRACK TECHNIK
Pret cu TVA: 8.00 Lei / buc.
|
|
|
|
Comanda instant - Bus bar 4-pole with insulation
|
Bus bar 4-pole with insulation
|
|
Specificatii Tehnice Min. air disdance ≥3,0mm Reactia la foc PV/ABS V-0 at 1,5mm according to UL94 Aplicatie siguranta automata, siguranta diferentiala, siguranta protecte linii (pas polar 17.8mm) PREG 1400 Versiune versiune cu pin Fara halogen Yes Tensiune nominala 240/415VAC/DC Material izolatie PC/ABS(halogen-free) grad de protectie IP20 Grad de poluare 2 Max. permissible back-up fuse against short circuit 100A gL A gG Sectiune 10 mm² disipare 0,90 W Tinere la impuls de tensiune [Uimp] 4kV V Temperatura minima a mediului ambiant 0 °C Masa cupru 23,0000 gr. Poli 1 Material E-Cu-ETP Temperatura maxima a mediului ambiant 40 °C Unitate de ambalare 1 m. Max. current beginning 65A Serie AMPARO Standard produs EN 61439-1 PU 10 Fabricant Schrack Temperature resistance PVC up to 80°C; PC/ABS up to 90°C °C LxBxH mm 2x67x17 Categoria de supratensiune 3 Min. creepage distance ≥5,0mm Curent nominal de scurtcircuit conditionat ≤50kA COD COMANDA IS010007-B Max. current middle 100A Accesorii bara furca pt.sigurante automate | Lungime | 1.5 mm | | Latime | 67 mm | | Inaltime | 17 mm |
|
|
|
|
|
