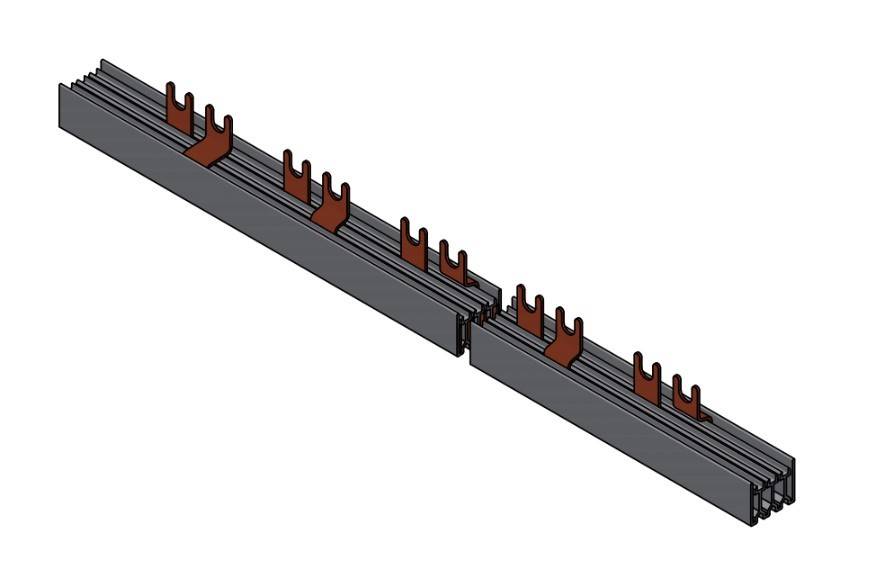

Bareta contacte furca, 4P, L1-N/L2-N/L3-N 10mmp pt.AFDD, 1m
Cod produs: BSB90123--
Marca: SCHRACK TECHNIK
Pret cu TVA: 242.86 Lei / buc.
|
|
|
|
Comanda instant - Bareta contacte furca, 4P, L1-N/L2-N/L3-N 10mmp pt.AFDD, 1m
|
Bareta contacte furca, 4P, L1-N/L2-N/L3-N 10mmp pt.AFDD, 1m
|
|
Specificatii Tehnice PREG 1300 Reactia la foc PV/ABS V-0 at 1,5mm according to UL94 Aplicatie AFDD Descriere electrica CAD 4/10mm² Accesorii optionale BSB00303--;BSA90118-- Serie BC,BM,BO Tensiune nominala de izolatie (Ui) ≤415V V Poli 4 Fara halogen Yes Temperatura maxima a mediului ambiant 70 °C Tensiune nominala 240/415VAC/DC Material izolatie PC/ABS(halogen-free) Tracking resistance CTI 600 Descriere de baza Bare grad de protectie IP20 Grad de poluare 2 Max. permissible back-up fuse against short circuit 100A gL A gG Sectiune 10 mm² COD COMANDA BSB90123 Masa neta 0,80 kg/m Tinere la impuls de tensiune [Uimp] 4kV V Material E-Cu-ETP Min. air disdance ≤3,0mm Masa cupru 734,0000 gr. Unitate de ambalare 1 m. Max. current beginning 65A Min. creepage distance ≤5,0mm Standard produs EN 61439-1 PROMO CODE GER 6727-0020-12 Fabricant Schrack Temperature resistance PVC up to 80°C; PC/ABS up to 90°C °C LxTxH mm 1000x20x31 Temperatura minima a mediului ambiant -35 °C Categoria de supratensiune 3 Accesorii necesare BSA00118-- Versiune cu furca disipare 21,20 W PU 7 PROMO CODE CH 6727-0036-44 Curent nominal de scurtcircuit conditionat ≤50kA Max. current middle 100A | Lungime | 20 mm | | Inaltime | 31 mm | | Greutate | 0.8 kg |
|
|
|
|
|
