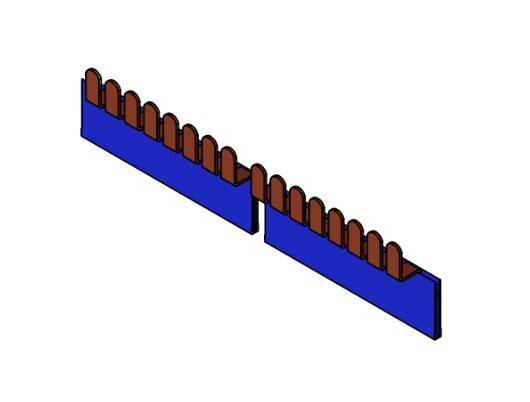

Bareta alimentare lamela N, Pin 6mm, 16mm², M=9mm, 1m
Cod produs: BSA00151--
Marca: SCHRACK TECHNIK
Pret cu TVA: 104.63 Lei / buc.
|
|
|
|
Comanda instant - Bareta alimentare lamela N, Pin 6mm, 16mm², M=9mm, 1m
|
Bareta alimentare lamela N, Pin 6mm, 16mm², M=9mm, 1m
|
|
Specificatii Tehnice Max. current middle 130A PREG 1300 Reactia la foc PV/ABS V-0 at 1,5mm according to UL94 Serie BC,BM,BO and Amparo COD COMANDA BSA00151 Versiune versiune cu pin Fara halogen Yes Temperatura maxima a mediului ambiant 70 °C Material izolatie PC/ABS(halogen-free) Tracking resistance CTI 600 Grad de poluare 2 Max. permissible back-up fuse against short circuit 100A gL A gG Tensiune nominala 400/690VAC/DC Tinere la impuls de tensiune [Uimp] 6kV V Poli 1 Min. air disdance ≥5,5mm Material E-Cu-ETP Unitate de ambalare 1 m. Min. creepage distance ≥8,0mm Standard produs EN 61439-1 Max. current beginning 80A Fabricant Schrack LxTxH mm 1012x11x36 Temperature resistance PVC up to 80°C; PC/ABS up to 90°C °C Temperatura minima a mediului ambiant -35 °C Categoria de supratensiune 3 - Sommeroffer Masa neta 0,34 kg/m PU 25 disipare 14,50 W Sectiune 16 mm² Masa cupru 341,0000 gr. Curent nominal de scurtcircuit conditionat ≤50kA Accesorii bara furca pt.sigurante automate | Lungime | 11 mm | | Inaltime | 36 mm | | Greutate | 0.34 kg |
|
|
|
|
|
