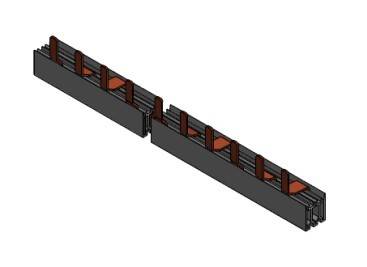

Bara lamela 3P, 1m, pt. sig. P+N/1UH, 10mm², 17.8mm
Cod produs: BSA90121--
Marca: SCHRACK TECHNIK
Pret cu TVA: 155.98 Lei / buc.
|
|
|
|
Comanda instant - Bara lamela 3P, 1m, pt. sig. P+N/1UH, 10mm², 17.8mm
|
Bara lamela 3P, 1m, pt. sig. P+N/1UH, 10mm², 17.8mm
|
|
Specificatii Tehnice PREG 1300 Reactia la foc PV/ABS V-0 at 1,5mm according to UL94 COD PROMO 0118-0035-06 Serie BC,BM,BO and Amparo Aplicatie siguranta automata, siguranta diferentiala, siguranta protecte linii (pas polar 17.8mm) LxTxH mm 1012x15x28 Masa cupru 530,0000 gr. Tensiune nominala de izolatie (Ui) ≤415V V Versiune versiune cu pin PROMO CODE CH 0118-0030-05 Fara halogen Yes Temperatura maxima a mediului ambiant 70 °C Tensiune nominala 240/415VAC/DC Material izolatie PC/ABS(halogen-free) Tracking resistance CTI 600 Descriere de baza Bare grad de protectie IP20 Grad de poluare 2 Max. permissible back-up fuse against short circuit 100A gL A gG Sectiune 10 mm² Tinere la impuls de tensiune [Uimp] 4kV V Material E-Cu-ETP Min. air disdance ≤3,0mm disipare 21,50 W Unitate de ambalare 1 m. Max. current beginning 65A Min. creepage distance ≤5,0mm Standard produs EN 61439-1 Fabricant Schrack Poli 3 Temperature resistance PVC up to 80°C; PC/ABS up to 90°C °C Temperatura minima a mediului ambiant -35 °C Categoria de supratensiune 3 COD COMANDA BSA90121 Masa neta 0,44 kg/m Curent nominal de scurtcircuit conditionat ≤50kA Max. current middle 100A Accesorii optionale BSB00303--;BSA90120--;BSA90117-A;BSA90116-A;BS990173-A;BS990172-A | Lungime | 14.5 mm | | Inaltime | 28 mm | | Greutate | 0.44 kg |
|
|
|
|
|
