Specificatii Tehnice
Temperatura de functionare
-5°C to +55°C
Harmonic content
up to the 16th harmonic
Auto consum (circuit de curent)
≤ 0.5VA (pe faza)
Current average
Integration time
Buton
4 front keys, access protected by password
Frecventa (toleranta)
± 0.15 Hz
Tipul carcasei
Pentru montaj pe panou (decupaj 92 x 92 mm)
Backlight
switches off automatically after 20 seconds without operation
PROMO CODE CH
0993-0274-76
Insulation voltage
300V (phase - neutral)
Backlight dimmable
0 - 30 - 70 - 100%
Consum de putere
< 3,5 W / ≤4VA (fara module aditionale)
Auto consum (circuit de tensiune)
≤ 0.5VA (per faza)
Nominal current (input)
5A - 1A - nur Stromwandleranschlus
Putere reactiva (toleranta)
Clasa 2 (EN62053-23)
Tip
panou frontal
Auxiliary voltage Uaux
80 ... 265VAC / 110 ... 300VDC
Programmable parameters
##
Voltage (alternating current network)
50 … 290 V
Overload (continuous)
1.2 In
Conditii de lucru
##
Descriere electrica CAD
NA96
Conexiune (curent)
max. 6mmp
Unitate de ambalare
1 m.
Tipul comunicarii
RS 232, address, baud rate, parity bit
Indicatie afisaj
4 linii / 4 digiti
Marime
96x96mm
Installation category
III
Test circuit
all circuits and ground
Depth (incl. Modules)
81 mm
Numar articol Hlief
MGF39000--
Intrare
##
Afisaj
##
Temperatura minima a mediului ambiant
-25 °C
Accesorii optionale
MGF3900A--;MGF3900B--;MGF3900B--;MGF3900E--;MGF3900I--;MGF3900L--;MGF3900M--;MGF3900P--;MGF3900R--;MGF3900S--;MG900222--;MG900225--;MG952006-A;MG952010-A;MG952025-A;MG954060-A;MG955080-A;MG957200-A;MG959300-A;MG959400-A
COD COMANDA
MGF39000
LxBxH mm
76x92x92
Current (tolerance)
± 0.5% (10...120% In)
Frecventa de lucru
47…63 Hz
Simbol CAD
P
Mains type
1 - phase or 3 / 4 - phase connection
Isolation test voltage
4 kV R.M.S. 50 Hz/1min
Rated frequency
50 Hz
Power (tolerance)
± 1% (10...120% Pn, Qn,Sn)
Measuring cycle time
1,10 s
Materialul carcasei
Policarbonat, cu autostingere
Programming
##
Integration time
adjustable 5/8/10/15/20/30/60 minutes
COD PROMO
0993-0178-71
PREG
2330
Carcasa
##
disipare
6,00 W
Average current
##
Rama frontala
96 x 96mm mm
Relay
Assignment of measured variable, switching threshold, min or max, NO or NC, hysteresis, response delay, dropout delay
Precizie
##
Frecventa de lucru (tensiune auxiliara)
47 ... 63 Hz
Immunity test
according to EN 62052-11
Terminale externe CAD
1
Voltage (three-phase network)
80 ... 500 V (phase-phase)
Compatibilitate electromagnetica
##
Conexiune
Clema cu surub
Pastrare date
pastrarea datelor intr-o memorie non-volatila
Overload (short-time)
20 In / 0.5 seconds
Temperatura maxima a mediului ambiant
70 °C
Grad de poluare
2

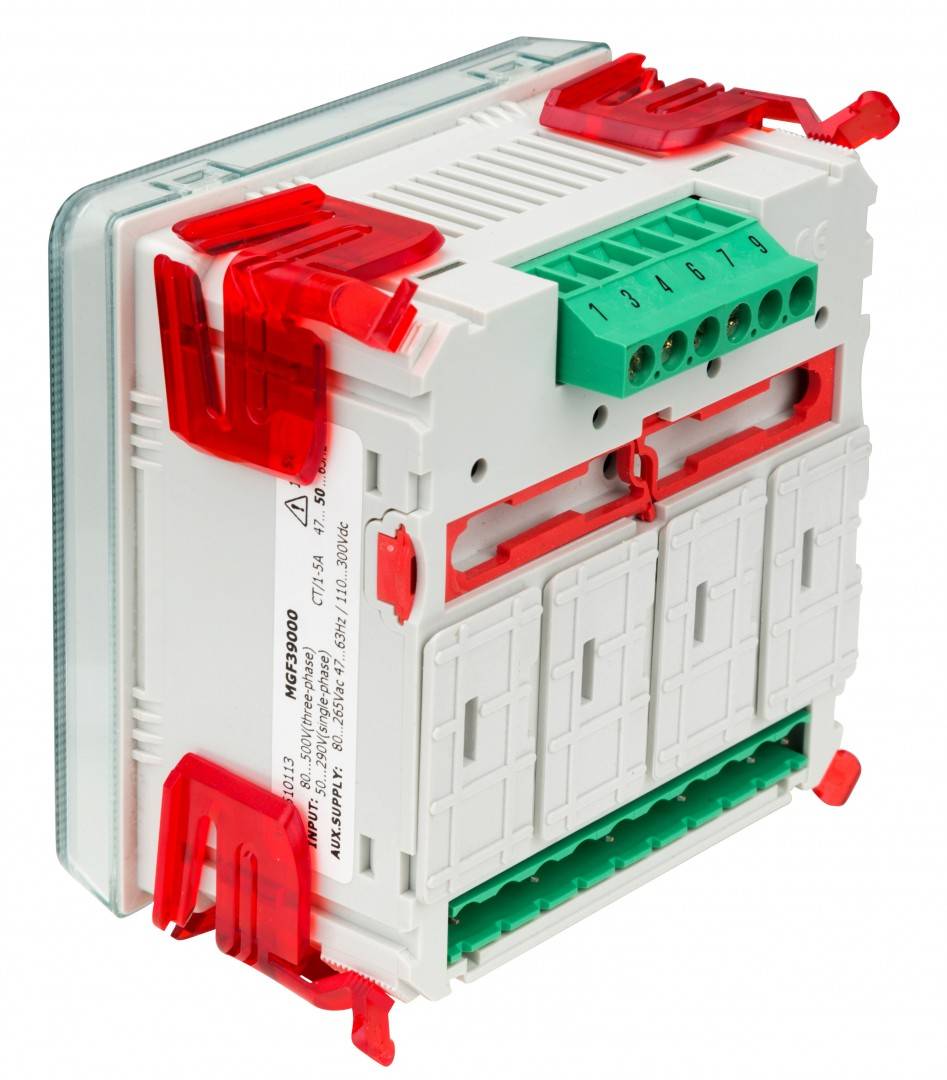

DESCRIERE2

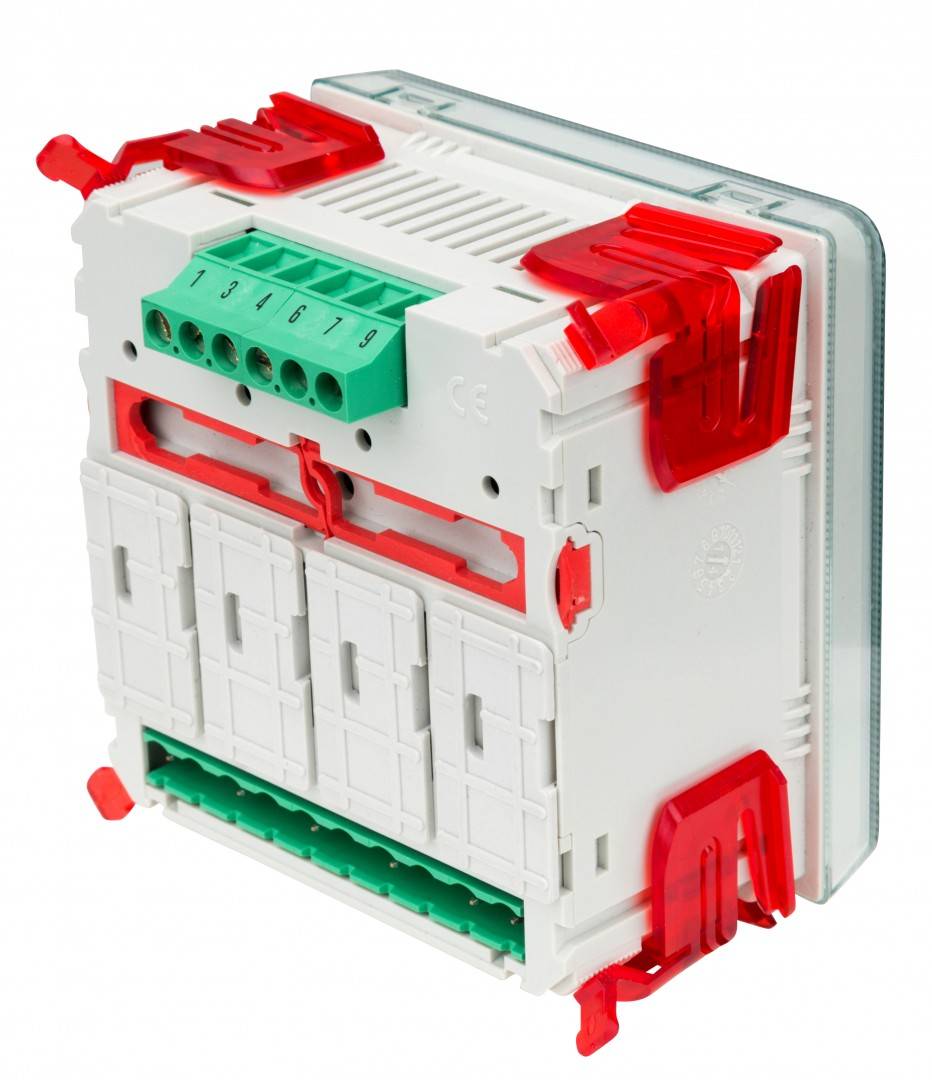

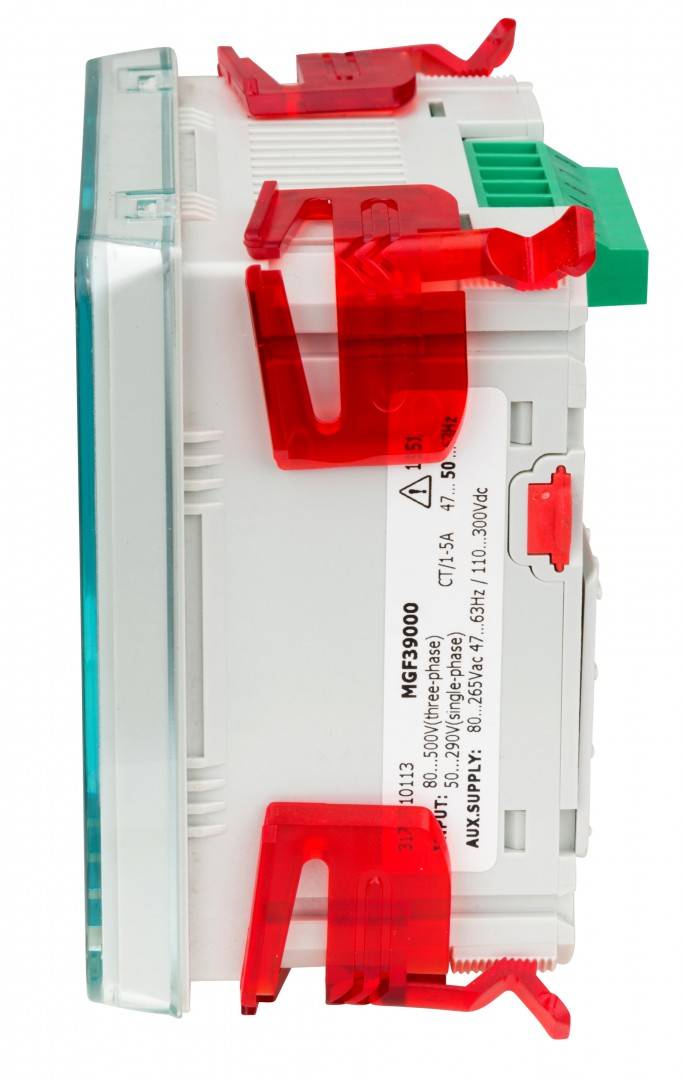

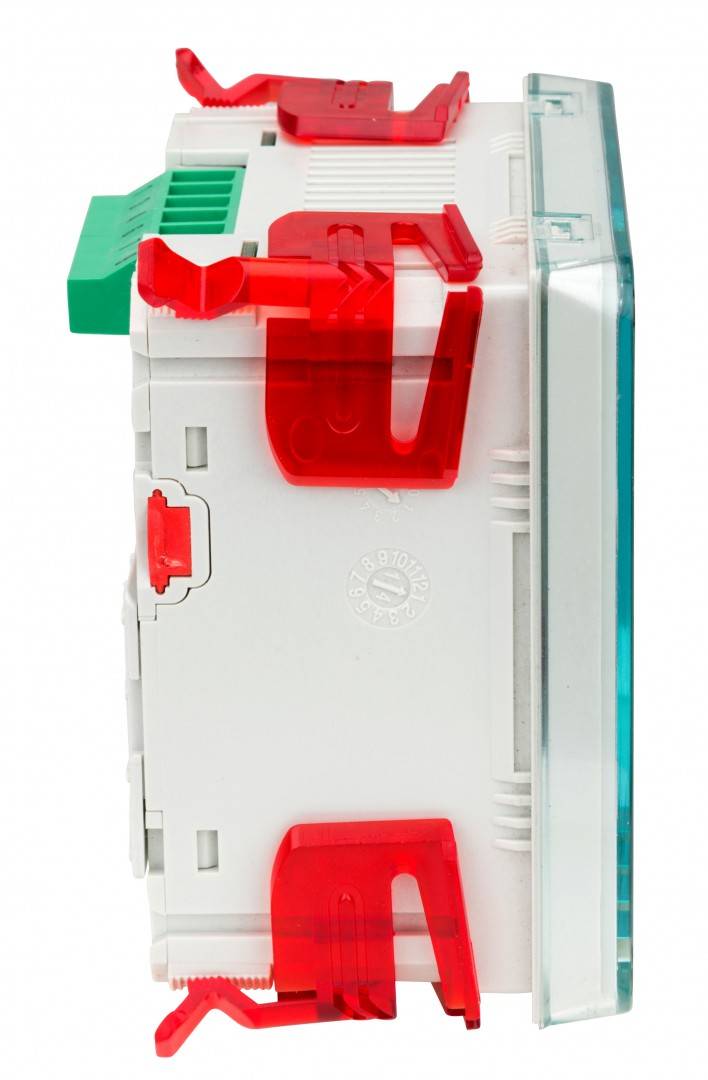

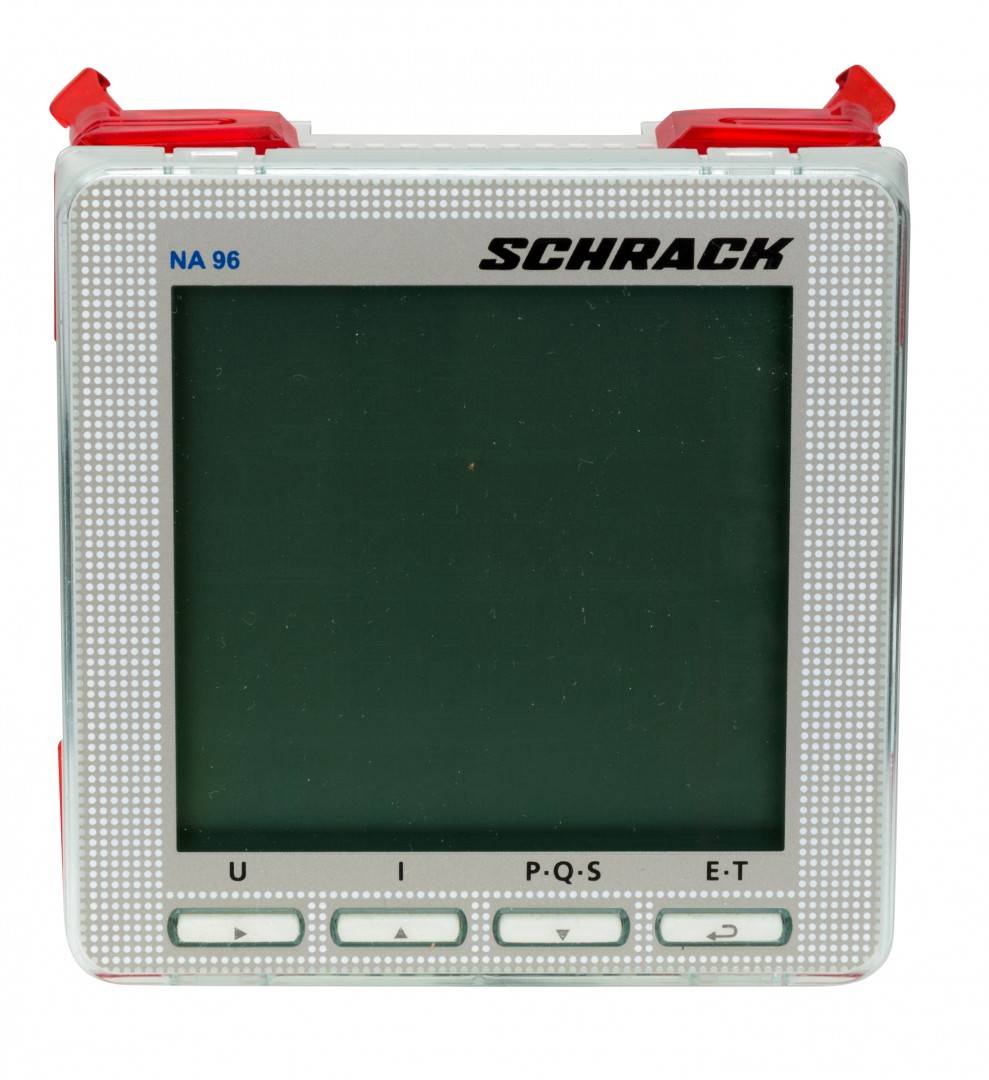

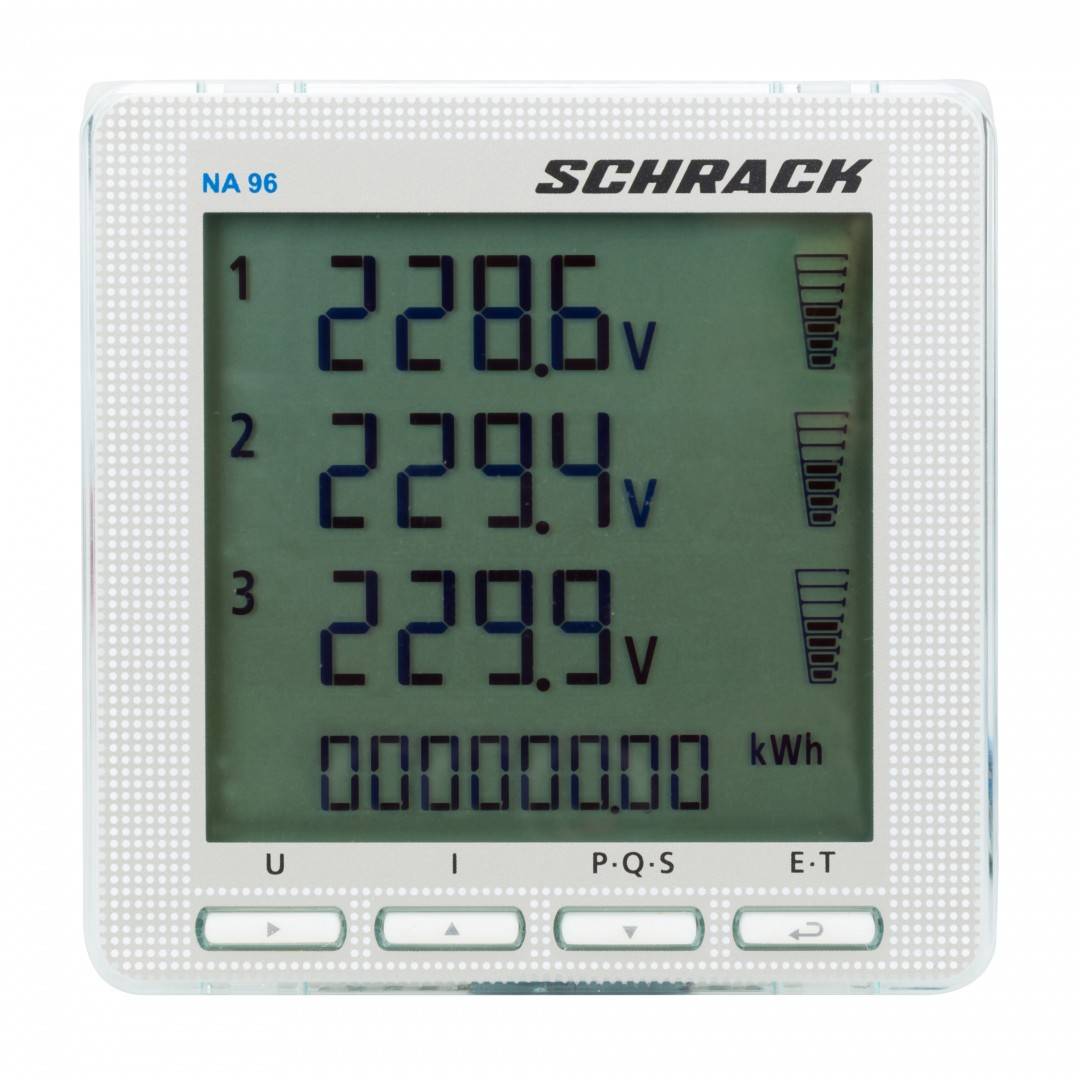

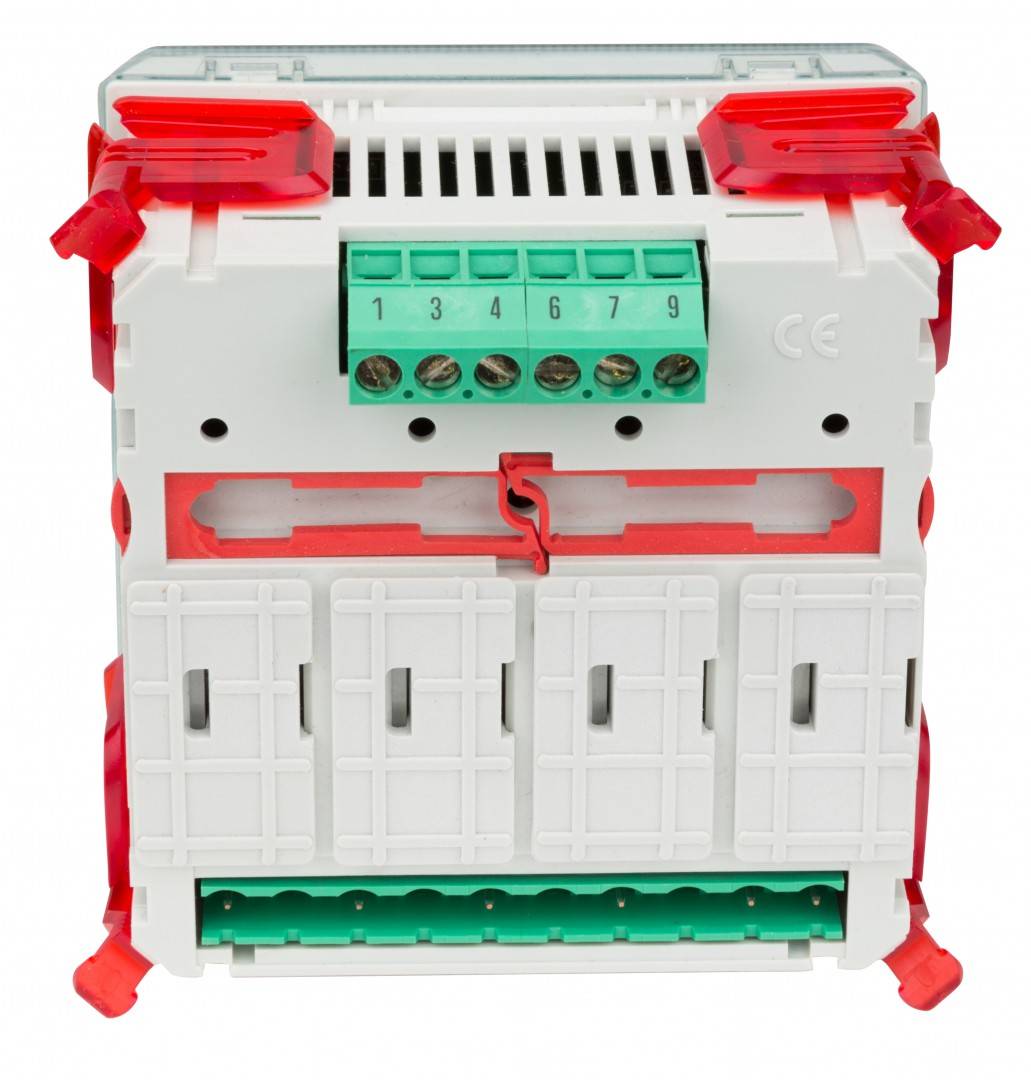

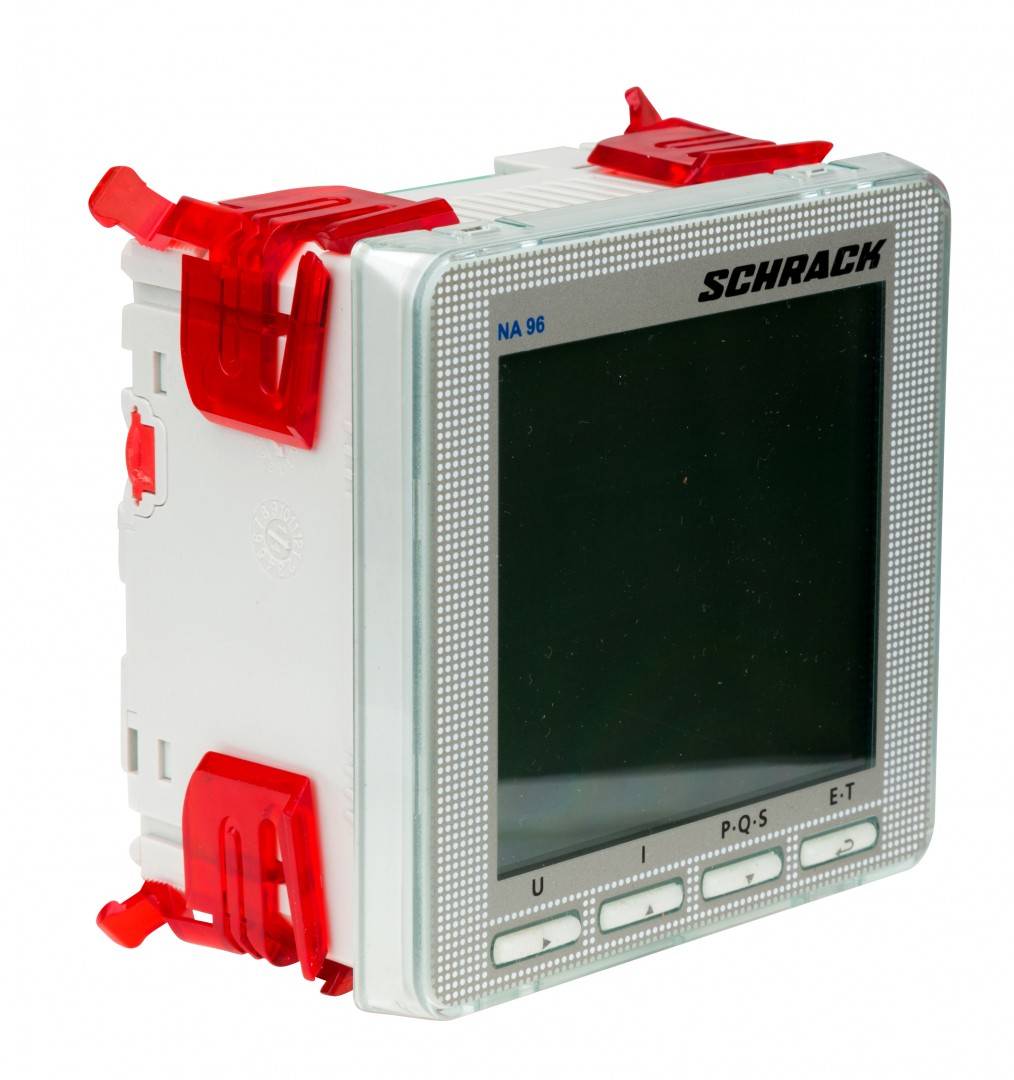

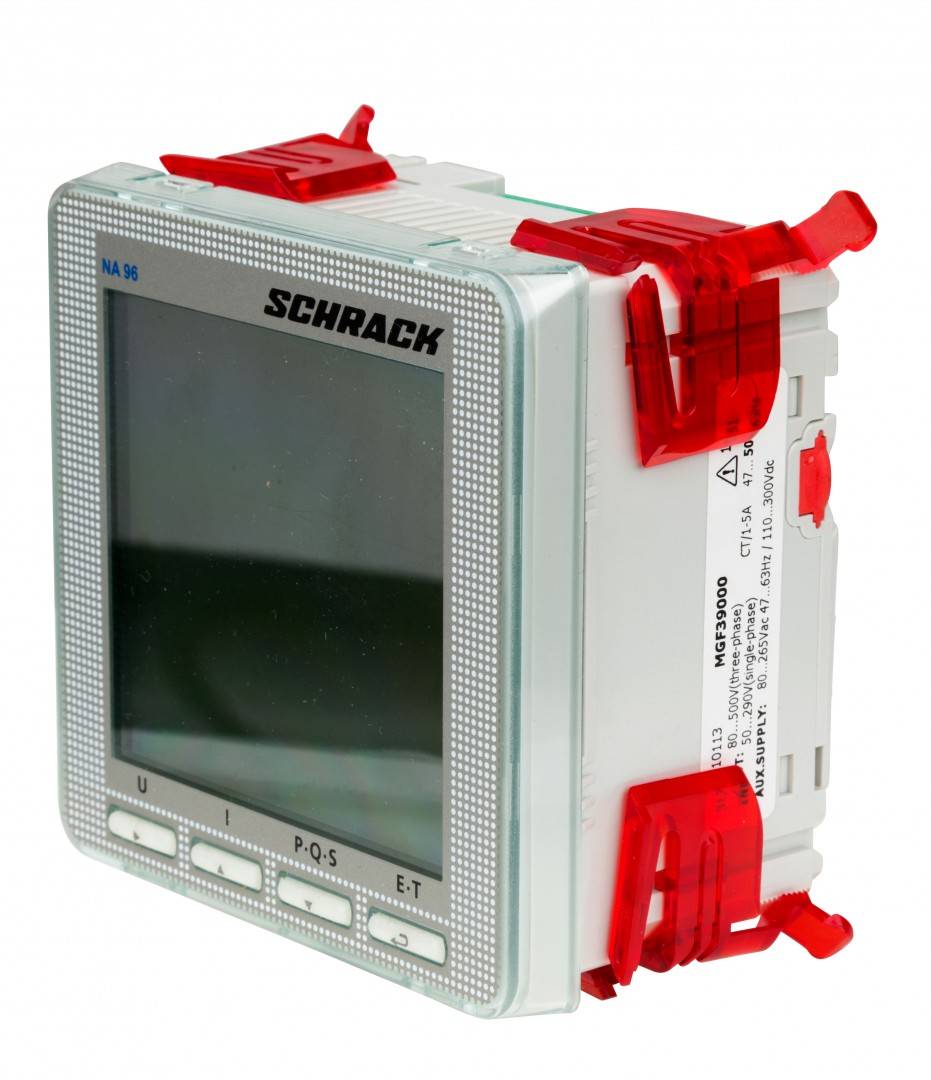

Analizor de retea NA96, aparat de baza
Functie
Analizor de retea
Auxiliary voltage
##
Test emisii
conform cu EN 62052-11
Reference temperature
23 ± 2 °C
Pulse value
Active or reactive energy, valence, pulse duration
Gama de temperatura - Transport/Depozitare
-25 to +70 °C
PROMO CODE GER INDUSTRY
0993-00166-89
Afisaj
Ecran LCD cu iluminare de fundal
Influenta temperaturii
≤ 0,1% / °C °C
Voltage (tolerance)
± 0.5% (80...500 V phase - phase)
Fabricant
Schrack
Adancime
62 mm
grad de protectie
IP54 (front), IP20 (connections)
Masa neta
0,29 kg/m
Primary currents (A)
1 ... 9999 (max. primary current 50kA / 5A - 10kA / 1A)
metoda de masurare
conversie valoarea efectiva adevarata
Rated frequency (auxiliary voltage)
50 Hz
Conexiune (tensiune)
max. 4mmp
Tip retea
1 - phase or 3 / 4 - phase connection
Real energy (tolerance)
Class 1 (62053-21)
Primary voltage (V)
1 ... 10 (max. primary voltage 1200V)
| Lungime | 76 mm |
| Latime | 92 mm |
| Inaltime | 92 mm |
| Greutate | 0.29 kg |
