Specificatii Tehnice
Temperatura de functionare
-5°C to +55°C
Pastrare date
intr-o memorie non-volatila (fara baterie)
Tip conexiune
Numai in conexiune cu trafo extern de curent care are intrari;un punct comun
Harmonic content
up to the 16th harmonic
Immunity test
according to EN 61000-6-2
Umiditate relativa
0 … 95% %
Nominal current (input)
In 5A oder 1 A
Current average
Integration time, reset of the maximum value
Auto consum (circuit de curent)
≤ 0.5VA (pe faza)
Voltage (tolerance)
± 0,5% (80...450 V phase - phase)
Valori afisate
Afisarea valorilor tensiunilor de linie si de faza;Conductor de faza si de nul;Frecventa;Curent mediu;Ore de functionare (ore si minute);Valoare maxima a curentului mediu
Tip
panou frontal
Programmable parameters
##
Overload (continuous)
1.2 In
Conditii de lucru
##
Unitate de ambalare
1 m.
Indicatie afisaj
4 linii / 4 digiti
Marime
96x96mm
Contor de ore de functionare
Reset
Test emisii
conform cu EN 61000-6-3
Installation category
III
alimentare
din circuitul de masura (autoalimentare)
Primary currents (A)
5, 10, 15, 20, 25, 30, 40, 50, 60, 70, 75, 80, 100, 120, 125, 150, 160, 200, 250, 300, 400, 500, 600, 700, 750, 800, 1000, 1200, 1250, 1500, 1600, 2000, 2500, 3000, 3200, 4000, 5000, 6000, 7000, 7500, 8000 A
Programming access
Key combination
PROMO CODE GER INDUSTRY
6385-00116-80
Test circuit
all circuits and ground
Frecventa (toleranta)
± 0.2 Hz
Intrare
##
Afisaj
##
Temperatura minima a mediului ambiant
-25 °C
Tip retea
Alternating current network - three-phase network (4-wire)
Current (tolerance)
± 0.5% (10...120% In)
Frecventa de lucru
47…63 Hz
Simbol CAD
P
Isolation test voltage
4 kV R.M.S. 50 Hz/1min
Rated frequency
50 Hz
Insulation voltage
660 V
Tipul carcasei
Pentru montaj pe panou (decupaj 68 x 68 mm)
Programming
##
COD COMANDA
MGF37000
COD PROMO
6385-0124-67
Integration time
adjustable 5/8/10/15/20/30/60 minutes
PREG
2330
Carcasa
##
Buton
via 2 keys
Average current
##
Conexiune (curent)
Conductor (flexibil) min. 0,05mmp / max. 2,5mmp;Conductor (masiv) min. 0,05mmp / max. 4mmp
Precizie
##
Reset
manually via keys
Terminale externe CAD
1
Indicatie in display
Curent mediu si valoarea sa maxima
Compatibilitate electromagnetica
##
Conexiune (tensiune)
Conductor (masiv) min. 0,05mmp / max. 4mmp;Conductor (flexibil) min. 0,05mmp / max. 2,5mmp
Numar articol Hlief
MGF37000--
Overload (short-time)
20 In / 0.5 seconds
Temperatura maxima a mediului ambiant
70 °C
Mains type
Alternating current network and 4-wire three-phase network
Voltage (three-phase network)
340...450 V (phase-phase)
Grad de poluare
2
Adancime
75 mm
Auto consum (circuit de tensiune)
≤ 1VA (per faza)

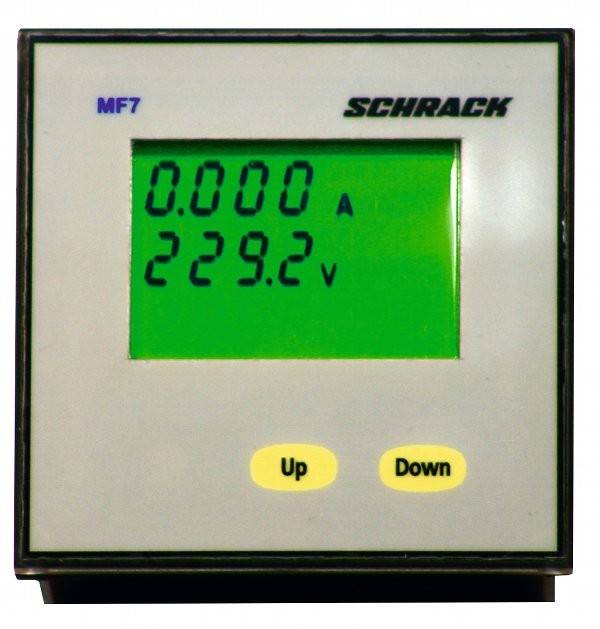

Functie
Analizor de retea
Rama frontala
72 x 72mm mm
Auxiliary voltage
##
Neutral current (tolerance)
± 2% %
Reference temperature
23 ± 2 °C
Gama de temperatura - Transport/Depozitare
-25 to +70 °C
Afisaj
Ecran LCD cu iluminare de fundal
Influenta temperaturii
≤ 0,1% / °C °C
Fabricant
Schrack
disipare
5,50 W
Isolation
Insulation according to EN 60439-1
Voltage (alternating current network)
195...260 V
grad de protectie
IP54 (front), IP20 (connections)
Masa g
250
Calculatie
Valoare medie a curentului si puterii active pe intervalul de timp setat
Descriere electrica CAD
MF7
metoda de masurare
conversie valoarea efectiva adevarata
LxBxH mm
90x75x75
PROMO CODE CH
6385-0192-32
Masa neta
0,25 kg/m
Materialul carcasei
Macrolon, cu autostingere
| Lungime | 90 mm |
| Latime | 75 mm |
| Inaltime | 75 mm |
| Greutate | 0.25 kg |
