Specificatii Tehnice
Temperatura de functionare
-5°C to +55°C
Pastrare date
intr-o memorie non-volatila (fara baterie)
Harmonic content
up to the 16th harmonic
Immunity test
according to EN 61000-6-2
Umiditate relativa
0 … 95% %
Masa neta
0,03 kg/m
Current average
Integration time, reset of the maximum value
PROMO CODE CH
8668-0149-24
Measuring cycle time
1,20 s
Auto consum (circuit de curent)
≤ 0.5VA (pe faza)
Voltage (tolerance)
± 0,5% (80...450 V phase - phase)
Power (tolerance)
± 1,5% (10...120% cosϕ 0,5 ind...0,5kap.)
Backlight
switches off automatically after 20 seconds without operation
Auxiliary voltage Uaux
230 - 240 V
Valori afisate
Afisarea valorilor tensiunilor de linie si de faza;Conductor de faza si de nul;Frecventa;Curent mediu;Ore de functionare (ore si minute);Valoare maxima a curentului mediu
Programmable parameters
##
DIN rail
TH35-15 (EN60715)
Voltage (alternating current network)
50...350 V
Overload (continuous)
1.2 In
Conditii de lucru
##
Nominal current (input)
5A
Unitate de ambalare
1 m.
COD PROMO
8668-0097-23
Tip conexiune
Numai in conexiune cu trafo extern de curent care are intrari;un punct comun (conexiune 3 - 6 - 9))
Contor de ore de functionare
Reset
Test emisii
conform cu EN 61000-6-3
Installation category
III
Primary currents (A)
5, 10, 15, 20, 25, 30, 40, 50, 60, 70, 75, 80, 100, 120, 125, 150, 160, 200, 250, 300, 400, 500, 600, 700, 750, 800, 1000, 1200, 1250, 1500, 1600, 2000, 2500, 3000, 3200, 4000, 5000, 6000, 7000, 7500, 8000 A
Programming access
Key combination
Test circuit
all circuits and ground
Frecventa (toleranta)
± 0.2 Hz
Intrare
##
Afisaj
##
Tip retea
Alternating current network - three-phase network (4-wire)
Current (tolerance)
± 0.5% (10...120% In)
Frecventa de lucru
47…63 Hz
Simbol CAD
P
Isolation test voltage
4 kV R.M.S. 50 Hz/1min
Conexiune (curent)
Conductor (masiv) min. 0,05mmp / max. 4mmp;Conductor (flexibil) min. 0,05mmp / max. 2,5mmp
Rated frequency
50 Hz
Temperatura minima a mediului ambiant
-40 °C
Insulation voltage
660 V
COD COMANDA
MGR30000
Numar articol Hlief
MGR30000--
PROMO CODE GER INDUSTRY
8668-00090-67
Indicatie afisaj
10.000 puncte (4 digiti)
Materialul carcasei
Policarbonat, cu autostingere
Programming
##
Integration time
adjustable 5/8/10/15/20/30/60 minutes
PREG
2330
Masa g
260
Carcasa
##
Buton
via 2 keys
Average current
##
Rezolutie
automat, cu numar maxim de zecimale
Precizie
##
Reset
manually via keys
Frecventa de lucru (tensiune auxiliara)
47 ... 63 Hz
Terminale externe CAD
1
Descriere electrica CAD
MF7-45
Indicatie in display
Curent mediu si valoarea sa maxima
Compatibilitate electromagnetica
##
Toleranta
0,85...1,1Uaux
Tipul carcasei
4 Module DIN 43880 (71.2 mm latime)
Conexiune (tensiune)
Conductor (masiv) min. 0,05mmp / max. 4mmp;Conductor (flexibil) min. 0,05mmp / max. 2,5mmp
Overload (short-time)
20 In / 0.5 seconds
Metoda de montaj
Montare cu inclichetare pentru sina 35 mm
Temperatura maxima a mediului ambiant
70 °C
Mains type
Alternating current network and 4-wire three-phase network
Grad de poluare
2
Auto consum (circuit de tensiune)
≤ 1VA (per faza)
Voltage (three-phase network)
80...600 V (phase-phase)
Functie

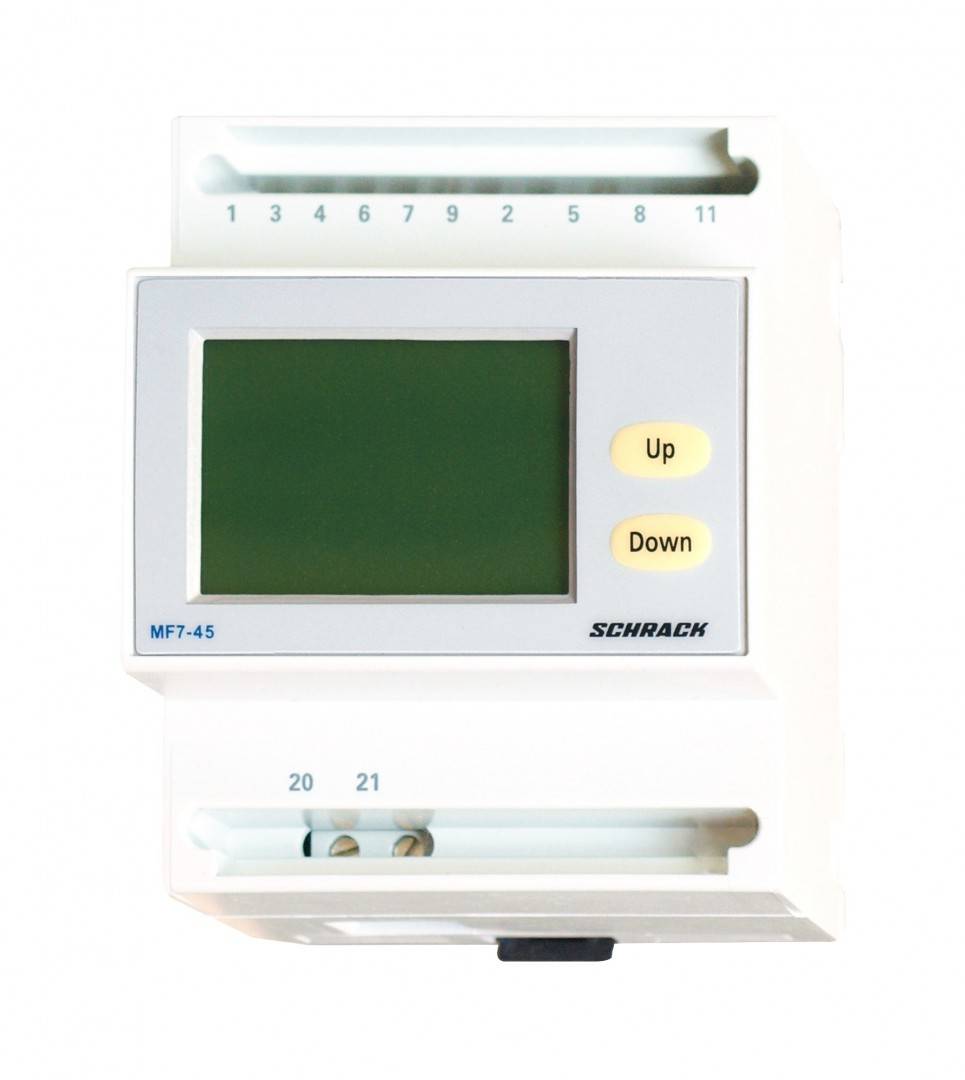

Analizor de retea
Auxiliary voltage
##
Neutral current (tolerance)
± 2% %
LxBxH mm
77x107x95
Tip
Modular 45mm
Reference temperature
23 ± 2 °C
Gama de temperatura - Transport/Depozitare
-25 to +70 °C
Afisaj
Ecran LCD cu iluminare de fundal
Influenta temperaturii
≤ 0,1% / °C °C
Consum de putere
≤ 5 VA – 2,5 W
Fabricant
Schrack
Measured variable unit
automatic, depending on the setting of the transformer primary current
Isolation
Insulation according to EN 60439-1
grad de protectie
IP54 (front), IP20 (connections)
Calculatie
Valoare medie a curentului si puterii active pe intervalul de timp setat
metoda de masurare
conversie valoarea efectiva adevarata
disipare
8,00 W
Rated frequency (auxiliary voltage)
50 Hz
| Lungime | 77 mm |
| Latime | 107 mm |
| Inaltime | 95 mm |
| Greutate | 0.03 kg |
